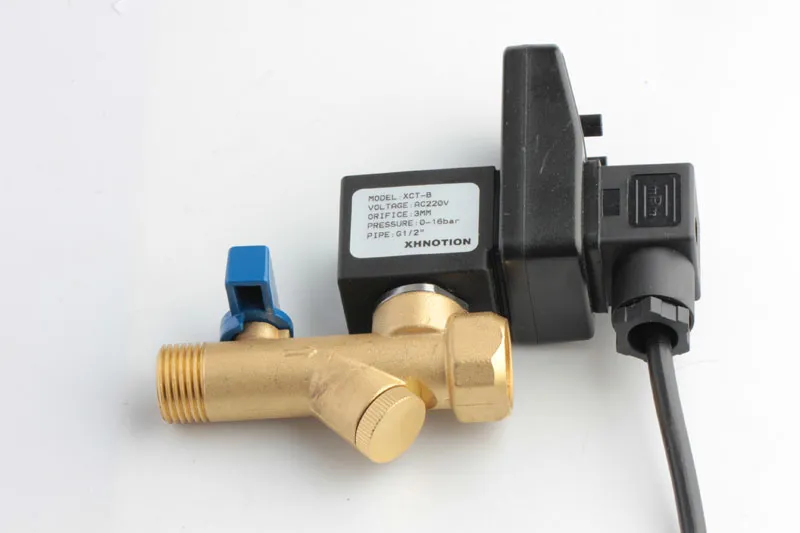

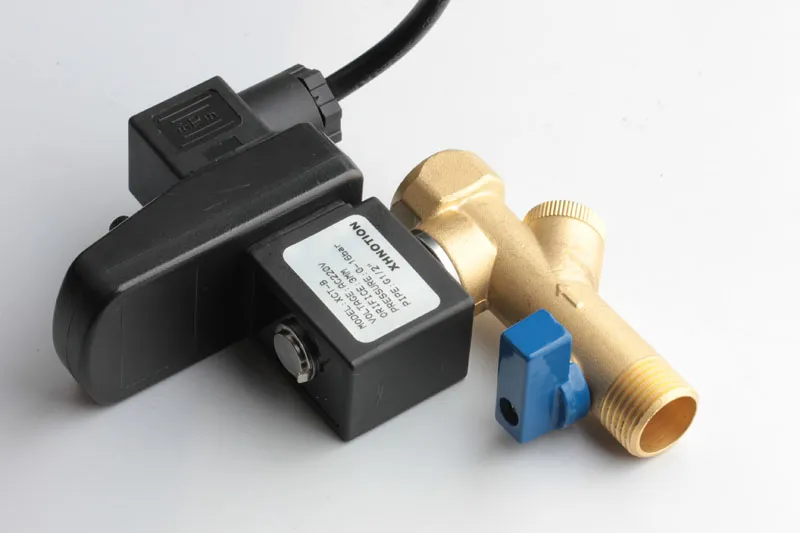

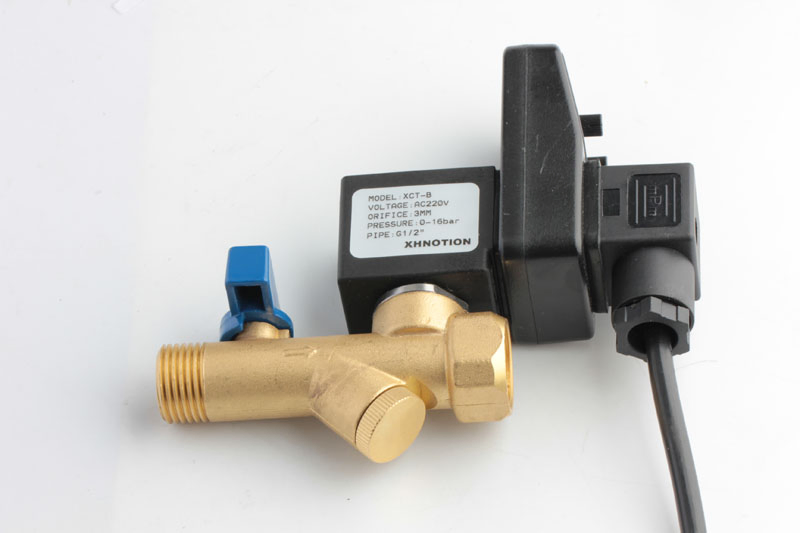

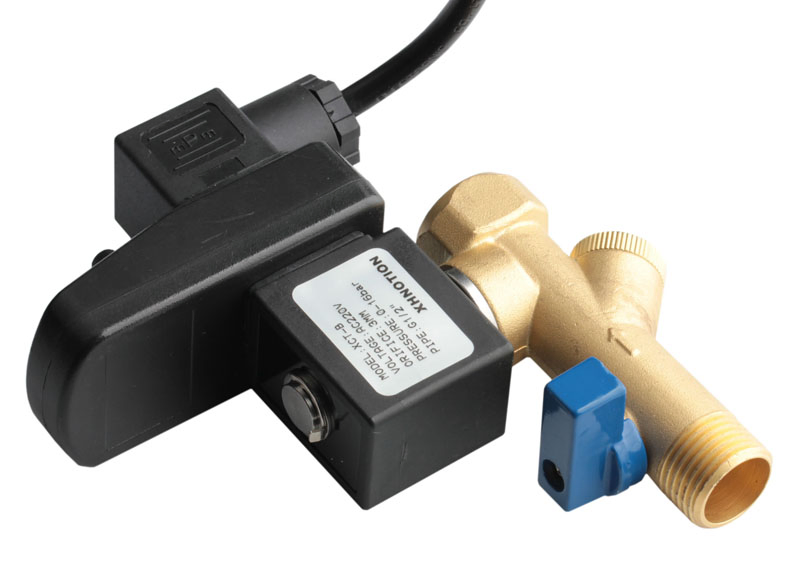

Product Description
Features
- Automatically run and free maintenance.
- Suitable for automatically drain of condense water in many occasions and irrigation system.

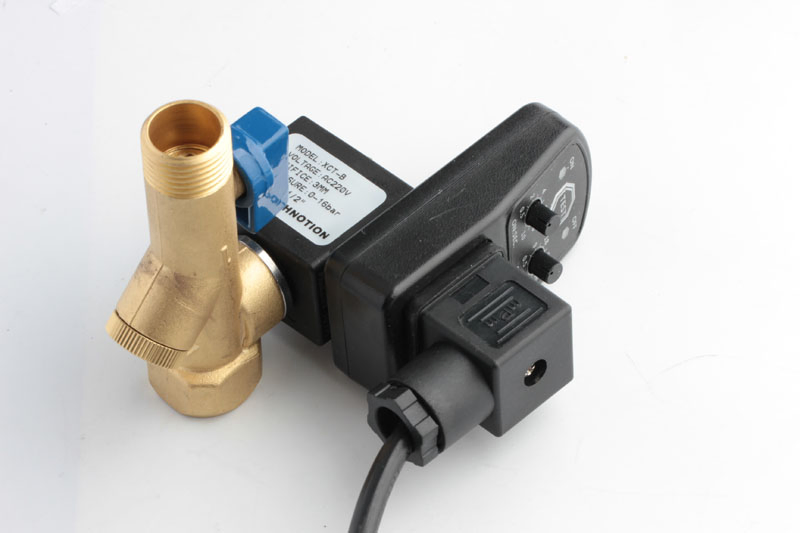

- Drain time and interval time is adjusted with test button.
- Filter ball valve can be installed before drain valve to avoid the block.
- Orifice: 3mm, Max pressure: 16 Bar.
- Conforming to CE certificate and the coil reach IP65 protection grade.
Technical Specification
| Product Name | Timer Drain Solenoid Valve |
|---|
| Model | XCT-B |
|---|
| Type | 2/2 Direct Acting |
|---|

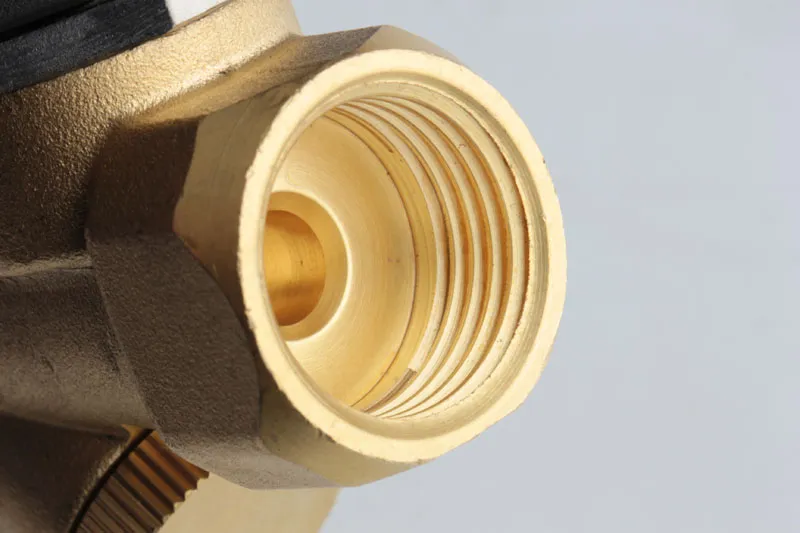

| Port Size | 1/2" 3/8" or 1/4" BSP |
|---|
| Max Working Pressure | 0-10 Bar or 0-16 Bar |
|---|
| Ambient Temperature | 0ºC ~55ºC |
|---|
| Max Medium Temperature | 80ºC |
|---|
| Valve Body Material | Brass (stainless steel available upon request) |
|---|
| Protection Grade | IP65 |
|---|
| Voltage Range | +/-10% |
|---|
| Mounting Position | Any position |
|---|

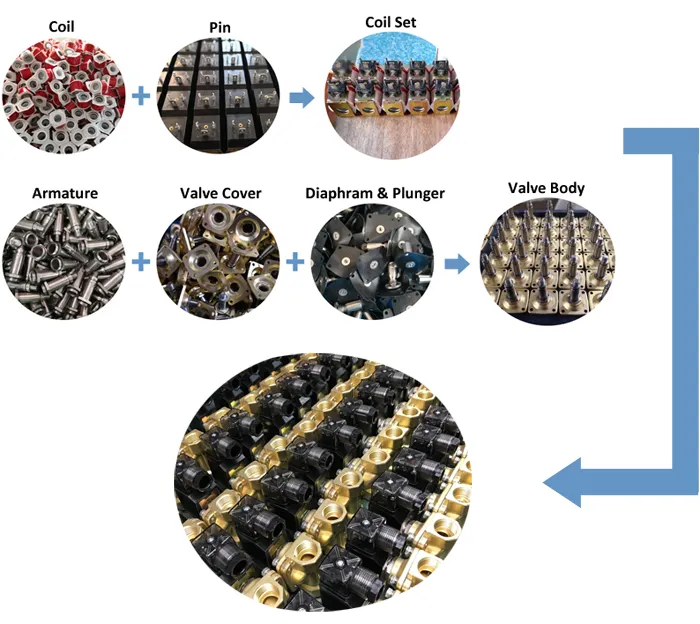

Process & Operation
Core Advantages
- Raw Material conforms to industry standards, sourced from reputable factories.
- Insulation grade: H class, excellent resistance to high temperatures.
- Machined by precision CNC to ensure exact tolerances.
- 100% leakage testing under both low and high pressure.
- Variety of valve and seal materials to meet custom requirements.
- Comprehensive after-sales technical support.
Packing & Shipping
Packing Details:
Standard Plastic Box / Color Box + Outer Carton Box. Custom packaging options are available upon request.
Shipping Information:
Methods: Air, Sea, or Courier (TNT, UPS, DHL, FedEx, SF Express).
Delivery: Typically 3 to 30 days depending on order volume.
Frequently Asked Questions
What is the primary function of the Timer Drain Solenoid Valve?
It is designed to automatically discharge condensate water from compressed air systems, irrigation systems, and other industrial applications without manual intervention.
Can I adjust the time intervals for draining?
Yes, the drain time and the interval time between cycles are fully adjustable using the integrated test and adjustment buttons on the timer unit.
What is the protection level of the valve for outdoor use?
The valve coil is rated at IP65 protection grade, making it dust-tight and protected against water jets, suitable for various industrial environments.
What port sizes are available for the XCT-B series?
The standard port sizes available are 1/2", 3/8", and 1/4" BSP threads to suit different piping requirements.
What materials are used for the valve body?
The standard valve body is made of high-quality Brass. Stainless steel bodies are also available upon special request for corrosive environments.
Does the valve require special maintenance?
The valve is designed for maintenance-free operation. However, we recommend installing a filter ball valve before the drain to prevent debris from blocking the orifice.
