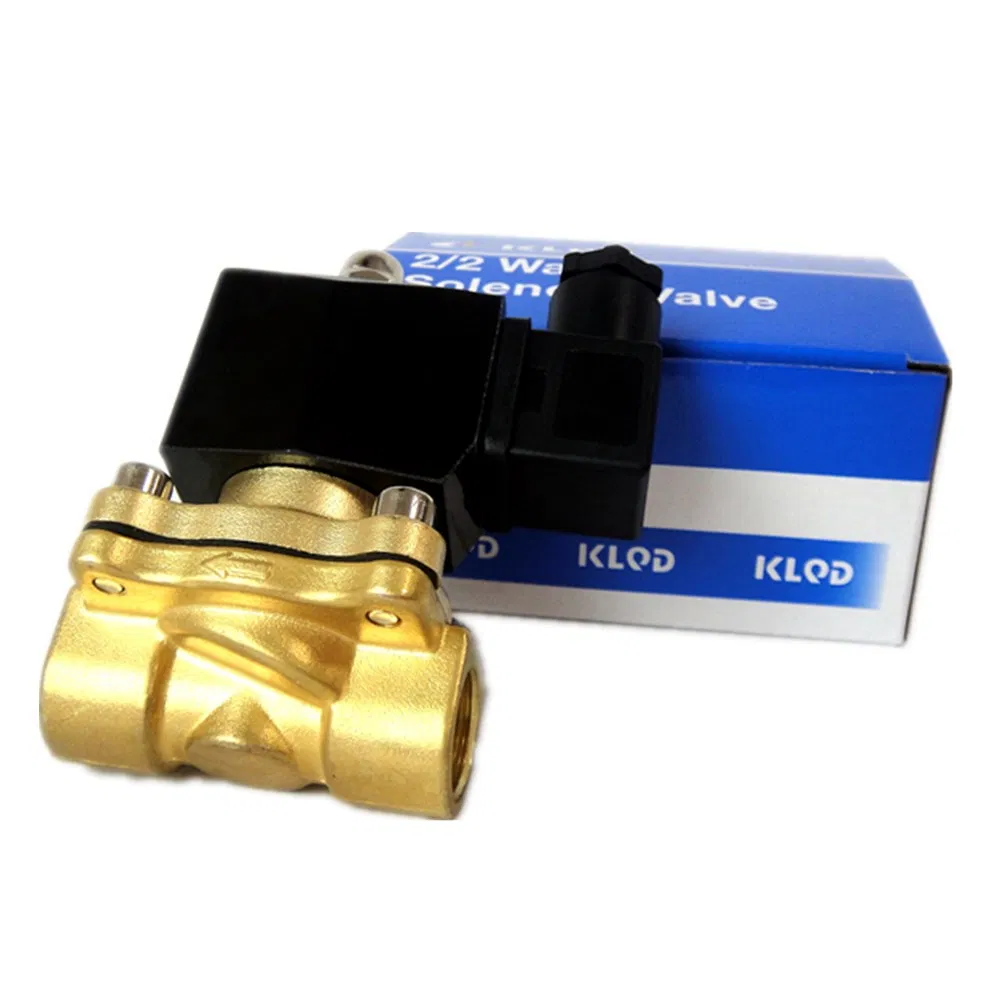

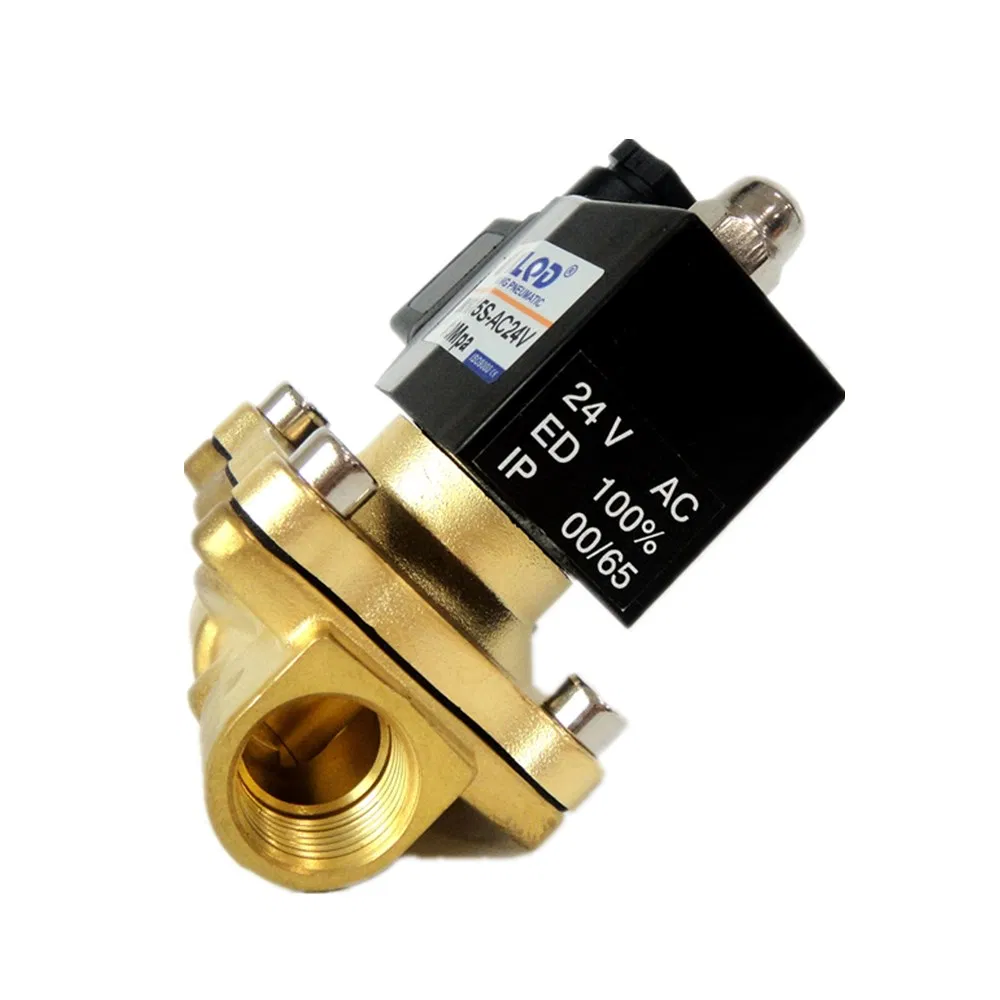

Ningbo Manufacturer Hot Sales Direct Acting AC24V Water Solenoid Valve

1 / 5

Ningbo Manufacturer Hot Sales Direct Acting AC24V Water Solenoid Valve

Customization:	Available
Actuator:	Electric
Connection Form:	Thread

Send Inquiry

Product Description

Basic Information

Model NO.

2W160-15S

Type

Direct Acting

Material

Brass

Pressure

Ordinary Pressure

Valve Structure

Direct-Acting Piston Structure

Power Supply

AC Solenoid Valve

Usage

Flow Control

Standard

Application

Water Industrial Usage

Certification

ISO9001, CE, RoHS

Thread

G, PT, NPT, BSPP

Port Size

3/8" ~ 2"

Product Showcase

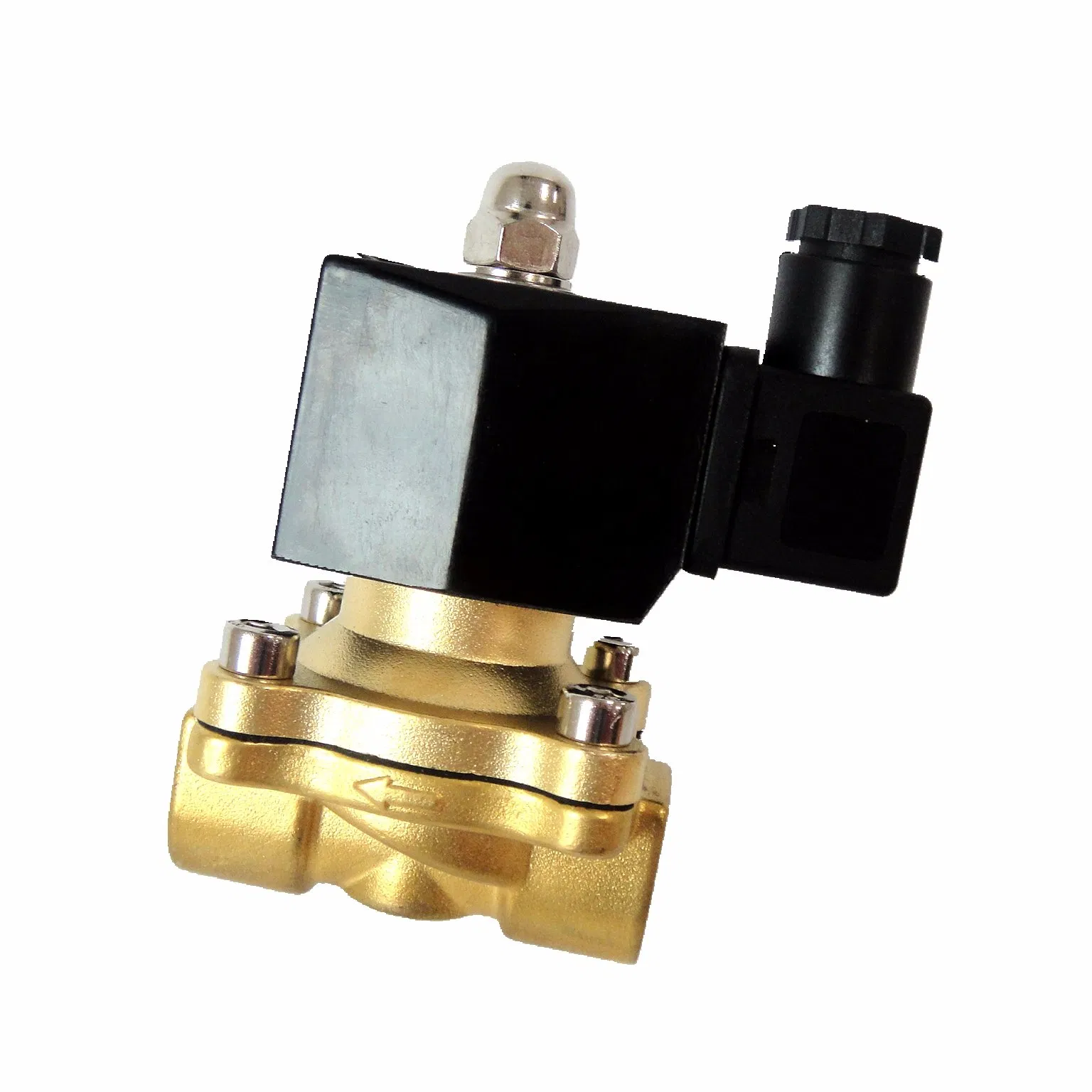

2W160-15S IP65 NC Type Brass 1/2 Size AC220V Water Solenoid Valve

This is a direct action type two-position two-way solenoid valve. It adopts a diaphragm seal structure with zero differential pressure starting function, featuring a handsome shape and large flow capacity. It is an essential switch element commonly used in modern industrial pipelines.

Technical Specifications

Model	2W160-15	Working Medium	Air, Water, Oil, Gas
Operation	Direct Acting	Acting Type	Normally Closed
Orifice Size (mm)	20	CV Value	4.8
Port Size	1/2″	Fluid Viscosity	Below 20 CST
Operating Pressure	Air: 0~1.0Mpa, Water: 0~0.7Mpa	Max Resistance	1.0Mpa
Operating Temperature	NBR: -5~80°C / VITON: -5~150°C	Voltage Range	±10%
Material of Body	Brass	Material of Oil Seal	NBR or VITON

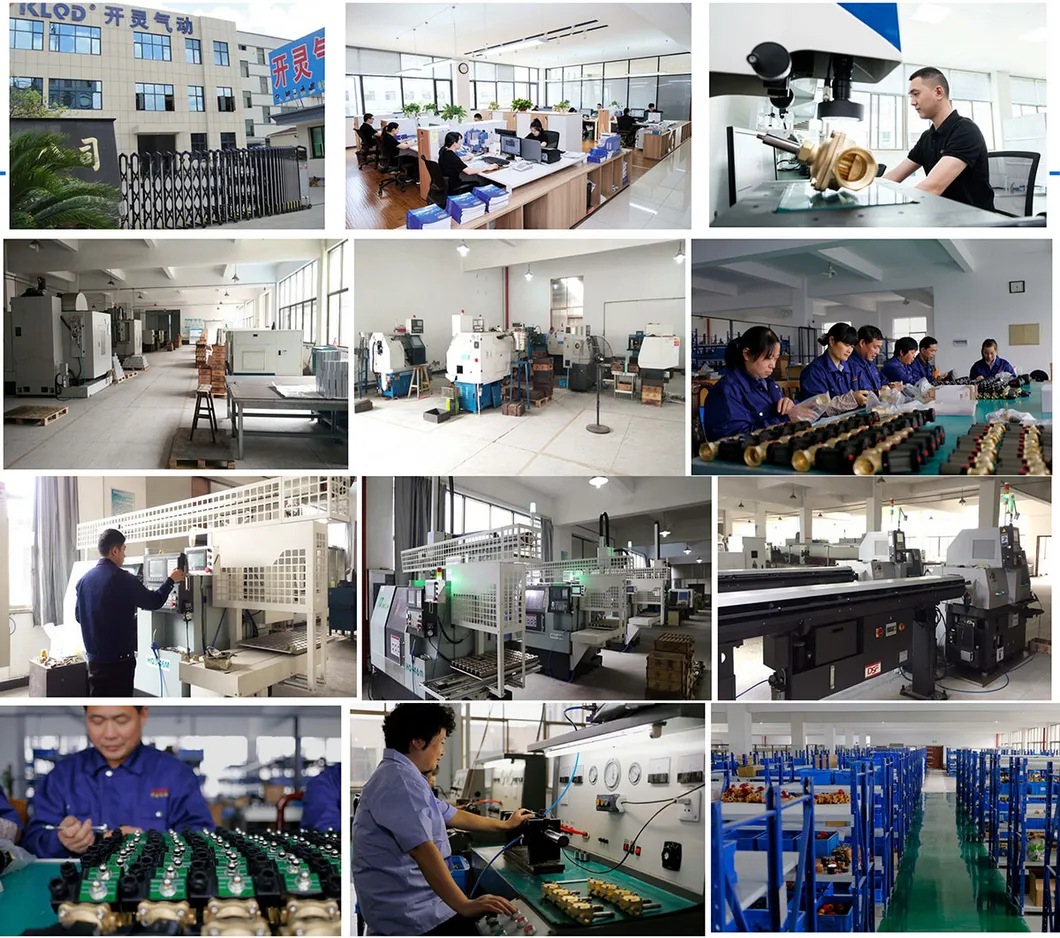

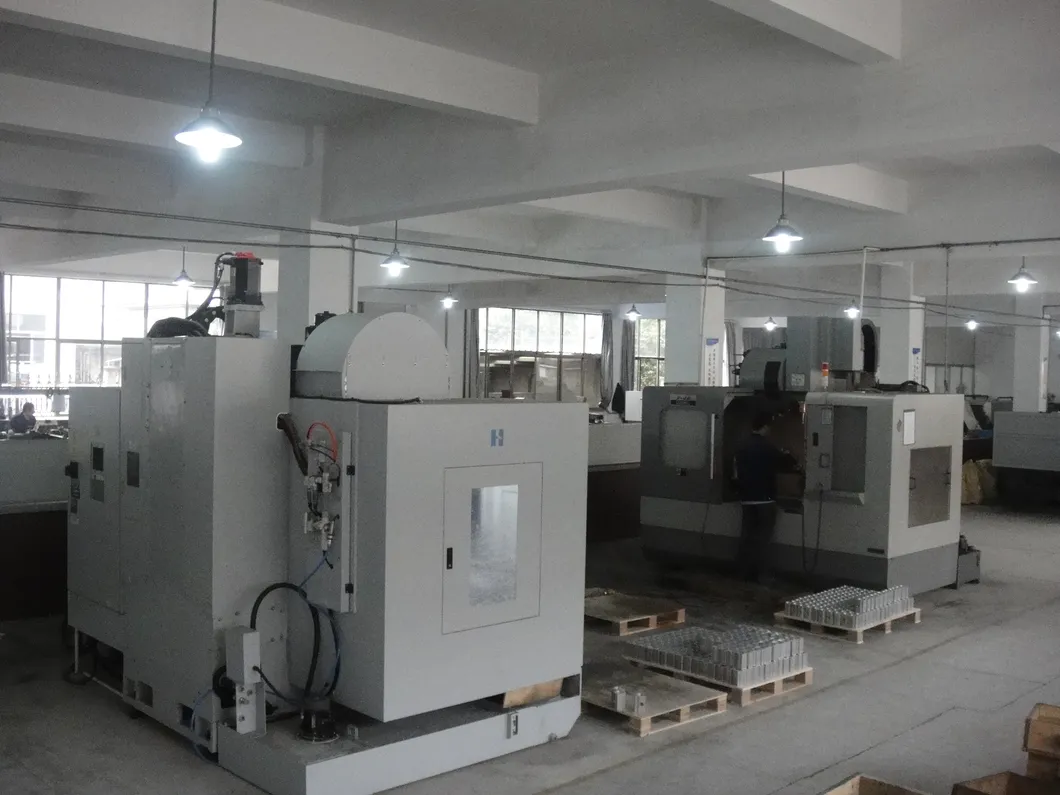

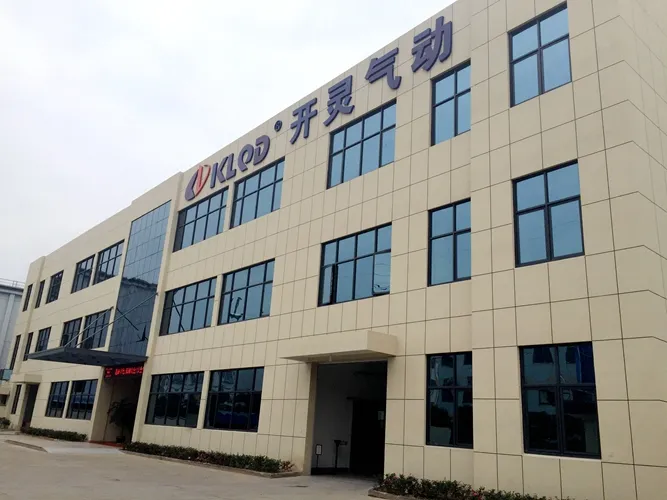

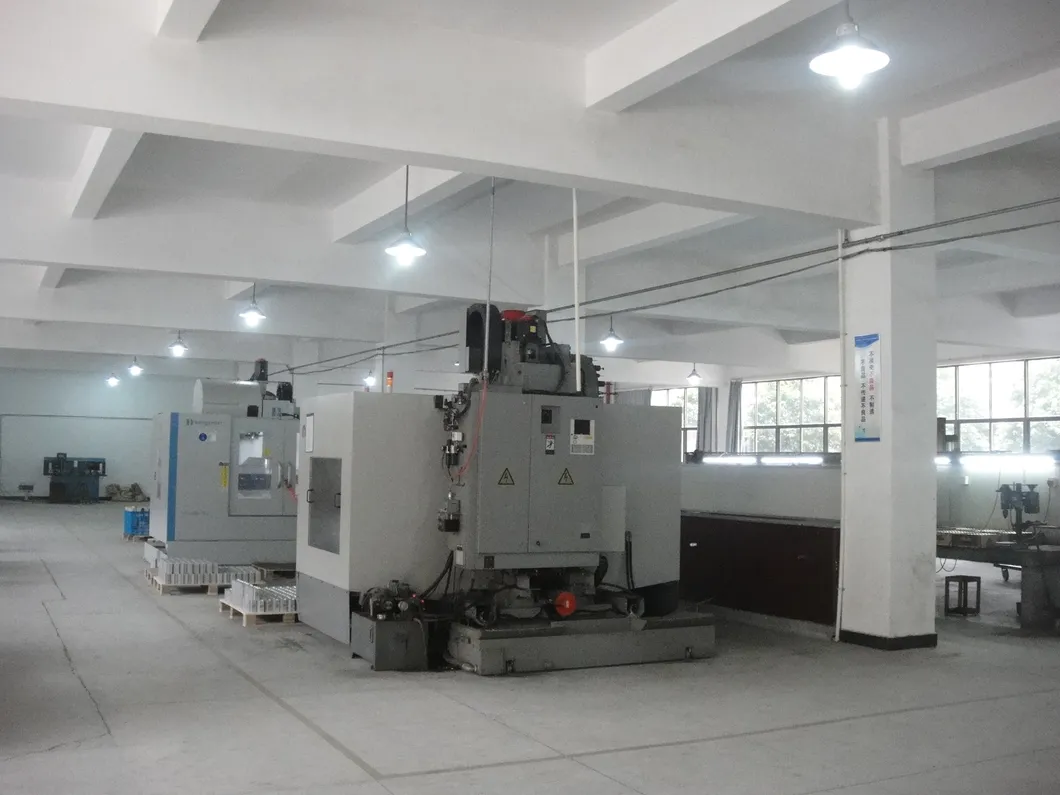

Manufacturing Expertise

About 20 years of professional manufacturing and export experience.
Main specialized products: Solenoid Valve, Actuator, Air cylinder, and Air source treatment.
Expert packing to ensure maximum product protection during shipment.
OEM services and sample orders are accepted.
100% quality testing conducted before final packing.
Short delivery times for standard catalog products.

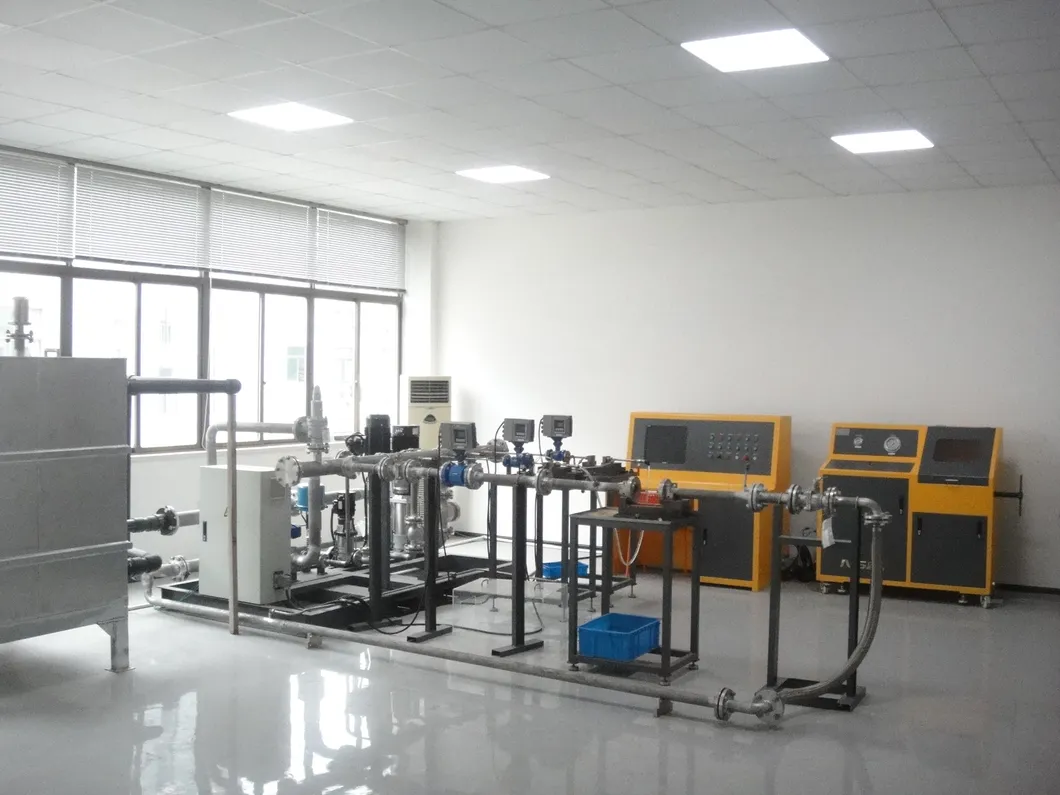

In-house Laboratory featuring the latest test machines for accurate flow rate, pressure, leaking, and temperature testing.
