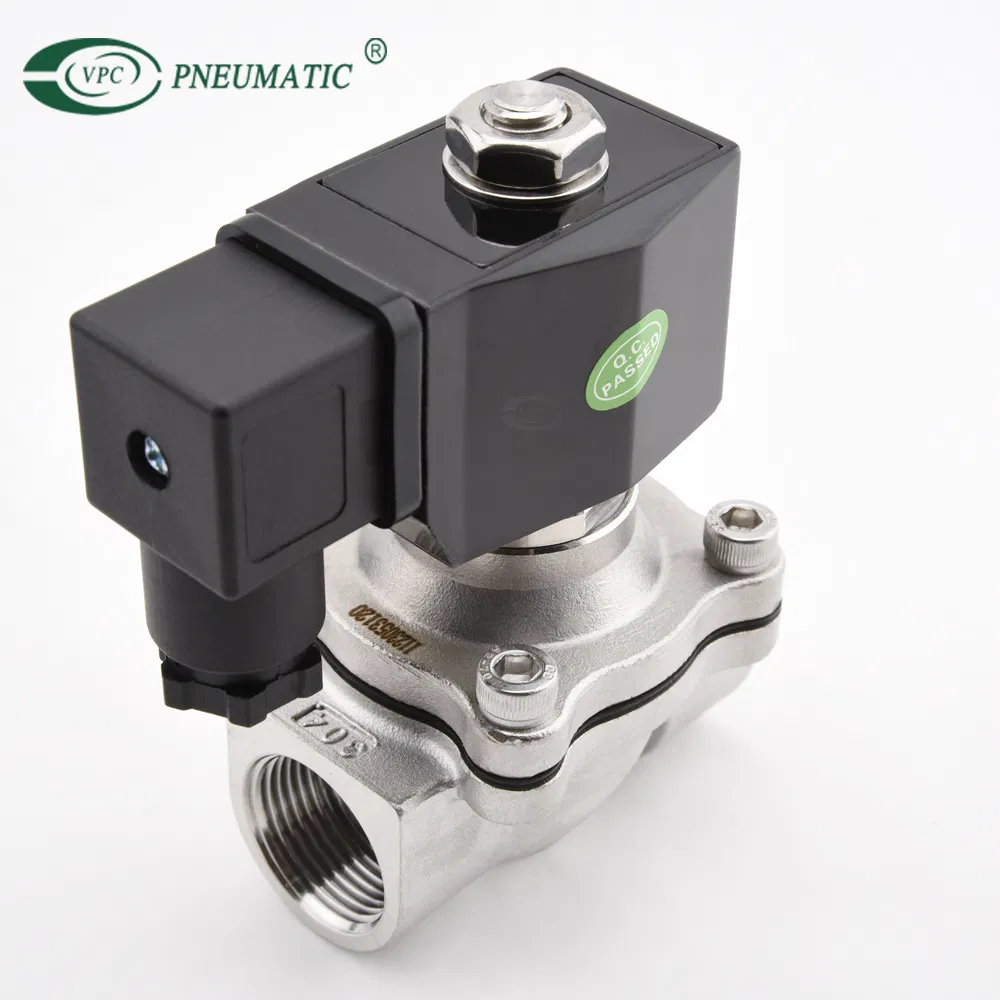

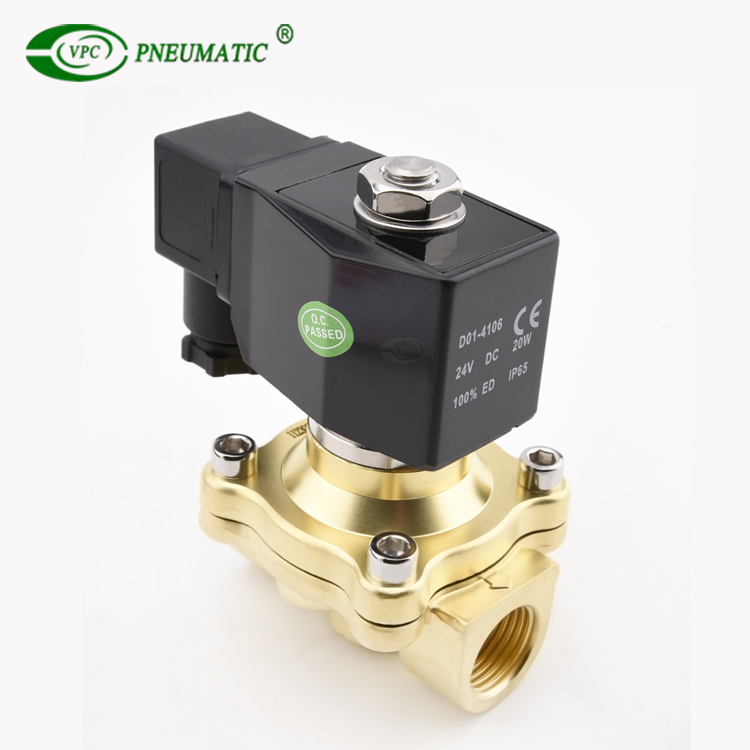

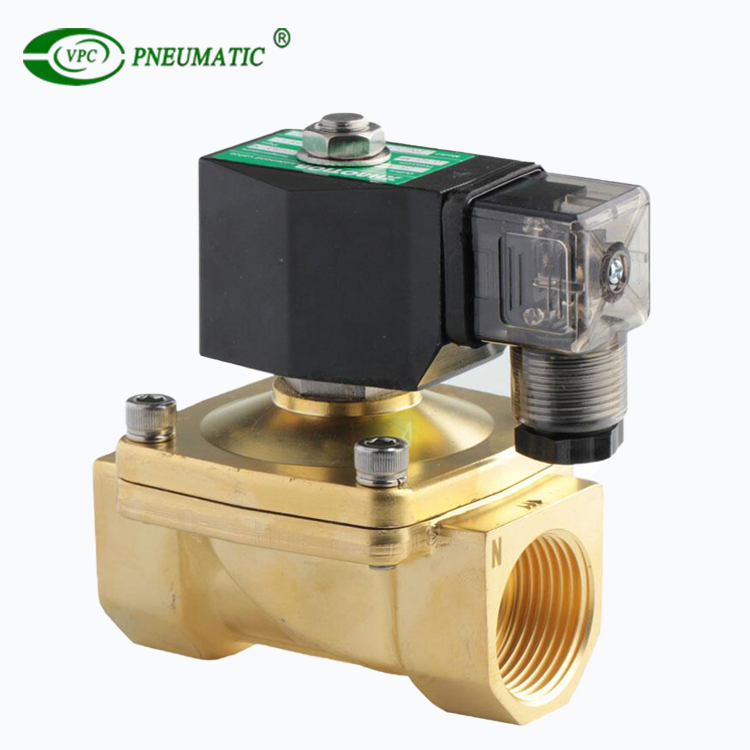

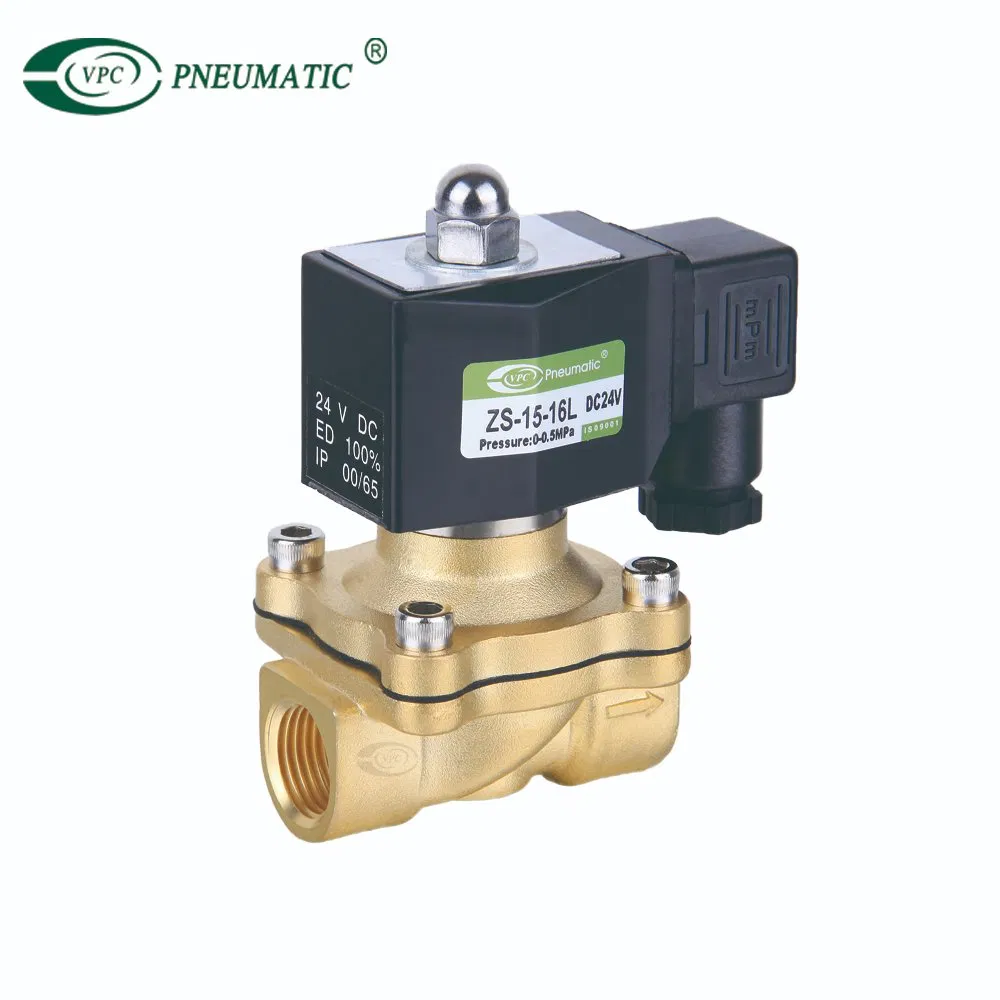

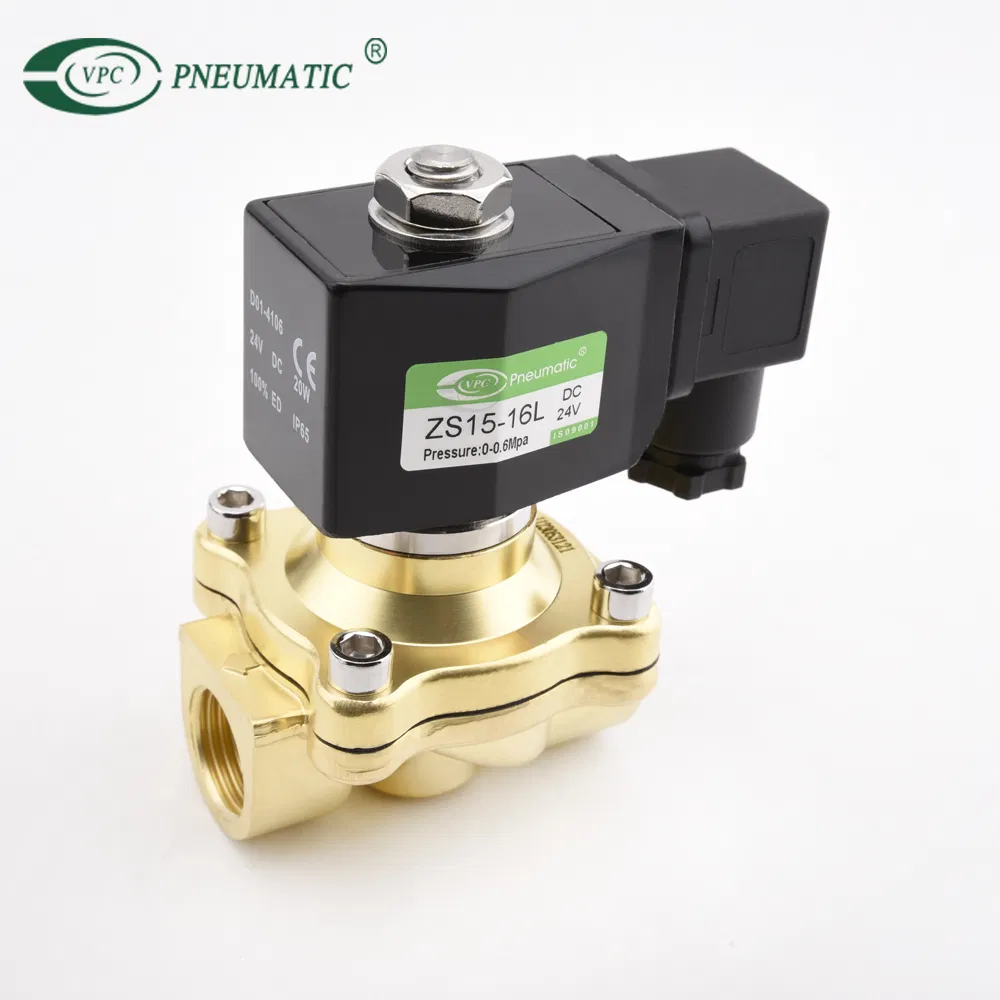

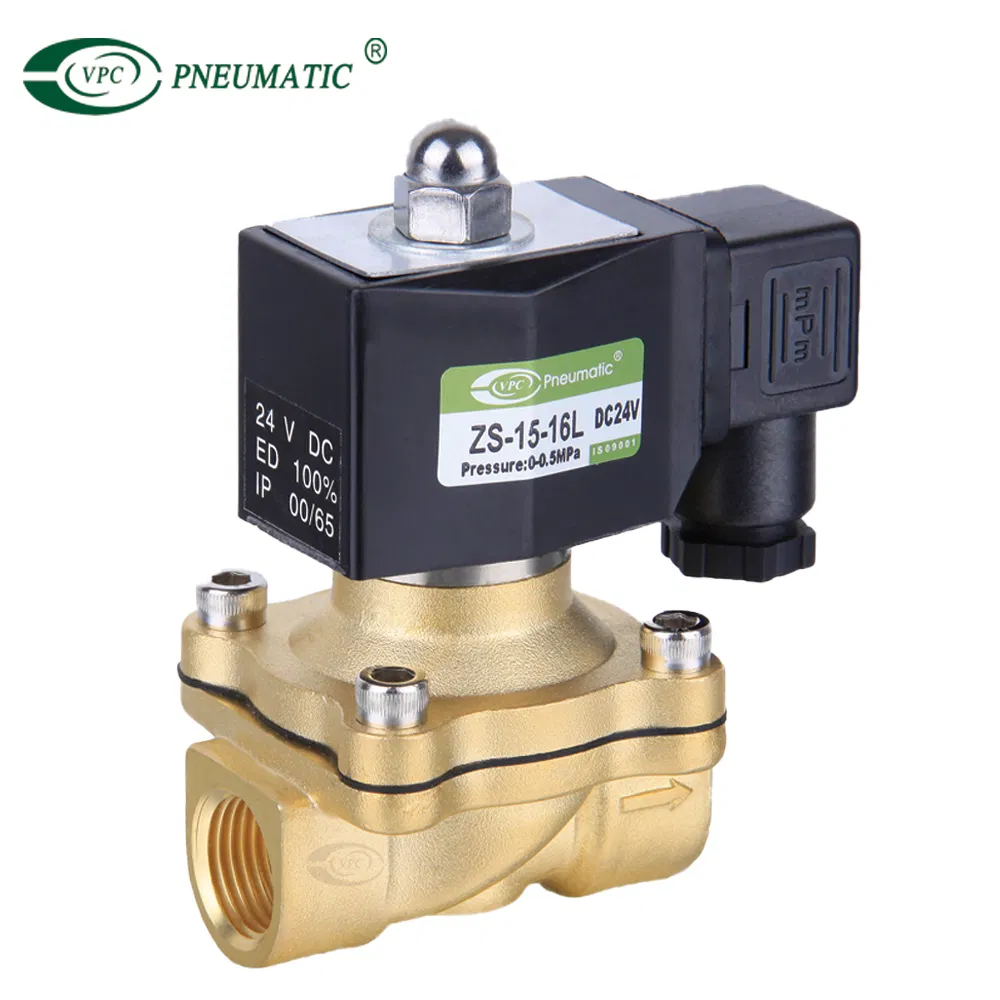

Wholesale Zs Series Normal Close 2/2 Way Solenoid Valve

Basic Specifications

Model NO.

ZS-08-10L

Power

Electric

Pressure

Medium Pressure

Material

Brass

Medium

Air Gas Water Oil

Seal Material

NBR/EPDM/Viton

Work Temp.

0-130℃

Body Material

Brass SS316

Zs Series Normal Close 2/2 Way Solenoid Valve

✓Normal close/Normal open, available body: brass, SS304, SS316

✓Multiple seals are available for different medium

✓Energy-saving: Reduce power consumption by 80%

✓Wide size range from 1/8" to 2", thread and flange connection

✓Diaphragm pilot solenoid valve with low working pressure

Working Medium	Air, Gas, Water, Oil
Type	Normal Close
Ambient Temperature	0 to 65ºC
Working Temperature	0 to 130ºC
Seal Material	NBR, EPDM, VITON
Body Material	Brass, SS316
Mounting	Direction of flow as the arrow; install in any position, best position is solenoid coil upright.

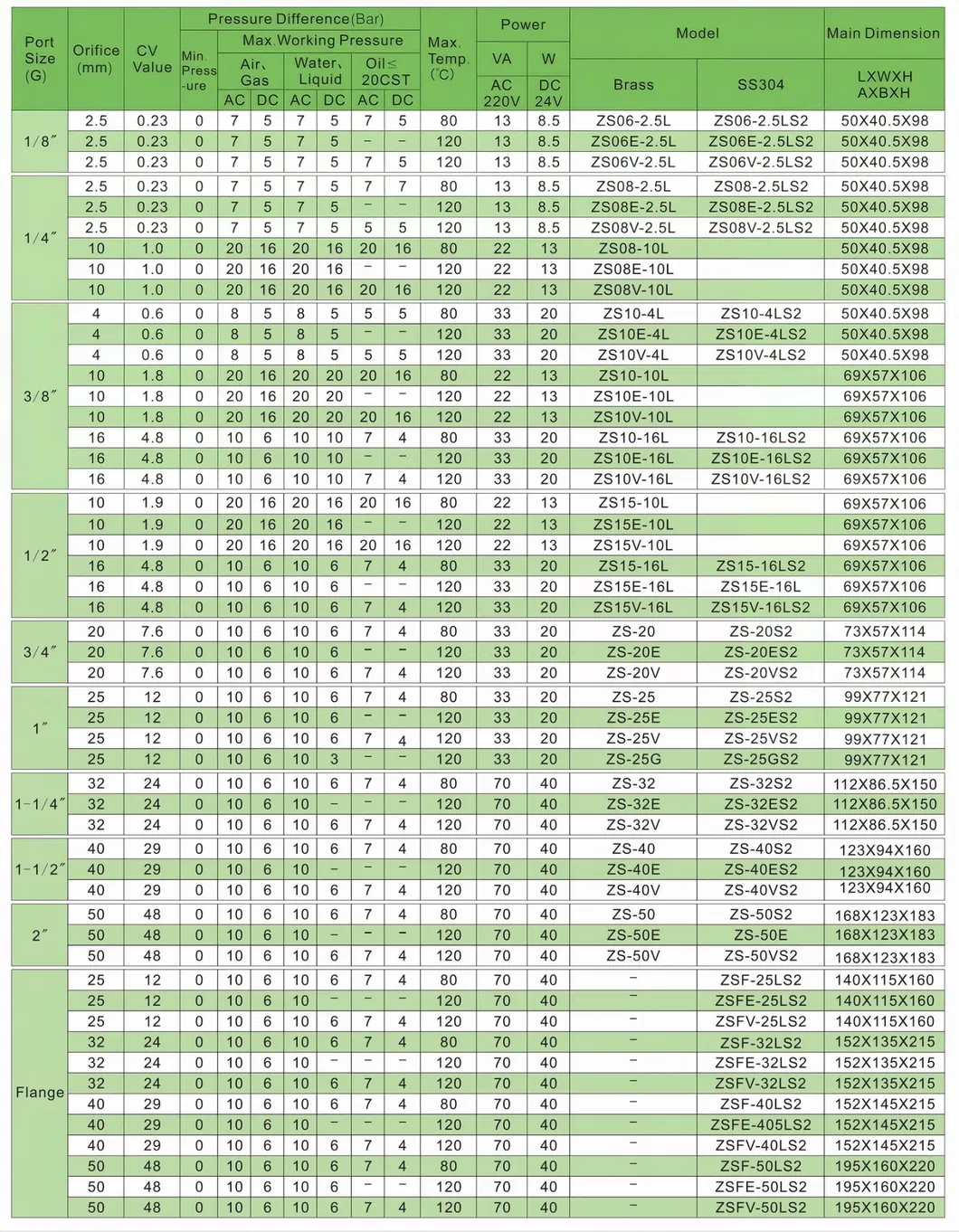

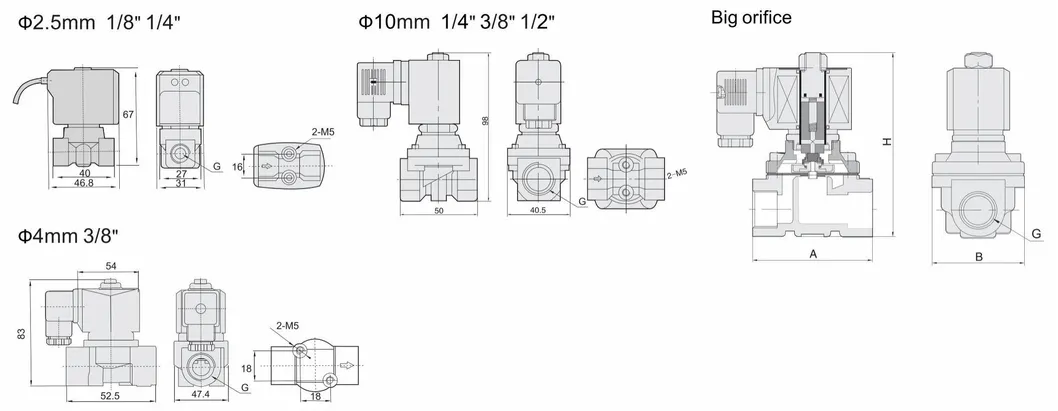

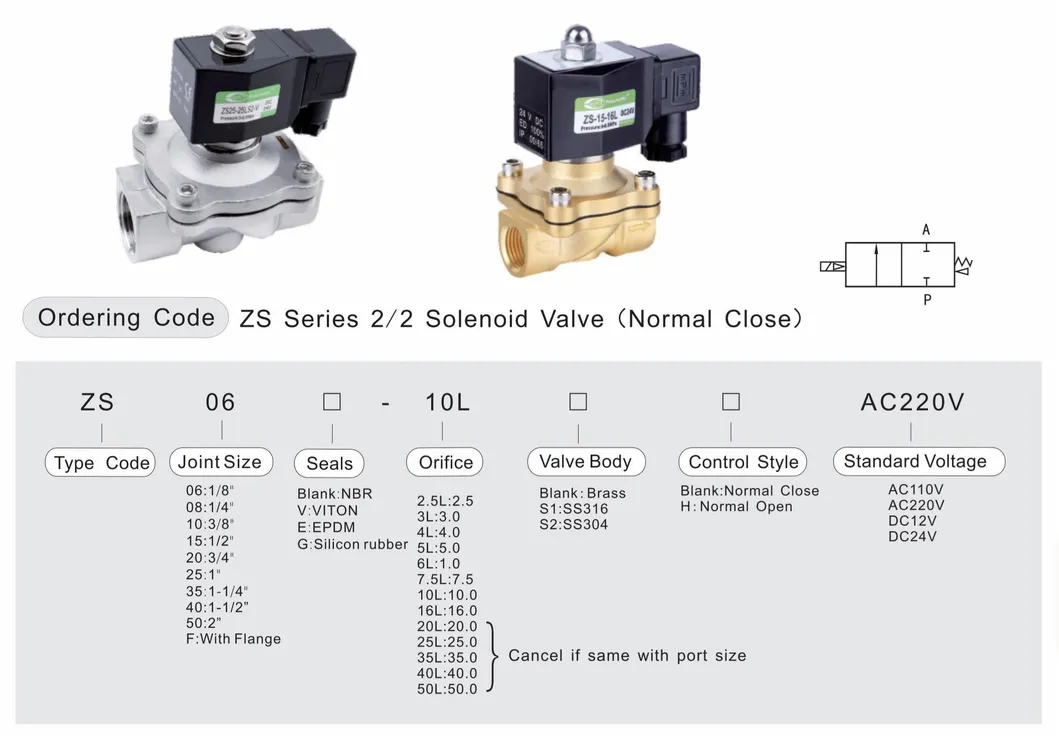

How To Order & Technical Data

About the Manufacturer

The company was founded in 1985 as a leading manufacturer dedicated to serving automation and labor-saving requirements with an extensive pneumatic product range. Coupled with a close connection to customer requirements, we manufacture high-quality valves and operate successfully around the world.

Our quality system is in compliance with ISO 9001:2000 and CE Certification standards. Our expert sales team leverages a widespread network of local and foreign distributors, ensuring world-class performance in pneumatic products.

Certifications

Customer Feedback

Frequently Asked Questions

What is your quality assurance policy?

We inspect every product one by one before delivery. If the product is damaged in transit or has quality problems, we offer a full refund or resend the product with freight costs borne by us.

What are your terms of payment?

We accept TT, PayPal, Bank Transfers, and Trade Assurance orders. We provide photos of the products and packages before you pay the final balance.

How long is the standard lead time?

For our routine products, the lead time is normally between 3 to 7 days.

Do you offer free samples?

Yes, some free samples can be offered. Please contact our support team for availability.

What is the warranty period for this valve?

All products come with a 1-year warranty for quality and performance.

What is the recommended mounting position?

While it can be installed in any position following the flow arrow, the best performance and service life are achieved with the solenoid coil upright.
