| Model NO. | J-VALVES-Q347F |
|---|---|
| Connection Form | Flange |
| Driving Mode | Manual & Pneumatic & Electrical |
| Nominal Pressure | ANSI CLASS 150-900 |
| Structure | Fixed Ball Valve |
| Standard | API 6D, API 608, BS 5351/DIN3357/JIS B2071 |
| Warranty | 18 Months |
| Seal Material | PTFE/Rptfe/Devlon/Peek/Stellite/Metal |
We provide high-quality Industrial Valves designed for pipeline and equipment connections. Our products are available in both casting and forging types to meet diverse industrial applications. All products strictly comply with ISO9001, ISO45001, ISO14001, CE, ISO15848, and API607 standards.
| Specification | Details |
|---|---|

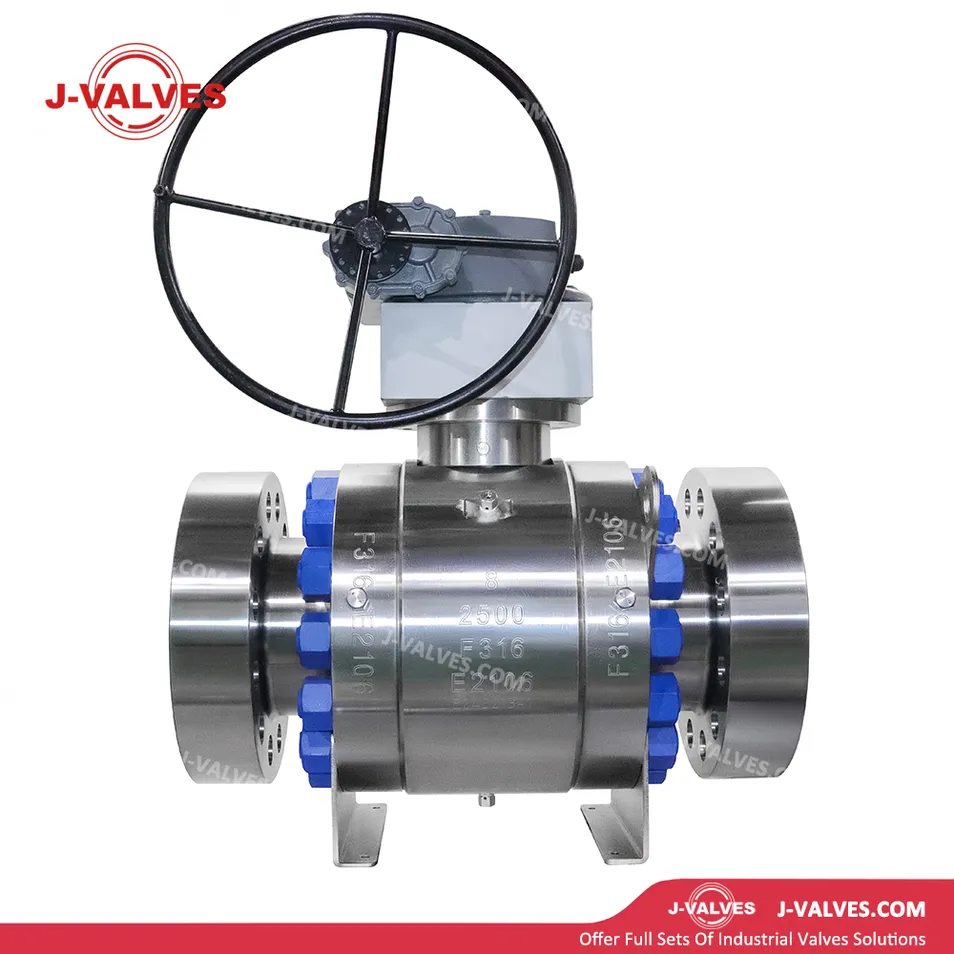

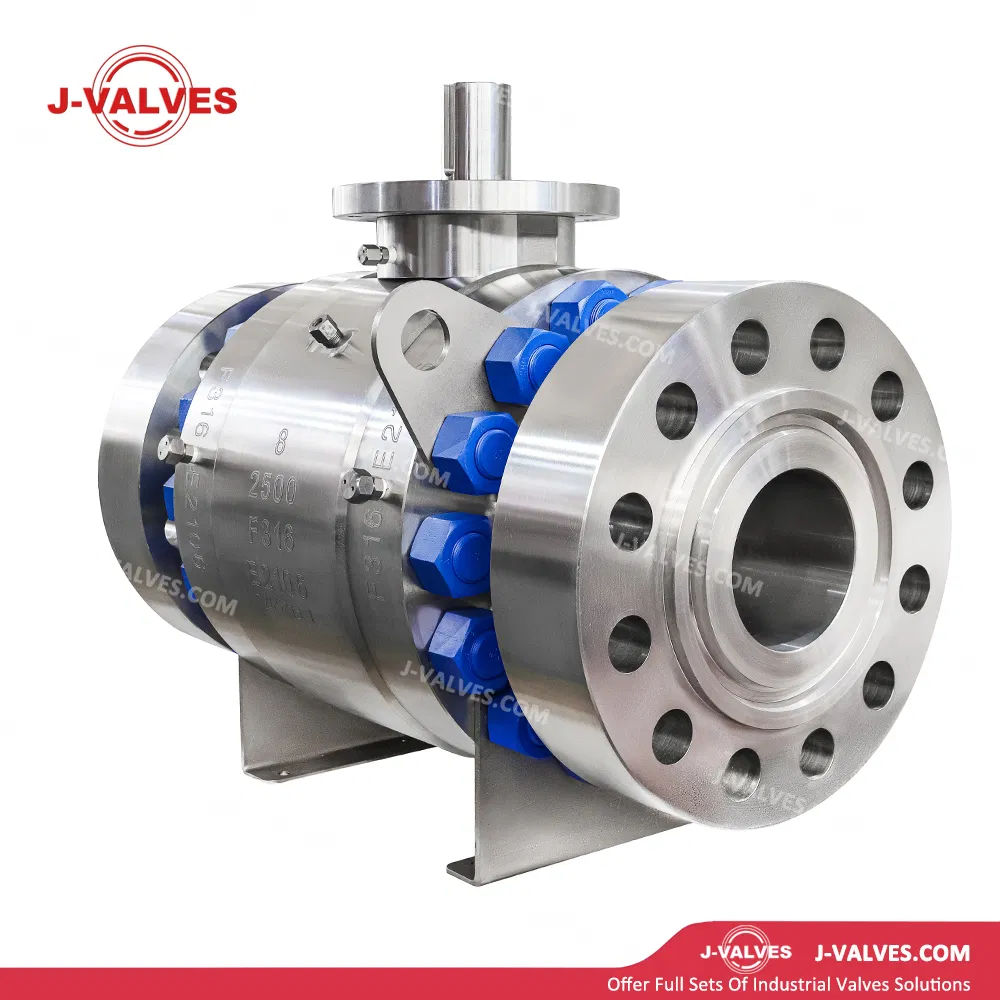

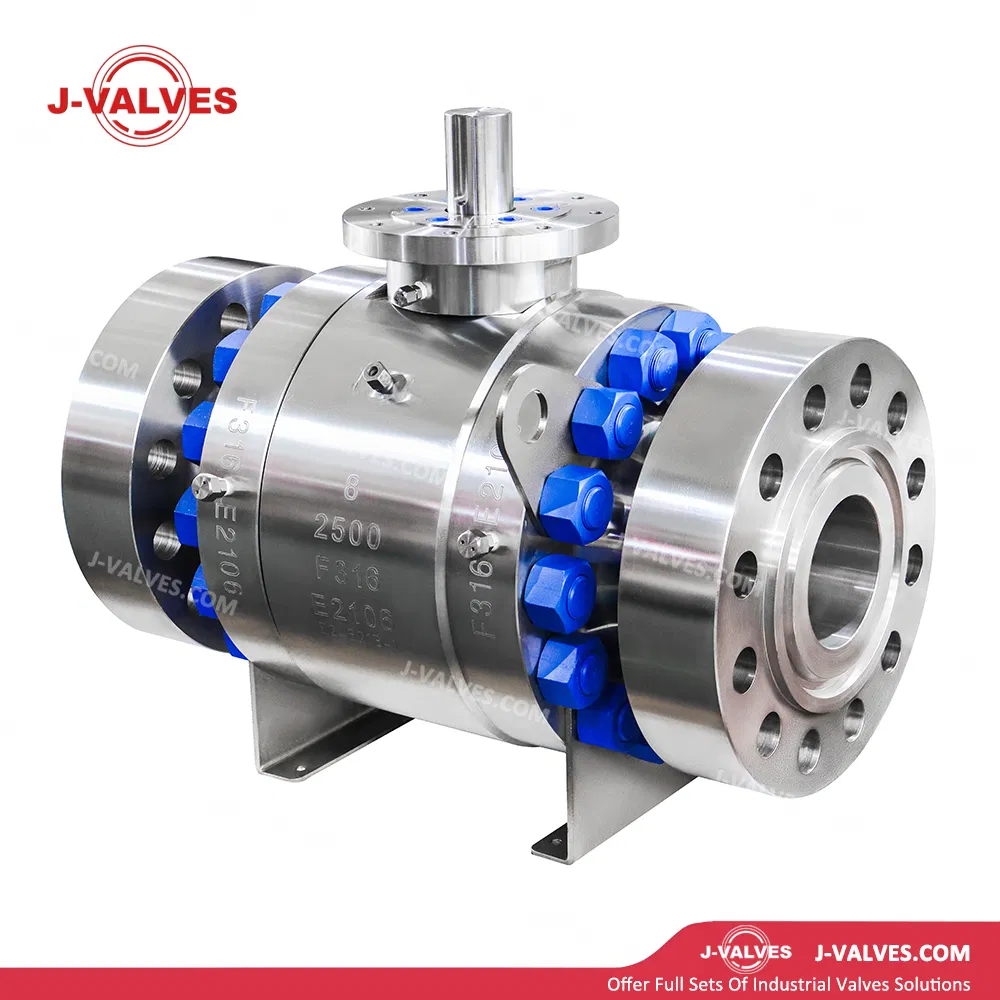

| Product Name | API6D Experience Durable Industrial Valve Cast Flange 3PC Trunnion Ball Valve |
| Size | 8'' (DN200) |
| Pressure | CLASS 2500LB |
| Body Material | ASTM A182 F316 |
| Ball Material | ASTM A182 F51 |
| Seat Material | PEEK |
| Working Temperature | -29°C to 250°C |
Industrial Application
Stable Sealing Design

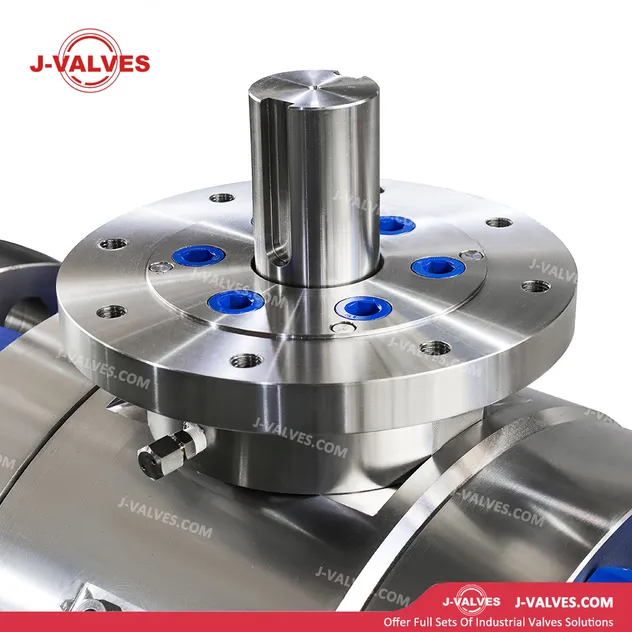

Top View

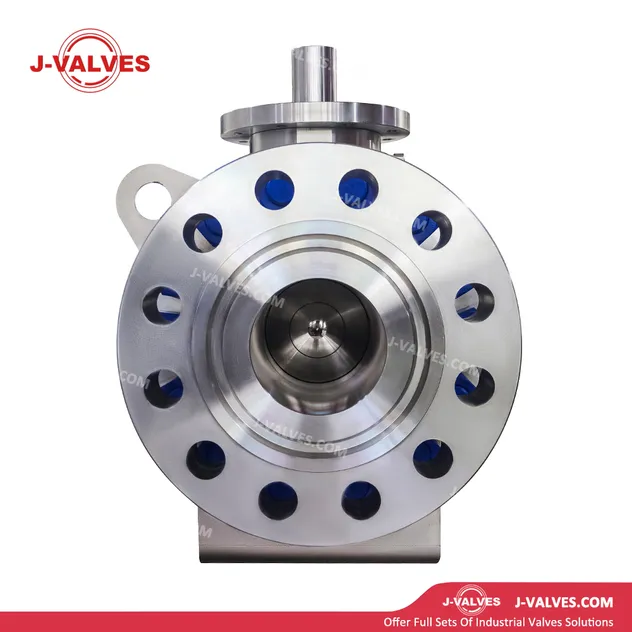

Side View
Left View

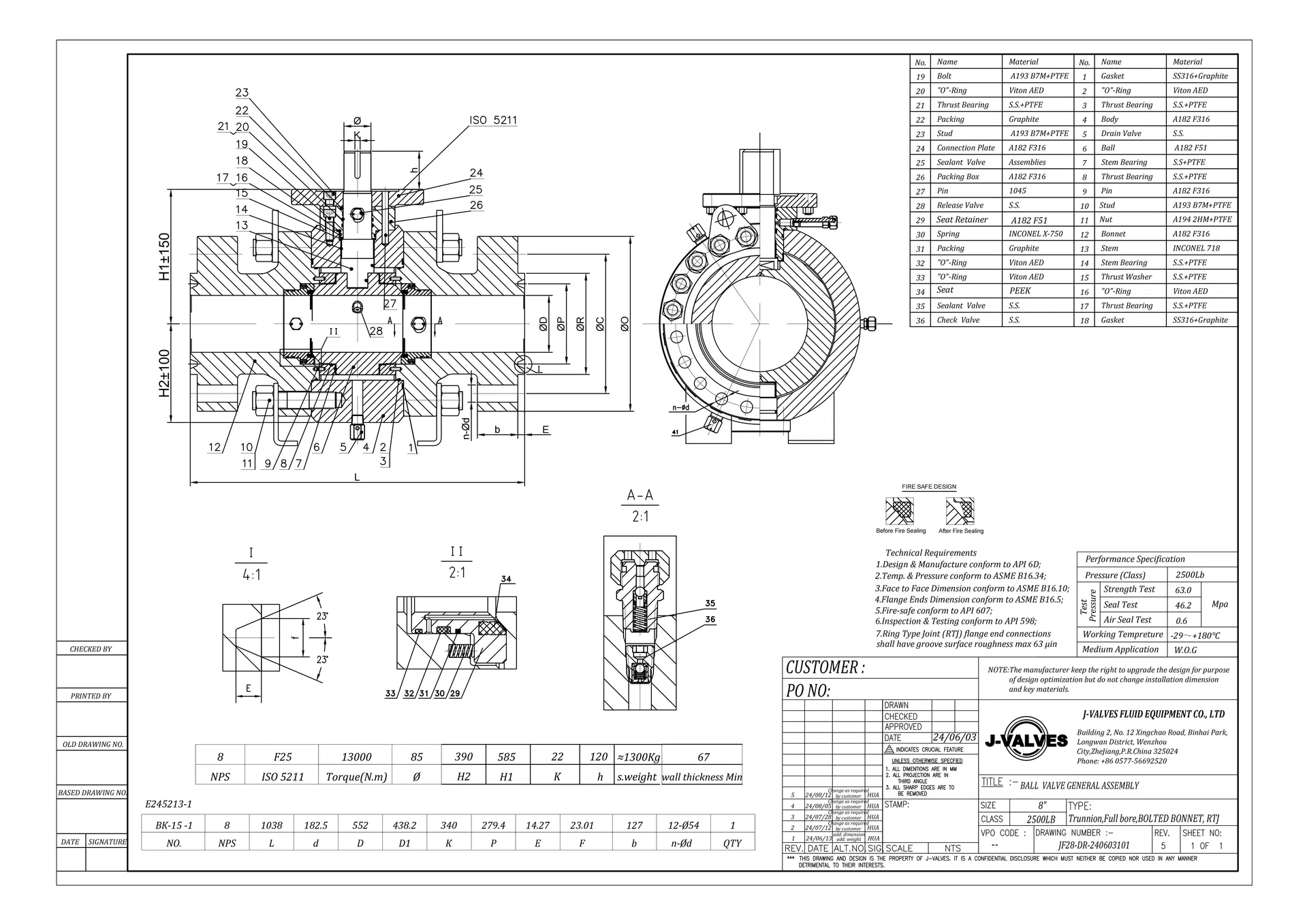

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.
| Pressure Class | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB |
|---|---|---|---|---|---|---|
| Strength Testing (Mpa) | 3.2 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 |
| Seal Testing (Mpa) | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 |

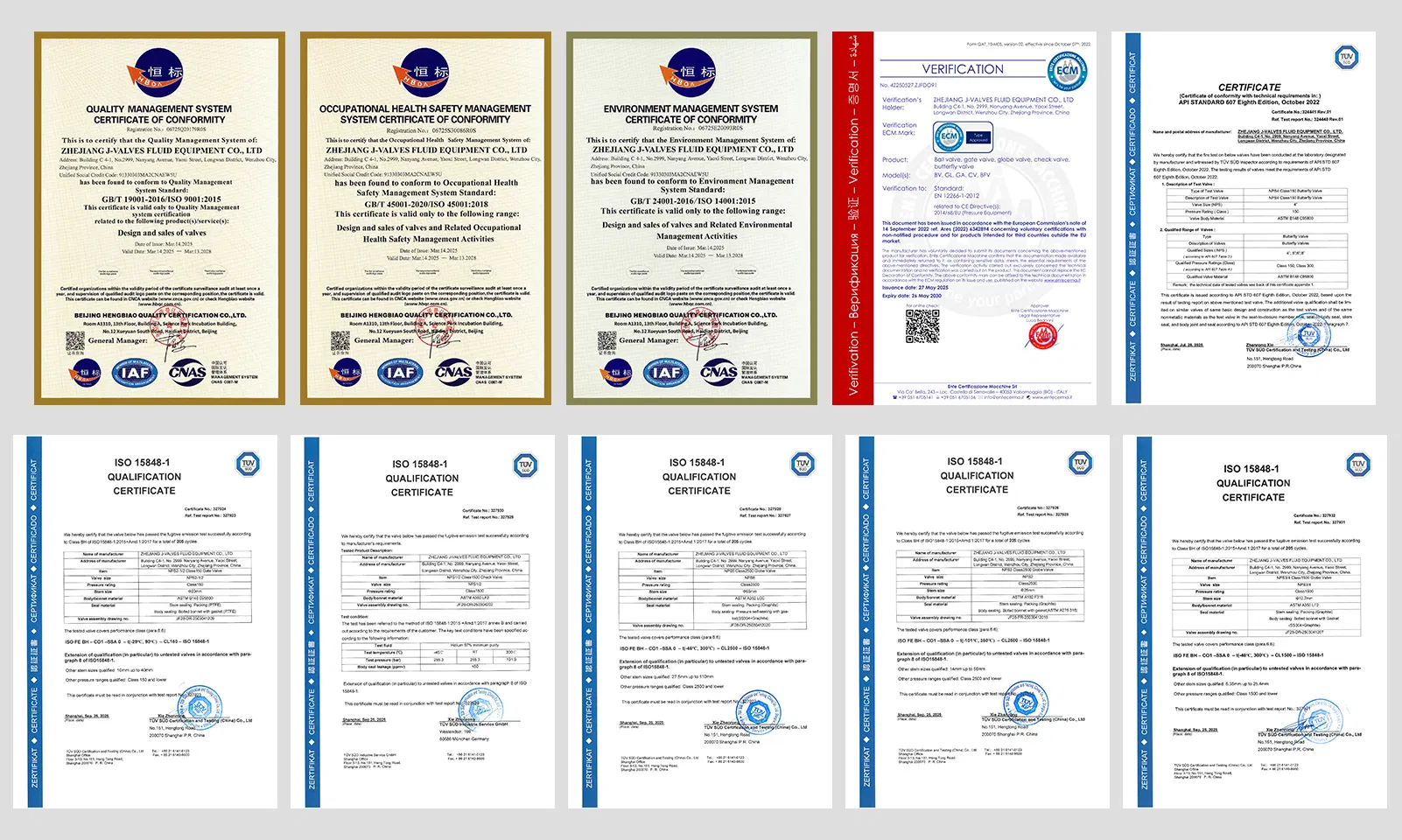

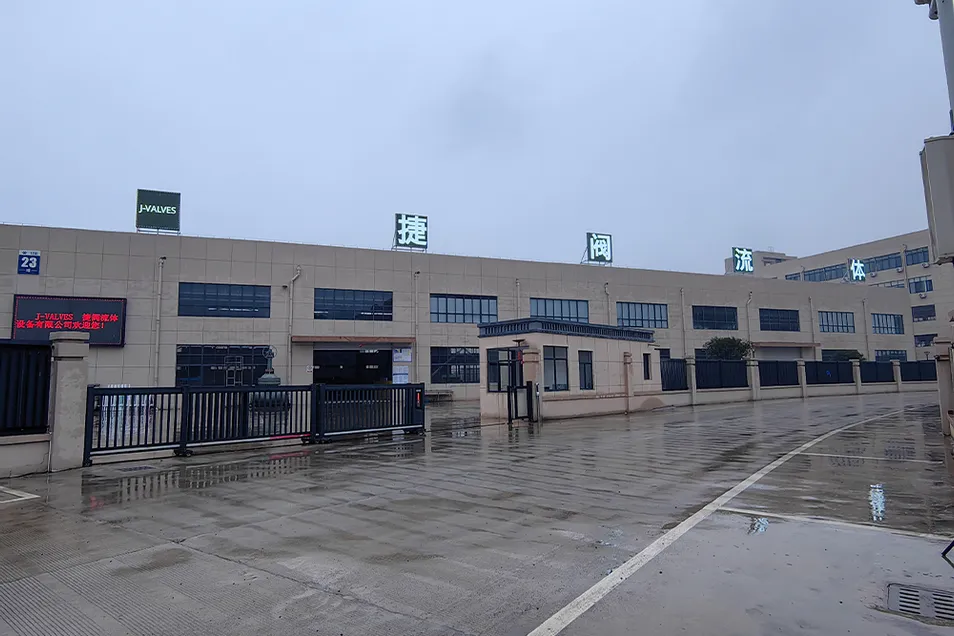

Founded in 2018, our company is an integrated manufacturing and trading specialist for industrial valves and pipeline fittings. We hold ISO 9001, ISO 14001, ISO 45001, CE, and API 607 certifications. Every product undergoes 100% pre-shipment testing to ensure excellence.
