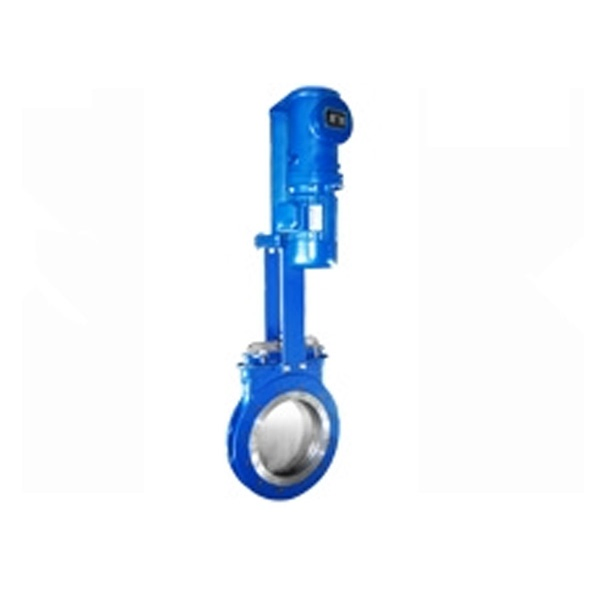

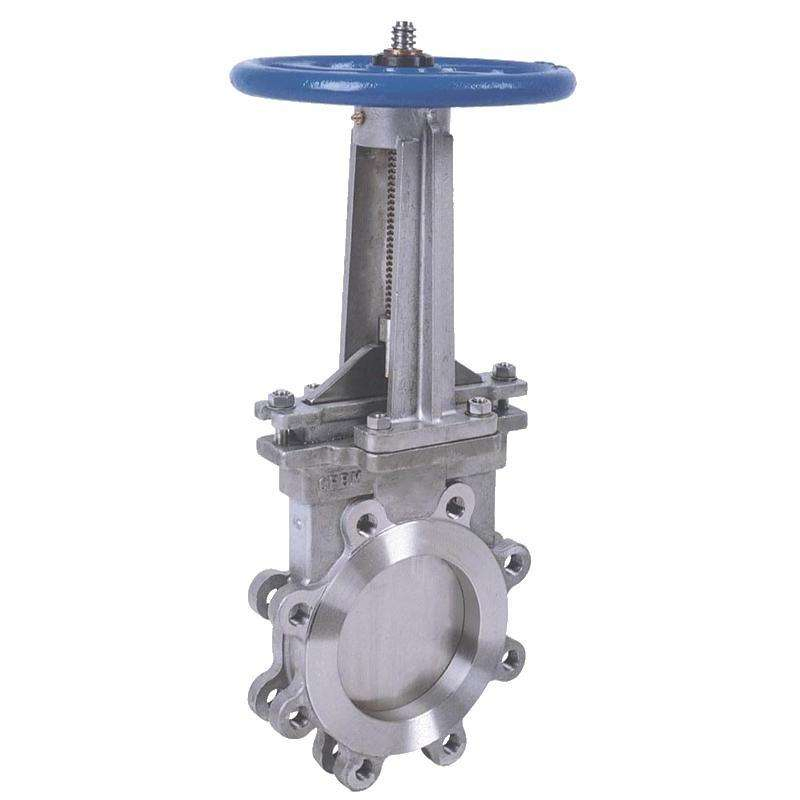

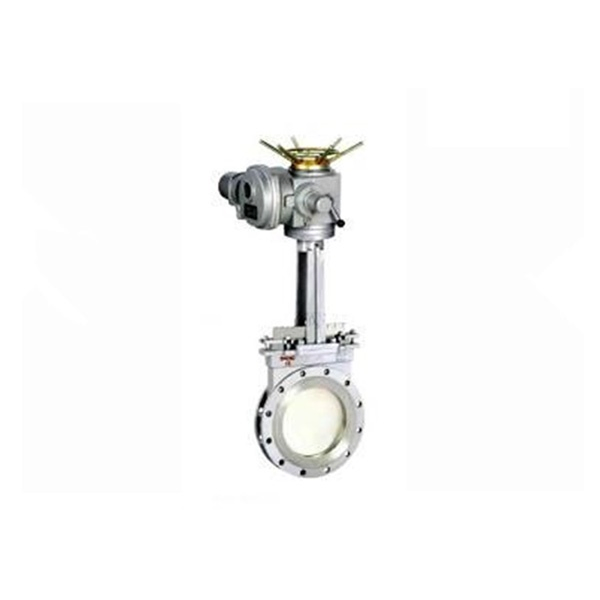

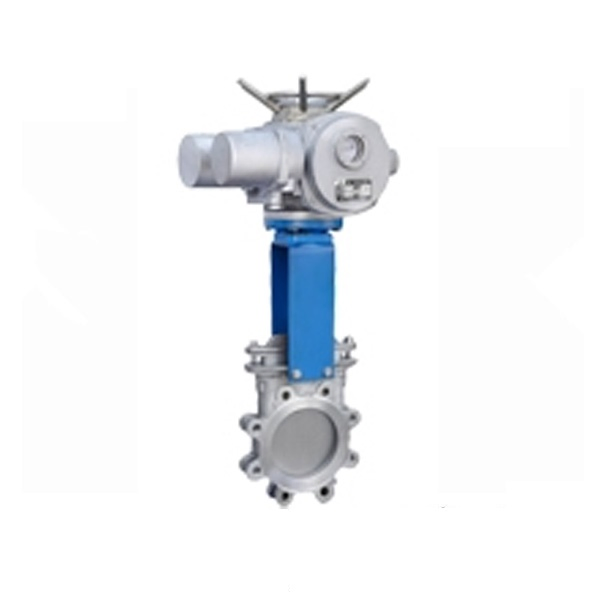

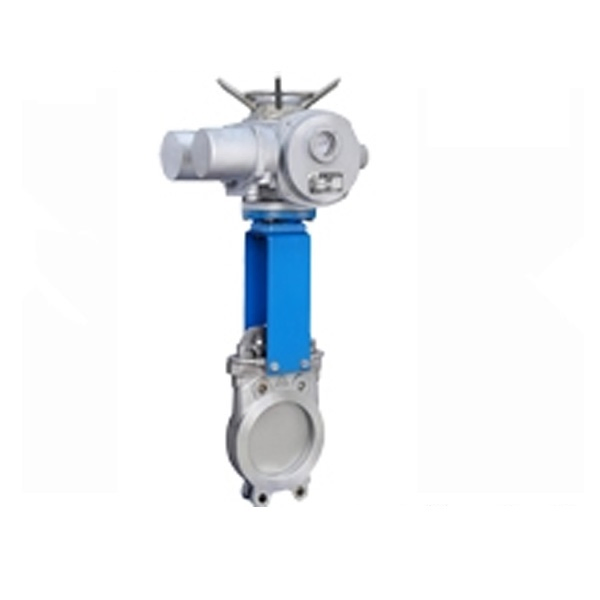

Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
1 / 5
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve
Slurry Manual Pneumatic/Electric Knife Gate Valve

Slurry Manual Pneumatic/Electric Knife Gate Valve

Customization: Available
Media: Water
Temperature: Ordinary Temperature
Send Inquiry

Product Description

Basic Info.

Model NO.QBZ73X-10P
TypeDirect-acting
MaterialStainless Steel
Connection FormFlange
PressureHigh Pressure
ActuatorManual
Seal SurfaceWedge Gate Valve
Valve Rod PositionOutside Gate Valve
UsageRegulation
StandardGB
ApplicationIndustrial Usage
GasketPTFE
Transport PackagePlywood Case
SpecificationDN50-DN1600
HS Code8481804090
Capacity10000

Packaging & Delivery

Package Size30.00cm * 15.00cm * 15.00cm
Gross Weight10.000kg

Product Description

Knife Gate Valve Side View
Knife Gate Valve Front View
Knife Gate Valve Detail View
Stainless Steel Industrial Gate Valve
Product nameStainless Steel Gate Valve
TechnologyCasting
Connection typeFlanged, Wafer
SizeFrom 2'' to 40''
Main materialCF8, CF8M, CF3, CF3M, WCB
Working pressurePN10, PN16, 150LB, DIN, JIS
Temperature Range-40º C ~ 180º C ~ 280º C
Suitable mediumWater, oil, steam, nitric, acid, acetate acid and corrosive liquids
Technical Drawing of Knife Gate Valve
Frequently Asked Questions
What are the available connection forms for this valve?
The stainless steel gate valve is available in both Flanged and Wafer connection types to suit various piping requirements.
What materials are used for the main body and gasket?
The main body is constructed from high-quality materials including CF8, CF8M, CF3, CF3M, or WCB, while the gasket utilizes durable PTFE for superior sealing.
What is the pressure and temperature capability of this gate valve?
It is designed for high-pressure applications including PN10, PN16, and 150LB standards. It can withstand a wide temperature range from -40º C up to 280º C.
Which industrial media is this valve suitable for?
This valve is suitable for regulating water, oil, steam, nitric acid, acetate acid, and various other corrosive industrial liquids.
What size range do you offer for the QBZ73X-10P model?
The valve comes in a comprehensive size range from DN50 to DN1600 (approximately 2 inches to 40 inches).
Is the valve rod position internal or external?
This model features an outside gate valve thread position (OS&Y), which is ideal for industrial usage and easy maintenance.
