Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
1 / 5
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve
Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve

Stainless Steel or Cast Iron Electric and Pneumatic Slurry Sluice Knife Gate Valve

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Connection Form
Flange
Pressure
ASME #125
Seal Surface
Wedge Gate Valve
Thread Position
Outside Gate Valve
Usage
Regulation
Standard
ANSI
Characteristic
Knife Gate Valve
Design & Manufacture
Ms Sp-81
Capacity
6000ton Per Year
HS Code
84818010

Product Description

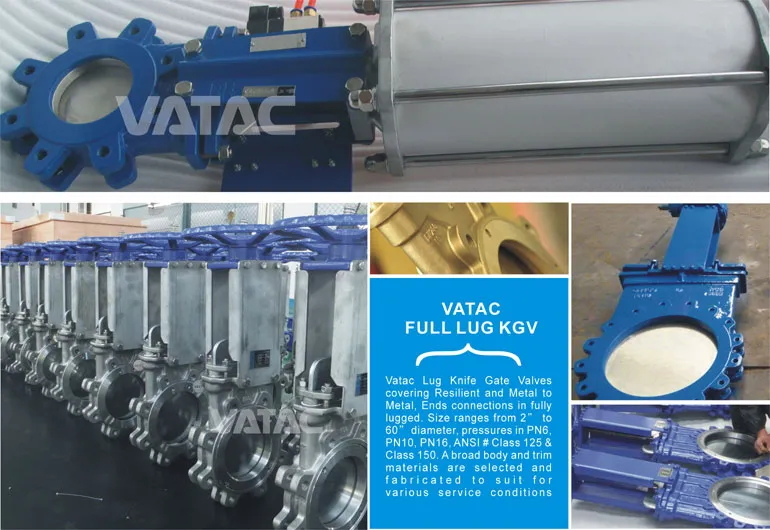

Fully Lug Slurry Knife Gate Valve

Fully Lug Slurry Knife Gate Valve (PZ71)

Manufactured under international Quality Assurance systems; Accredited with ISO 9001 and CE Quality Assurance Programmes.

⚙️
Size Range
2" to 42" N. B.
⚖️
Pressure Classes
ANSI 150, PN6, PN10, PN16
🔗
End Connections
Flanged & WAFER

Application: Industrial Usage, Water Industrial Usage, Household Usage, Mining, Pulp.

Material Standards

Steel: Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating. Stem packing PTFE / graphite composite.

Iron: Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating. Stem packing PTFE / graphite composite.

Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions.

Operation: Manual, Electric, Hydrau-Pneumatic Actuator

Standards Compliance

DESGN & MFT. MSS SP-81 ENDS CONNECTION WAFER/LUG
PRE-TEP. RATING ASME B16.34 INSPECT & TEST MSS SP-81 / API 598
F-F DIMENSION MSS SP-81 END CONNECTION ASME B16.5
MARKING MSS-SP-25 FACE TO FACE MSS SP-81

Product Inspection & Shipment

Final Inspection Shipment Packing
Frequently Asked Questions
What sizes are available for the slurry knife gate valve?
The size range covers from 2" up to 42" N.B. to accommodate various industrial requirements.
What pressure ratings does this valve support?
It supports multiple pressure classes including ANSI 150, PN6, PN10, and PN16.
Which materials are used for the valve body?
Standard options include Cast Carbon Steel (A216 Gr WCB) and Cast Iron (A126 GR. B). Special materials like stainless steel and duplex steel are also available.
What type of actuators can be used?
The valve can be operated manually, electrically, or via hydrau-pneumatic actuators.
What standards do these valves comply with?
They comply with MSS SP-81, ASME B16.34, API 598, and are manufactured under ISO 9001 and CE quality systems.
What are the primary applications for this knife gate valve?
It is ideal for regulation in industrial settings, water treatment, mining, pulp processing, and household usage.
