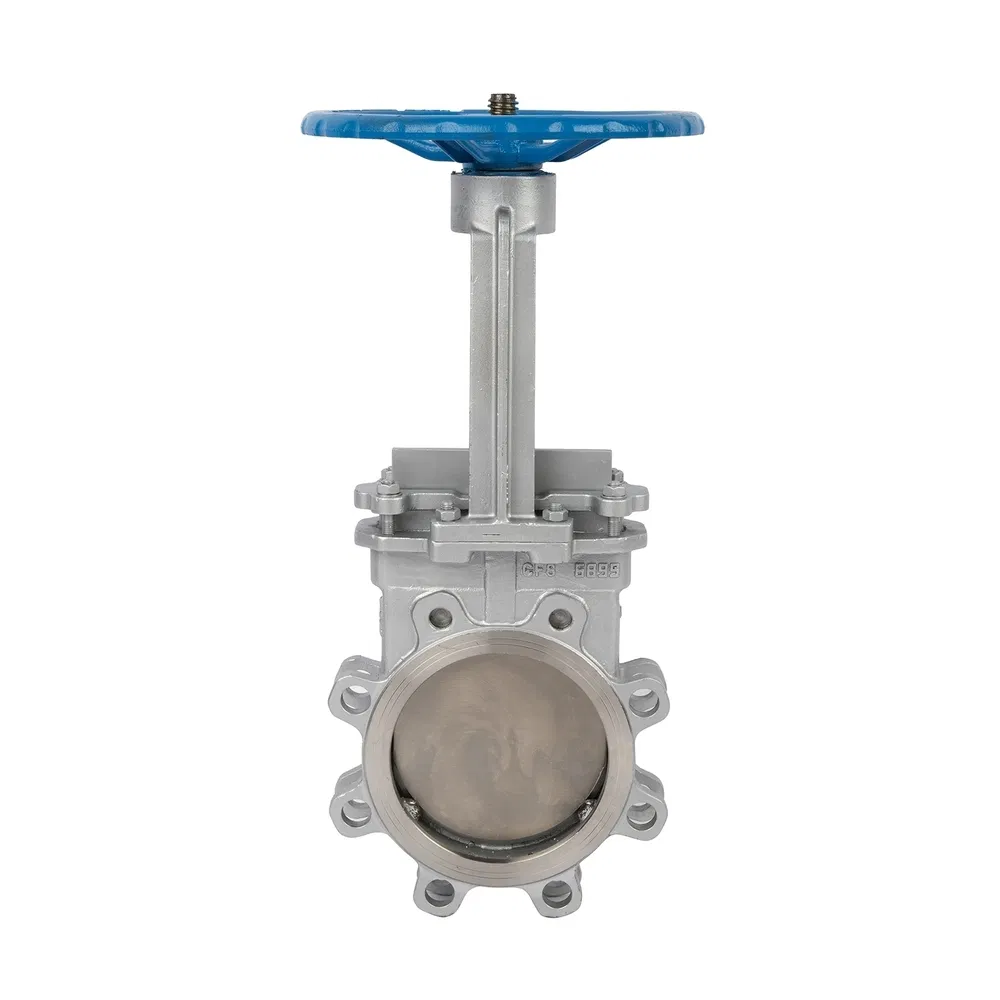

Robust Gate Valve Design

The gate valve is a shutoff valve that controls the flow of pipeline media through the vertical movement of the gate. Its core component is a wedge-shaped or parallel gate, which is driven by the valve stem to move up and down to achieve the full open or full closed state of the valve.

This design focuses on completely cutting off the flow, providing a straight flow channel in the fully open state to minimize fluid resistance. It is widely used in long-distance oil and gas pipelines, chemical plants, power stations, and urban water supply networks.

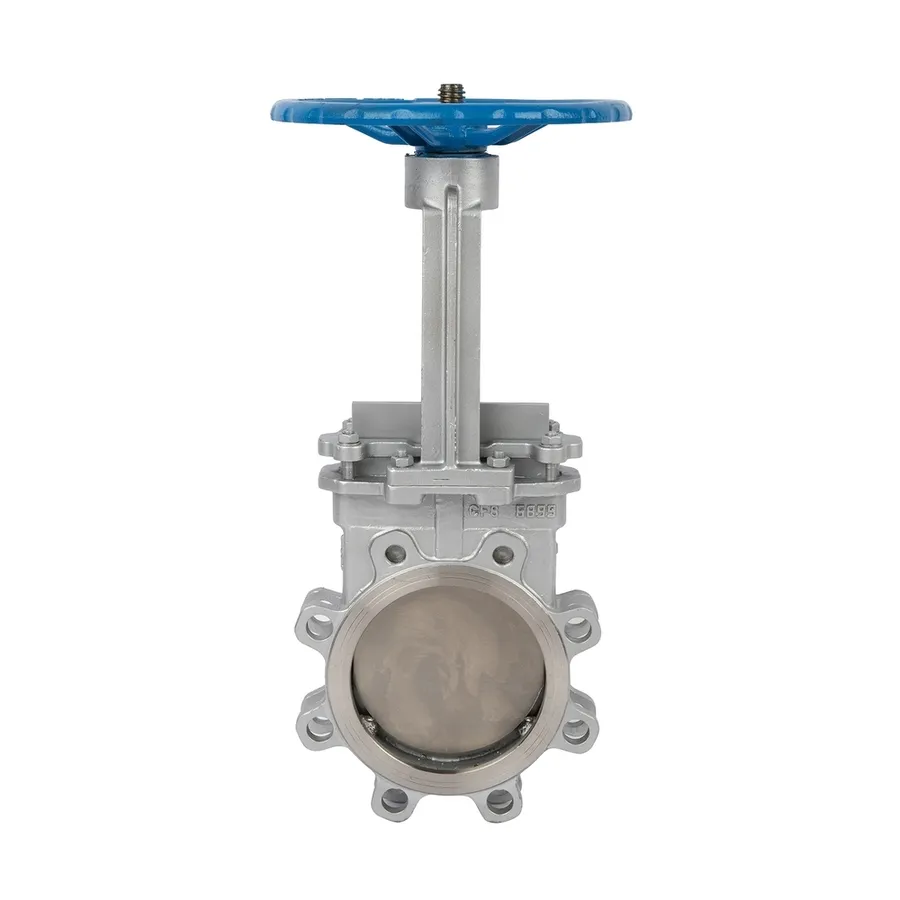

Full-Bore Low-Resistance Design

The gate valve adopts a flow channel structure with the same diameter as the pipeline. When opened, the valve plate is completely separated from the medium path, forming a straight-through channel that significantly reduces pressure loss.

Bidirectional Sealing Capability

Effective sealing can be achieved on both sides of the gate valve plate without being restricted by the flow direction. The symmetrical structure ensures the same performance in forward or reverse installation.

Simple and Durable Structure

Consists of fewer moving parts with a reliable mechanical structure. The lifting stem design avoids rotational wear, maintaining stable operating performance and extending maintenance cycles.

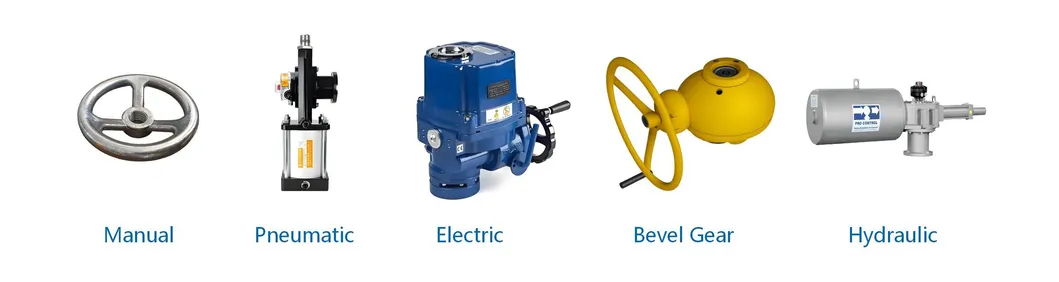

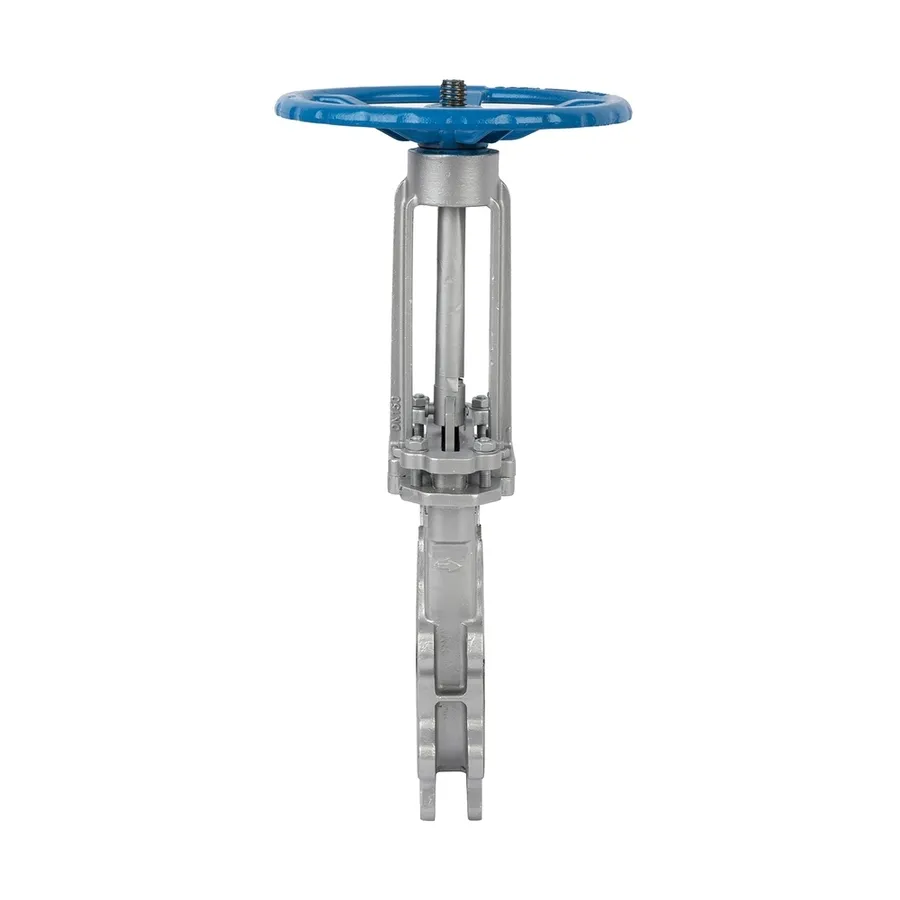

Multiple Drive Mode Adaptation

Handwheels, gearboxes, and electric or pneumatic actuators can be flexibly configured. The modular design allows adaptation to various working conditions from manual to automatic control.
