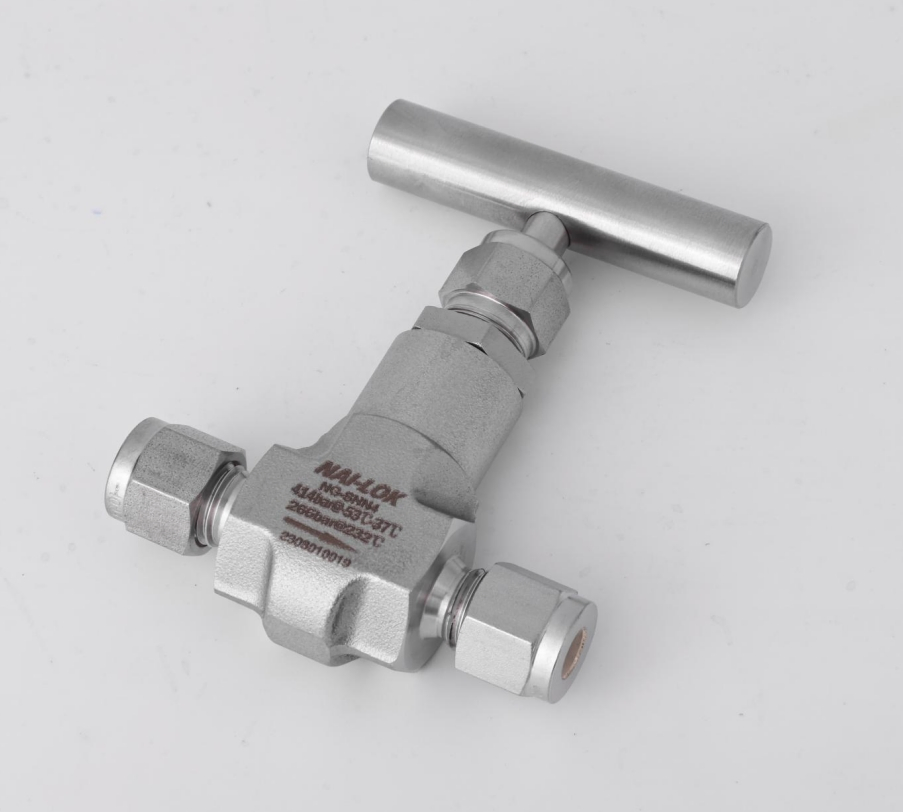

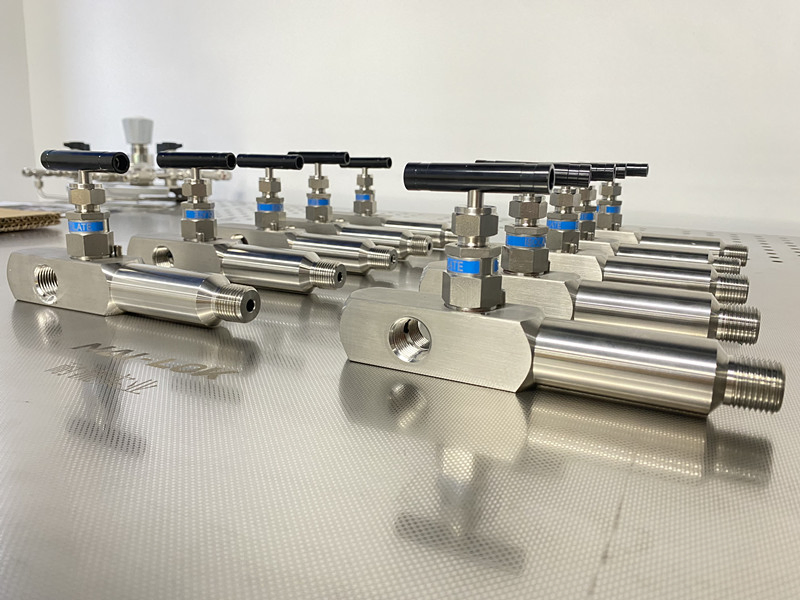

Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
1 / 5
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves
Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves

Nai Lok 1/2 Female NPT High Pressure 10000psi Needle Valve Instrument 6000psi 1 4 Inch BSPP Panel Nut Needle Valves

Customization: Available
Power: Manual
Connection Mode: Internal Thread
Send Inquiry

Product Description

Basic Specifications
Model:
Needle Valve
Material:
Stainless Steel SS316
Max Pressure:
10,000 PSI
Temperature:
-65°F to 450°F
Media:
Oil, Gas, Water, Acid
Application:
Oil and Gas Industry
Specifications:
1/4"-3/8"-1/2" FNPT
Packaging:
50x50x30cm, 25kg
Product Description

Stainless Steel High Pressure Needle Valve for Gas & Liquid Systems

This precision-engineered needle valve is designed for high-pressure gas and liquid flow control in demanding environments such as petrochemical plants, power generation facilities, and industrial automation systems. Manufactured from high-grade SS316 stainless steel, it ensures leak-proof performance, extreme durability, and precise regulation.

Technical Specifications
Feature Specification
Max Working Pressure10,000 PSI (619 Bar) - Ideal for high-pressure gas systems
Temperature Range-65°F to 450°F (-54°C to 232°C)
Body MaterialSS316 Stainless Steel for superior corrosion resistance
Seat MaterialsPTFE / PCTFE / PEEK for chemical compatibility
Flow Patterns2-Way / 3-Way configurations
Precision ControlFine-threaded stem for smooth & accurate adjustment
CertificationsISO-compliant & leak-proof tested
Key Benefits & Features
✔Precision Engineering: Accurate flow control for critical systems.
✔High-Pressure Resistance: Handles up to 10,000 PSI safely.
✔Corrosion-Resistant: SS316 body resists rust and harsh chemicals.
✔Media Versatility: Compatible with PTFE, PCTFE, and PEEK seats.
Industrial Applications
➔Oil & Gas: High-pressure pipelines and refineries.
➔Chemical Processing: Corrosive liquid and gas handling.
➔Power Plants: Steam and cooling system regulation.
➔Laboratories: Analytical instruments and gas chromatography.
Product Gallery

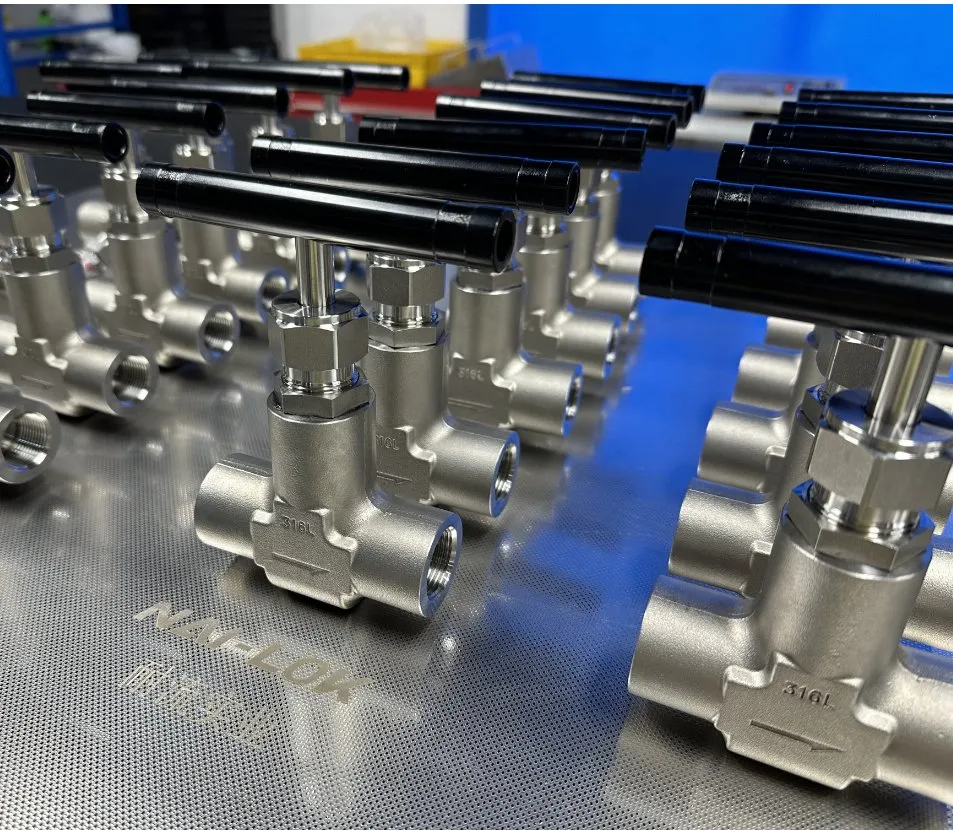

Needle Valve Display 1
Needle Valve Display 2
Needle Valve Display 3
Needle Valve Display 4
Needle Valve Display 5
Needle Valve Display 6
Needle Valve Display 7
Needle Valve Display 8
Needle Valve Display 9
Needle Valve Display 10
Frequently Asked Questions
What is the maximum pressure rating for this needle valve?
The valve is designed to handle a maximum working pressure of up to 10,000 PSI (619 Bar), making it ideal for high-pressure industrial gas and liquid systems.
What materials are used for the body and seals?
The body is constructed from SS316 stainless steel for maximum corrosion resistance. Seal options include PTFE, PCTFE, or PEEK, depending on your media and temperature requirements.
Can these valves be used in extreme temperature environments?
Yes, these valves are rated for a temperature range of -65°F to 450°F (-54°C to 232°C), ensuring reliable performance in both extreme cold and heat.
Are different connection sizes available?
Standard sizes include 1/4", 3/8", and 1/2" FNPT. We also offer various connection types including NPT and BSPP to fit different system configurations.
Is this valve suitable for corrosive media?
Absolutely. The SS316 stainless steel body combined with compatible seat materials like PEEK or PTFE makes it highly resistant to acids, oils, and other corrosive chemicals.
Does the valve provide precise flow adjustment?
Yes, the valve features a fine-threaded stem that allows for very smooth and accurate flow regulation, which is essential for laboratory and analytical applications.
