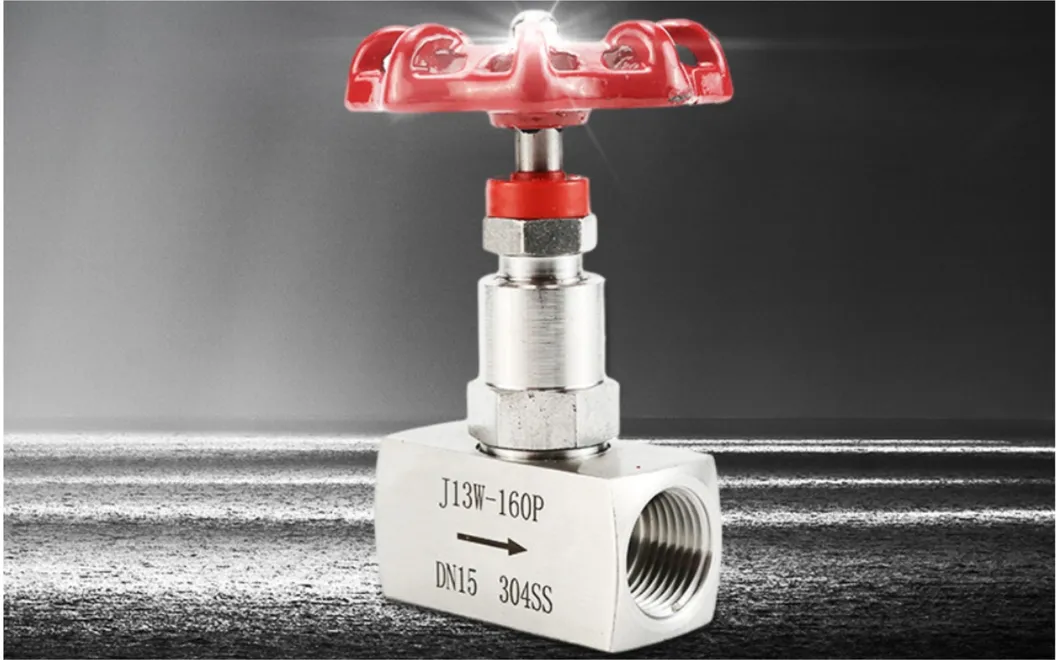

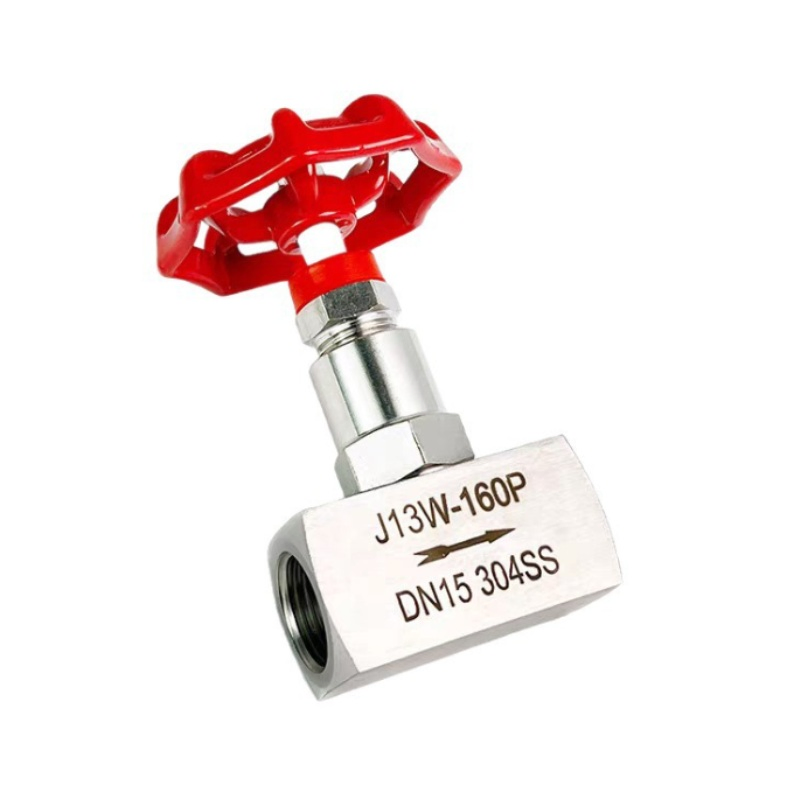

Technical Specifications
| Model No. | HY-FTNV4 |

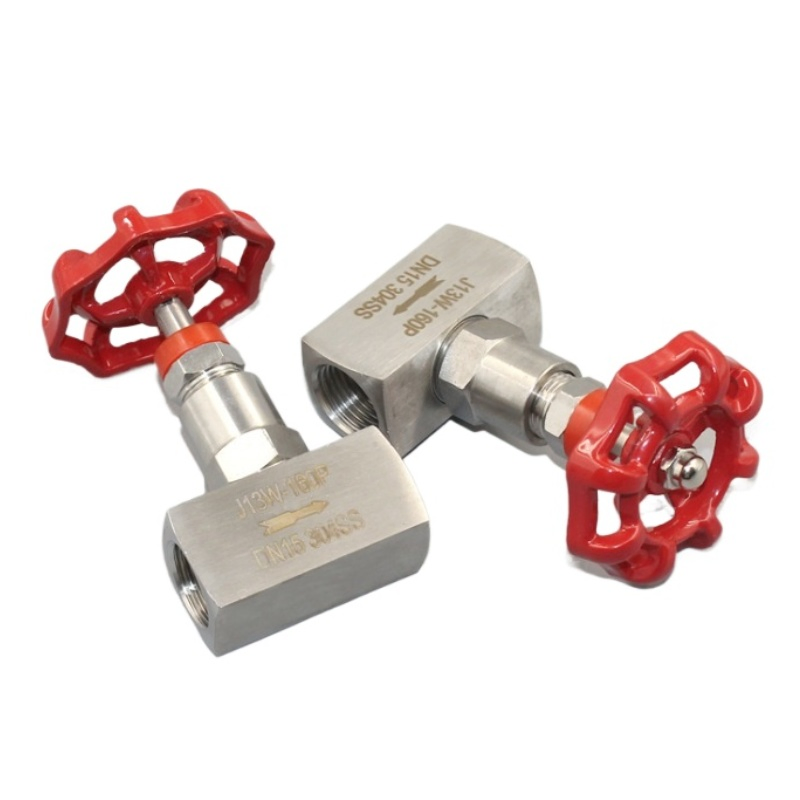

| Type | Straight type female thread needle valve |
| Working Pressure | 1000 psi to 10000 psi |
| Working Temperature | Normal / High Temperature |
| Application | General Use |
| Port Size | 1/8" to 1" |
| Medium | Oil, Gas, Water, Acid Liquid |
| Material | SS304, SS316, Carbon Steel ASTM A105 |
| Power | Manual |
| Structure | Needle Valve |
| Standard | Standard Design |
| Certificate | MTC, QC, COC, Country of Origin |
| Packing & Sealing | PTFE, Graphite, Copper Gasket |
| Warranty Period | 18 months after shipment |

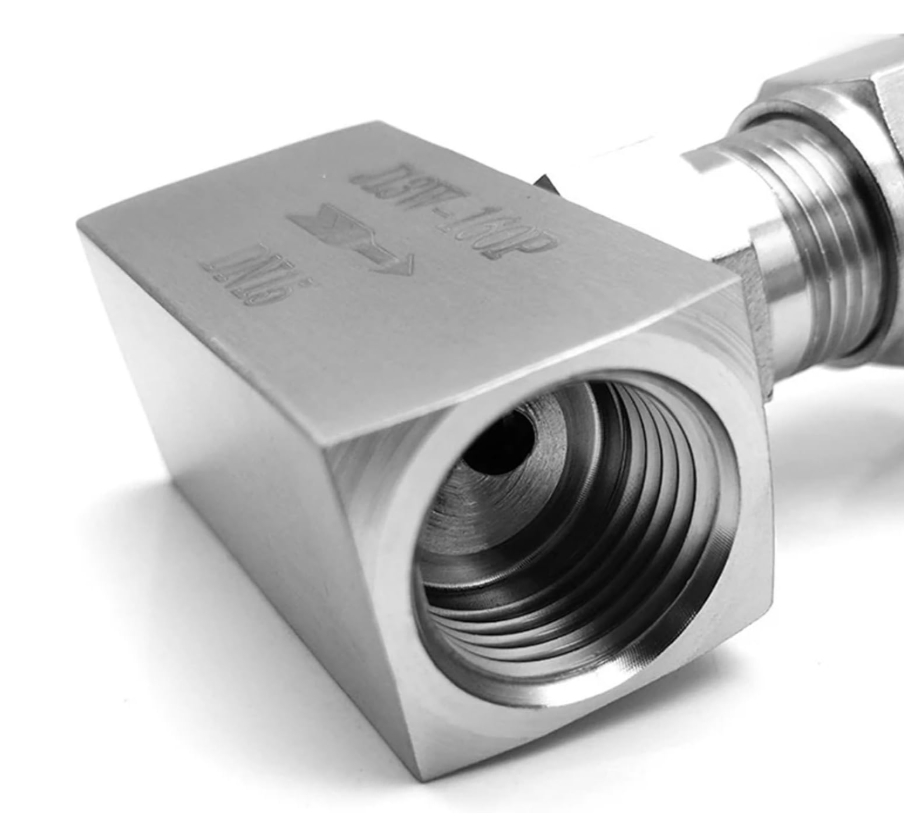

| Connection | Female Thread |

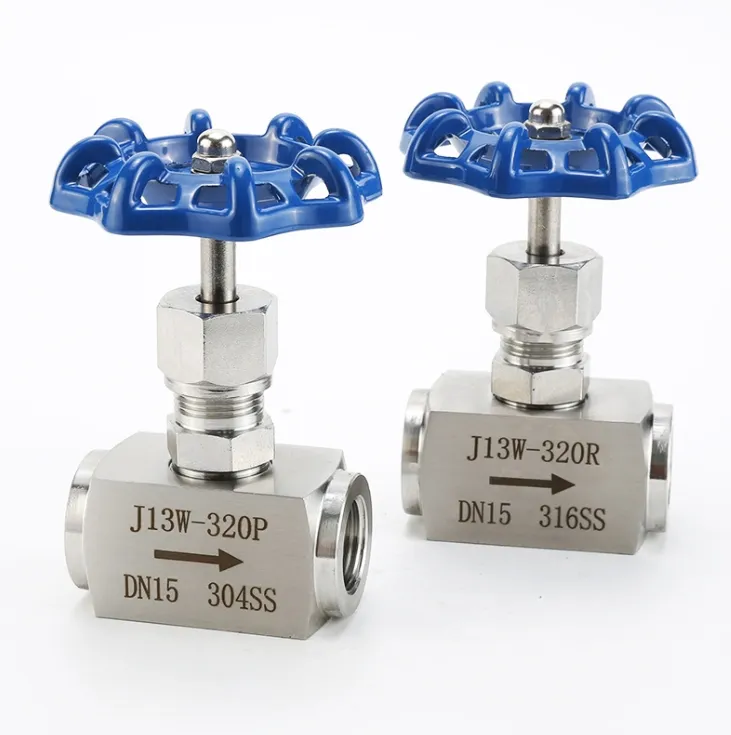

Structure and Working Principle

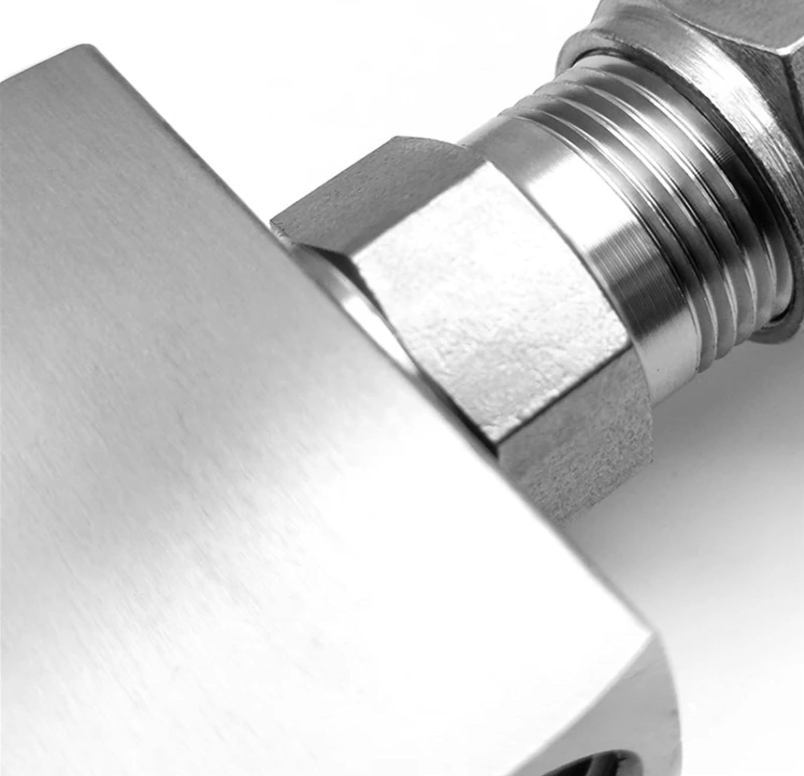

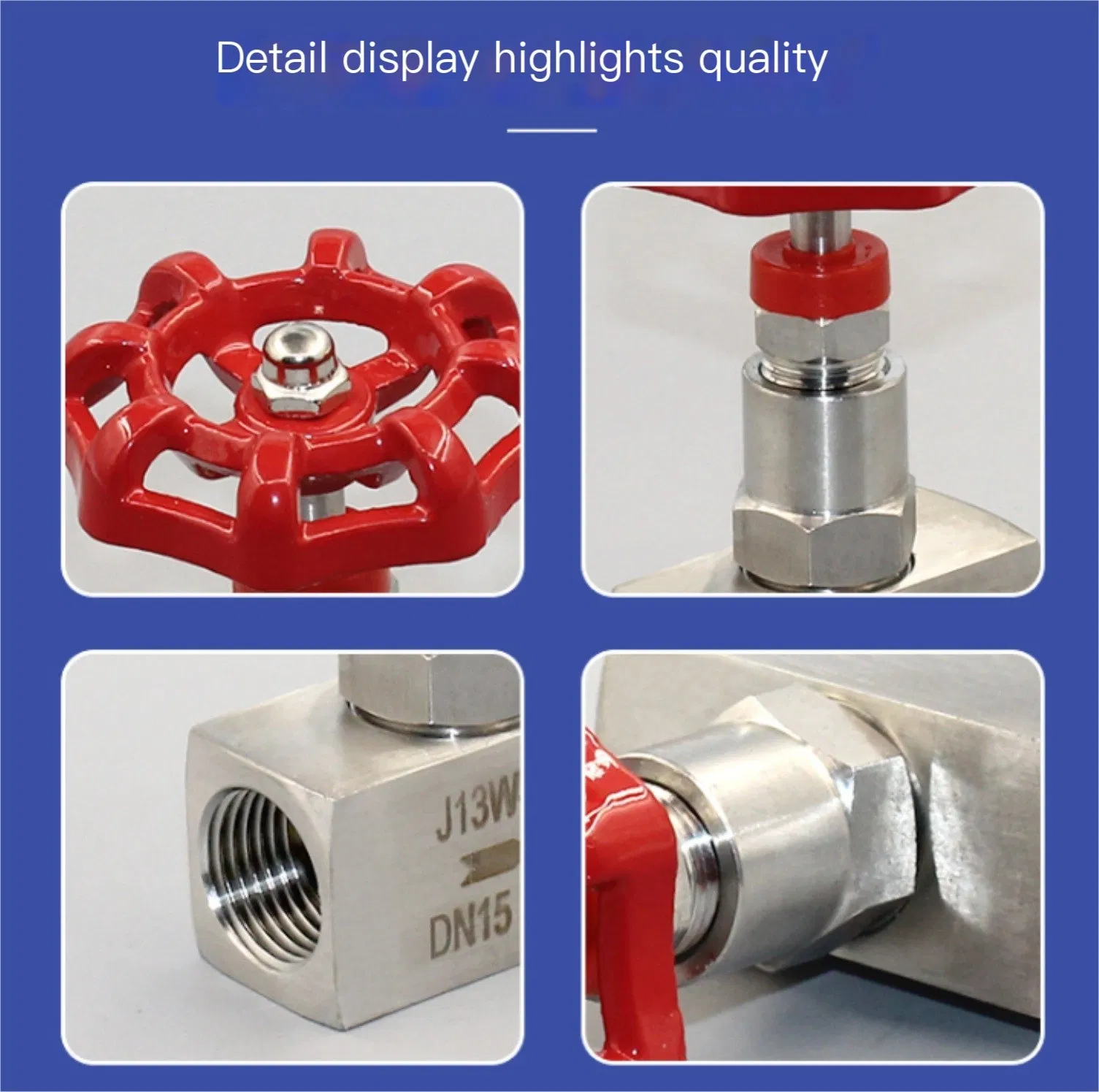

Structure: Composed of valve body, valve stem, valve core, valve seat, packing, and gland. The needle-shaped valve core achieves precise sealing with the seat.
Principle: Rotating the valve stem moves the valve core up and down, precisely adjusting the gap to control or cut off medium flow.
Key Advantages
- Good Sealing Performance: Small contact area between core and seat ensures high sealing pressure, preventing leakage even under extreme high pressure.
- Strong Pressure Resistance: High-strength stainless steel construction withstands pressures from 1.6MPa up to 32.0MPa.
- Accurate Flow Control: The fine needle structure allows for precise adjustment of small flow rates.
- Long Service Life: Excellent corrosion and wear resistance. Only vulnerable parts need replacement if the sealing surface is damaged.
Main Technical Parameters
- Nominal Diameter: DN6-DN20
- Nominal Pressure: 1.6MPa-32.0MPa
- Applicable Temperature: -40 ºC to +540 ºC
- Applicable Media: Oil, water, gas, and non-corrosive/corrosive liquids
- Connection Methods: Welding, sleeve threaded, flange connection
Application Fields
- Petrochemical: Flow control for chemical raw materials, gases, and reaction vessels.
- Electric Power: Instrument measurement pipelines and steam systems in power stations.
- Metallurgy: Transportation of oxygen/nitrogen and hydraulic oil regulation.
- Pharmaceutical: Precise delivery of drugs and sterile gases in production lines.
Product Range
We provide a comprehensive range of high-performance components manufactured to ASME/ANSI/DIN/JIS/GB standards, including: needle valves, ball valves, globe valves, check valves, gate valves, compression fittings, and hydraulic components. Materials available include stainless steel, carbon steel, and specialty alloys.
Frequently Asked Questions
Q1: Are you a professional manufacturer or a trading company?

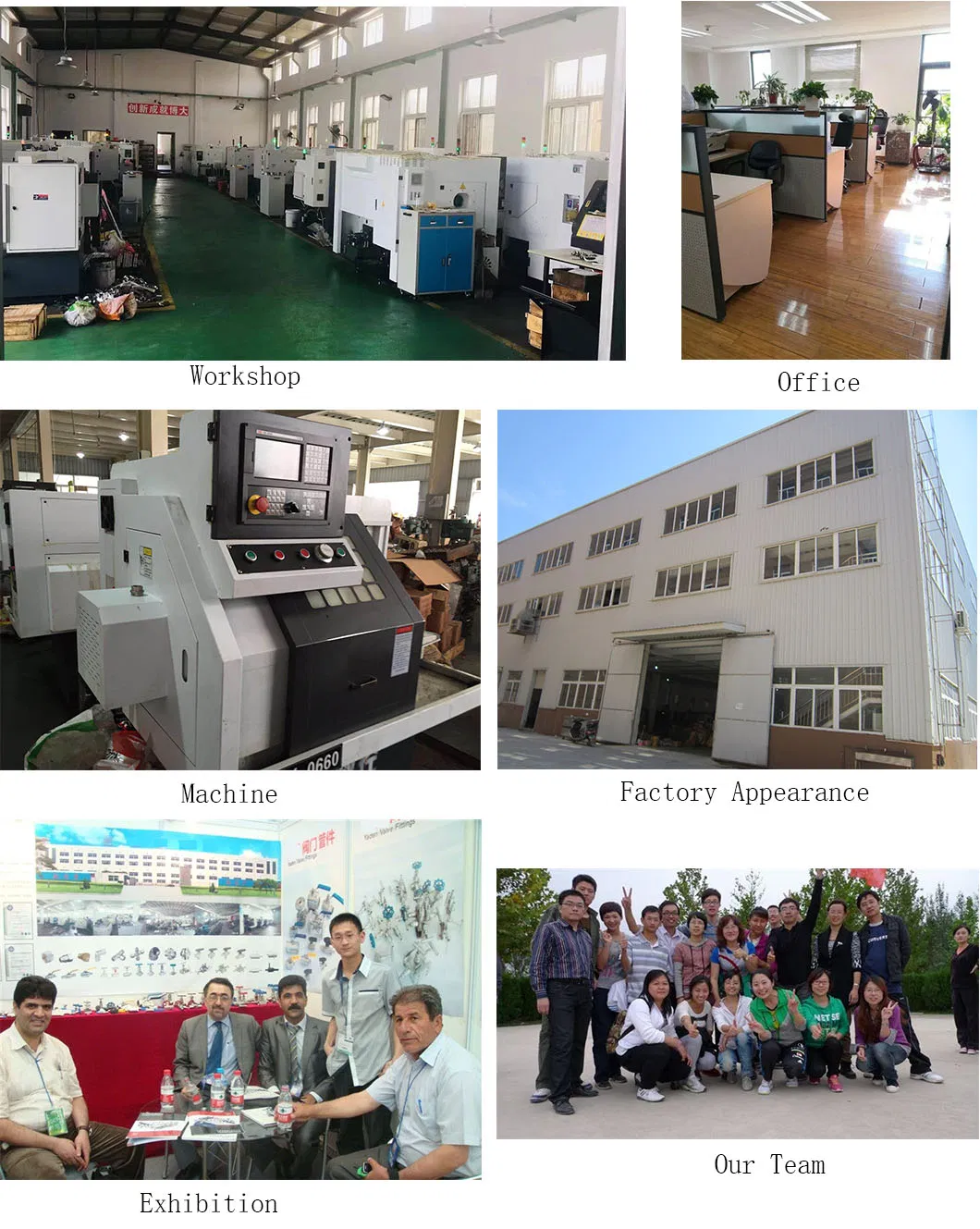

A: As a high-tech enterprise, we integrate design, development, manufacture, and sales of stainless steel valves and pipe fittings. We handle every step from machining and manufacturing to final inspection.
Q2: Do you have stock and what is the delivery time?
A: For in-stock items, we can ship within 48 hours. For non-stock items, production typically takes 5-30 days depending on the order quantity.

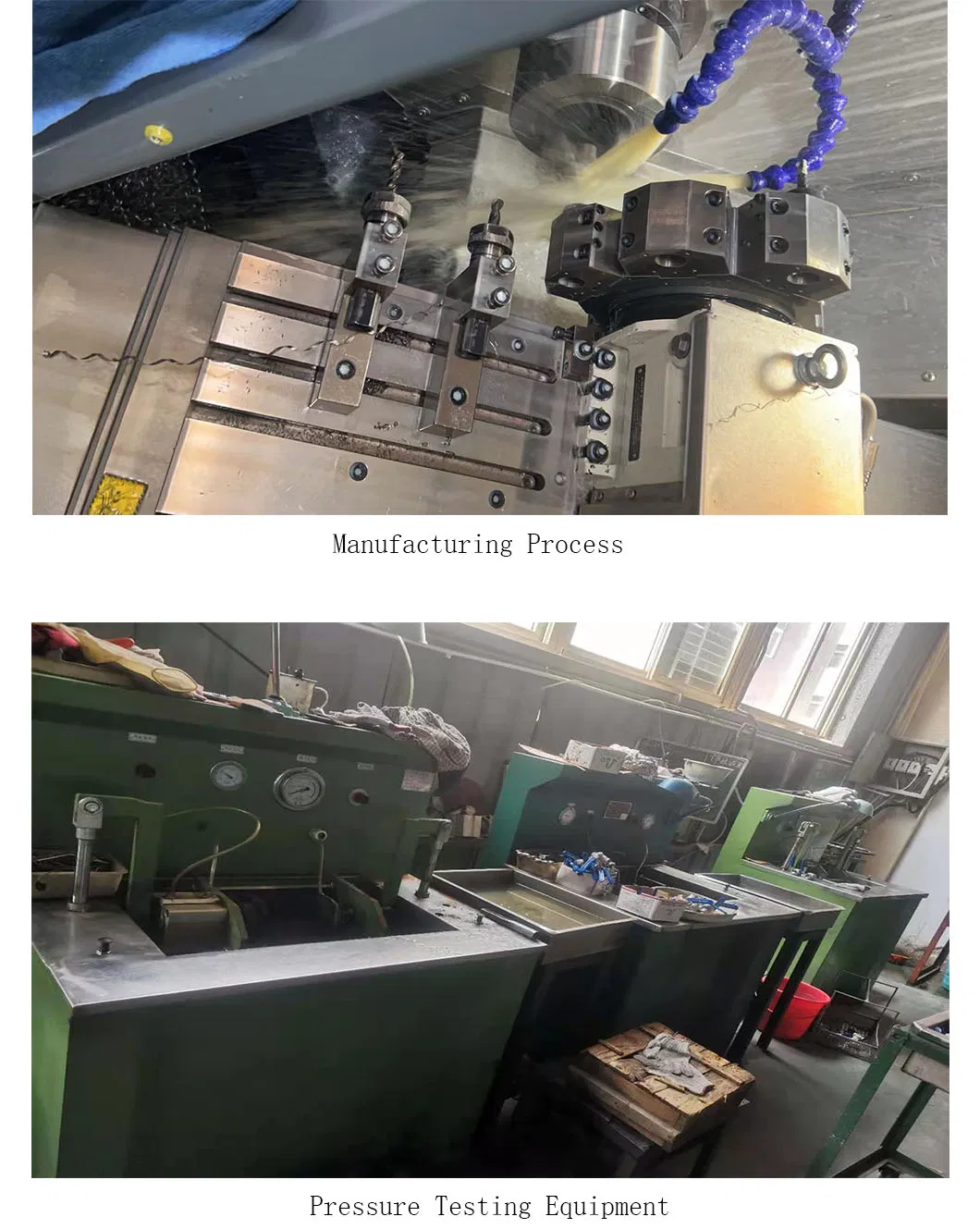

Q3: How do you ensure the quality of your products?
A: We utilize advanced domestic and overseas production technology and equipment. Every step follows strict process card and quality tracking management methods to maintain excellence.
Q4: What should I do if I am unsure which product I need?
A: Simply provide us with your working pressure, temperature, and medium. We can then suggest the most suitable model or provide our e-catalogue for your reference.
Q5: Can I request products made in special materials?
A: Yes. You can provide design drawings or samples. Our R&D department will evaluate the requirements and provide a satisfactory solution.
Q6: What is the shipping method for international orders?
A: We normally use international expresses like DHL, TNT, FedEx, or UPS. We can also arrange other shipping methods according to your specific needs.
