Forged Carbon Steel ASTM A105 High Pressure 3000 Psi 1/2" NPT Instrument Isolation Needle Valve

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
HY-FTNV-W
Material
Carbon Steel A105
Pressure
1000 Psi to 10000 Psi
Standard
ASME B16.34, JIS, DIN, GOST, GB
Media
Oil, Gas, Water, Acid Liquid
Temperature
-25°C to 600°C
Thread
NPT, BSPT, BSPP
Port Size
1/8" to 2"
Warranty
12 Months
Surface
Polish, Zinc Galvanized, Black Treatment
Product Description

The Carbon Steel A105 Internal Thread Needle Valve is a high-performance control valve specifically designed for industrial fluid systems. It excels in regulating, throttling, and shutting off flow for gases, liquids, and steam with exceptional precision and reliability. Forged from ASTM A105 carbon steel, it provides superior mechanical properties and durability in harsh environments.

  • Precision Control: Features a needle-shaped valve core for linear, accurate flow regulation.
  • Robust Material: Forged A105 steel offers high tensile strength and excellent impact resistance.
  • Easy Installation: Internal thread connection (BSP/NPT) allows for compact, tool-efficient mounting.
  • High Pressure Sealing: Precision-machined components prevent leakage even under extreme Class 150/300 conditions.

Commonly applied in petrochemical, power generation, and water treatment sectors, this valve is an essential component for instrumentation systems and steam circuits where fine-tuning flow rates is critical for operational safety.

Forged Carbon Steel Needle Valve
Product NameForged Carbon Steel ASTM A105 High Pressure 3000 Psi 1/2" NPT Instrument Isolation Needle Valve
TypeStraight type female thread needle valve
Working Pressure1000 psi to 10000 psi
Packing & SealingPTFE, graphite, copper gasket
Stem MaterialSS304, SS316, SS201
Seat MaterialCarbon Steel ASTM A105, SS304, SS316
Testing StandardGB/T 12224, GB/T 13927, API598
Delivery Time7-25 Days
Gallery Showcase

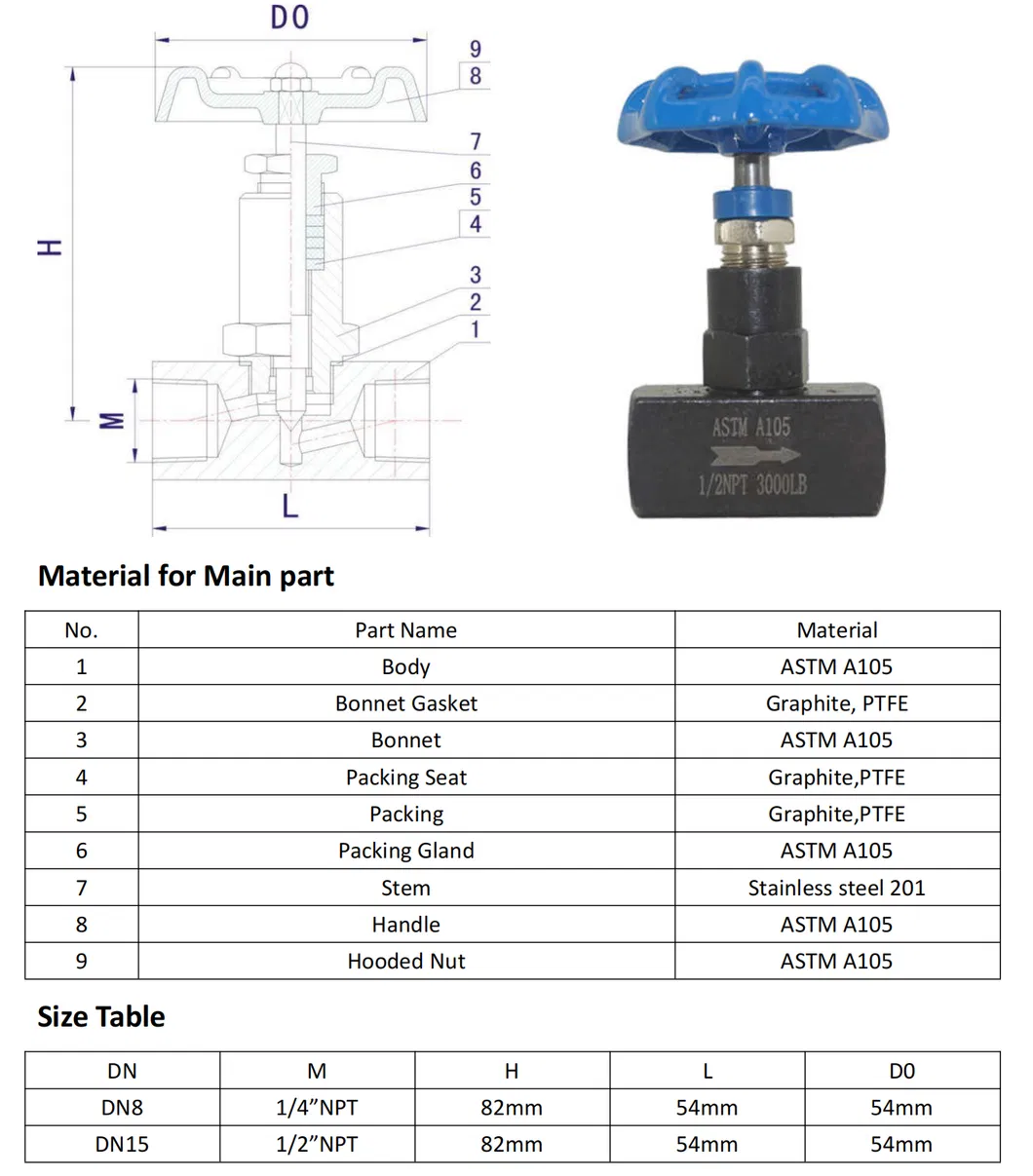

Technical Drawing Production View
Frequently Asked Questions
Are you a professional manufacturer or a trading company?
As a high-tech enterprise, we integrate design, development, manufacture, and sales of stainless steel valves and pipe fittings. We handle the entire procedure from designing and machining to final inspection.
How do you ensure product excellence?
We utilize advanced equipment and production technology, implement process cards, and quality tracking management methods to ensure every step meets strict standards.
What should I do if I don't know what kind of product I need?
Simply provide us with your "working pressure," "temperature," and "media." Our team will suggest the most suitable product or provide our e-catalogue for your reference.
Can I get a free sample?
Yes, free samples can be provided. However, freight fees may apply initially. For long-term partners, we supply both free samples and free freight.
Why does the website price differ from the real price?
Website prices are for reference only. The final price depends on size, material, quantity, surface treatment, exchange rates, and specific technical requirements.
Can you manufacture products in special materials?
Yes, if you provide design drawings or samples, our R&D department will evaluate the requirements and provide the most satisfactory solution for special material requests.
