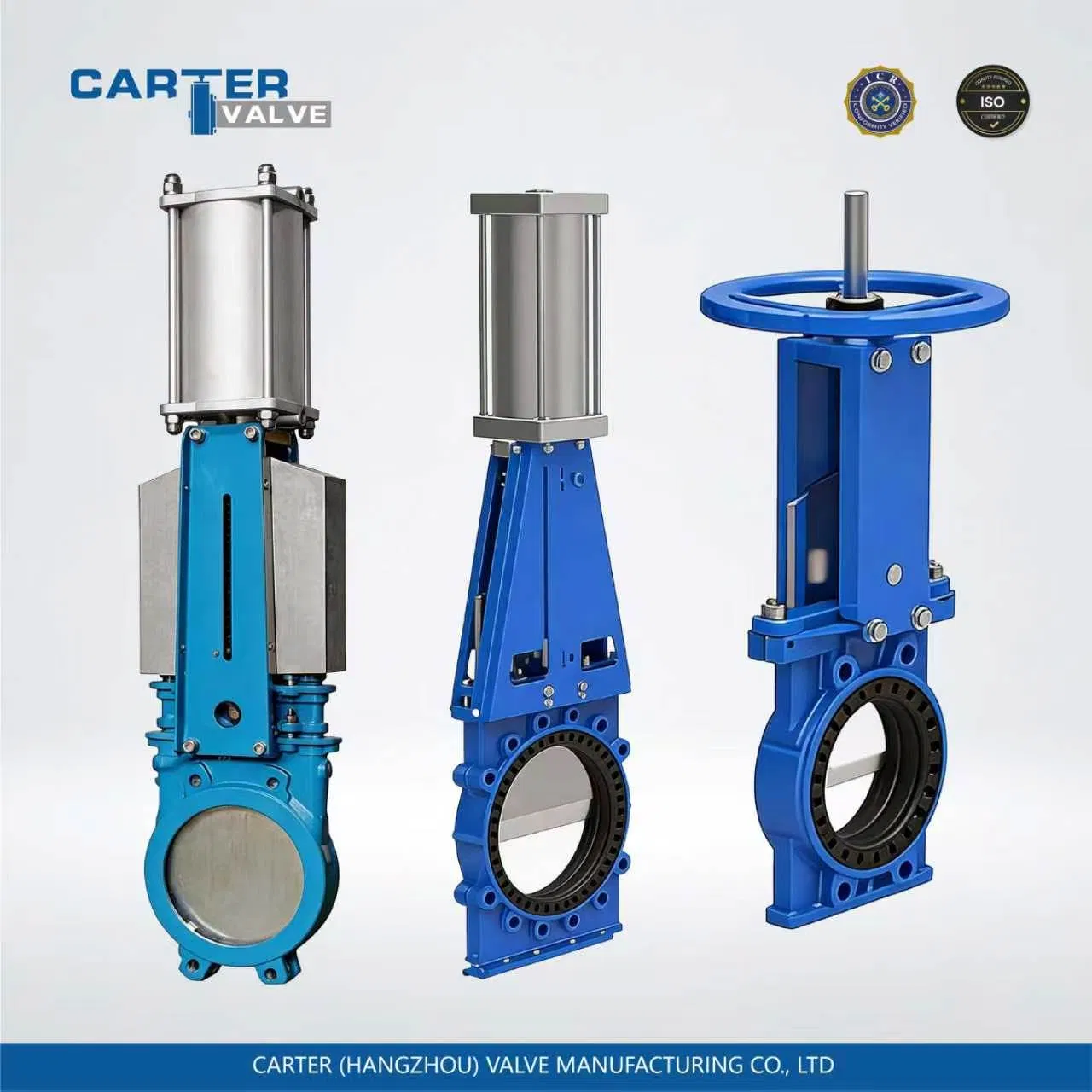

Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
1 / 5
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF
Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF

Knife Gate Valve,Gg25 Cast Iron Slide Gate Valve,RF Flanged Sluice Valve,Manual Rising Stem,ANSI DIN Standard,for Slurry,Pulp&Wastewater Applications Flanged RF

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
knife-02
Type
Tri-through
Material
Stainless Steel
Connection Form
Flange
Pressure
Pn:0.6 - 2.5 MPa
Actuator
Electric / Pneumatic
Seal Surface
Wedge Gate Valve
Usage
Regulation, Safety, Emptying, Drain
Standard
GB, DIN, JIS, ANSI
Specification
DN: 50 - 1200mm
Knife Gate Valve Overview

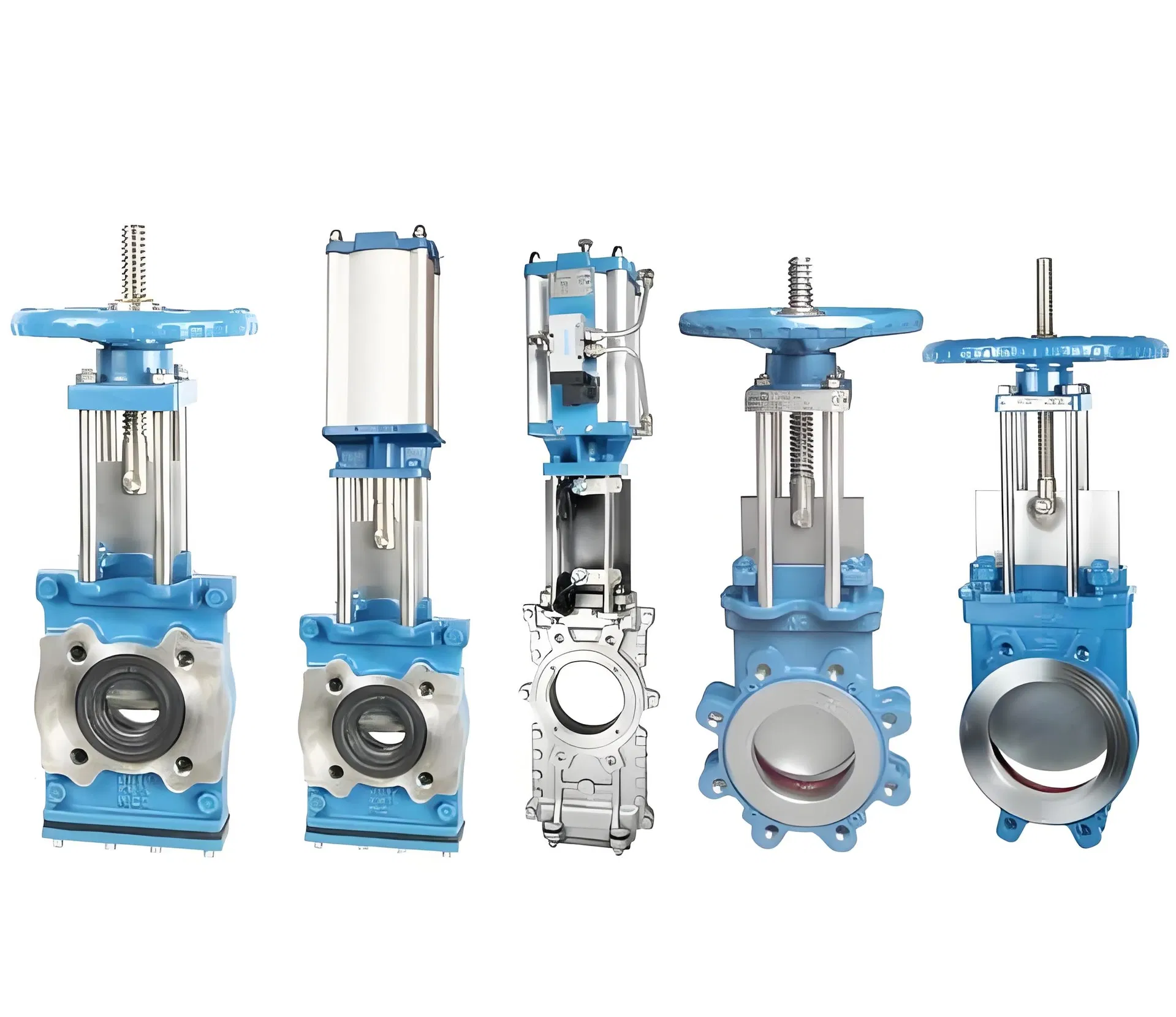

Valve Technical Diagram
📝 Product Description

Knife gate valve is a linear-stroke, positive-sealing shut-off valve. Its core component is a flat gate with a sharp cutting edge, which moves perpendicular to the medium flow direction. It relies on the shearing action of the gate to cut off media containing particles, fibers, or viscous substances. With no conventional gate valve cavity, the valve features an ultra-thin structure and a full-bore flow path, specifically designed for clog-prone media such as slurry, pulp, slag, dust, and wastewater.

📊 Technical Parameters
Parameter Range / Standard
Nominal Diameter50 ~ 1200mm (standard); 15 ~ 2000mm (customized)
Nominal Pressure0.6 / 1.0 / 1.6 / 2.5 MPa; 150LB / 10K
Applicable TemperatureSoft seal: -20℃ ~ 120℃ | Metal seal: -40℃ ~ 425℃
Connection StandardsGB / JB / HG / ANSI / DIN / JIS
Leakage ClassSoft seal: Class VI (zero leakage); Hard seal: Class IV
📷 Product Showcase

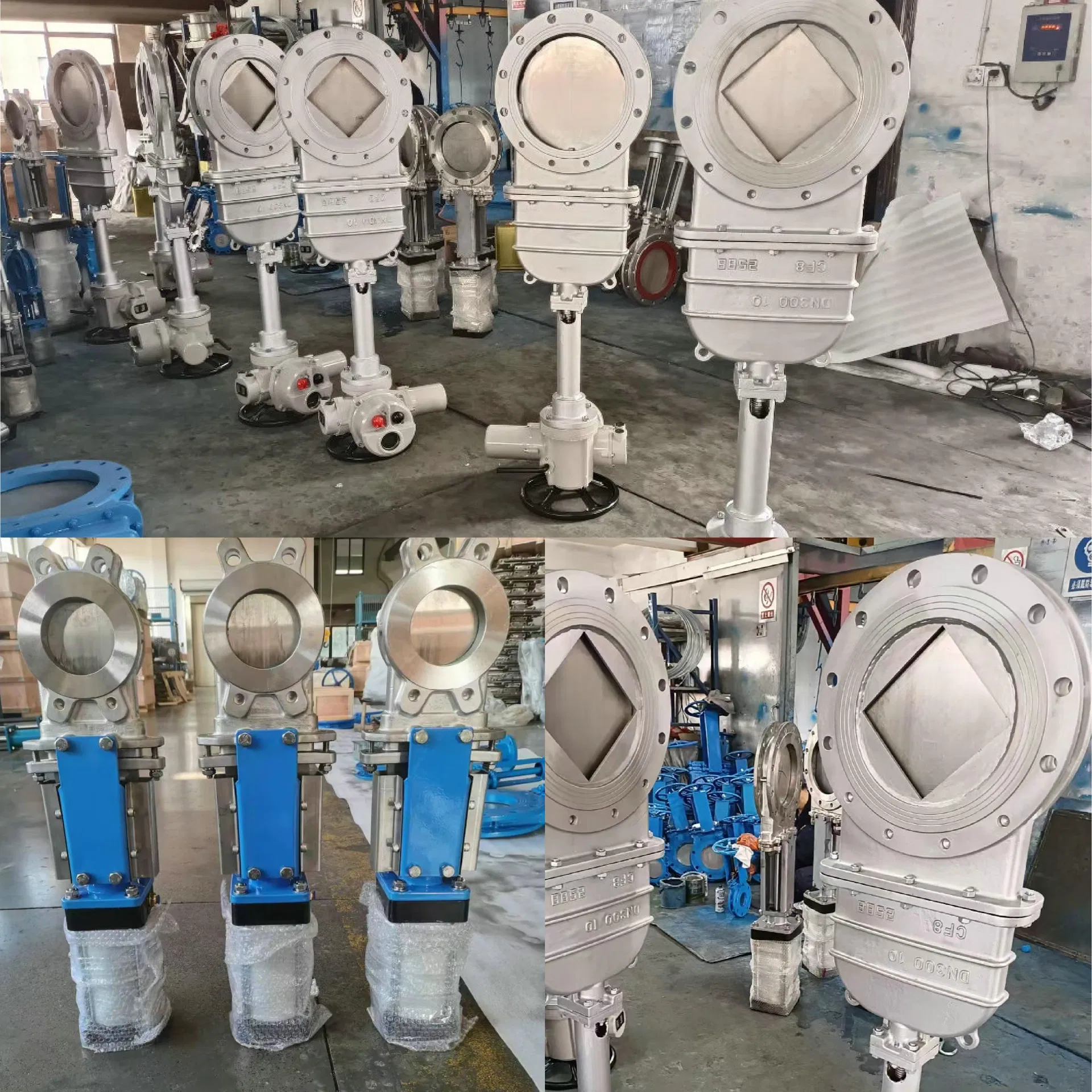

Knife Gate Valve Unit

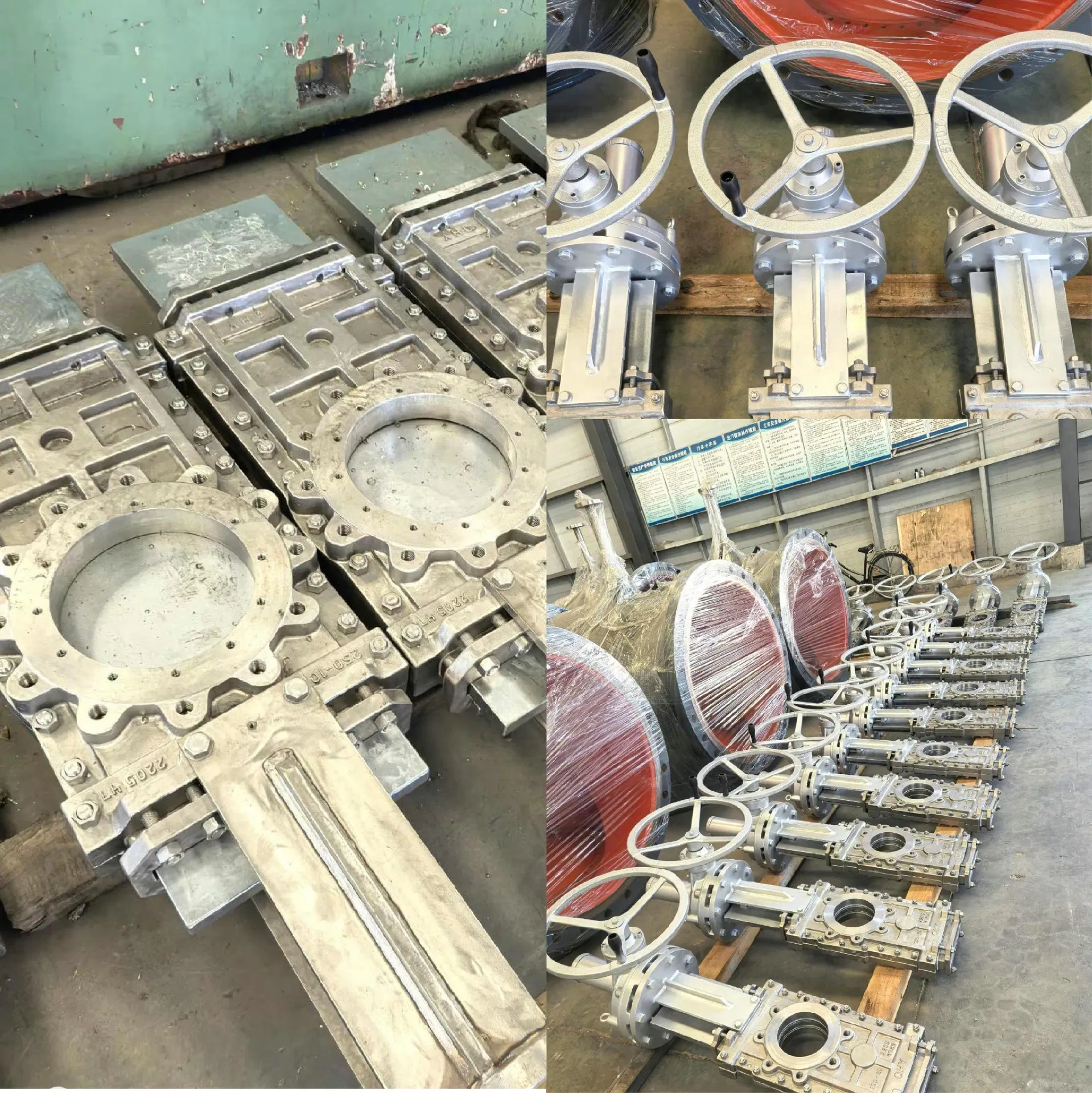

Detail View 1

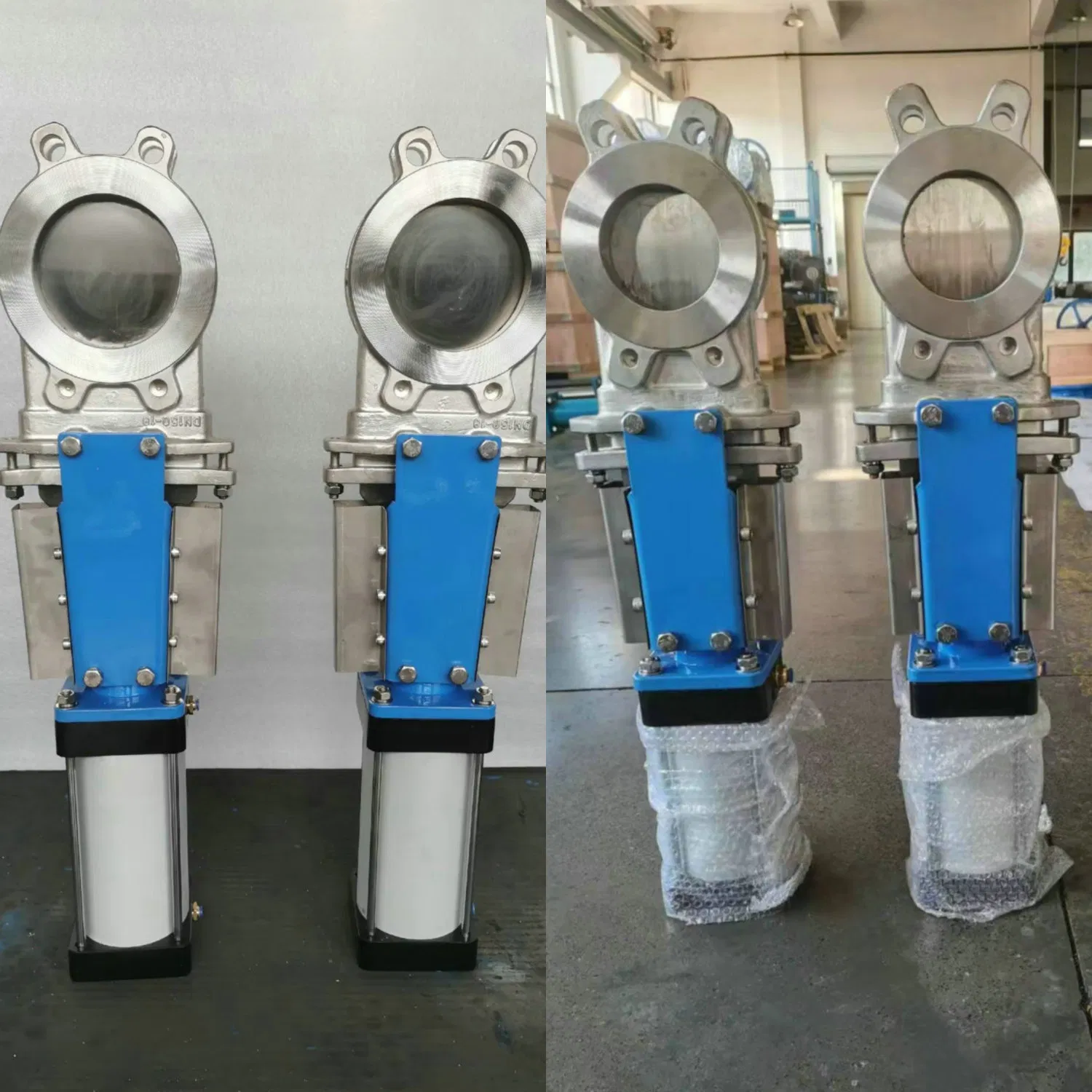

Detail View 2
🛠️ Component Materials
Component Material Options
Valve BodyCast Iron (HT200/250), Carbon Steel (WCB), Stainless Steel (304/316/316L)
Gate DiscStainless Steel (304/316), Hardfaced Carbide Overlay
SealEPDM, NBR, Viton, PTFE; Hard: 304/316, Stellite
Stem2Cr13, 304, 316, Titanium Alloy
🚀 Key Features
✔
Knife-Edged Gate Disc: Sharp beveled edge to cut through fibers and sludge, preventing jamming.
✔
Full-Bore Flow Path: Extremely low flow resistance with no dead zones for material accumulation.
✔
Ultra-Thin Design: Compact size and light weight, saving installation space.
✔
Multiple Actuation: Manual, Electric, Pneumatic, or Hydraulic operation available.
✔
High Cost-Effectiveness: Ideal for slurry and pulp applications compared to conventional valves.
📦 Service & Packaging
Package Size
20.00cm * 10.00cm * 30.00cm
Gross Weight
10.000kg
Transport
Wooden Case
Warranty
12 Months (Extended up to 36 months)
Packaging Detail
❓ Frequently Asked Questions
What types of valves do you mainly supply?
We mainly supply ball valves, gate valves, globe valves, check valves, butterfly valves, and strainers for chemical, water, oil & gas applications.
What are the common materials used for these valves?
Common materials include carbon steel, 304/316 stainless steel, cast steel, and ductile iron. Special alloys are available upon request.
Do you support customized valve production?
Yes, we provide OEM and customized valves based on specific drawings, technical requirements, and material specifications.
What international standards do your products comply with?
Our products comply with GB, ANSI, API, JIS, DIN, and BS international standards.
What is the typical production lead time?
Generally, production is completed within 10 working days after order confirmation, depending on the quantity and complexity.
What kind of technical support is provided?
We provide 24/7 technical assistance, spare parts supply, and can offer on-site installation or maintenance training for your team.
