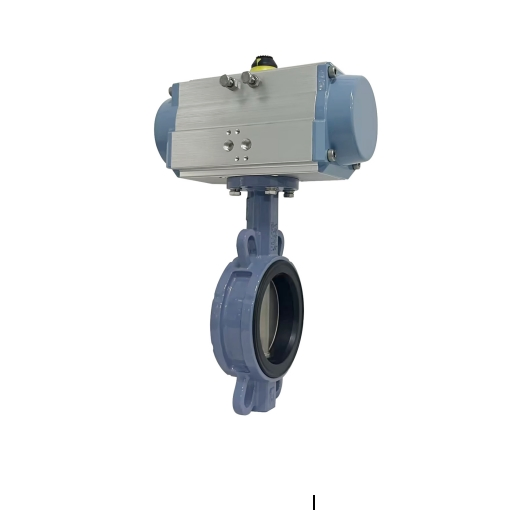

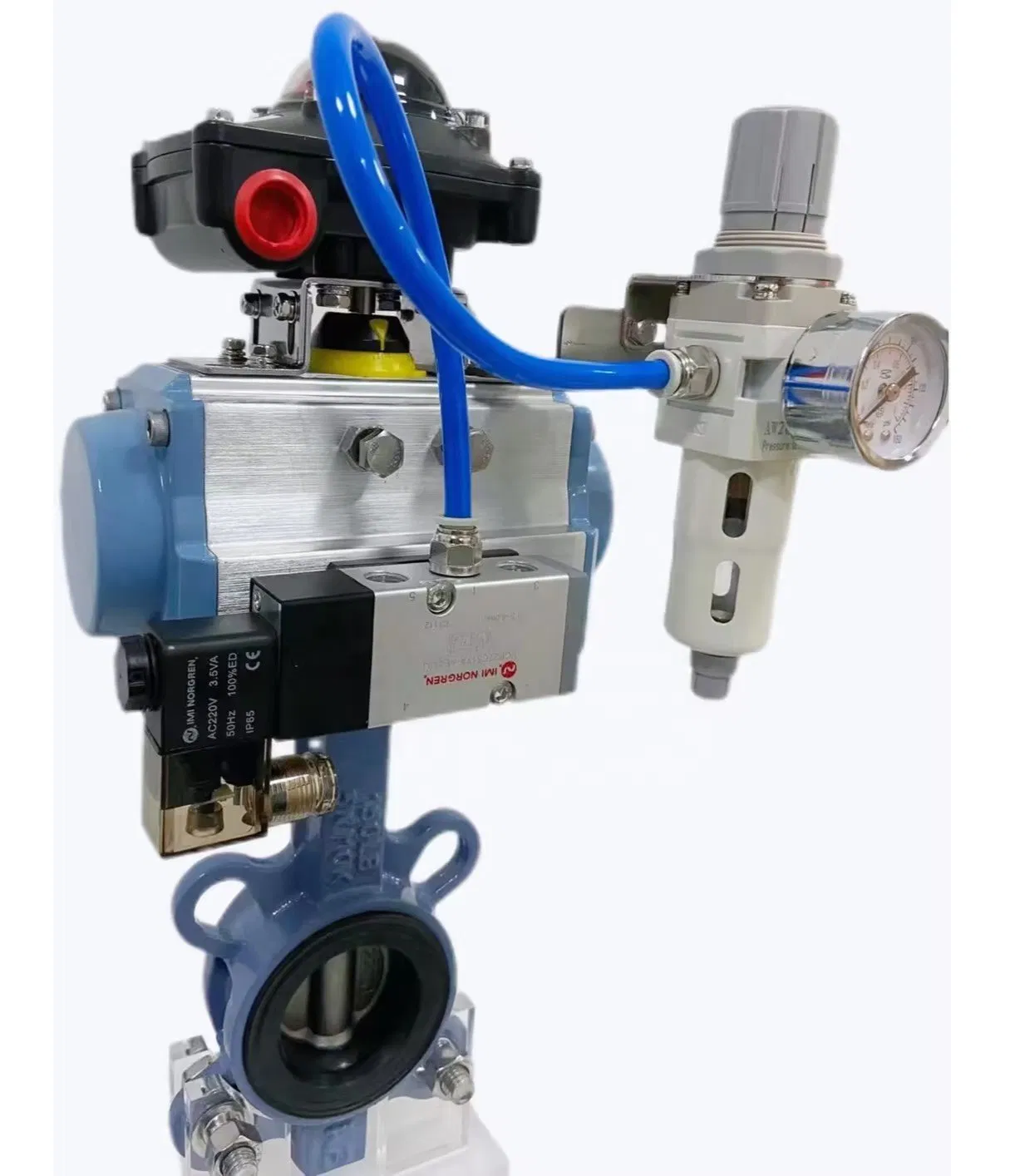

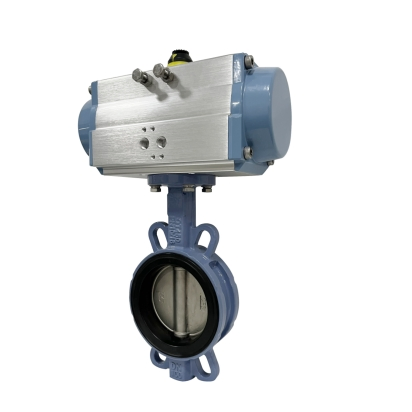

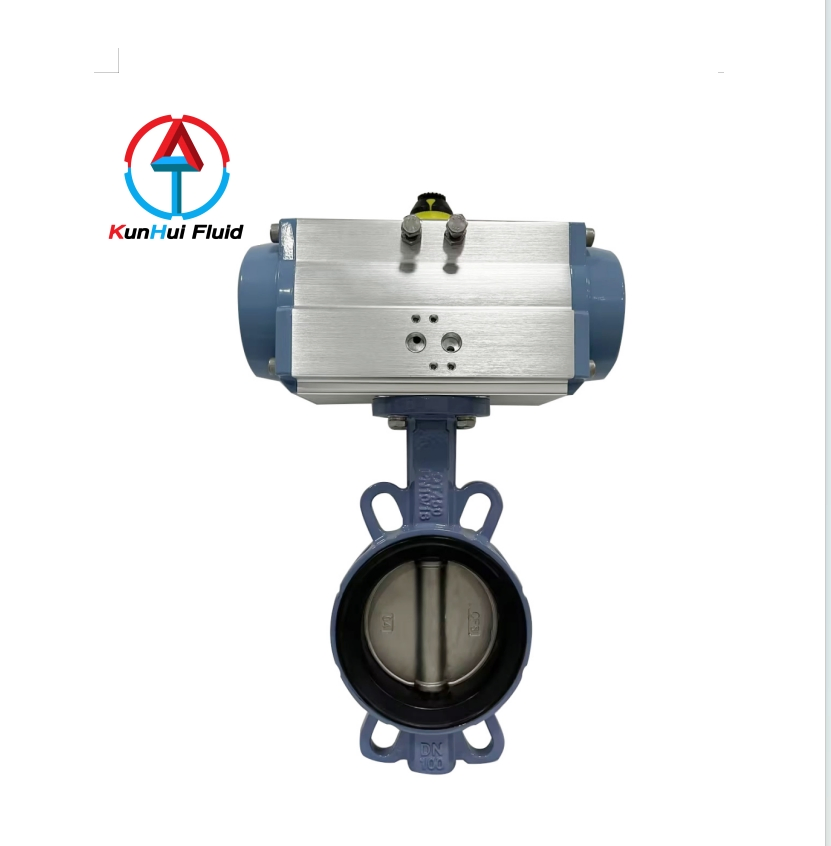

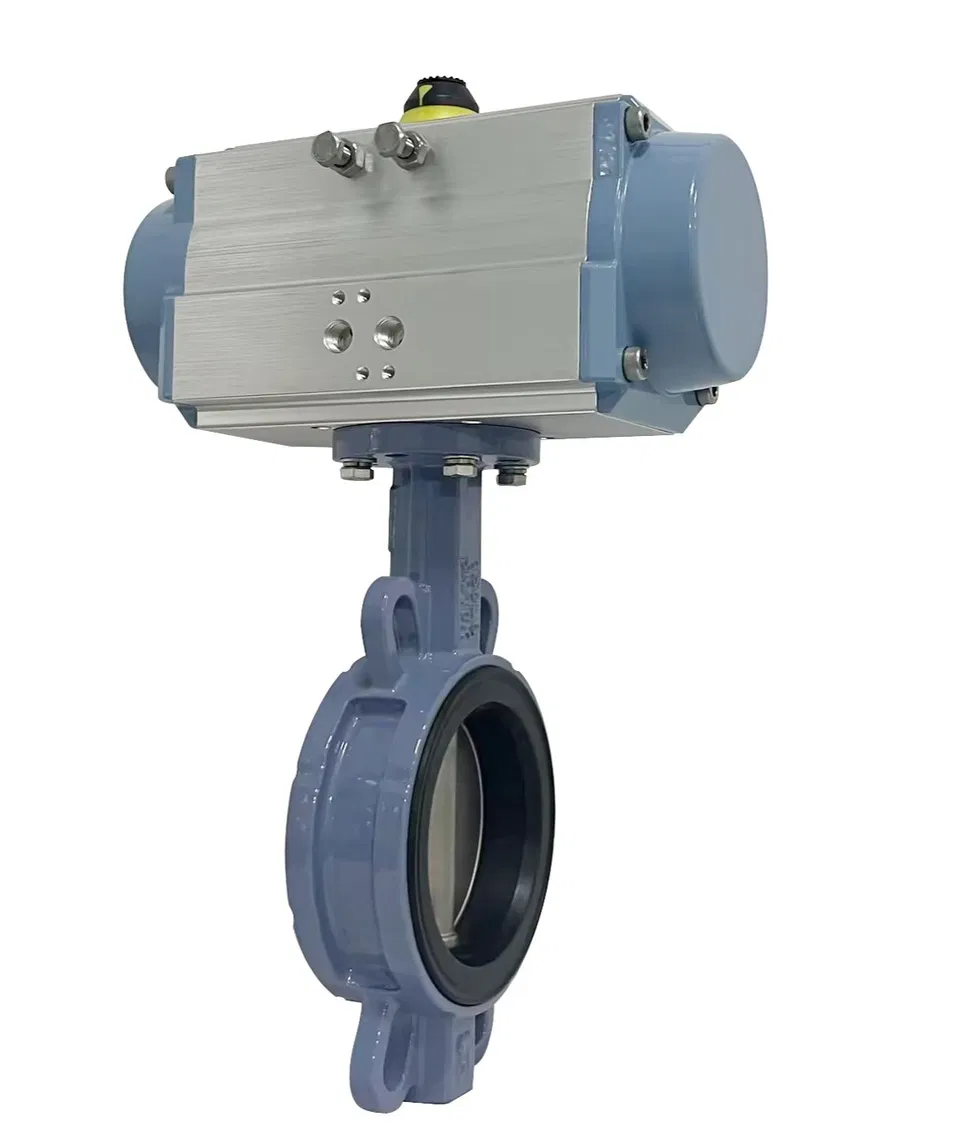

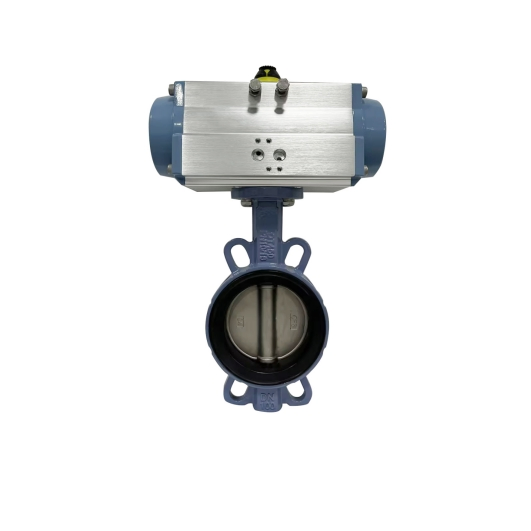

Pneumatic butterfly valves use compressed air to drive the actuator, rotating the butterfly plate 90° to control switching or flow regulation. Featuring compact size and good sealing, they are ideal for petroleum, chemical, and water treatment industries.
Characterized by simple structure, light weight, and quick operation. Available in both soft and hard seals to suit various flow resistance requirements and automation needs.

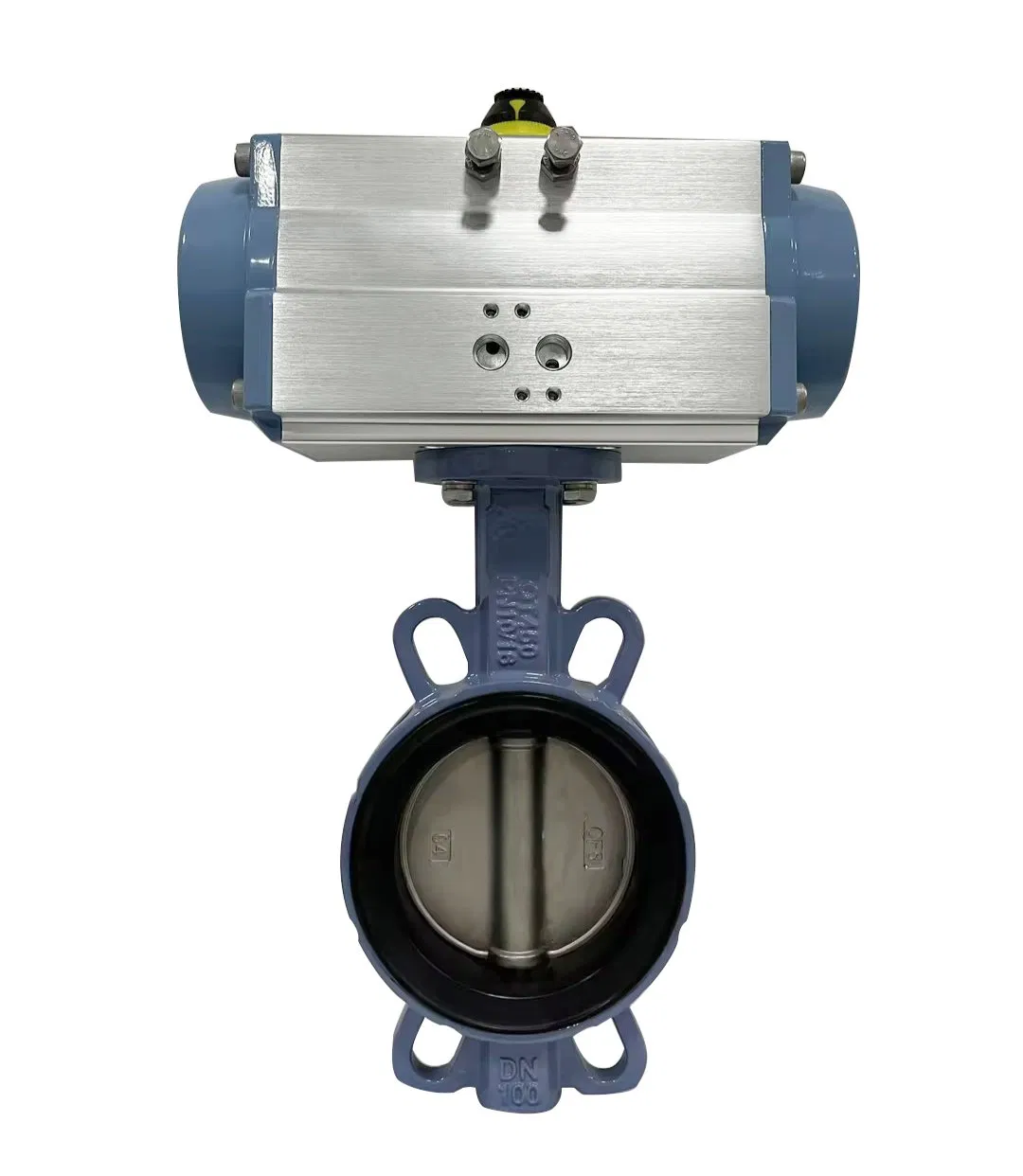

Simple structure, rapid labor-saving opening/closing, and low fluid resistance. High adaptation to high temperature and corrosive media. Suitable for modern industrial fields requiring high efficiency and remote operation.

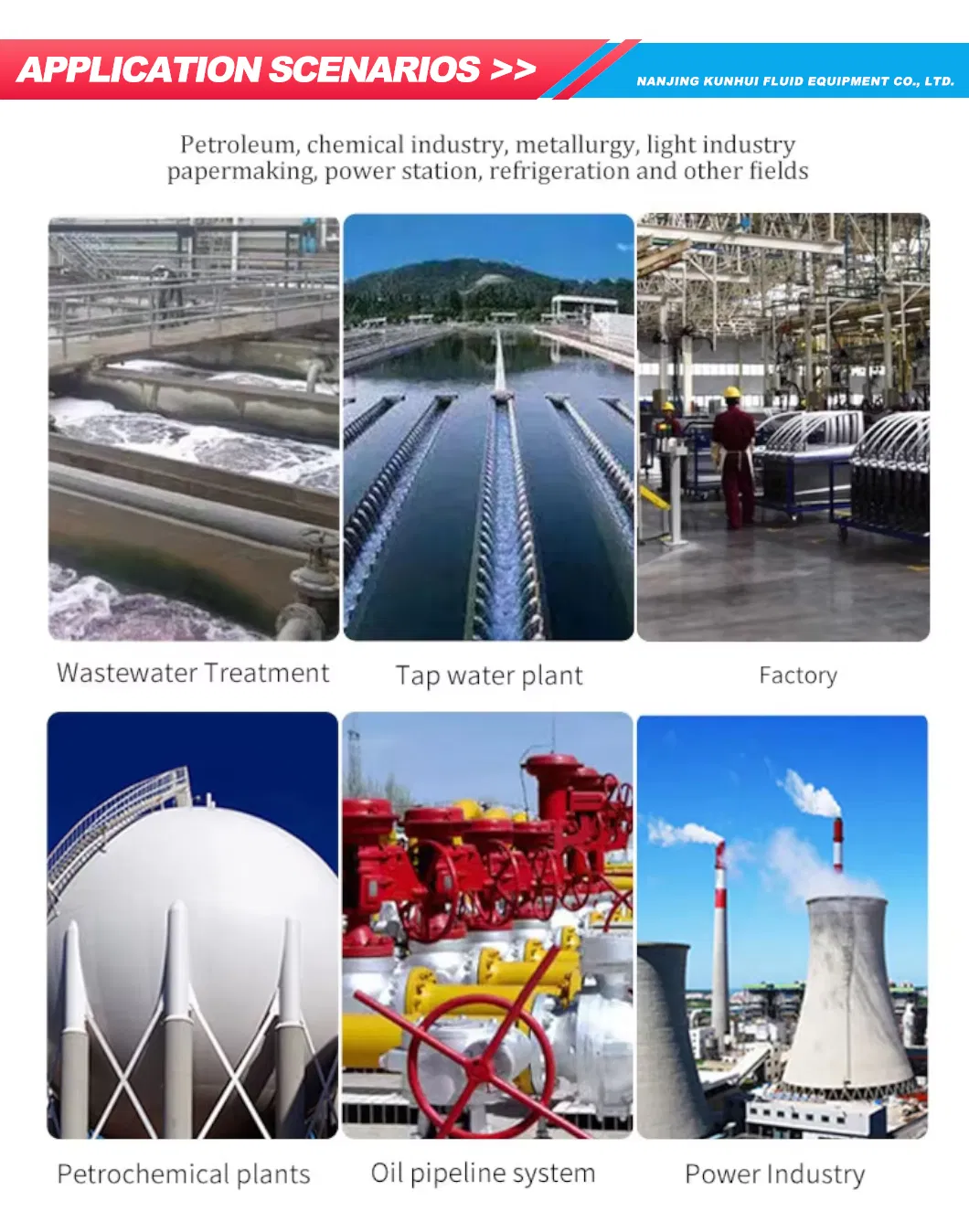

Widely used in petrochemical, power, food and beverage, pharmaceutical, metallurgy, papermaking, and HVAC for liquid, gas, and powder media control.
| Parameter | Description | Midline Soft Seal (PBF Series) | Tri-Eccentric Hard Seal (PTE Series) |
|---|---|---|---|
| Size Range | Nominal Diameter | DN50 (2″) – DN300 (12″) | DN50 (2″) – DN300 (12″) |
| Pressure Rating | PN/Class | PN10/16, Class 150 | PN16/40, Class 150/300 |
| Body Material | Valve Body | DI, WCB, CF8, CF8M | WCB, CF8, CF8M, Alloy Steel |
| Seat Material | Sealing Ring | EPDM, NBR, PTFE | Metal-to-Metal |
| Air Supply | Air Pressure | 0.4–0.7 MPa | 0.4–0.8 MPa |
| Media Temp. | Operating Temp | -20°C to 180°C | -40°C to 400°C |
1. Workers with rich experience ensuring smooth export and sincere service.
2. Customized manufacturing according to specific technical requirements.
3. High production output ensuring early delivery times.
4. Direct factory supply providing competitive pricing.
5. Specialized technical support to solve quality concerns promptly.
