Basic Info.
Connection Form
Thread & Flange
Pressure
Ordinary Temperature
Valve Structure
Direct Action Diaphragm Structure
Power Supply
AC & DC Solenoid Valve
Application
Industrial Usage, Water Industrial Usage, Household Usage
Zs Series
3/8''~2'' & Flange Type
Transport Package
Export Carton
Specification
TUV & ISO & CE
Production Capacity
2000PCS/Month
Product Description
- Product Type: Solenoid Valve
- Series: ZS Brass Series 2/2-way Zero Press Differential Solenoid Valve
- Operation: Normally Closed
- Body Material: Forged Brass \ Cast Brass
- Orifice Range: 16mm ~ 50mm
- Pipe Size: 3/8" ~ 2"
- Fluid Media: Water, Hot Water, Air, Gas, Oil, etc.

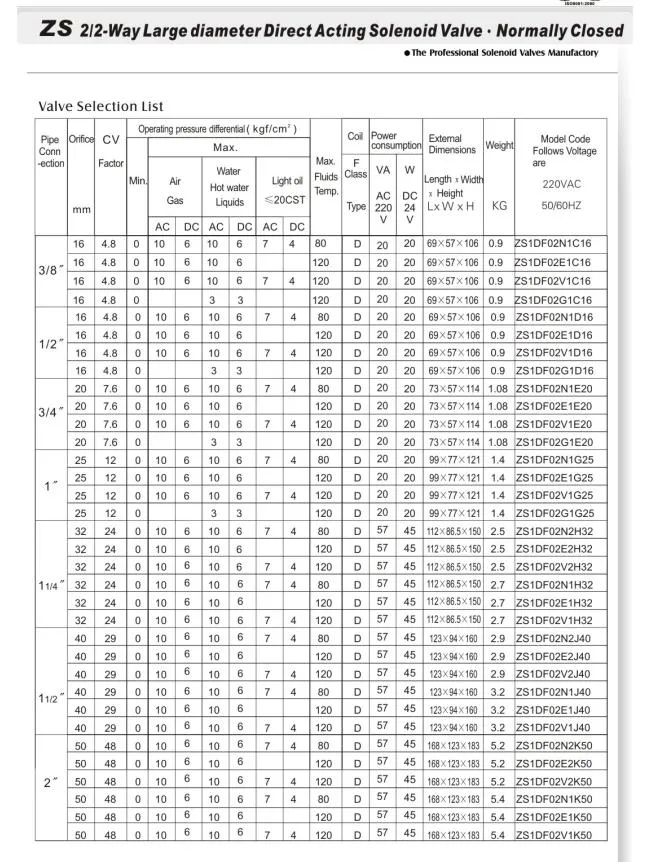

| New Model code |
Pipe Size |
Orifice (mm) |
Pressure (bar) |
Seals Material |
Body Material |
| ZS1DF02N1C16 |
3/8 |
16 |
0~10 |
NBR |
forged brass |

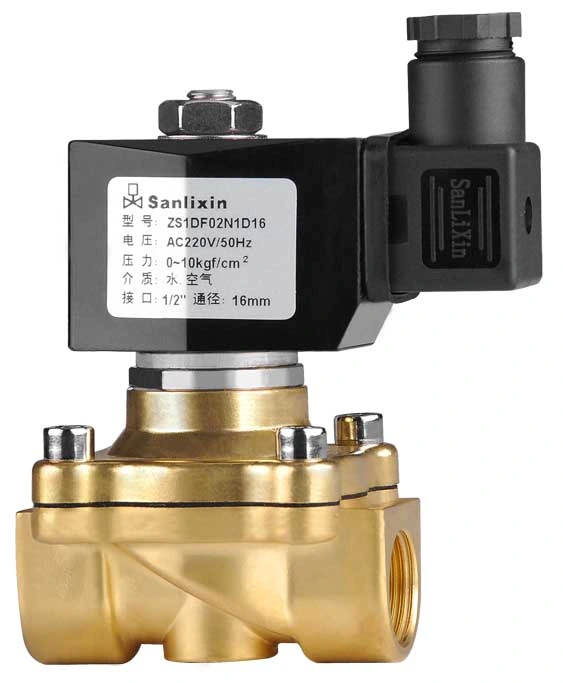

| ZS1DF02N1D16 |
1/2 |
16 |
0~10 |
NBR |
forged brass |
| ZS1DF02N1E20 |
3/4 |
20 |
0~10 |
NBR |
forged brass |
| ZS1DF02N1G25 |
1 |
25 |
0~10 |
NBR |
forged brass |
| ZS1DF02N2H32 |
1 1/4 |
32 |
0~10 |
NBR |
cast brass |
| ZS1DF02N1H35 |
1 1/4 |
32 |
0~10 |
NBR |
forged brass |
| ZS1DF02N2J40 |
1 1/2 |
40 |
0~10 |
NBR |
cast brass |
| ZS1DF02N1J40 |
1 1/2 |
40 |
0~10 |
NBR |
forged brass |
| ZS1DF02N2K50 |
2 |
50 |
0~10 |
NBR |
cast brass |
| ZS1DF02N1K50 |
2 |
50 |
0~10 |
NBR |
forged brass |
Frequently Asked Questions
What is a Zero Pressure Differential Solenoid Valve?
The ZS series is designed to operate without any minimum pressure requirement, meaning it can open and close effectively even when there is no pressure difference between the inlet and outlet.
What materials are used for the ZS series valve body?
The valves are available in high-quality Forged Brass or Cast Brass, providing excellent durability and resistance for industrial and household applications.
Can this valve handle high-temperature fluids?
Yes, the ZS series is compatible with water, hot water, air, gas, and oil, making it suitable for a wide range of thermal media.
What is the difference between "Normally Closed" and "Normally Open"?
This specific ZS series is "Normally Closed," which means the valve remains in the closed position when there is no power and only opens when the electric actuator is energized.
Which standards do these valves comply with?
Our ZS series solenoid valves meet international quality and safety standards, including TUV, ISO, CE, and DIN specifications.
What power supply options are supported by the ZS series?
These valves are versatile and can be used with both AC and DC solenoid power supplies, accommodating various electrical configurations in industrial or residential settings.
