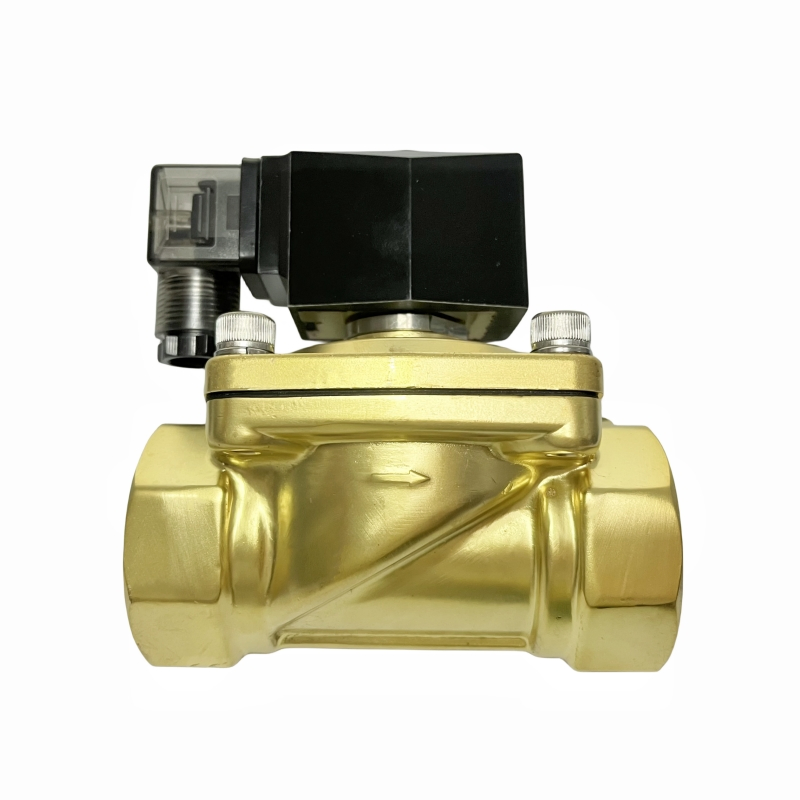

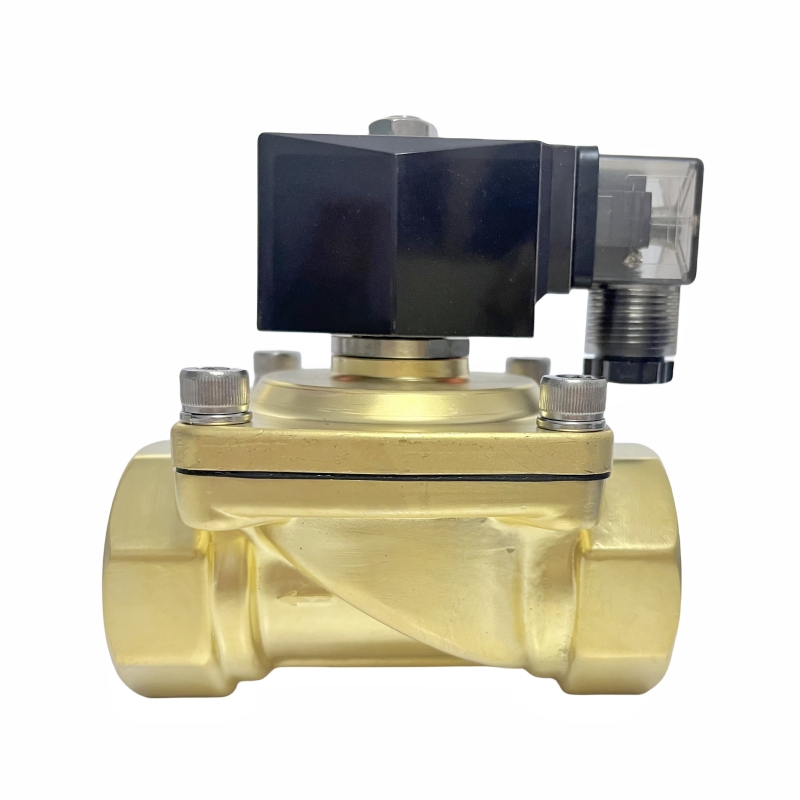

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

1 / 5

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure Direct Acting DIN 2/2way Outdoor Industrial DC24V Solenoid Water Valve

Customization:	Available
Media:	Water
Temperature:	Ordinary Temperature

Send Inquiry

Product Description

Brass 35mm 5/4 1-1/4 Normal Closed 10bar 0-Differential Pressure DIN 2/2way Outdoor Industrial Solenoid Water Valve

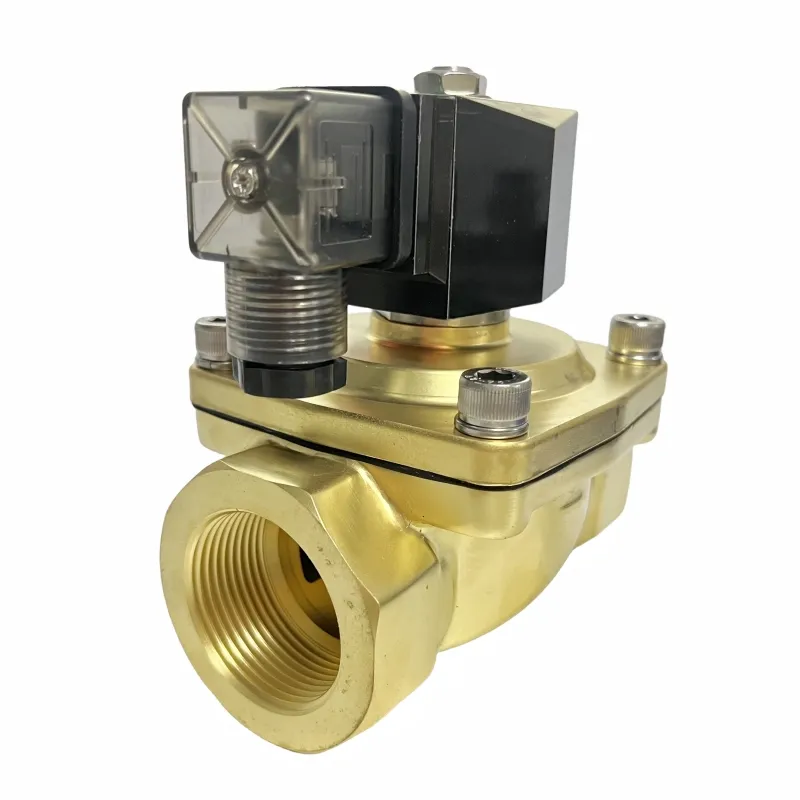

Brass Solenoid Valve

Basic Specifications

Model NO.	2N350-35
Actuator	Electric
Connection Form	Thread
Type	Direct Acting
Material	Stainless Steel / Brass
Pressure	Low Pressure (0-10 Bar)
Valve Structure	Direct-Acting Piston Structure
Power Supply	DC/AC Solenoid Valve
Orifice Size	1mm-50mm
Thread Size	1/8'' - 2''
Media Temperature	-5 to 80 ℃
Seals Material	NBR, Viton, EPDM, PTFE

Product Features

✔ Compact volume with large flow capacity, widely applicable for various industries.

✔ Protection class IP65: Dust-proof and waterproof, specifically designed for outdoor environments.

✔ Standard DIN connector and wire leads available for flexible installation.

✔ Insulation Grade H: Superior resistance to high temperatures for long-term reliability.

✔ Multiple sealing options including NBR, VITON, EPDM, and SILICONE.

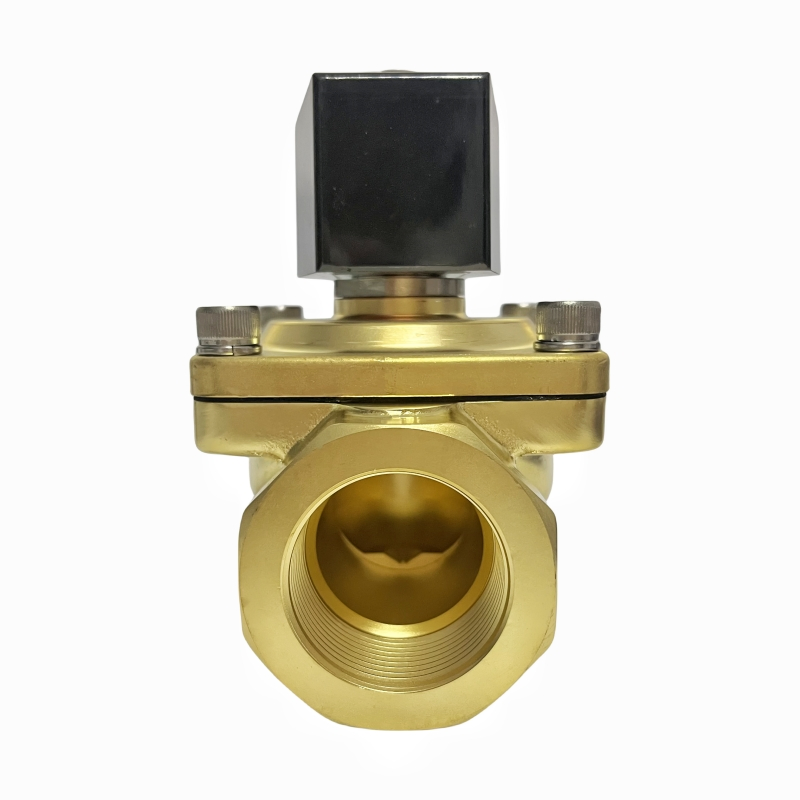

Valve Side View

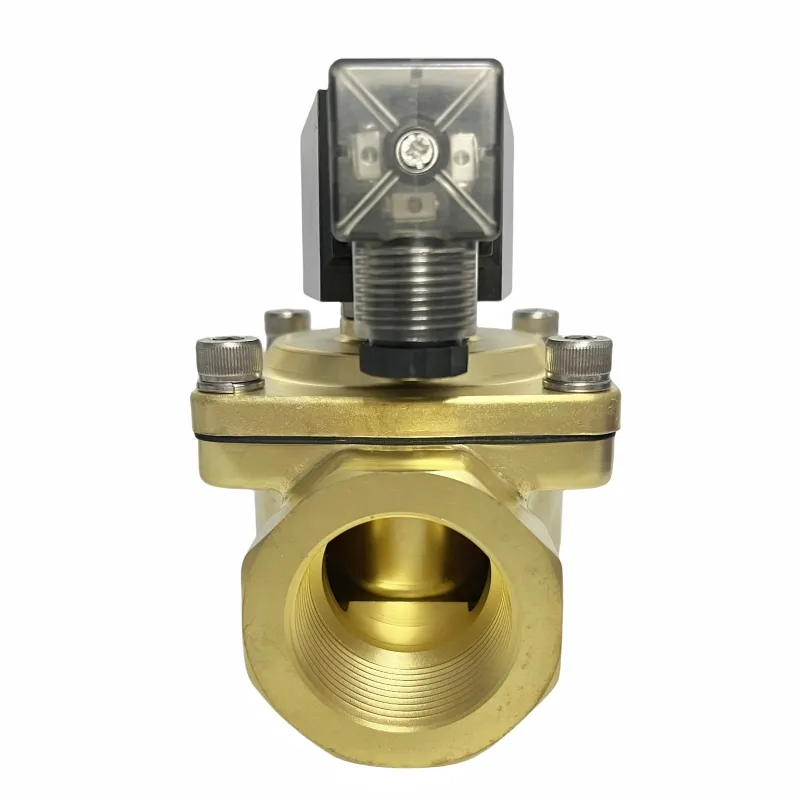

Valve Top View

Technical Specifications Detailed

Acting Mode	Direct operating
Voltage Options	12VDC, 24VDC, 110/120VAC, 220/230VAC
Media	Air, Water, Hot Water, Oil
Pressure Range	0-10 bar
Power Consumption	39VA / 25W
Acting Type	Normally Closed / Normally Open / Bistable Latching

Visual Overview

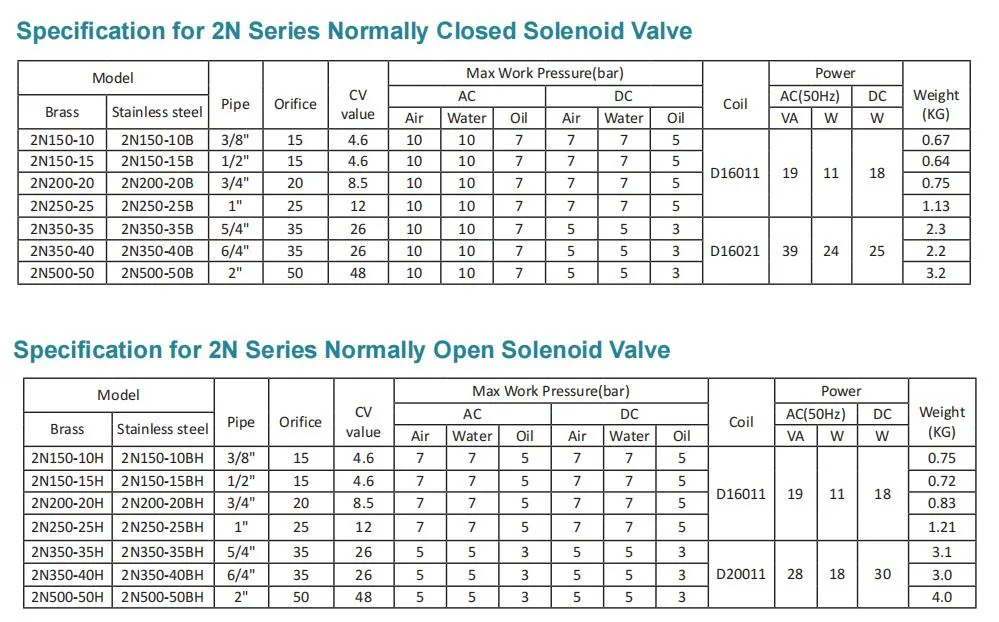

Product Diagram

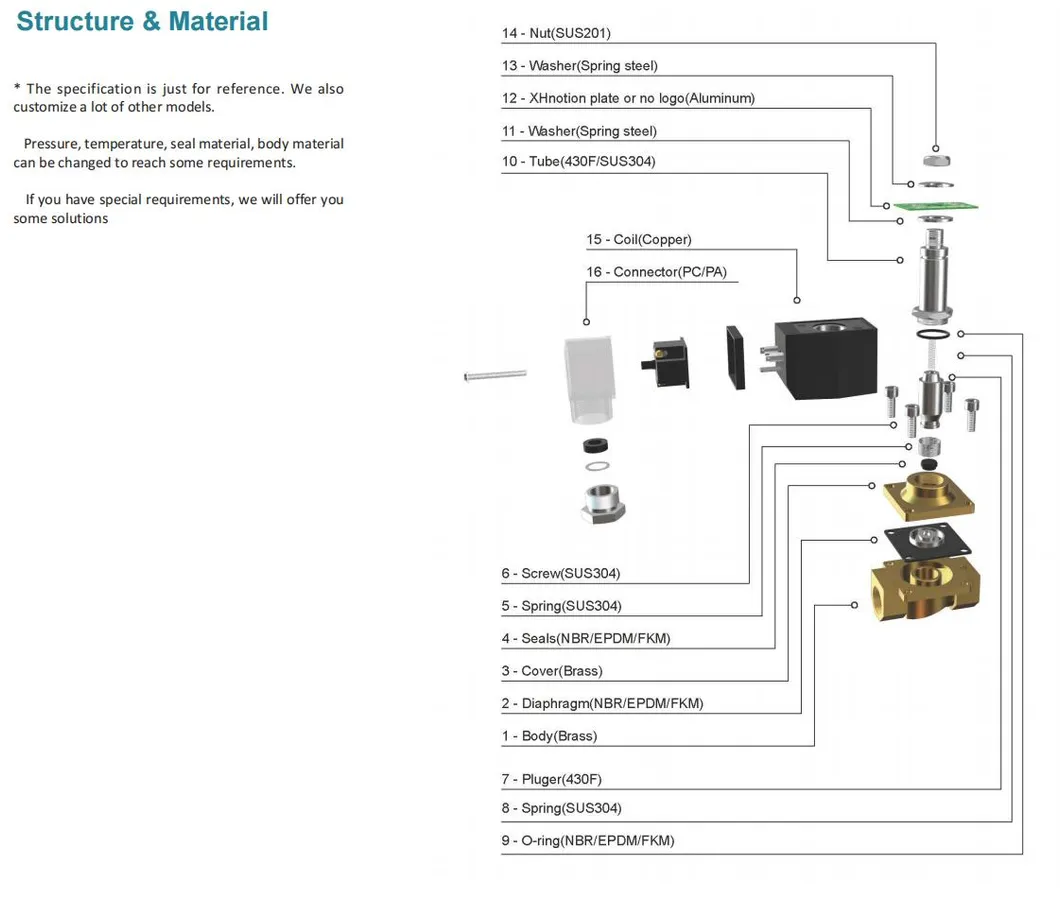

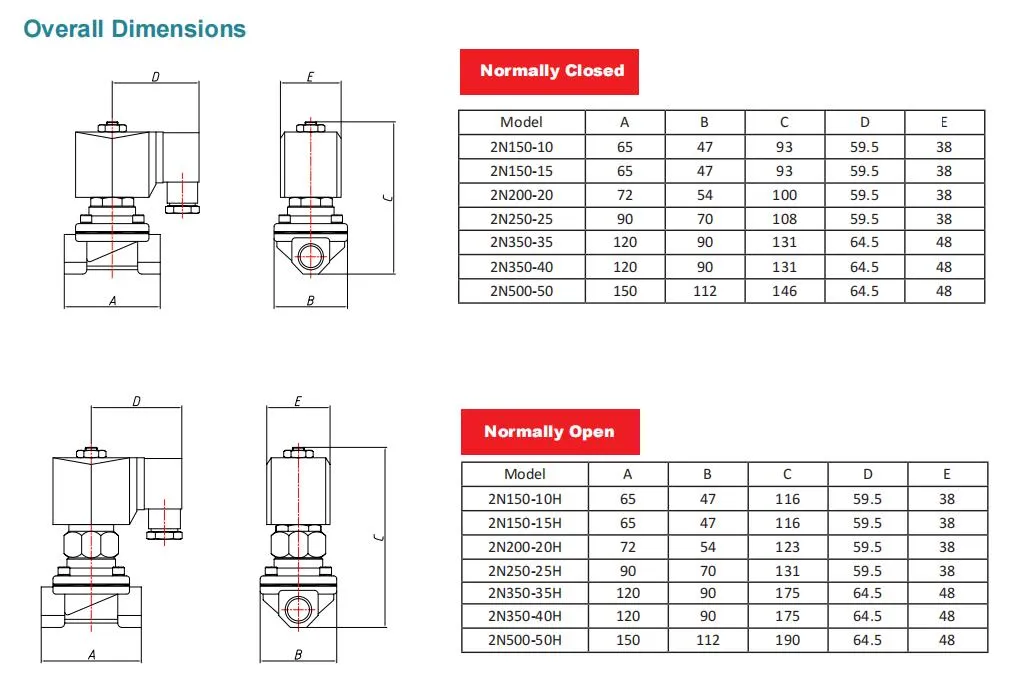

Product Structure

Key Advantages

01Raw materials conform to industry standards from reputable suppliers.

02H-class insulation for extreme temperature endurance.

03Precision CNC machining ensures strict tolerance control according to technical drawings.

04100% leakage testing performed under both low and high-pressure conditions.

05One-year quality assurance post-shipment with full technical support.

Shipping & Packing

Packing: Plastic bag + Neutral Box + Strong Carton Box. Custom packaging solutions are available upon request.

Shipping Methods: Sea, Air, or Courier (TNT, UPS, DHL, FedEx, SF Express).

Lead Time: 3 to 30 days depending on the actual order quantity.

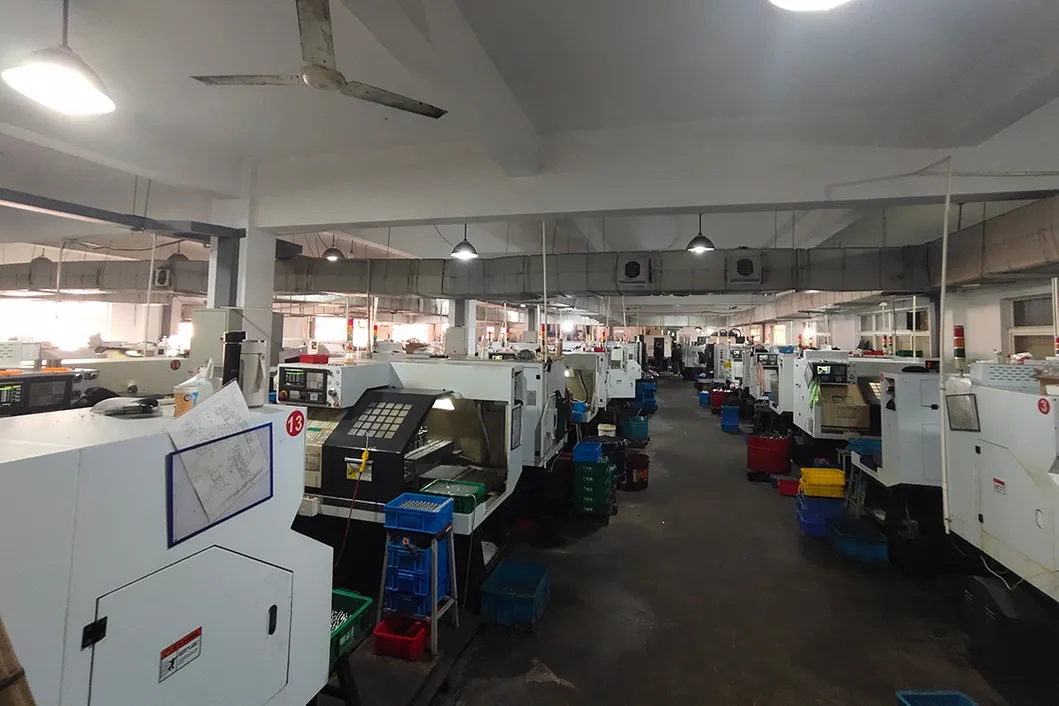

Production Line

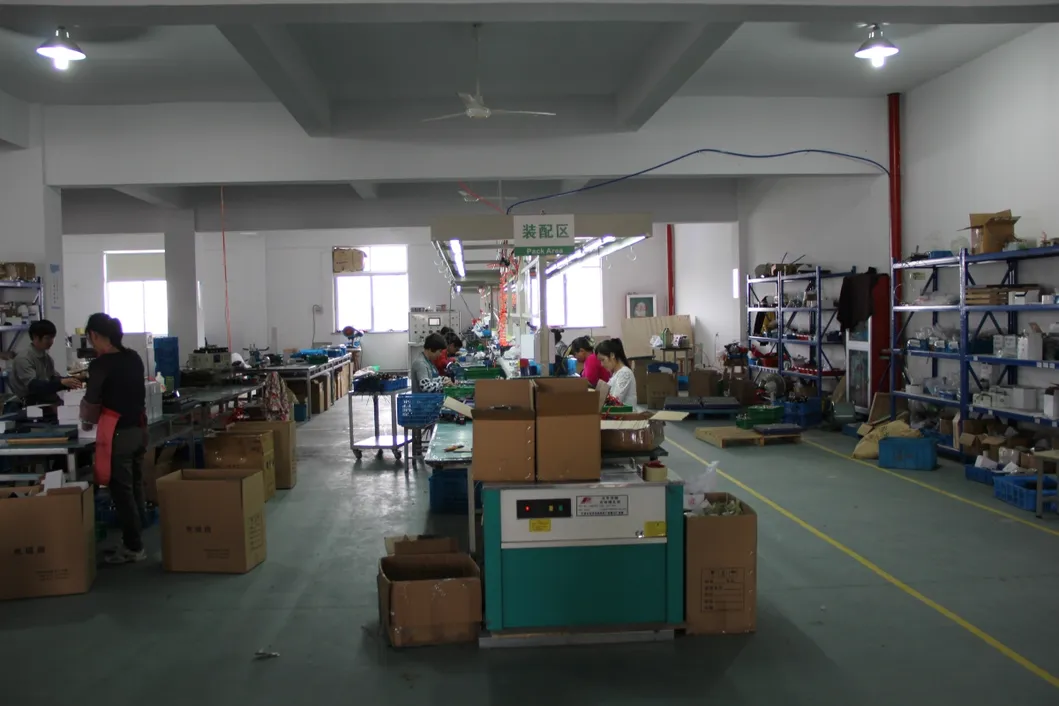

Warehouse

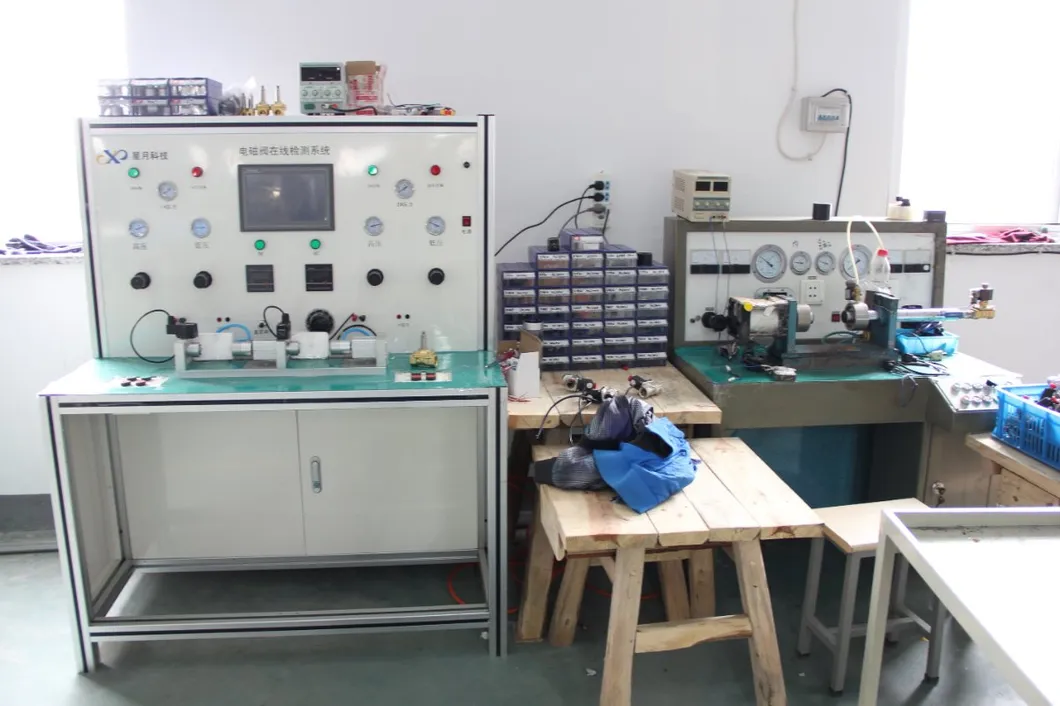

Quality Control

Frequently Asked Questions

What voltage options are available for this valve?

We provide a wide range of voltage options including 12VDC, 24VDC, 110/120VAC, and 220/230VAC to suit different industrial requirements.

Is this solenoid valve suitable for outdoor use?

Yes, the valve is rated IP65, making it both dust-proof and waterproof, which is ideal for outdoor industrial applications.

What media can this valve control?

This valve is designed to handle air, water, hot water, and oil.

What is the maximum working pressure?

The valve can operate reliably up to a maximum pressure of 10 bar.

Do you offer different sealing materials?

Yes, depending on your medium and temperature requirements, we offer NBR, Viton, EPDM, and PTFE seals.

What is the warranty period for your products?

We offer a 1-year quality assurance policy starting from the date of shipment.
