Key Features
-
1
Pilot-oriented mode: Optional for internal or external.
-
2
Structure in sliding column mode: Good tightness and sensitive reaction.
-
3
Double control solenoid valves have memory function.
-
4
Internal hole adopts special processing technology which has little attrition friction, low start pressure and long useful life.
-
5
No need to add oil for lubrication.
-
6
Affiliated manual devices are equipped to facilitate installation and debugging.
-
7
Several standard voltage grades are optional.
-
8
Integrate with the manifold to save installation space.

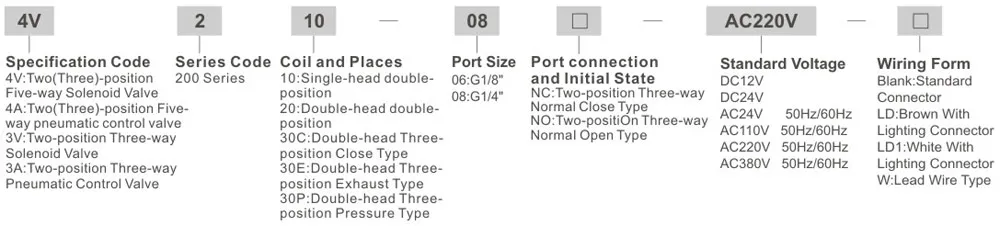

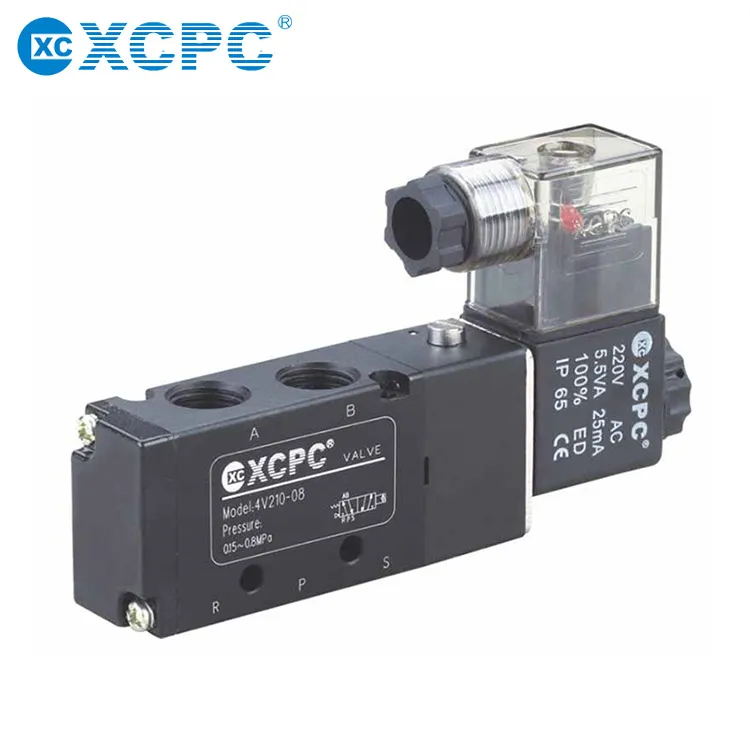

Ordering Code

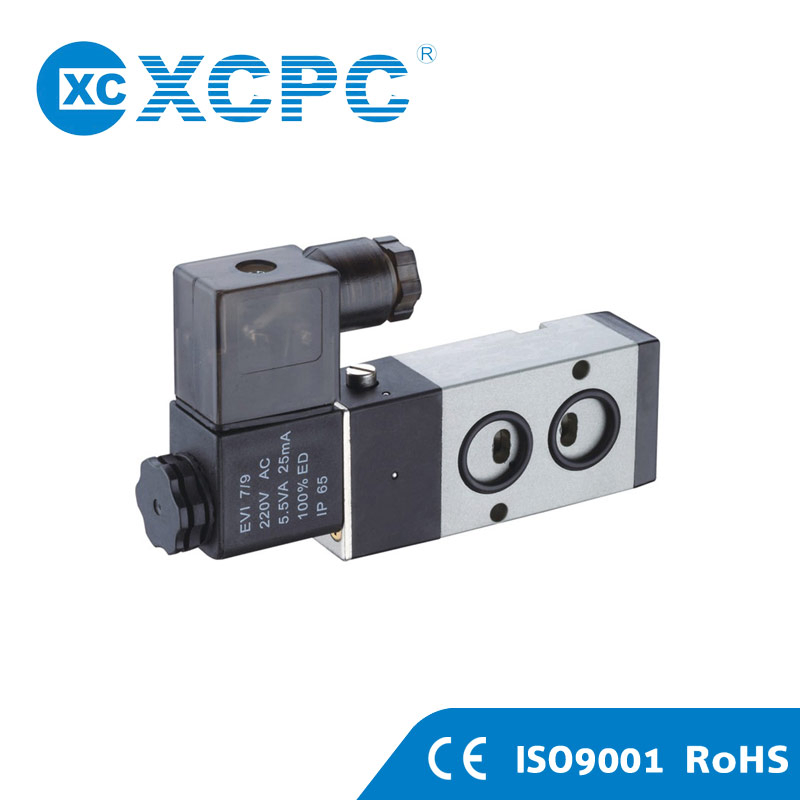

Product Specifications
| Model |

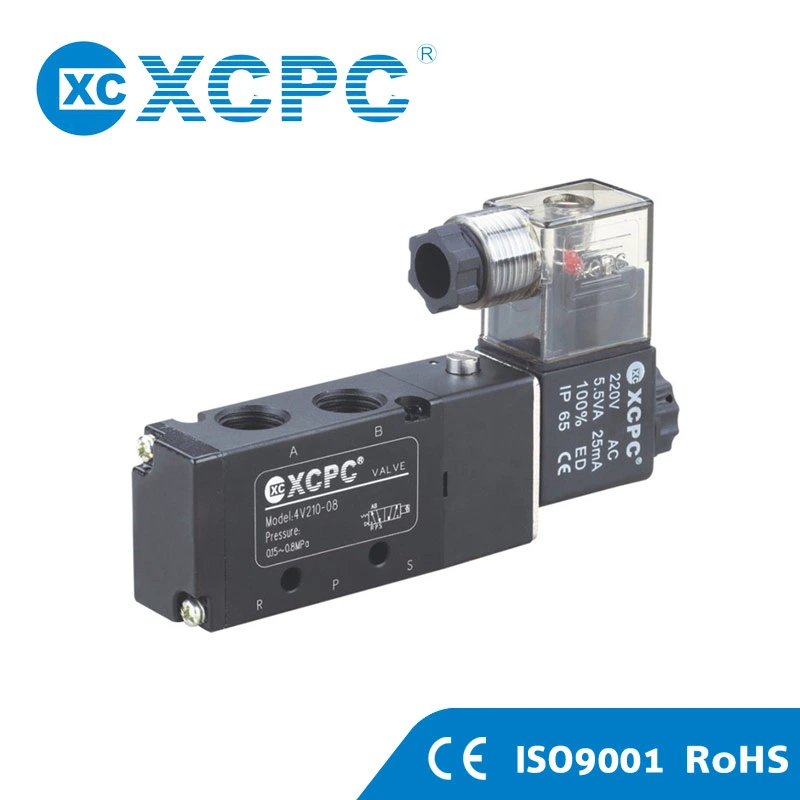

4V210-06 |
4V220-06 |
4V230C-06 |
4V230E-06 |
4V230P-06 |
4V210-08 |
4V220-08 |
4V220-08 |
4V230C-08 |
4V230E-08 |

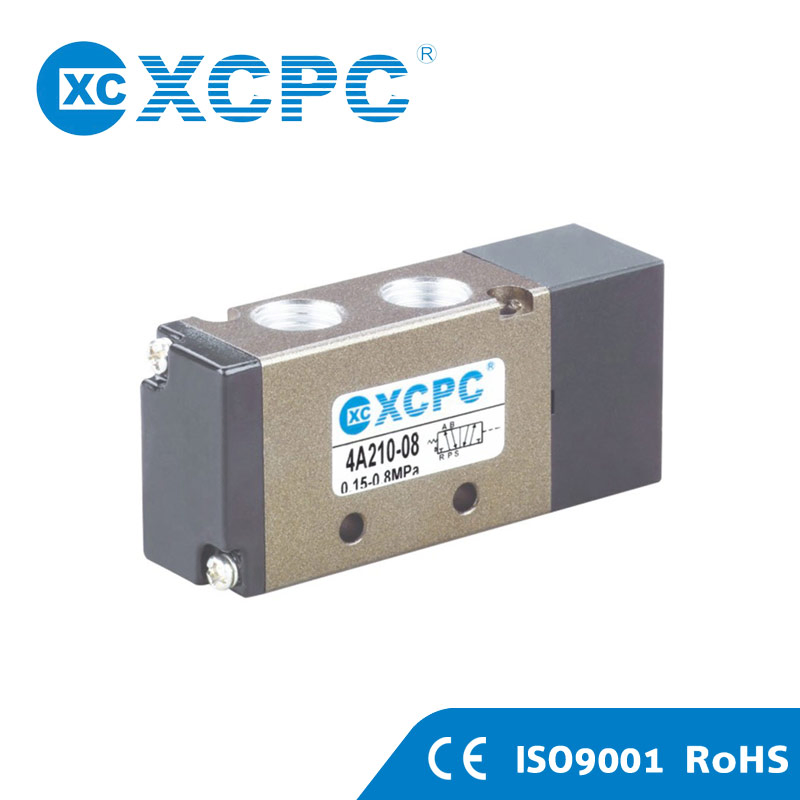

| 4A210-06 |
4A220-06 |
4A230C-06 |
4A230E-06 |
4A230P-06 |
4A210-08 |
4A220-08 |
4A220-08 |
4A230C-08 |
4A230E-08 |
| Position and Way NO. |
Two-position Five-way |
Three-position Five-way |
Two-position Five-way |
Three-position Five-way |
| Effective Sectional Area |
14mm²(CV=0.78) |
12mm²(CV=0.67) |
16mm²(CV=0.89) |
12mm²(CV=0.67) |
| Parameter |
Details |
| Working Medium |
40 Micron Filtered Air |
| Motion Pattern |
Inner Guide Type |
| Working Pressure |
0.15~0.8MPa |
| Max. Pressure Resistance |
1.2MPa |
| Operating Temperature |
5~50ºC |
| Voltage Range |
±10% |
| Power Consumption |
AC: 2.5VA; DC: 2.5W |
| Insulation & Protection |
F Class. IP65 |
| Highest Action Frequency |
5 Cycle / Second |

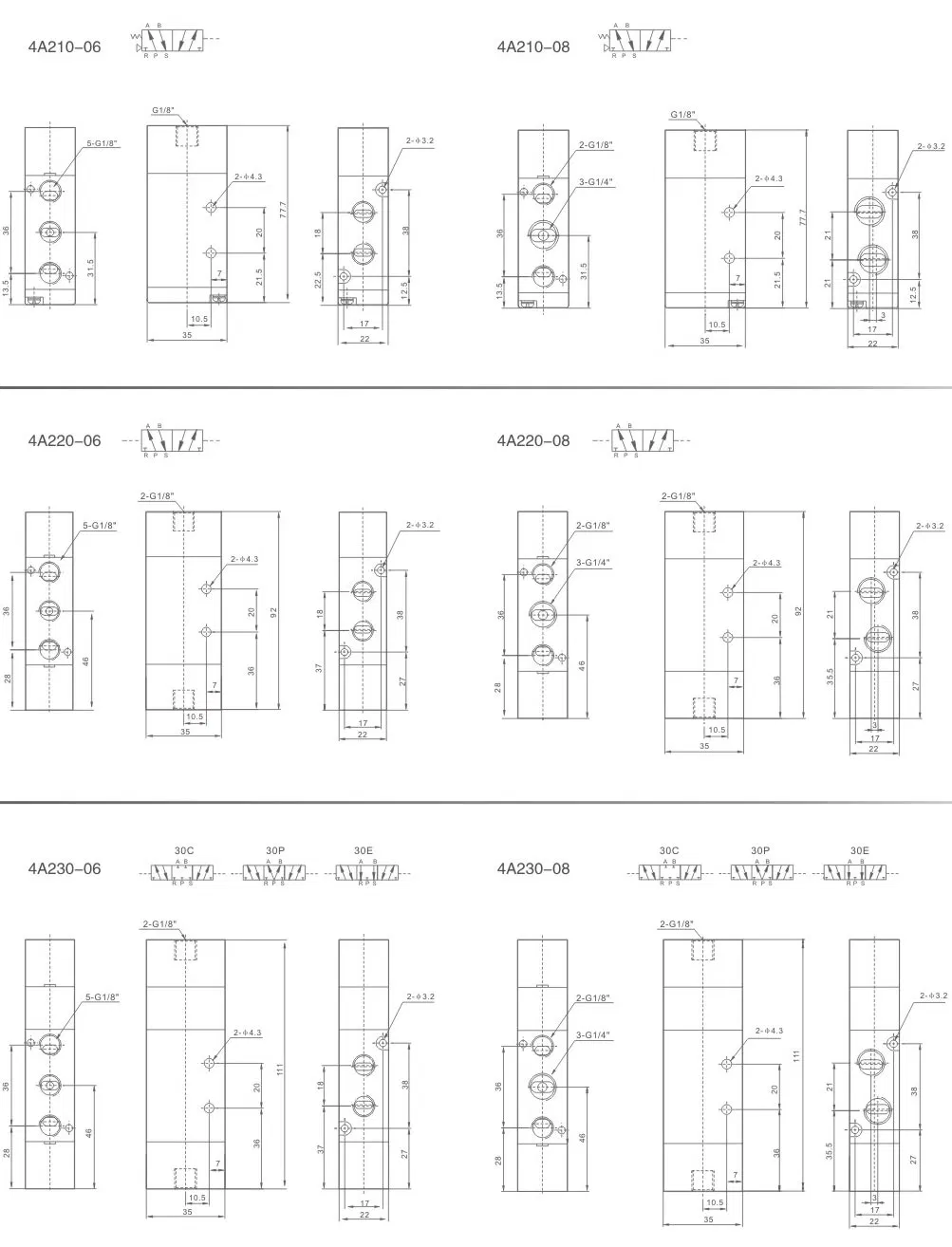

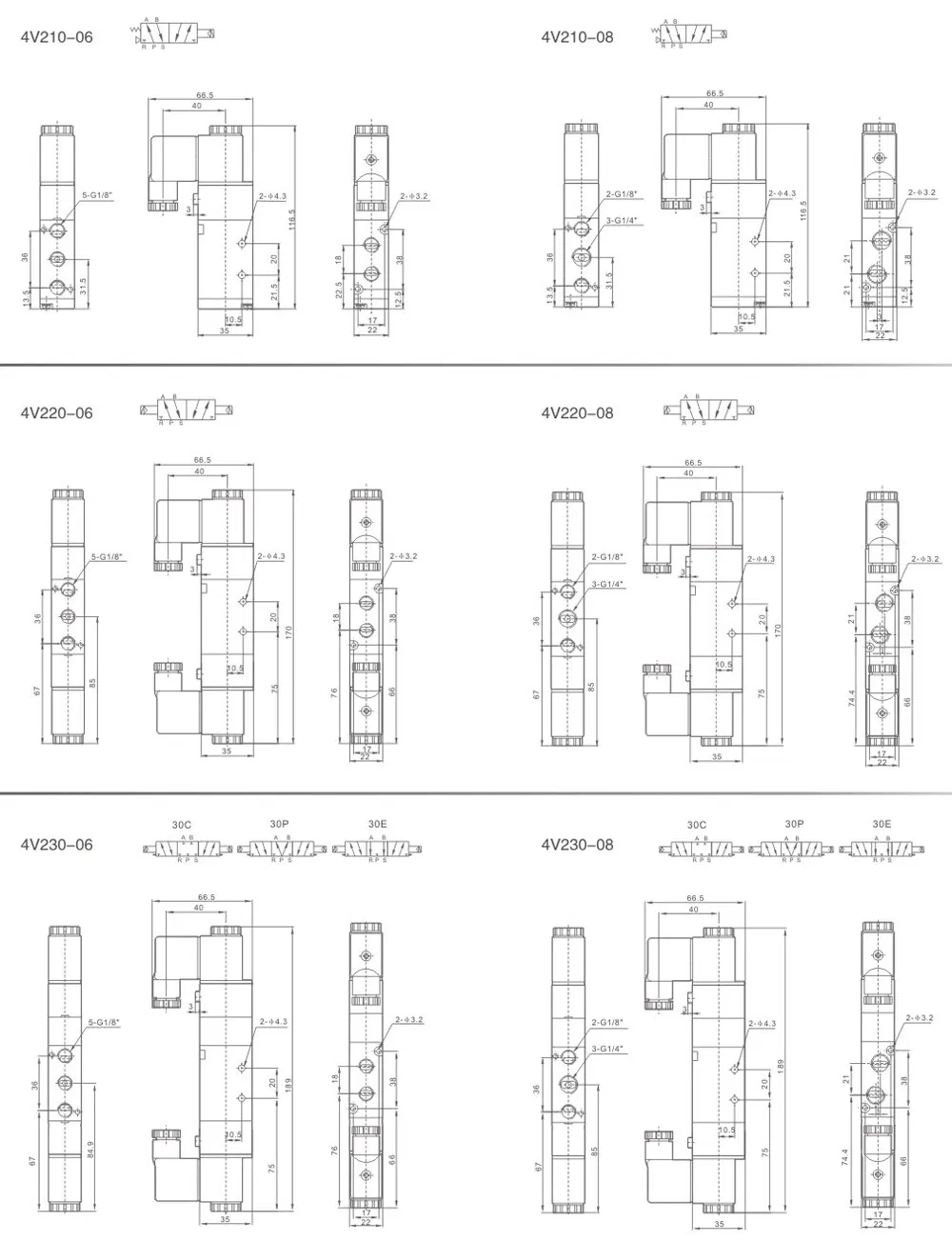

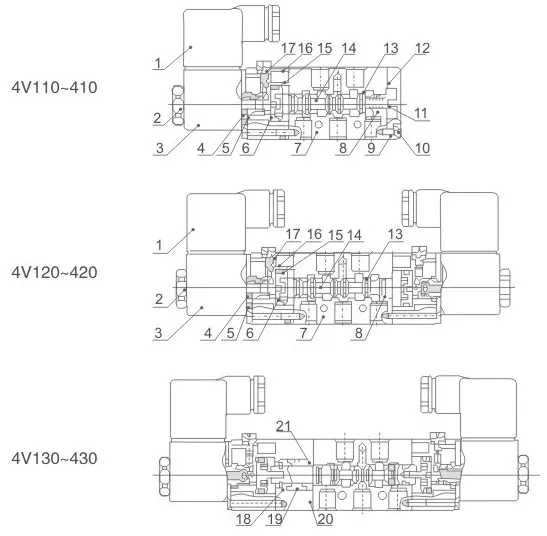

Technical Dimensions & Structure

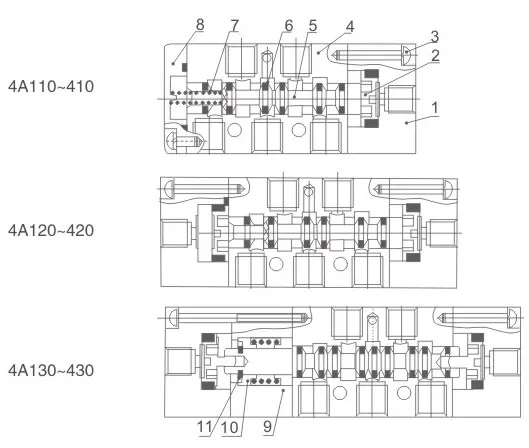

Internal Components List
| NO |
Designation |
NO |
Designation |
NO |
Designation |
NO |
Designation |
| 1 | Connector | 4 | Active Amature | 7 | Body | 10 | Screw |
| 2 | Nut | 5 | Steel Part | 8 | Wearing | 11 | Spring |
| 3 | Coil | 6 | Piston | 9 | End Cap | 12 | Seal ring |
Frequently Asked Questions
What are the key features of these pneumatic solenoid valves?
The valves feature a pilot-oriented mode (internal or external), a sliding column structure for excellent tightness, memory functions for double control valves, and a special low-friction internal processing for a long service life.
Do these valves require lubrication during operation?
No, these valves are designed with special processing technology that eliminates the need for additional oil lubrication.
What is the standard working pressure range?
The standard working pressure ranges from 0.15 to 0.8MPa, with a maximum pressure resistance of up to 1.2MPa.
What types of electrical connections are available?
The valves support multiple wiring forms, including lead wire types and various connector types, to suit different installation requirements.
Can these valves be installed in compact spaces?
Yes, they are designed to be integrated with manifolds, which significantly saves installation space in complex pneumatic systems.
What are the available voltage options?
Several standard voltage grades are optional with a voltage range tolerance of ±10%, making them compatible with most industrial control systems.
