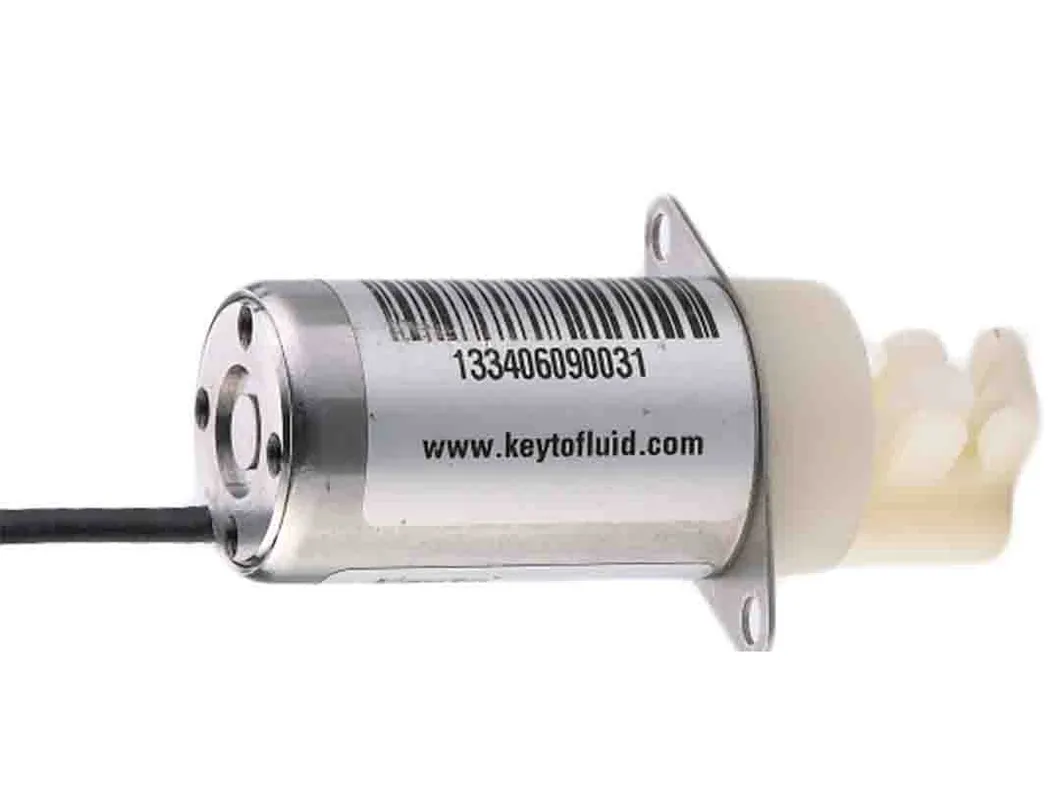

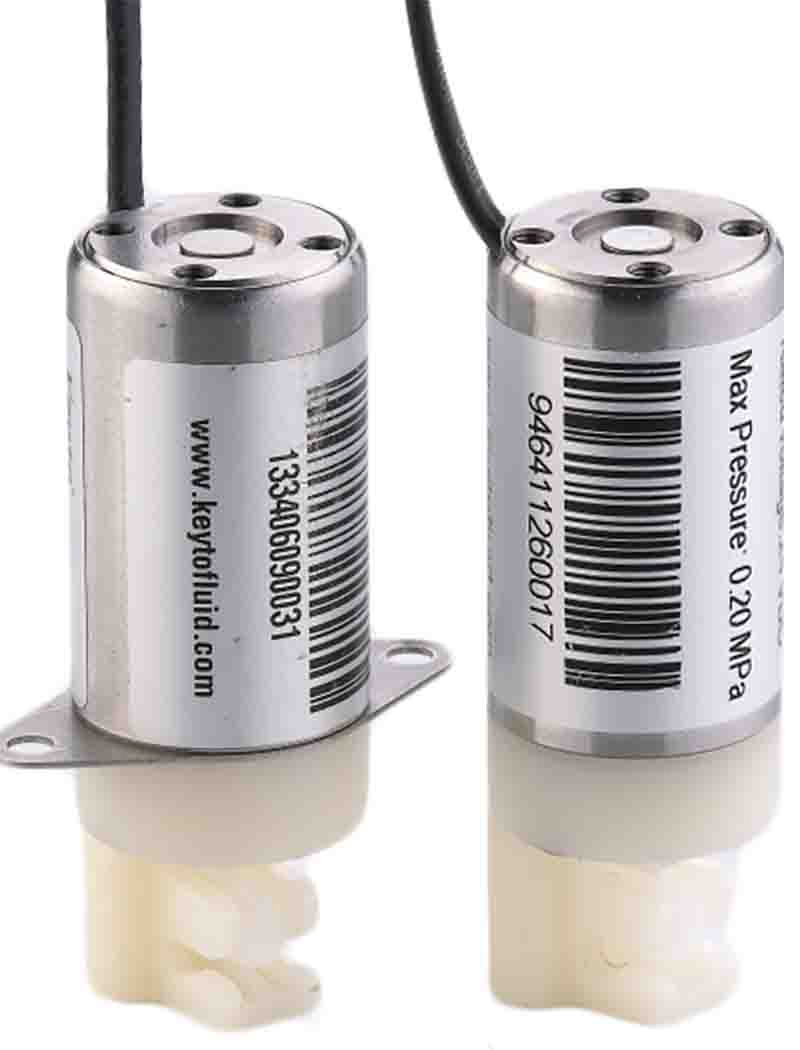

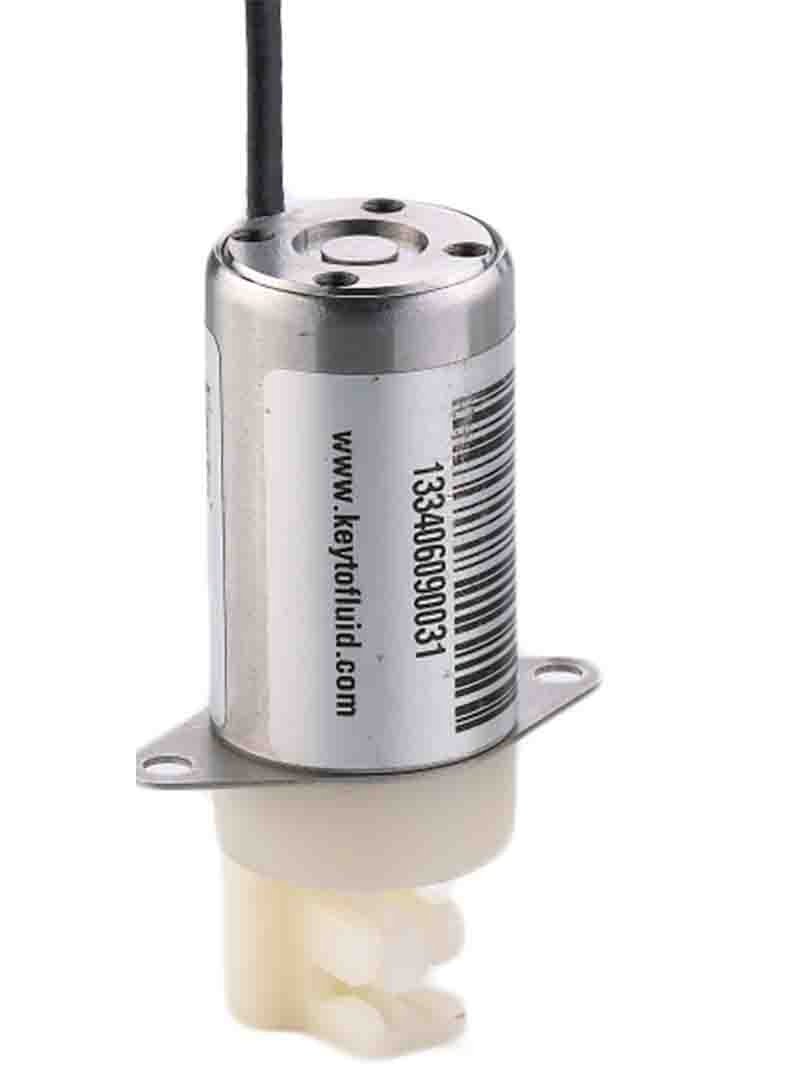

The 1213 series dual channel pinch valves are high-performance solutions designed for precision flow control. Featuring multiple solenoid valve selection types, they efficiently manage the flow path of various casing types. With an operating life exceeding 2 million cycles, this series offers a low-cost, maintenance-free alternative for demanding fluidic systems. The tubing design is simple and facilitates easy cleaning, making it ideal for applications involving samples with impurities or particulate matter while effectively preventing cross-contamination.
?
Frequently Asked Questions
What are the main applications for the 1213 series pinch valve?
It is primarily used in medical equipment, water industrial usage, and various industrial fluid control systems, especially where sample purity is critical.
What is the expected lifespan of this valve?
The 1213 series is designed for high durability, with an operating life that can exceed 2 million cycles under standard conditions.
Can this valve handle fluids with particles?
Yes, the pinch valve design is excellent for fluids containing impurities and particulate matter as it avoids internal clogging and cross-contamination.
What materials are used for the valve body?
The body can be constructed from high-quality polymers including PFA, PTFE, or PVDF, providing excellent chemical resistance.
Is it possible to use this for single channel applications?
Yes, for single channel use, a small length of tube is typically clamped to the upper channel to support activating or withstanding pressure.
What is the power consumption of the DC solenoid?
The valve is energy-efficient, with a power consumption of approximately 3.5W.
