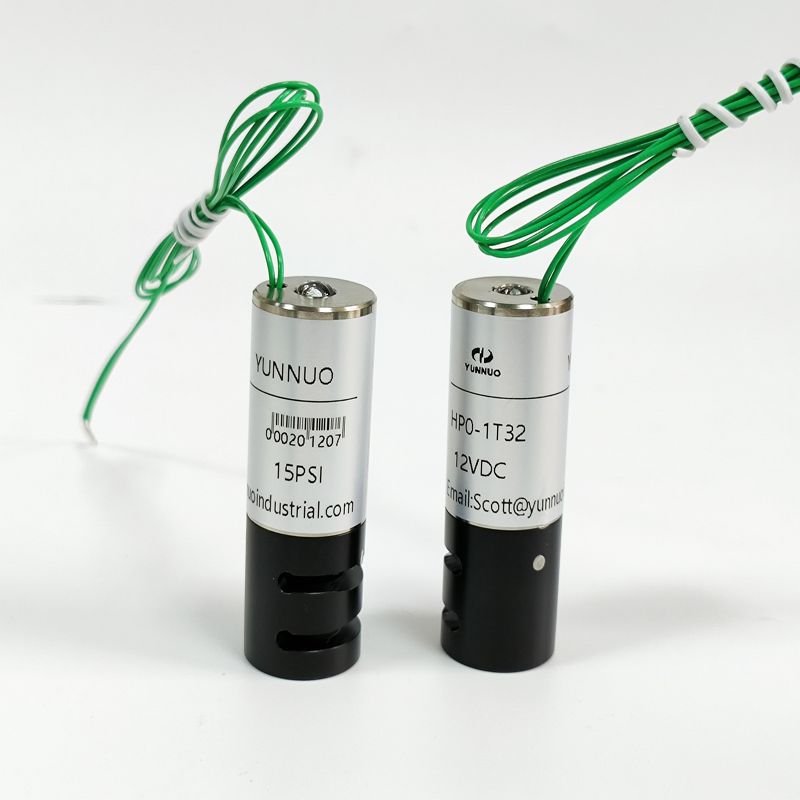

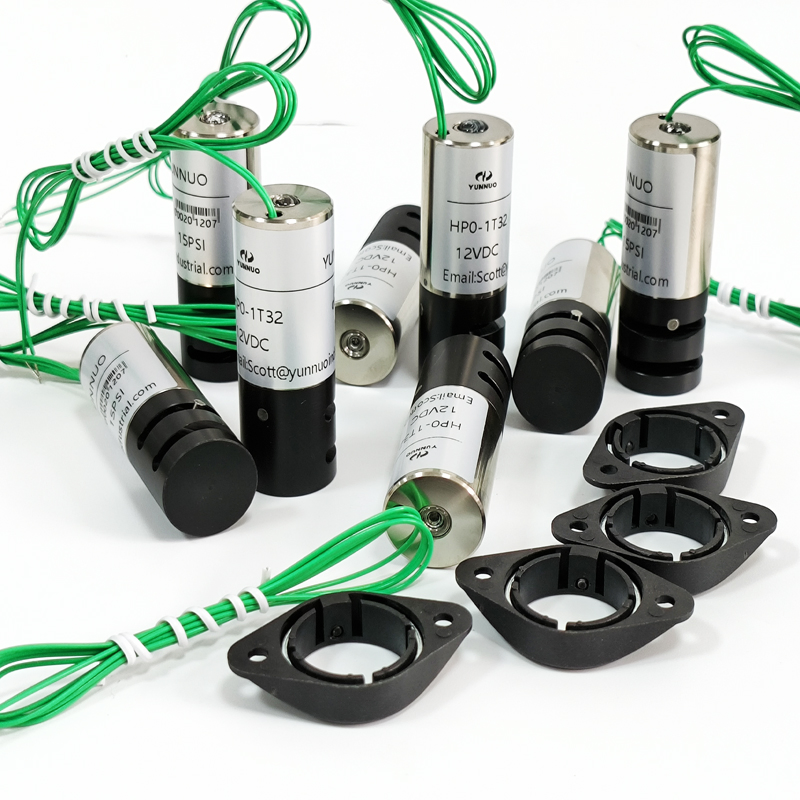

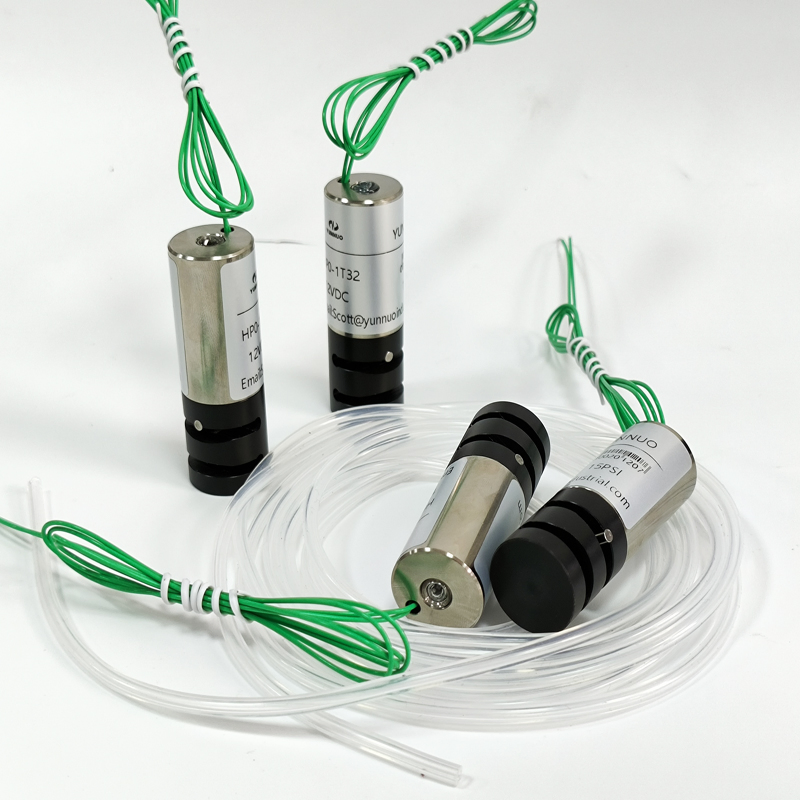

12V/24VDC Normally Closed Solenoid Pinch Valve

1 / 5

12V/24VDC Normally Closed Solenoid Pinch Valve

Customization:	Available
Media:	Liquid
Temperature:	Ordinary Temperature

Send Inquiry

Product Description

Basic Information

Model NO.

YN-01003

Actuator

Electric

Connection Form

Tubular

Type

Direct Acting

Material

Stainless Steel

Pressure

Low Pressure

Valve Structure

Pilot Piston Structure

Power Supply

AC Solenoid Valve

Usage

Safety

Application

Industrial Usage

Voltage

12V 24V

Working Medium

Air, Water, Compatible Fluids

Function

Liquid-Filling Systems in Food-Engineering

HS Code

8547100000

Production Capacity

500,000 PCS/Year

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 3.00cm

Gross Weight

0.030kg

Package Type

Carton

Product Description

Isolation Diaphragm Valves

Add self-tapping screws at the bottom of the valve to install on the panel. Our valve diaphragm is sealed by a complete PTFE diaphragm. Our valve seats and diaphragms are all made of PTFE / PFA, featuring very low adsorption, minimal leachables, and superior chemical stability.

✔ Low power consumption

✔ Compact, lightweight design

✔ Bidirectional flow

✔ Minimal dead volume

✔ All wetted areas PTFE

✔ Ideal for corrosive media

✔ High cycle life

✔ Fast response time

Product Name	PTFE Media Isolation Valves
Working Condition	Normally closed (NC), 3 way
Application	Environmental protection: laboratory use and online monitoring (98% sulfuric acid, redox agents). Laboratory industry: GC (gas chromatography) instruments. Mainly used for strong corrosion and low dissolution requirements.
Voltage	12VDC, 24VDC

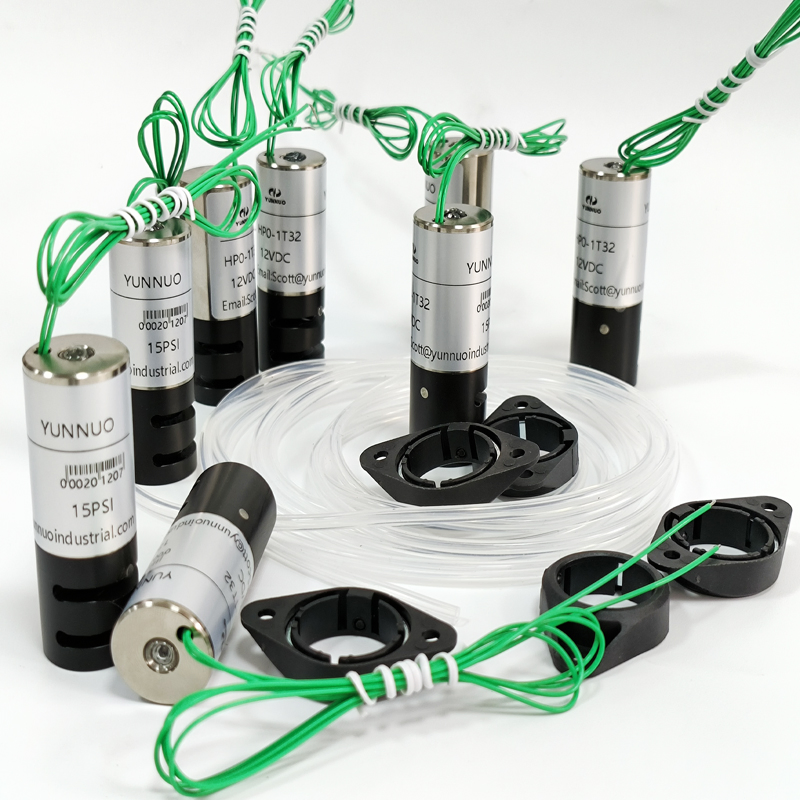

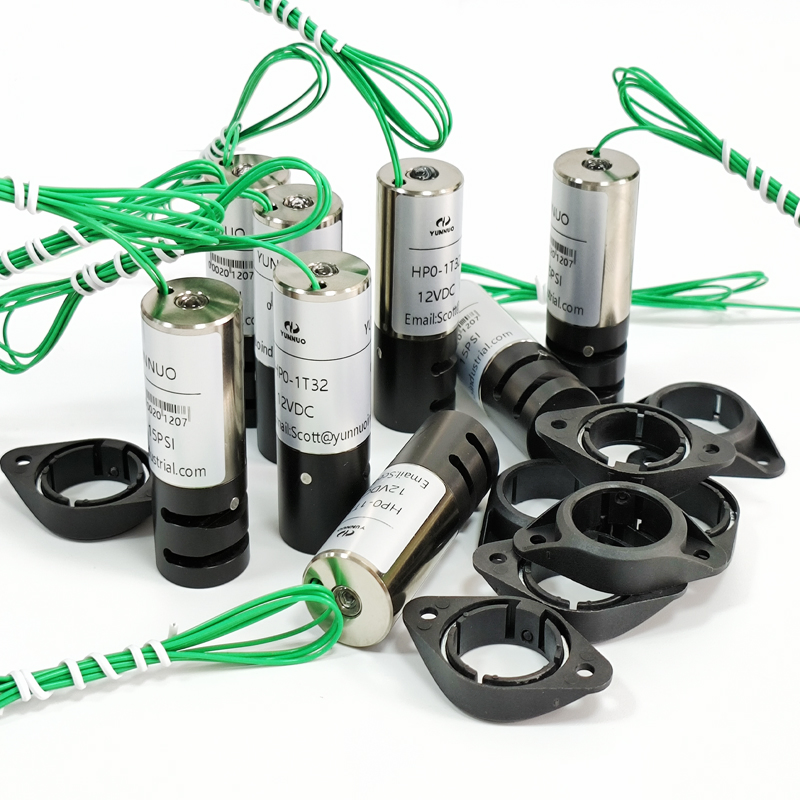

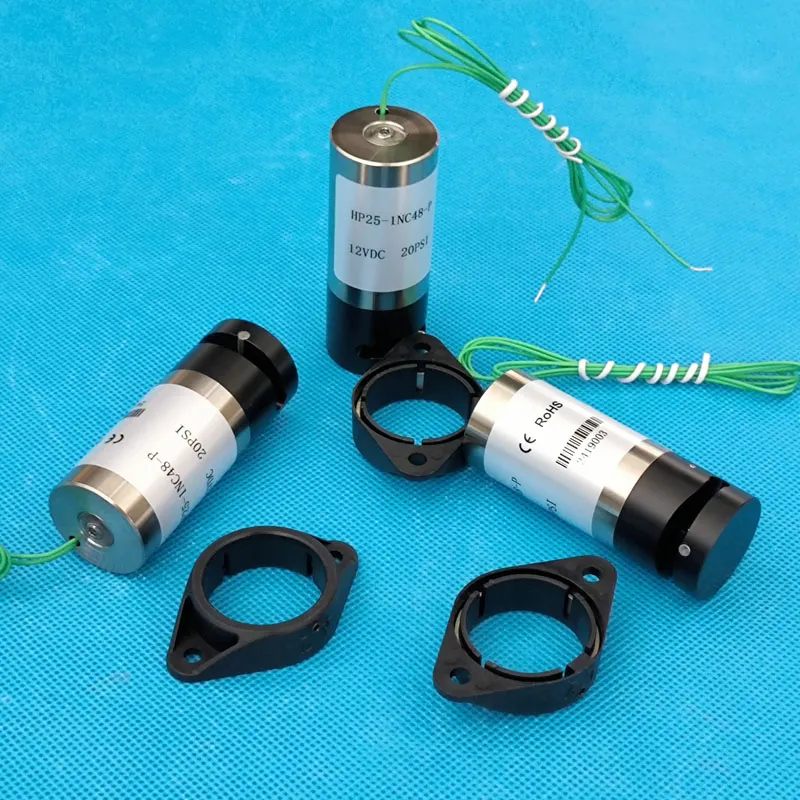

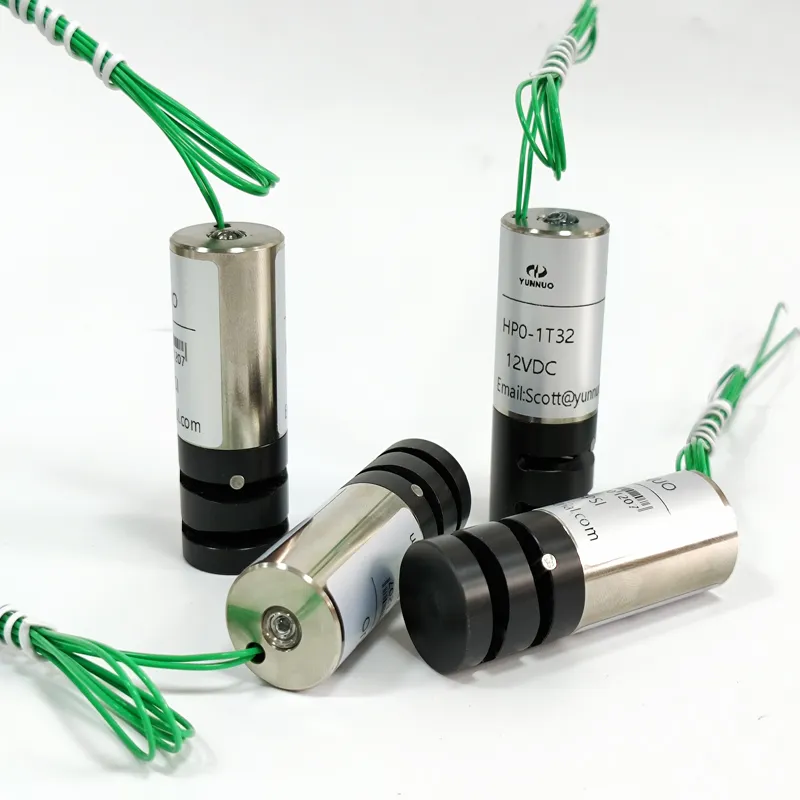

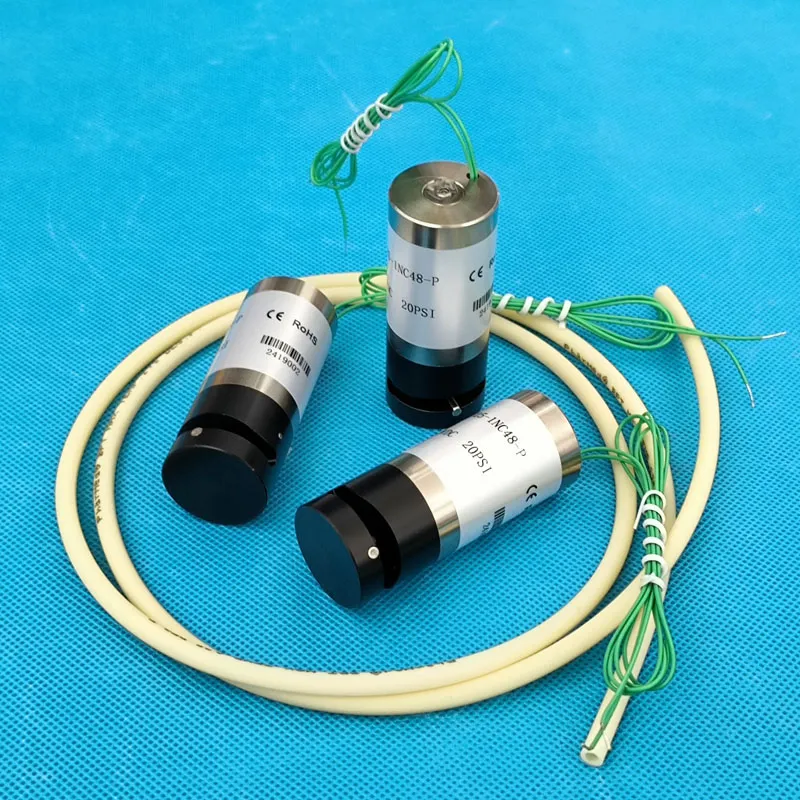

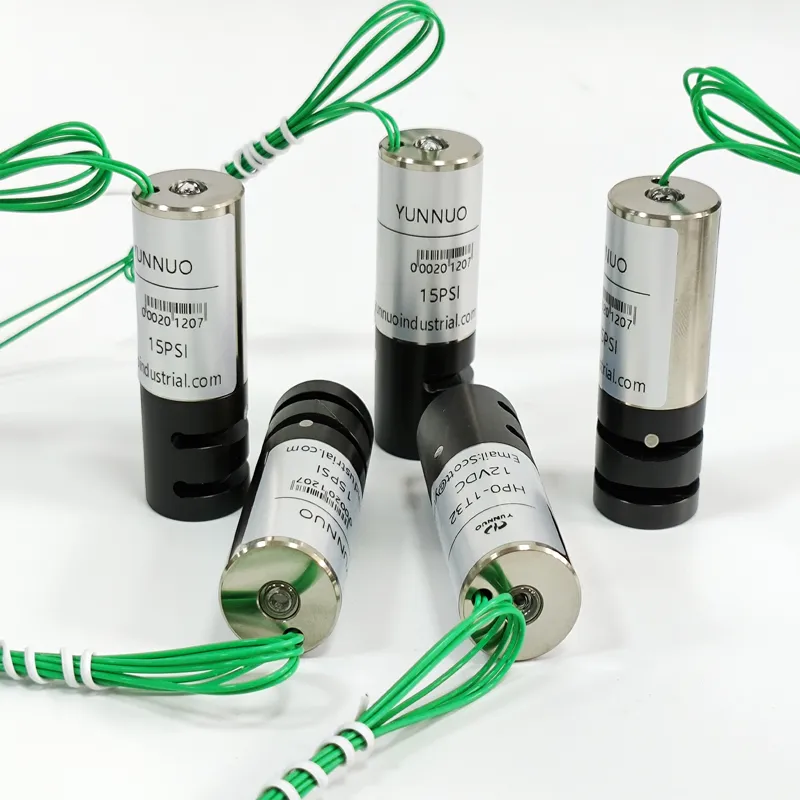

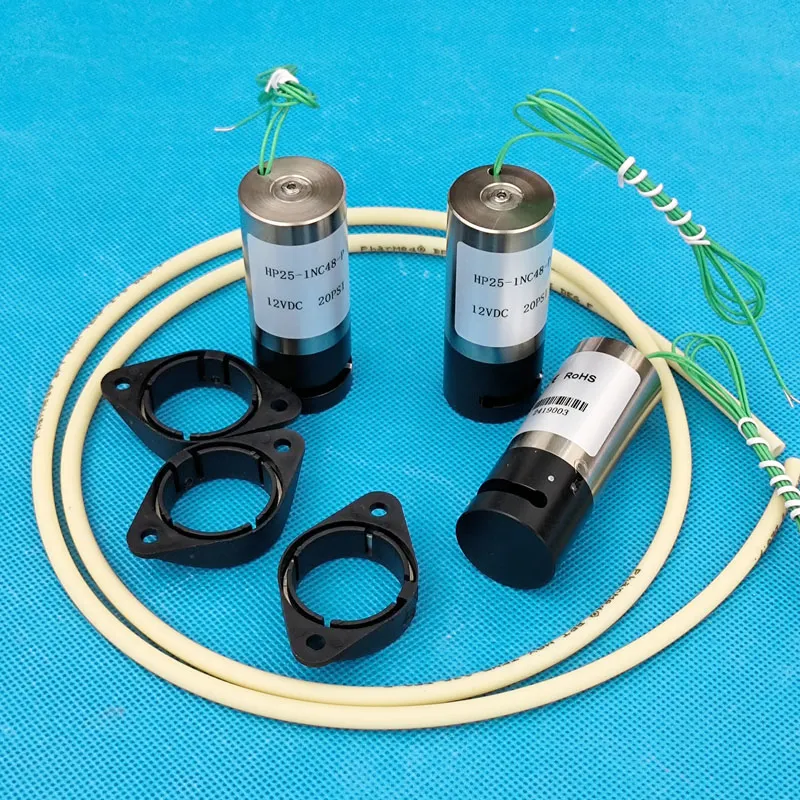

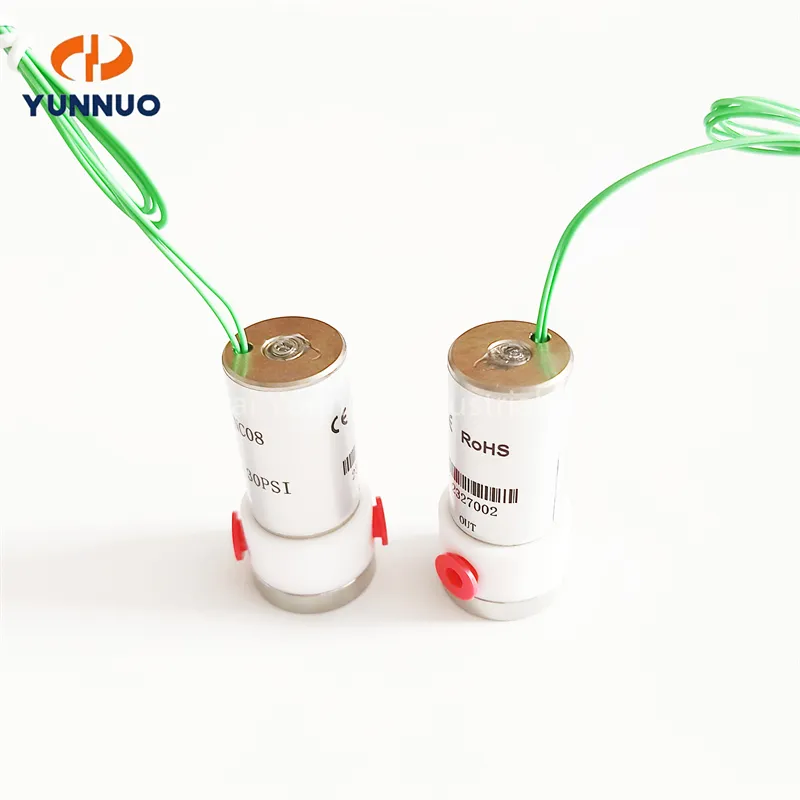

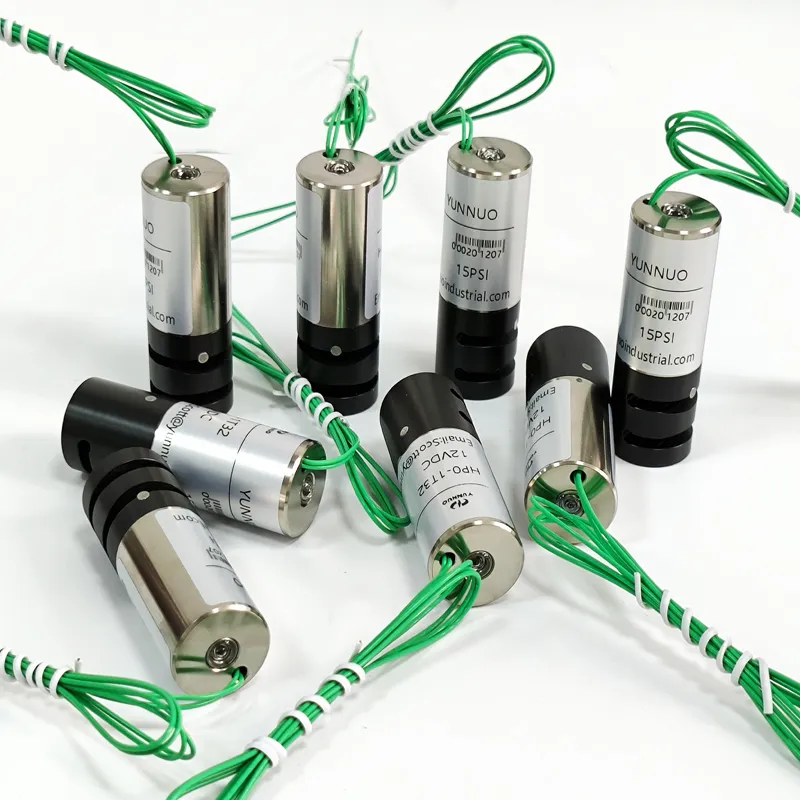

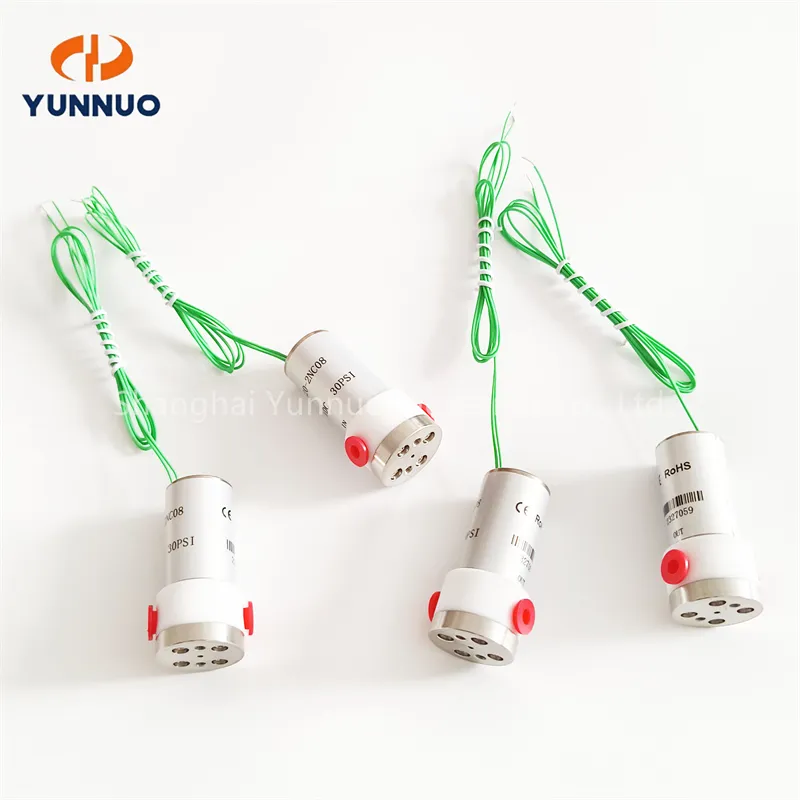

Product Display

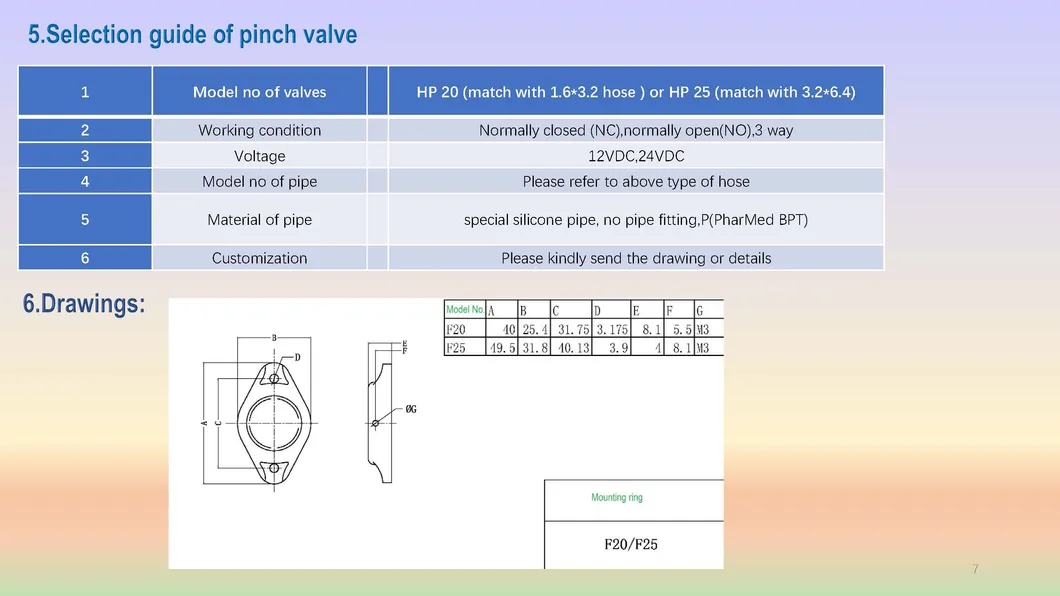

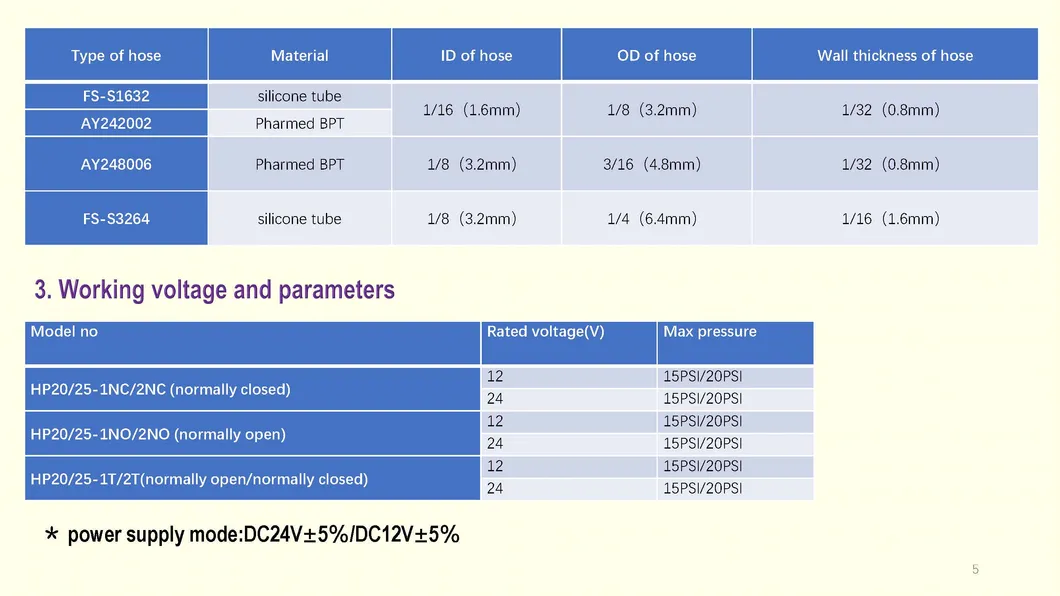

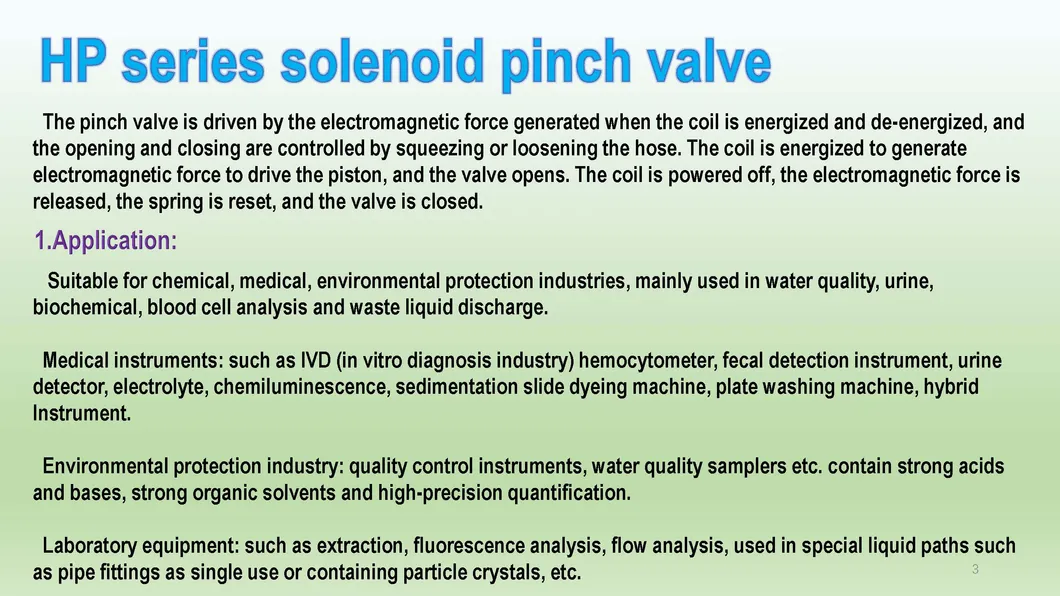

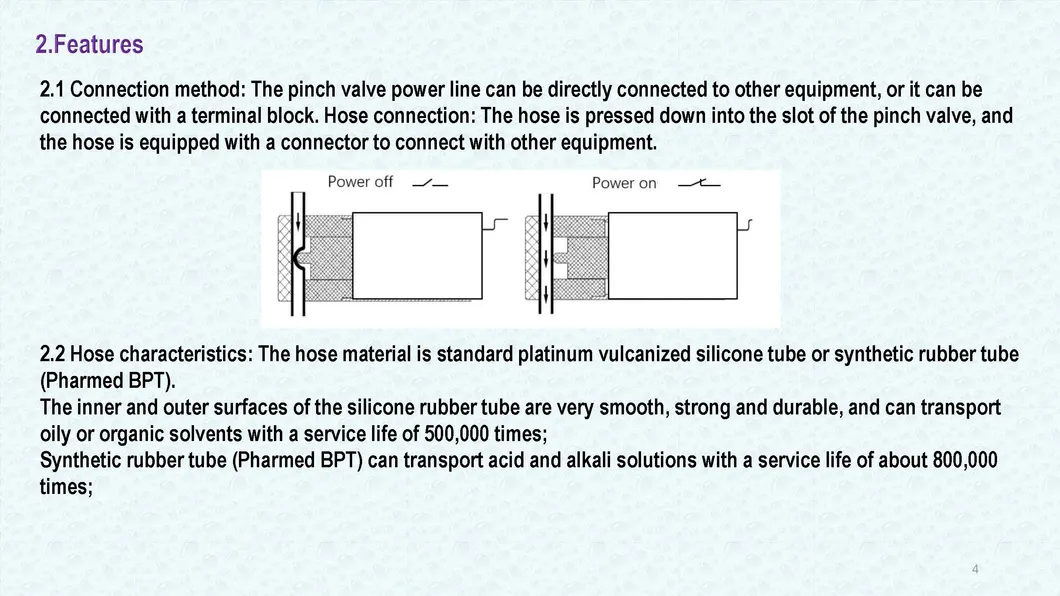

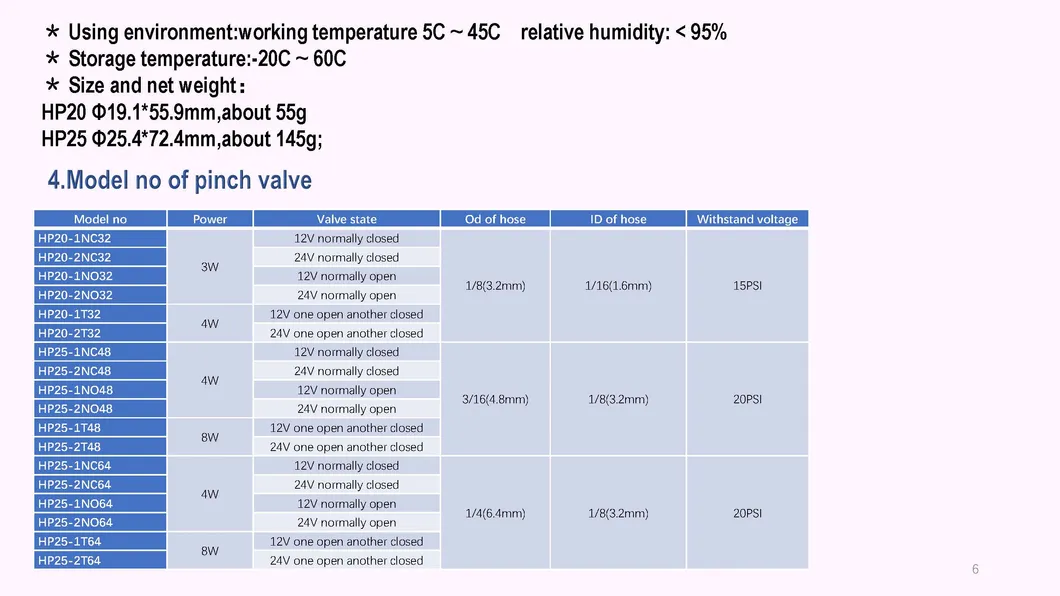

Technical Dimensions

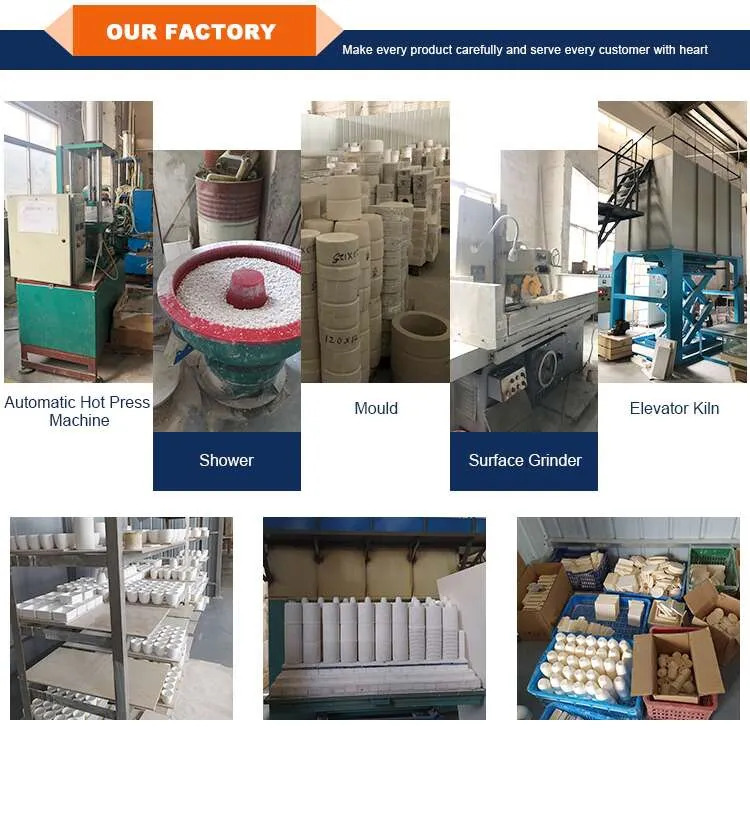

Manufacturing Excellence

Way of Shipping

Frequently Asked Questions

Q1: How can I know your quality?

We can send you samples or sample material for you to check or test. Let our physical samples speak for themselves.

Q2: Are these samples free of charge?

Some standard small samples are free. If specific requirements are needed, we will only charge for the mould to support production.

Q3: If products do not meet requirements, how do you handle it?

We will try our absolute best to solve any issues. Meeting your requirements is our primary mission.

Q4: What is the lead time for orders?

Normally, for standard items, we ship within 1-10 days. For mass production orders, we typically finish within 30 working days after receiving payment.

Q5: What are the payment terms?

Payment terms are flexible and can be negotiated based on the order volume and requirements.

Q6: Are wetted parts fully resistant to chemicals?

Yes, all wetted areas are made of PTFE, making them ideal for use with highly corrosive media and high-purity reagents.
