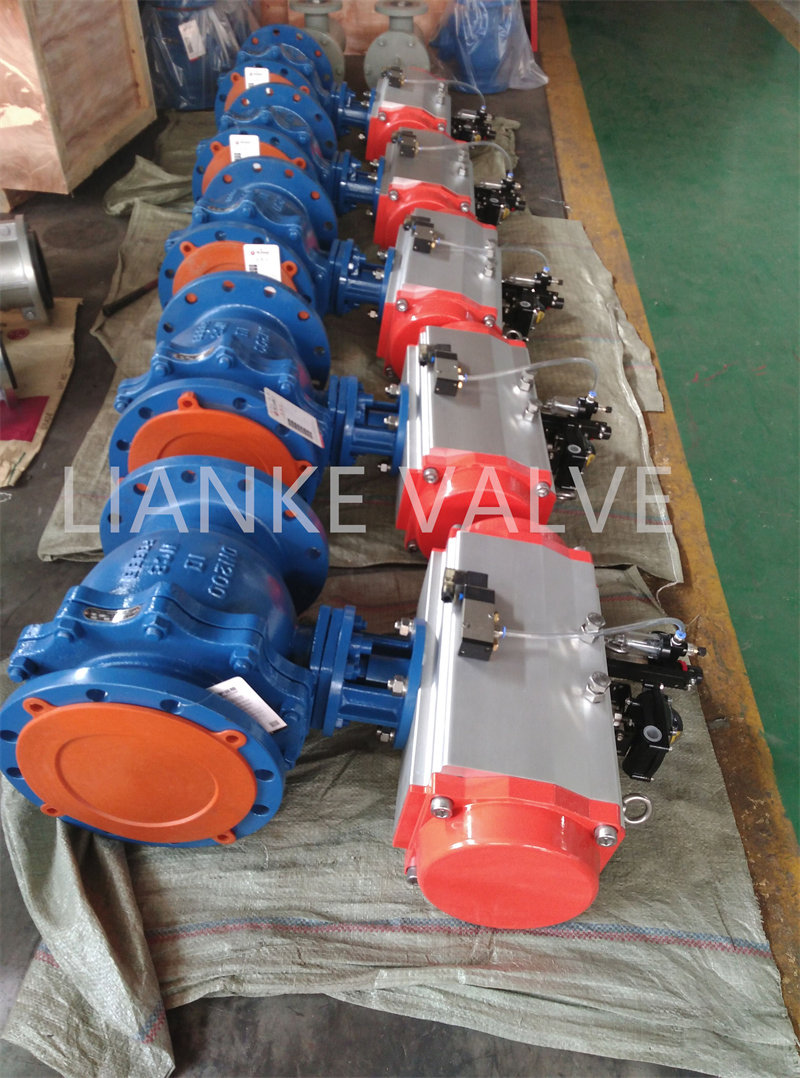

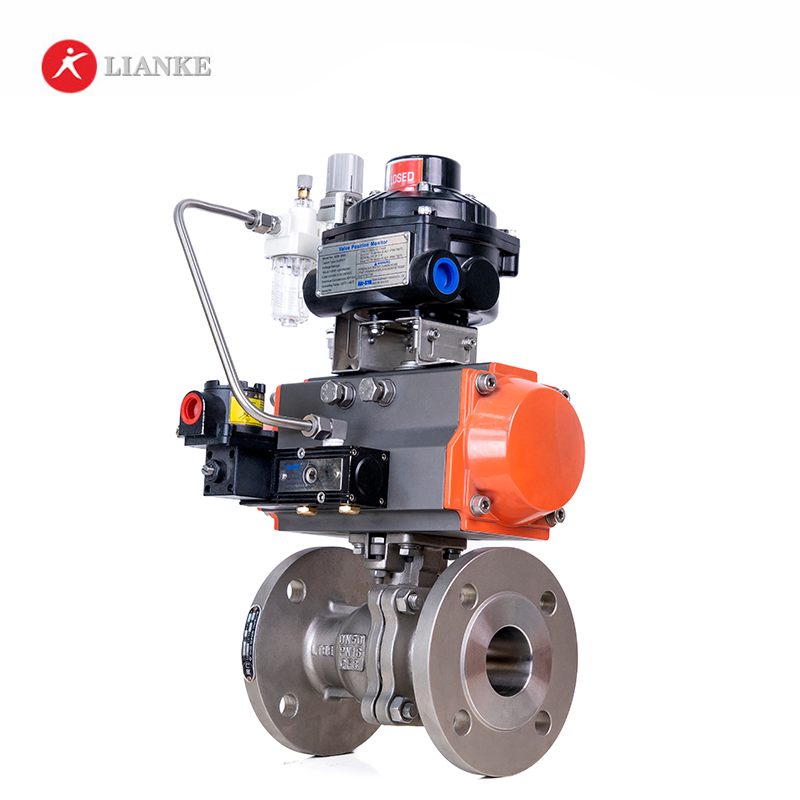

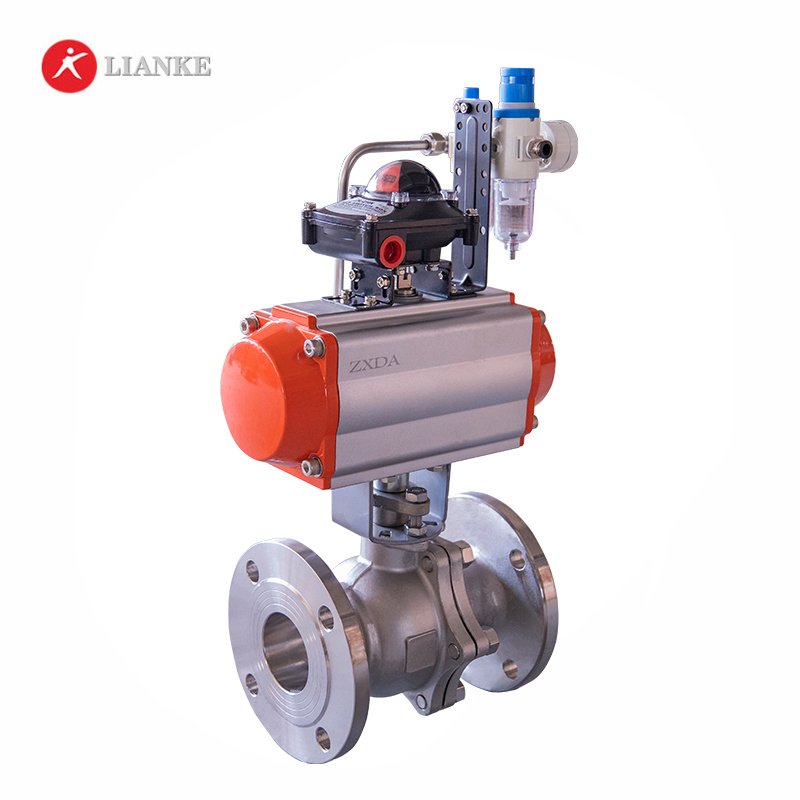

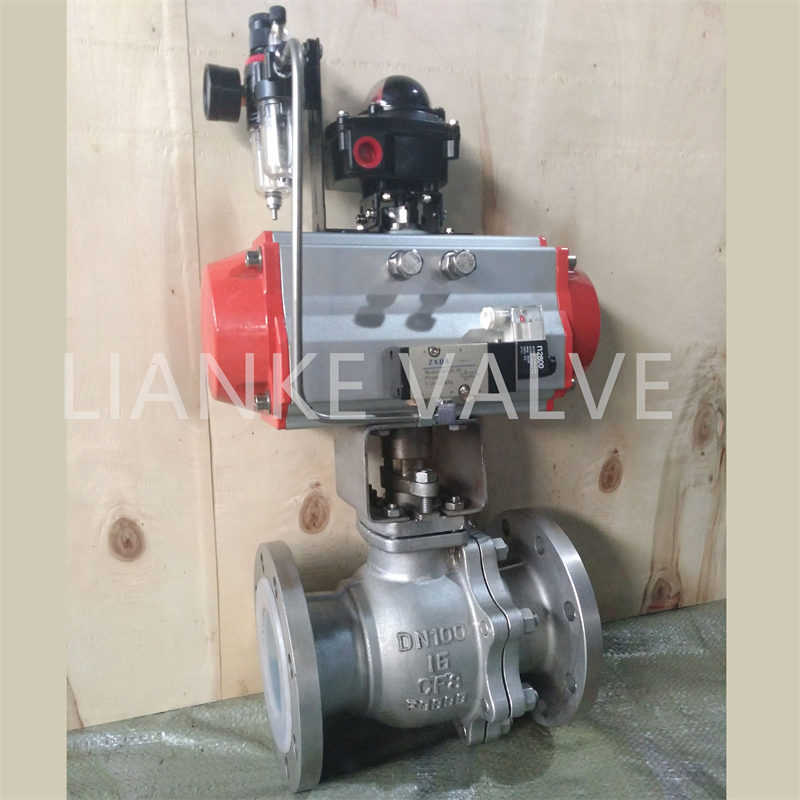

Stainless Steel CF8/CF8m Wafer Segmented Float/Floating Brass 3 Way Ball Valve with Pneumatic Actuator Industrial Control / Globe Valve Pinch Valve

1 / 5

Stainless Steel CF8/CF8m Wafer Segmented Float/Floating Brass 3 Way Ball Valve with Pneumatic Actuator Industrial Control / Globe Valve Pinch Valve

Customization:	Available
Media:	Acid
Material:	Carbon Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.:Q641F-16P

Connection Form:Flange

Driving Mode:Manual

Nominal Pressure:Pn1.0-2.5

Structure:Floating Ball Valve

Function:Blow-Down Valve

Standard:GB, ANSI, JIS

Lined Material:PTFE, FEP, PFA

Application:Industrial Usage

Specification:DN15-DN300

Package Size:70.00cm * 30.00cm * 80.00cm

Gross Weight:50.000kg

✓

Product Description

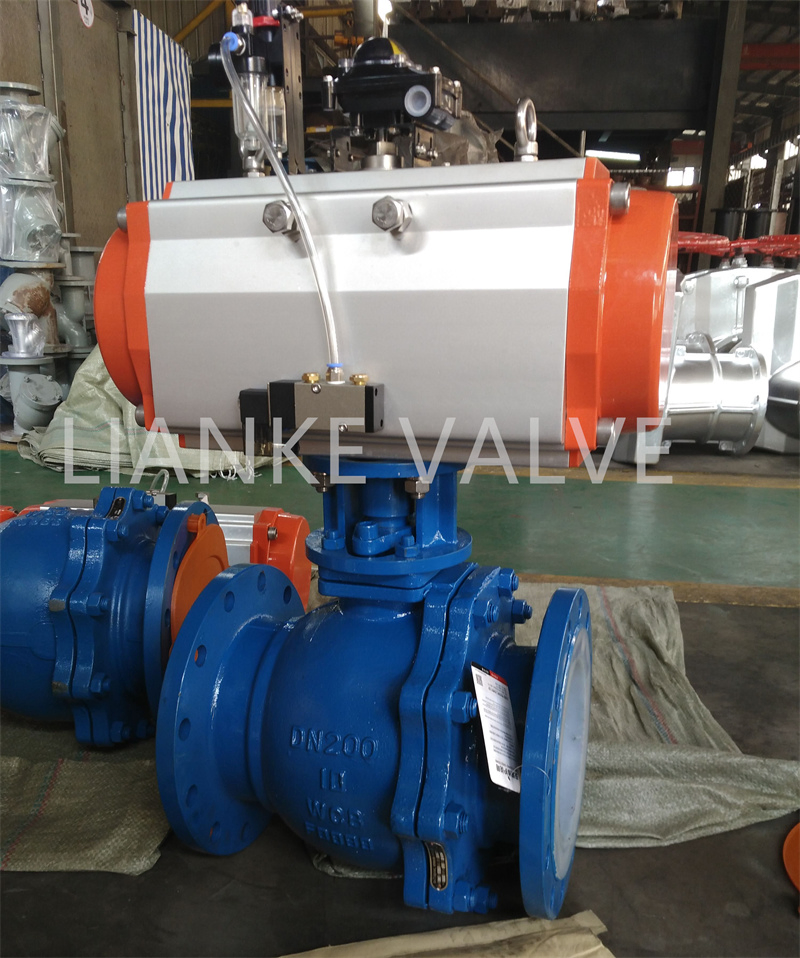

PTFE/FEP/PFA Lined Ball Valve (Q41FEP/PFA)

Fluorine lined valves are specifically engineered for chemical and corrosion resistant conditions. They provide cost-effective solutions for abrasive and corrosive installations in industrial process plants.

Main Parts and Materials

Name/Material	WCB	CF8	CF3	CF8M	CF3M
Body	WCB	CF8	CF3	CF8M	CF3M
Ball/Stem	WCB	CF8	CF3	CF8M	CF3M
Lined	FEP / PFA / PO / PTFE
Seat	PTFE / RPTFE
Bolt/Nut	B7/2H	B8/8	B8/8	B8M/8M	B8M/8M

Technical Specification

Design Standard	HG/T3704, GB/T12237		API 6D
FTF Dimension	HG/T3704, GB/T12221		ASME B16.10
Flange Standard	HG/T20592, GB/T9119		ASME B16.5, JIS B2220
Normal Diameter	DN15~DN350	1/2"~14"
Temperature Range	FEP: -29ºC~120ºC \| PFA: -29ºC~180ºC \| PTFE: -29ºC~150ºC
Applicable Medium	Strong corrosion medium: Hydrochloric acid, Nitric acid, Liquid chlorine, Sulfuric acid, Aqua regia, etc.

⊡

Visual Reference

Frequently Asked Questions

Q1: What are the primary lining materials available for these ball valves? A: The valves can be lined with FEP, PFA, PO, or PTFE, depending on your specific temperature and corrosion resistance requirements.

Q2: Which corrosive mediums are suitable for these valves? A: They are designed for strong corrosion mediums including Hydrochloric acid, Nitric acid, Liquid chlorine, Sulfuric acid, and Aqua regia.

Q3: What is the maximum temperature range for PFA lining? A: PFA lined valves can handle a temperature range from -29ºC up to 180ºC.

Q4: What standards do these valves comply with? A: Our valves comply with several international standards including HG/T3704, GB/T12237, API 6D, ASME B16.10, and JIS B2220.

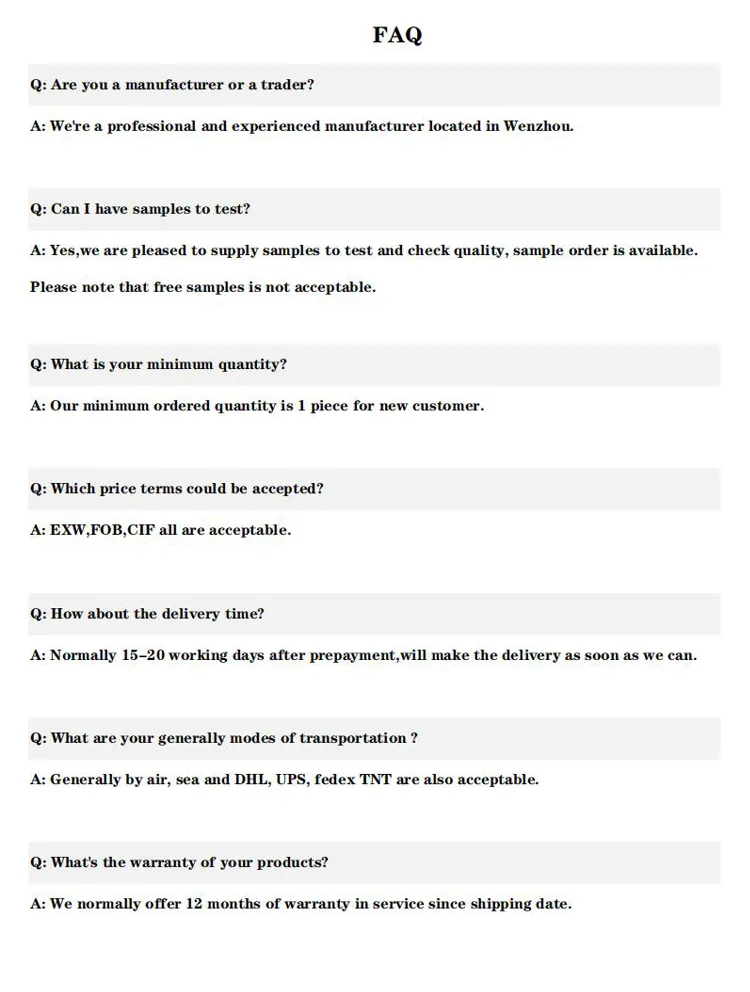

Q5: What is the production capacity and typical packaging? A: The production capacity is approximately 1000 pieces per month. Products are typically shipped in sturdy wooden cases for safe transport.

Q6: What is the size range available for the Q641F-16P model? A: The nominal diameter ranges from DN15 to DN350 (1/2" to 14").
