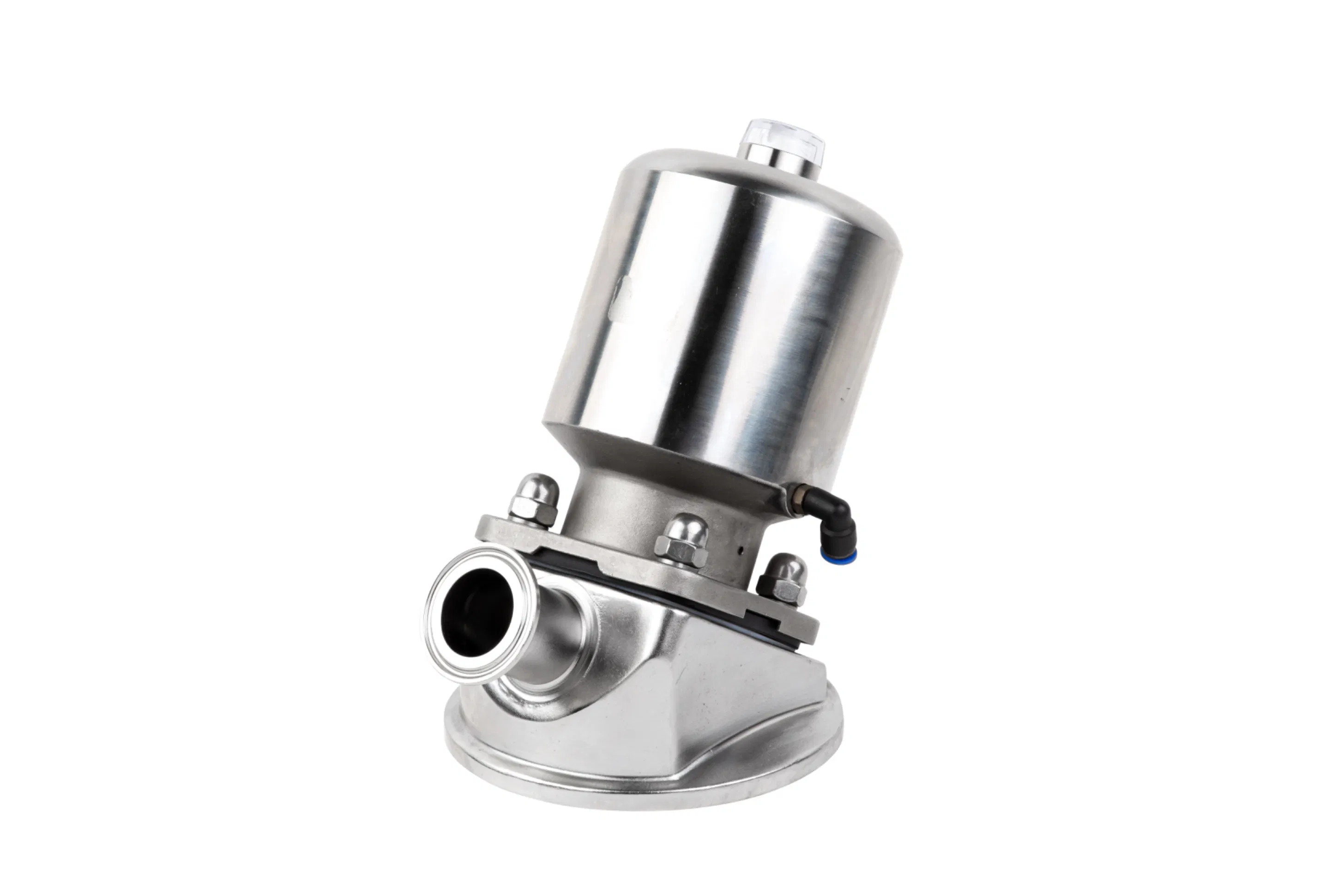

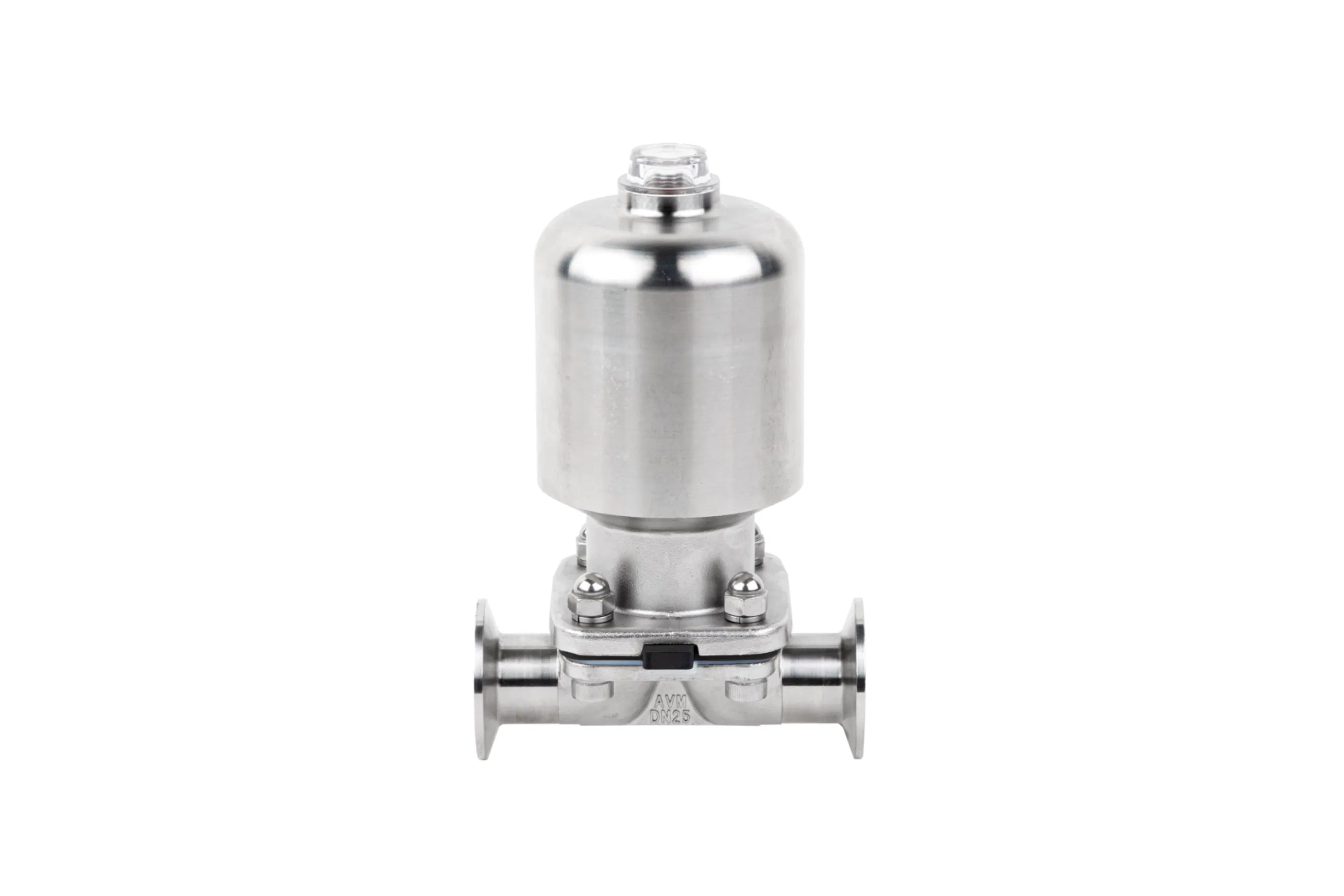

Stainless Steel Pneumatic Food Grade Sanitary Diaphragm Valve

Customization:	Available
Media:	Gas
Temperature:	Low Temperature

■

Basic Information

Model NO.:AVM-DV0008

Actuator:Manual

Connection:Clamp Diaphragm Valve

Material:Stainless Steel

Structure:Roof Type Diaphragm Valve

Pressure:High Temperature

Flow Direction:Reversing

Standard:DIN, GB, ANSI

Specification:SMS, DIN, ISO, 3A etc

HS Code:848180409

■

Product Overview

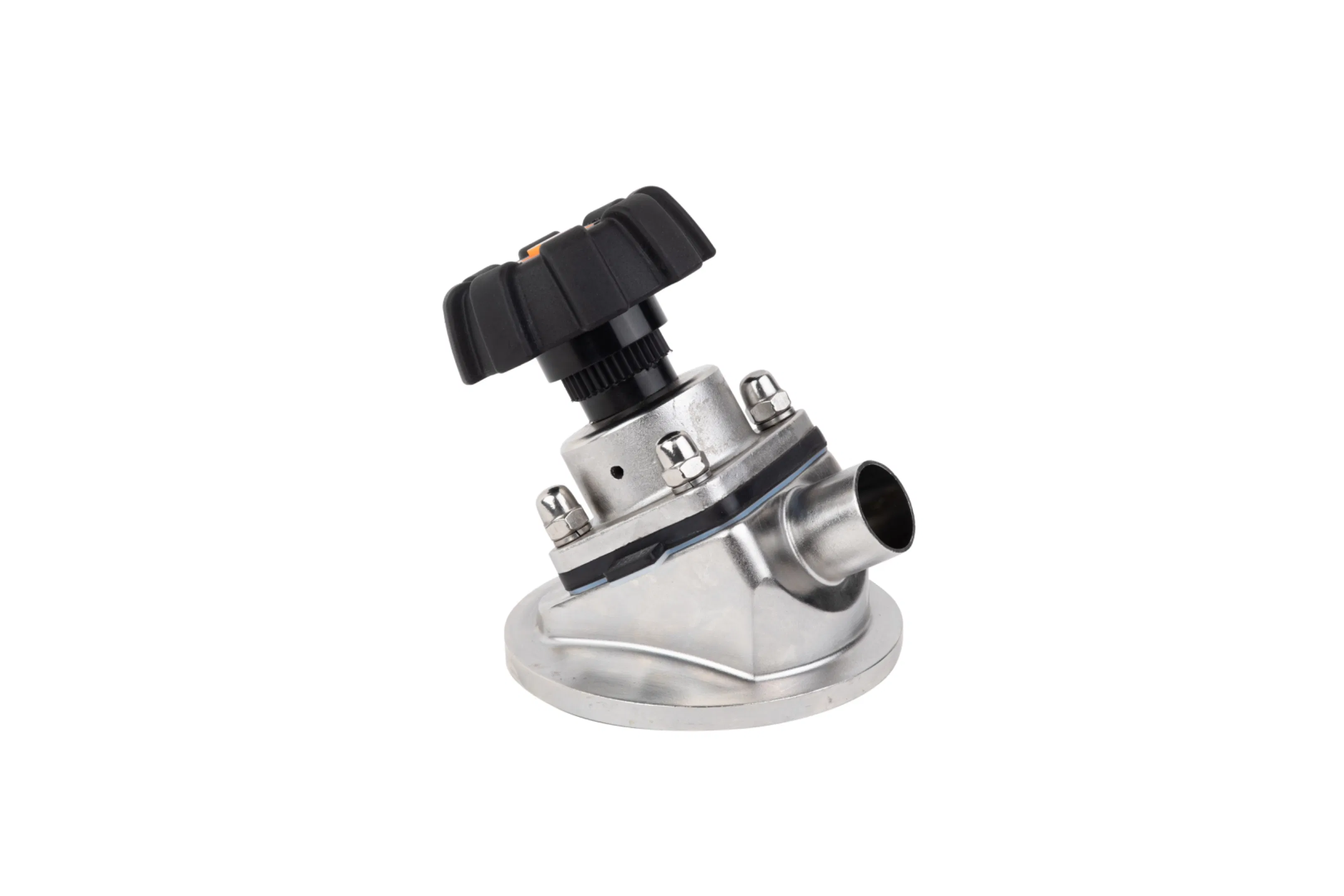

SS304/SS316L Hygienic Sanitary Manual Tank Bottom Diaphragm Valve is designed for high-precision hygiene demanding flow lines. This valve is widely utilized in sectors where cleanliness and fluid control are critical.

Valve Body Material	SS316L
Available Standard	3A / BPE / DIN / ISO / IDF / SMS
Available Size	1"-3", DN20-DN65
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM
Available Connection	Clamp / Weld / Thread / Special connection
Operated	Manual, Pneumatic
Max. Working Pressure	10 Bar
Available Structure	Straight, Tee, U-type, Tank bottom
Max. Working Temperature	120 Degree C
Application Scope	Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

■

Key Features

Available in dead weight or spring loaded design.
Fast acting and quick opening mechanism.
Gas tight design ensuring zero leakage.
Flexible choice of materials based on the fluid medium.
Automatic vacuum piston operation to balance tank pressure.
Automatic pressure relief when tank pressure exceeds rated limits.

■

Available Sanitary Series

Butterfly Valves

Check Valves

Ball Valves

Diaphragm Valves

Sample Valves

Safety Valves

Pipe Fittings

Triclamp Ferrules

Centrifugal Pumps

Lobe Pumps

Mixing Tanks

Sanitary Gaskets

■

Production & Packaging

?

Frequently Asked Questions

1. What materials are used for the valve body and seals?

The valve body is primarily made of SS316L stainless steel. For sealing, we offer PTFE + EPDM (double layer), EPDM, Silicon, and FPM to suit different fluid requirements.

2. What is the maximum working pressure and temperature?

The valve is designed to handle a maximum working pressure of up to 10 Bar and can operate at temperatures up to 120 degrees Celsius.

3. Which industries are these diaphragm valves suitable for?

These hygienic valves are ideal for use in the dairy, food, beverage, pharmaceutical, cosmetic, and bio-tech industries.

4. What international standards do the products comply with?

Our products are manufactured according to various international norms including 3A, BPE, DIN, ISO, IDF, SMS, and BS.

5. What connection types are available?

We provide several connection options such as Clamp, Weld, Thread, and other specialized connections upon request.

6. How does the vacuum protection feature work?

When a vacuum occurs inside the tank, the internal vacuum piston opens automatically to draw in air, balancing the pressure and protecting the tank structure.
