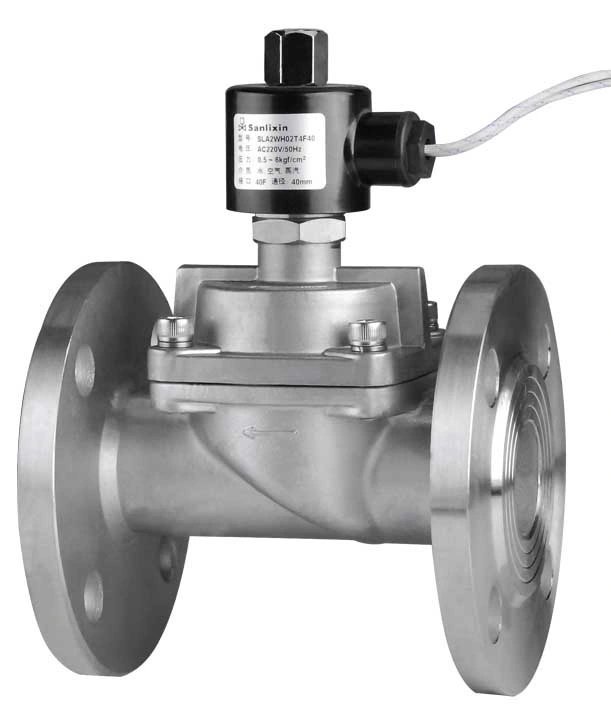

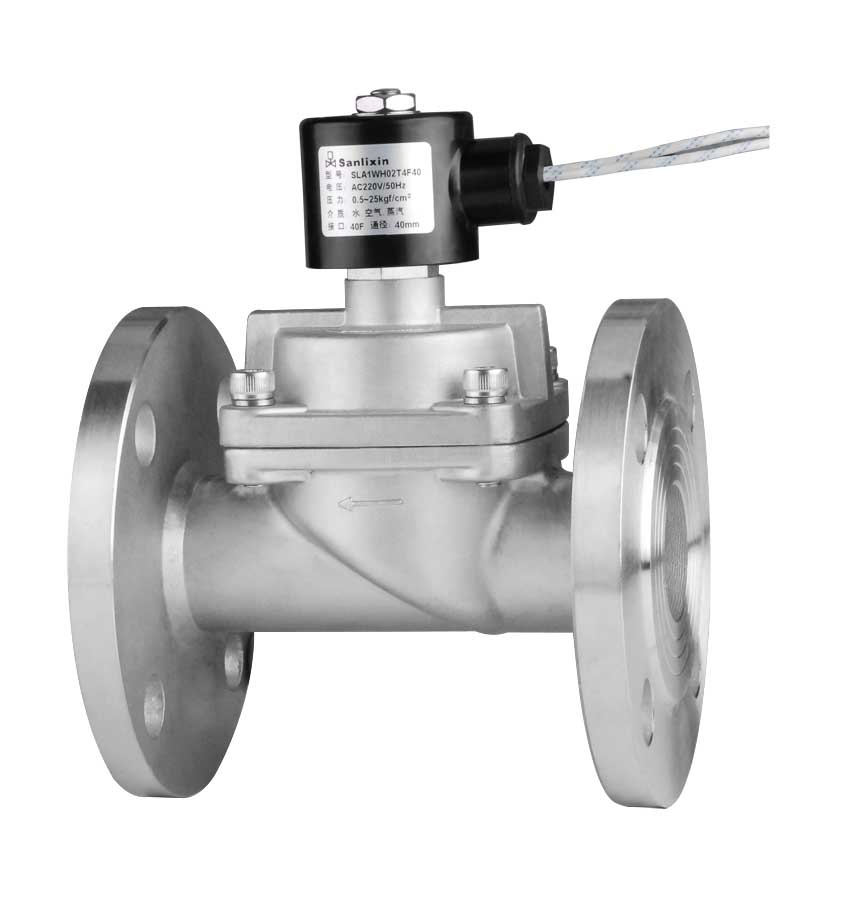

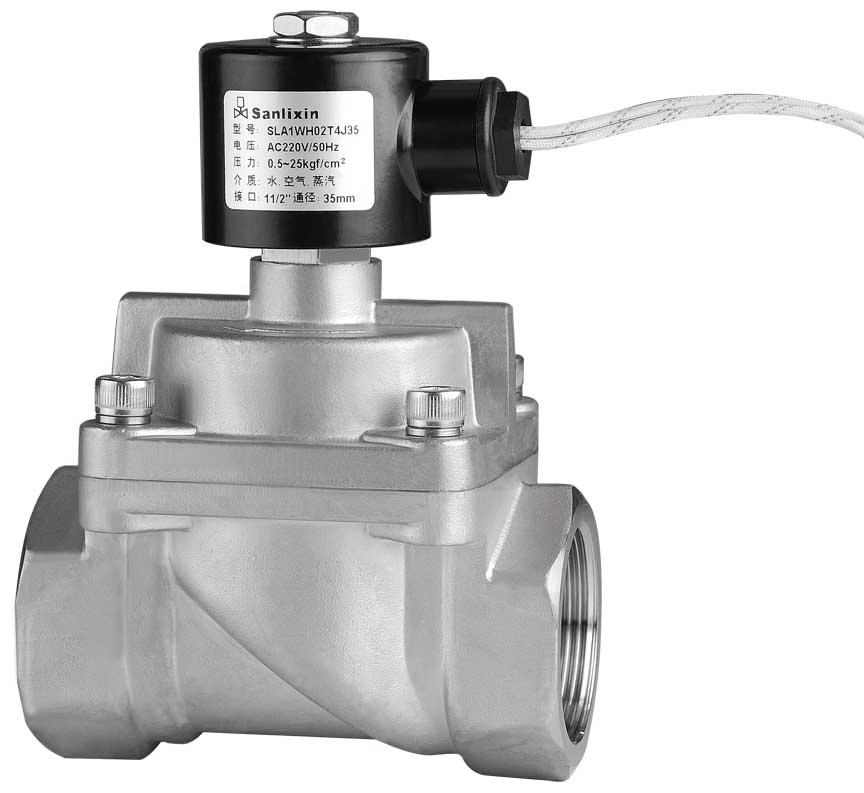

Stainless Steel Piston Water Gas Normally Open Diaphragm Valve (2/2-WAY)

1 / 5

Stainless Steel Piston Water Gas Normally Open Diaphragm Valve (2/2-WAY)

Customization:	Available
Media:	Gas
Temperature:	High Temperature

Send Inquiry

Product Description

Technical Specifications

Model NO.

2/2-WAY

Actuator

Electric

Connection

Diaphragm Valve

Material

Stainless Steel

Structure

Diaphragm Valve

Pressure

High Temperature

Flow Direction

Unidirection

Function

Solenoid Valve

Usage

Flow Control

Standard

DIN

Solenoid Valve

1/8''~Flange

Valve Size

2.5~50mm

Steam Pressure

0.5~25bar

Valve Seat

PTFE

Specification

CE & TUV & ISO

Production Capacity

5000PCS/Month

Product Highlights

SLA Stainless Steel Series 2/2-Way Piston Solenoid Valve

✔

Normally Open Operation: This 2-way normally open solenoid valve remains open when de-energized and closes immediately when energized.

✔

Compact & Efficient: Serialized product design that maintains a small footprint while providing a large flow rate for diverse applications.

✔

Premium Materials: Constructed with high-grade Stainless Steel 304 (standard) or Stainless Steel 316 (available upon request).

✔

Temperature Resilience: Suitable for ambient temperatures ranging from 0-65°C (F Class) to 0-80°C (H Class).

✔

Flexible Installation: Can be mounted in any position following the flow arrow, though the optimal orientation is solenoid vertical and upright.

✔

Wide Voltage Compatibility: Supports 220VAC, 230VAC, 240VAC, 110VAC, 24VAC (50/60Hz), and 24VDC/12VDC with a ±10% tolerance.

✔

Durable Sealing: This series features PTFE components to ensure reliable on-off control for various fluids.

Product Gallery

Stainless Steel Normally Open Diaphragm Valve - Front View

Frequently Asked Questions

What does "2/2-Way Normally Open" mean?

It means the valve has 2 ports and 2 positions. In its default (de-energized) state, the valve is open and allows flow. It only closes when electrical power is applied.

Can this valve handle steam or high-temperature fluids?

Yes, this series is designed for high temperatures and features PTFE sealing, making it suitable for steam applications with pressures ranging from 0.5 to 25 bar.

Is it possible to install the valve horizontally?

The valve can be mounted in any position. However, for the best performance and longevity, we recommend installing it with the solenoid in a vertical and upright position.

What is the advantage of Stainless Steel 316 over 304?

While SS304 is the standard for most applications, SS316 offers superior corrosion resistance, especially against chlorides and industrial chemicals.

What is the voltage tolerance for these solenoid valves?

The valves are designed to operate reliably within a tolerance of +10% to -10% of the rated applicable voltage.

Are these valves certified for international use?

Yes, our products meet CE, TUV, and ISO specifications, ensuring they comply with international quality and safety standards.
