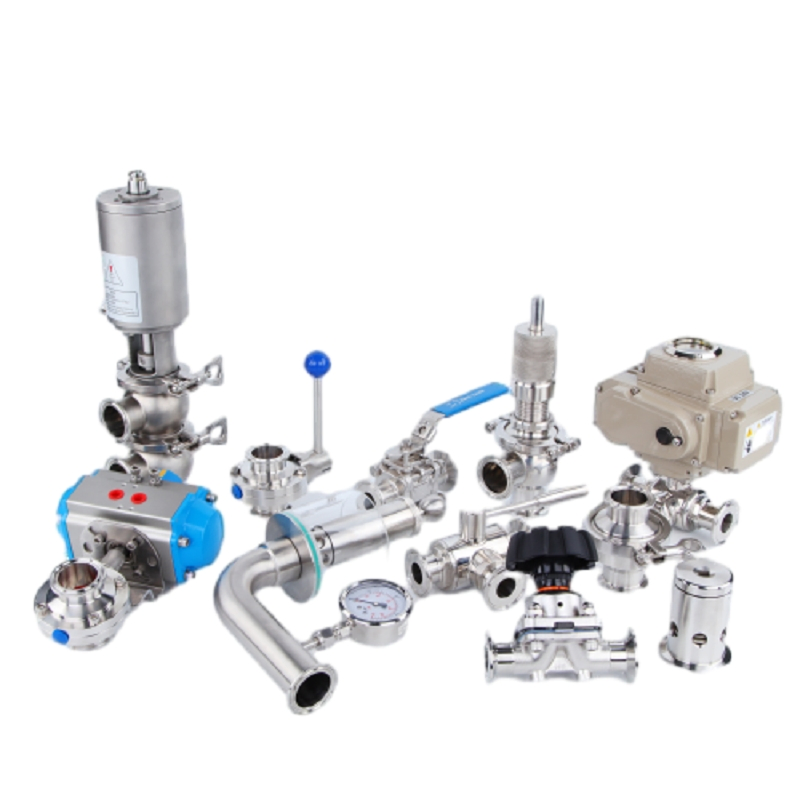

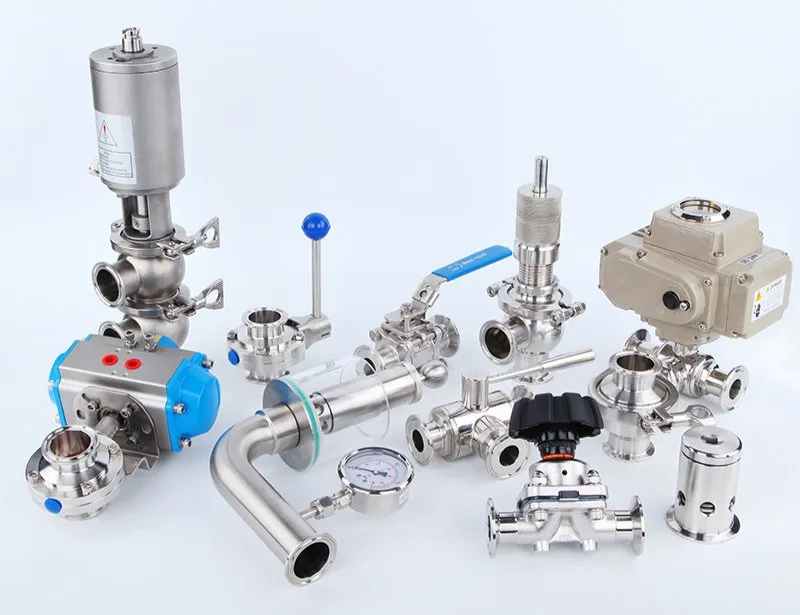

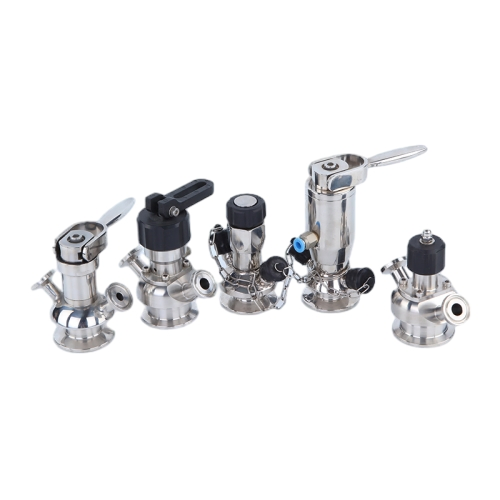

Sanitary Manual Pneumatic Electric Stainless Steel Sanitary Ball/Butterfly/Check/Diaphragm/Safety Relief/Sampling Valve

1 / 5

Sanitary Manual Pneumatic Electric Stainless Steel Sanitary Ball/Butterfly/Check/Diaphragm/Safety Relief/Sampling Valve

Customization:	Available
Seal:	EPDM, Silicone, Viton
Operation:	Manual, Pneumatic, C-Top Controller

Send Inquiry

Product Description

Basic Specifications

Connection End:

Weld, Clamp, Thread, Union, Flange

Surface Finish:

Mirror or Sandblast

Transport Package:

Carton, Plywood Case

Specification:

1''-4''

Origin:

China

HS Code:

8481804090

Production Capacity:

10000

Package Size:

30.00cm * 25.00cm * 20.00cm

Gross Weight:

10.000kg

✓

Product Overview

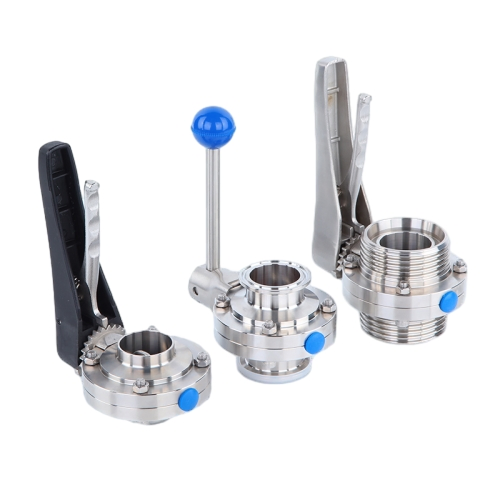

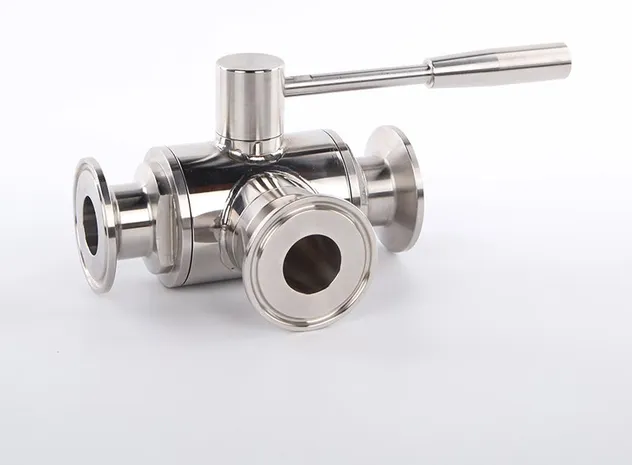

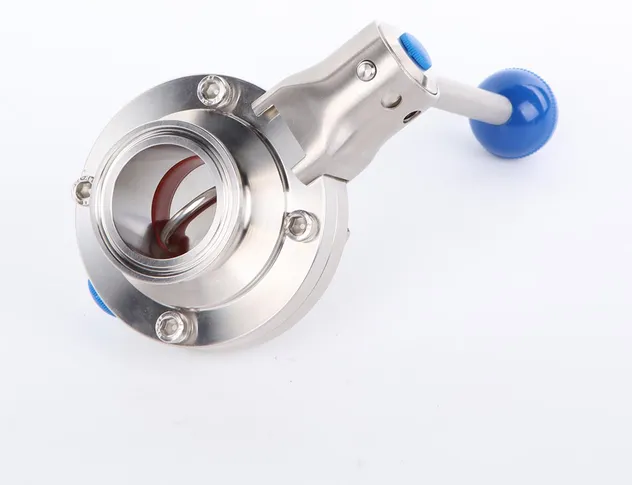

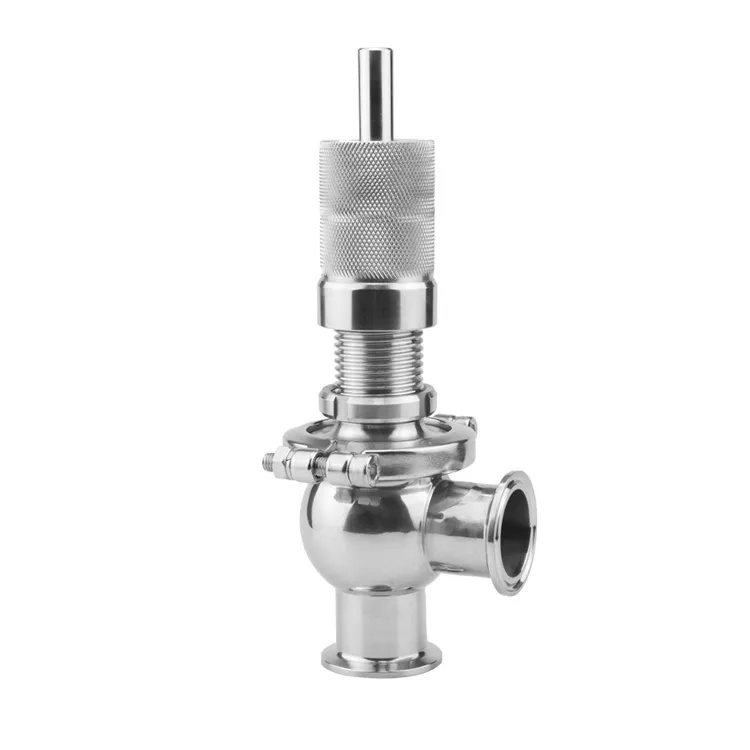

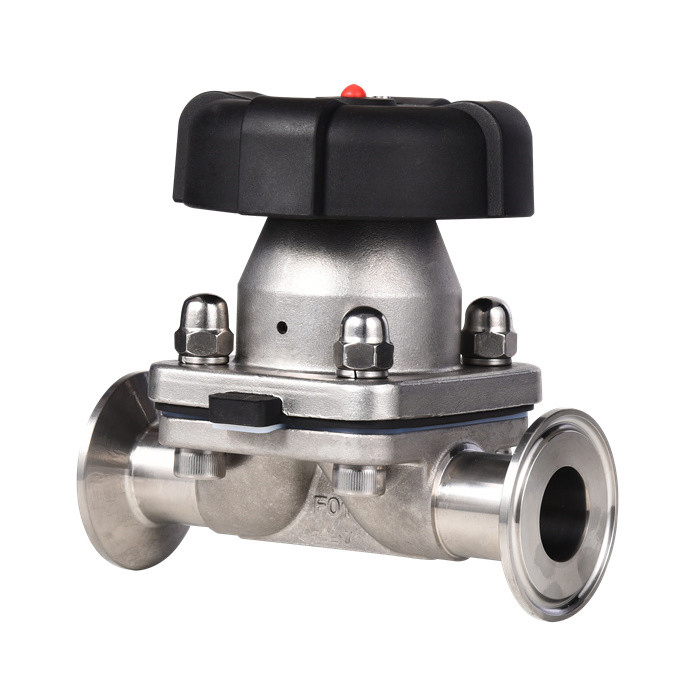

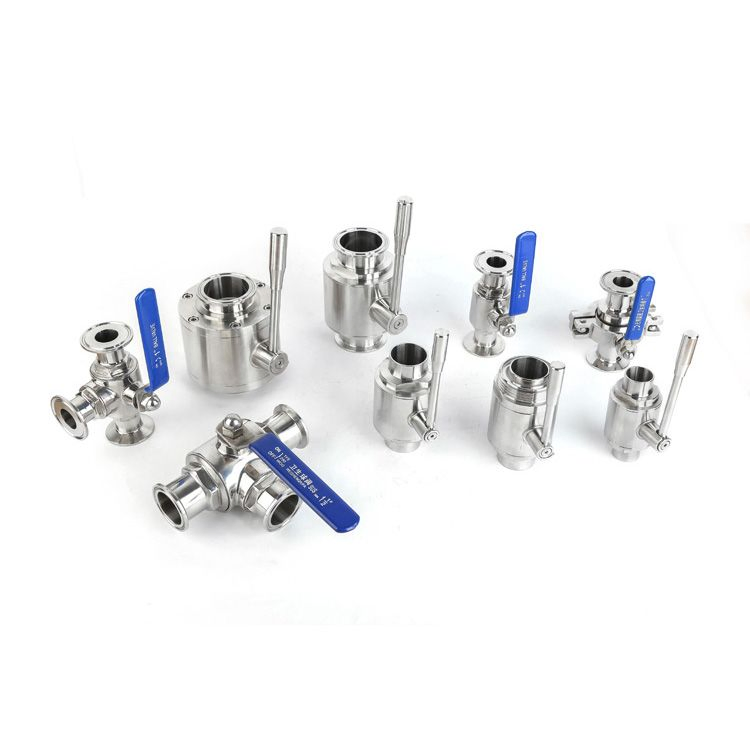

Feature	Butterfly Valve	Ball Valve	Diaphragm Valve	Check Valve	Safety Valve	Sampling Valve
Size	1/2"-12"	1/4"-4"	1/4"-4"	3/4"-4"	1/4"-4"	DN6-DN15
Grade	SS304, SS316L	SS304, SS316L	SS304, SS316L	SS304, SS316L	SS304, SS316L	SS304, SS316L
Max Temp	120ºC	120ºC	120ºC	120ºC	120ºC	140ºC
Max Pressure	10bar	10bar	10bar	10bar	6bar	10bar
FDA Approved	Yes	Yes	Yes	Yes	Yes	Yes
Inside Ra	0.8	0.8	0.4	0.8	0.4	0.8
Seal	Silicone, EPDM, VT, PTFE	Silicone, EPDM, VT, PTFE	EPDM+PTFE	Silicone, EPDM	EPDM+PTFE	Silicone, EPDM

Frequently Asked Questions

What materials are available for these sanitary valves?

Our valves are primarily manufactured using high-grade Stainless Steel 304 and 316L to ensure superior hygiene and corrosion resistance.

Are the seals and components FDA approved?

Yes, all sealing materials, including Silicone, EPDM, and PTFE, are FDA approved for use in food, beverage, and pharmaceutical applications.

What is the maximum working temperature?

Most of our sanitary valves can operate at a maximum temperature of 120ºC, while the sampling valves can reach up to 140ºC.

Which connection ends can I choose from?

We offer a variety of connection options including Weld, Clamp, Thread, Union, and Flange to suit different piping requirements.

What surface finishes do you provide?

We provide Mirror Polish and Sandblast finishes. Our standard internal roughness (Ra) ranges from 0.4 to 0.8 depending on the valve type.

What is the maximum pressure rating?

The majority of our valves, including Ball and Butterfly types, are rated for a maximum pressure of 10bar. Safety valves are typically rated for 6bar.
