Durable Metering Pump Featuring UPVC Diaphragm Valve

📋 Basic Information

Actuator

Electric

Connection

Welded Diaphragm Valve

Material

Plastic

Structure

Wedge Diaphragm Valve

Pressure

Ordinary Pressure

Flow Direction

Unidirection

Function

Electronic Type

Usage

Emptying

Standard

DIN

Transport Package

Paper Box

Origin

China

⚙️ Product Description

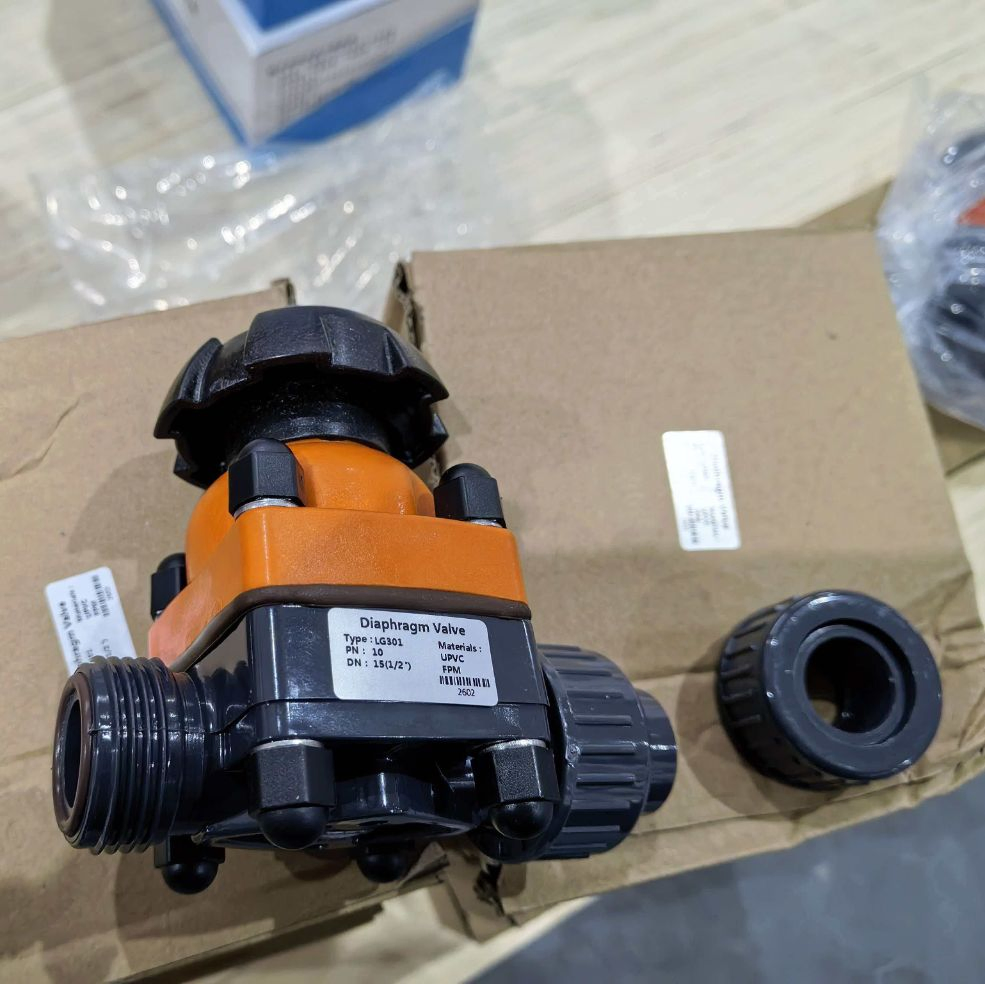

Durable Metering Pump Featuring UPVC Diaphragm Valve

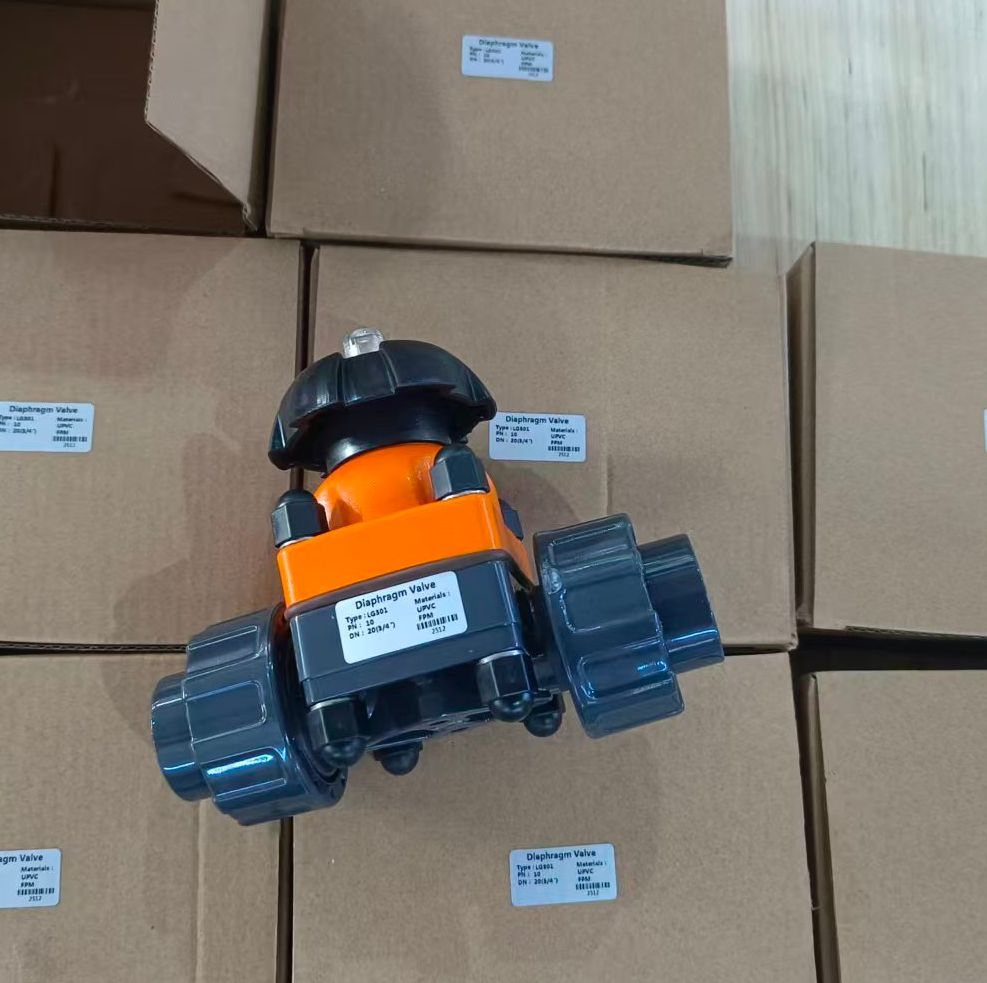

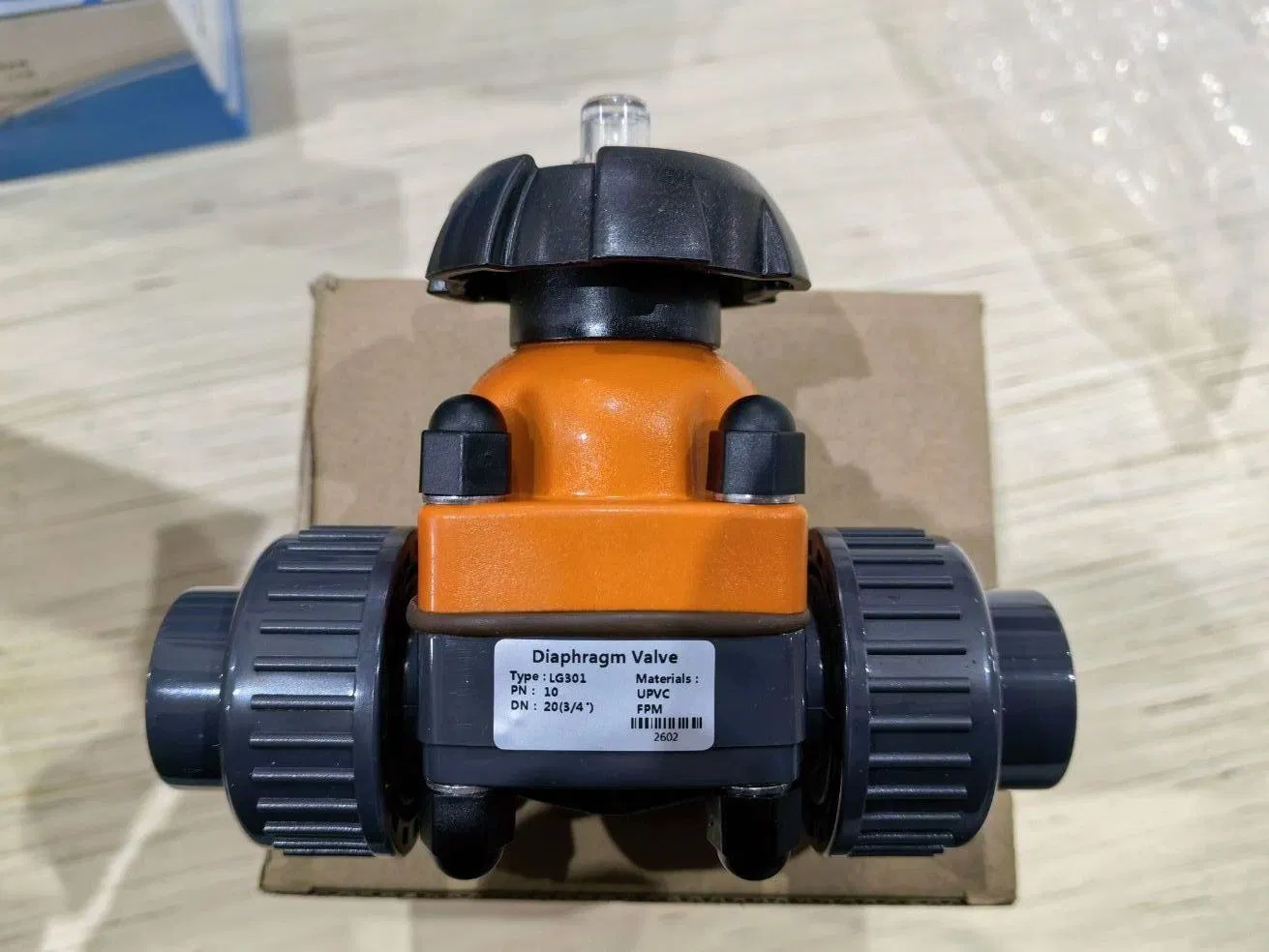

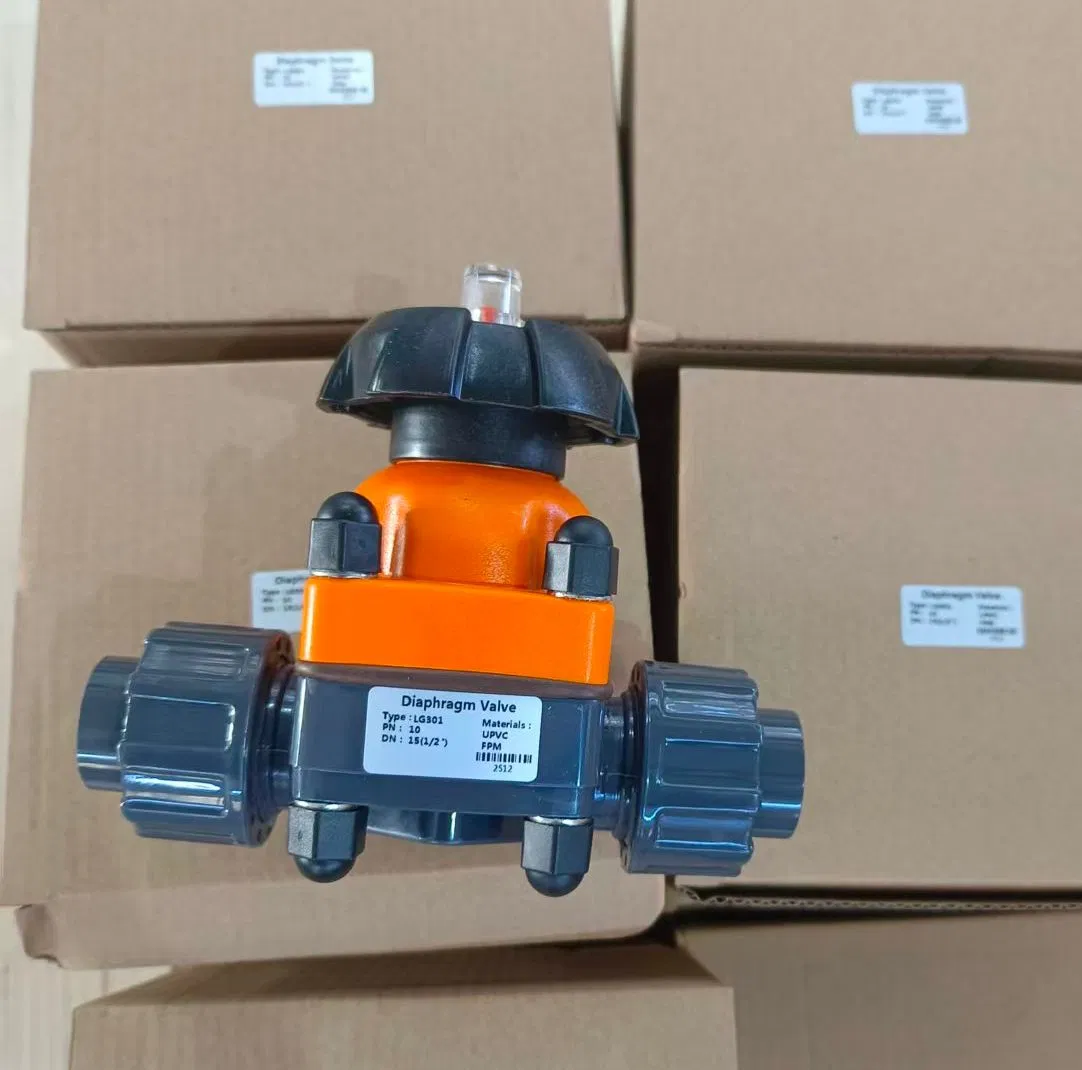

Lever-operated UPVC and CPVC plastic diaphragm valves can be manually or pneumatically actuated. Opening and closing are achieved through vertical movement of the valve stem. When the stem is in the upper position, the curved diaphragm flexes upward, creating an open valve passage. As the stem moves downward, it drives the pressure plate to bend the diaphragm, forcing it tightly against the valve seat sealing area to close the valve.

✔ No clogging!

Fluid contacts only the diaphragm and valve body, eliminating dead zones—ideal for slurries, chemicals, and contaminated fluids.

✔ Leak-proof!

The diaphragm isolates the valve stem from the fluid, preventing stem corrosion and eliminating leakage.

✔ Corrosion-resistant!

PVC inherently resists acids, alkalis, and saltwater, offering greater cost savings than metal valves.

✔ Easy maintenance!

The flanged design allows the valve to be unscrewed for diaphragm replacement or cleaning without disassembling the pipeline.

📏 Specifications

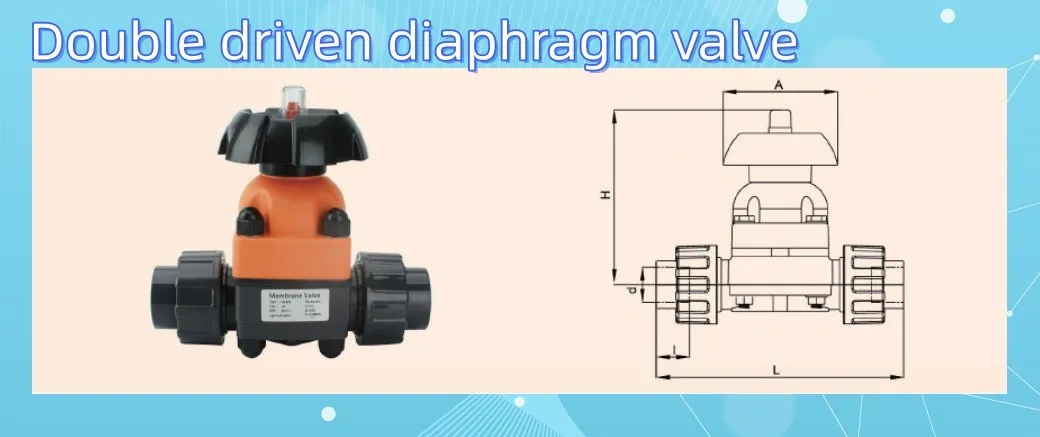

Nominal Diameter	d	A	L	I	H
DN15	20	65	140	18.5	99
DN20	25	65	142	21	99
DN25	32	94	176	26	136
DN32	40	94	184	28	136
DN40	50	118	245	37	178
DN50	63	118	258	37	178
DN65	75	189	343	42	240
DN80	90	189	365	50	240
DN100	110	239	530	69	277
