| Model NO. | JVALVES-D371 | Connection Form | Wafer |
|---|---|---|---|
| Structure | Three-Eccentric Sealing | Seal Form | Force Sealed |
| Work Pressure | Mid-Pressure (2.5mpa < Pn < 6.4mpa) | Temperature | Medium Temp (120°C < T < 450°C) |
| Material | Metal Hard Sealed / Casting | Standard | API609 |
| Surface Treat | Sand Blasting | Construction | Triple Eccentric Type |
| Body Option | Carbon Steel, Stainless /Duplex Steel, Bronze | Specification | 2inch-72inch (Dn40-Dn1800) |
Our company provides a wide range of Industrial Valves designed for pipeline and equipment connections. Our products are available in both casting and forging types to meet diverse industrial applications. All products adhere to stringent quality standards including ISO9001, ISO45001, ISO14001, CE, ISO15848, and API607.

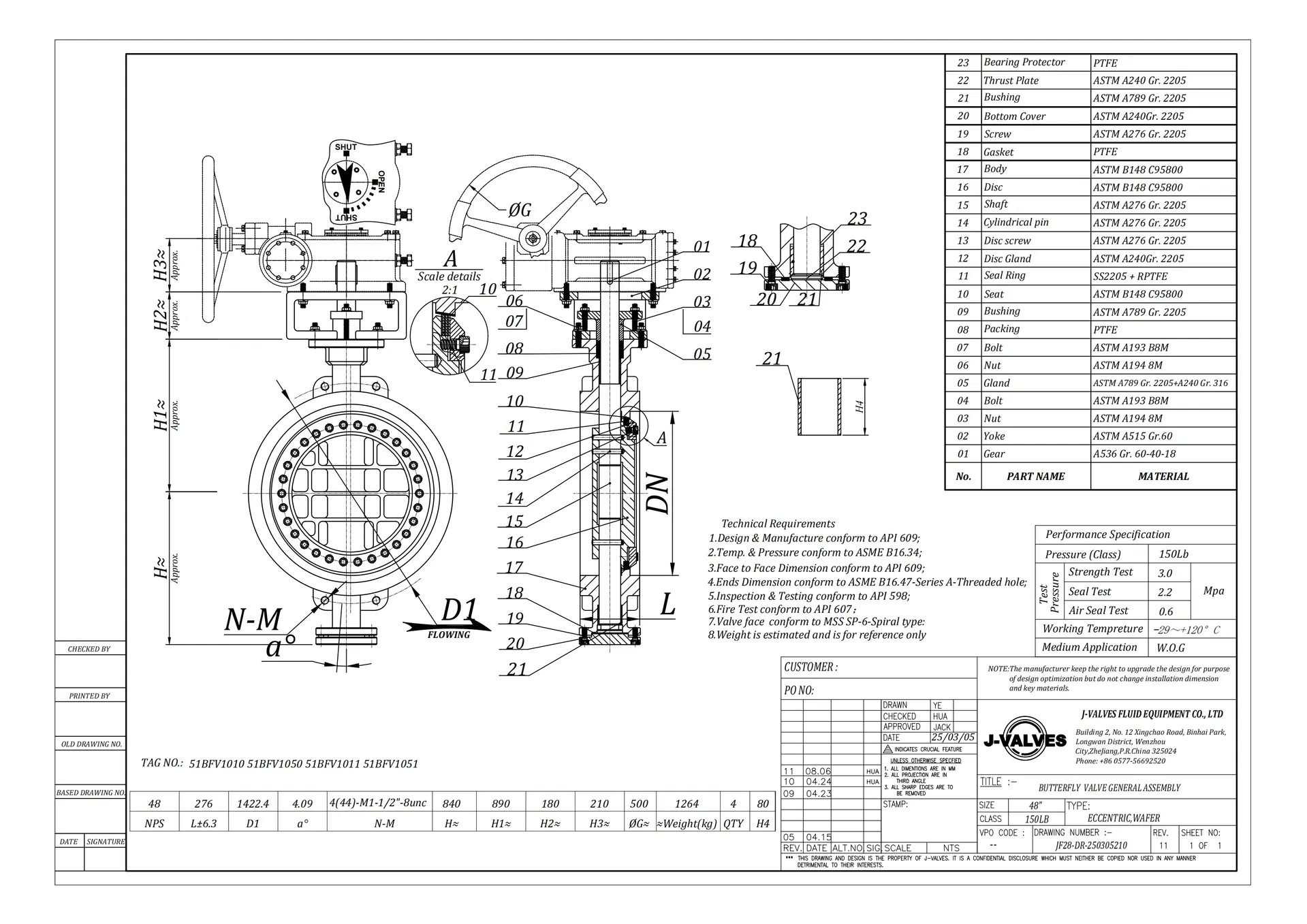

| Component | Material Specification |
|---|---|

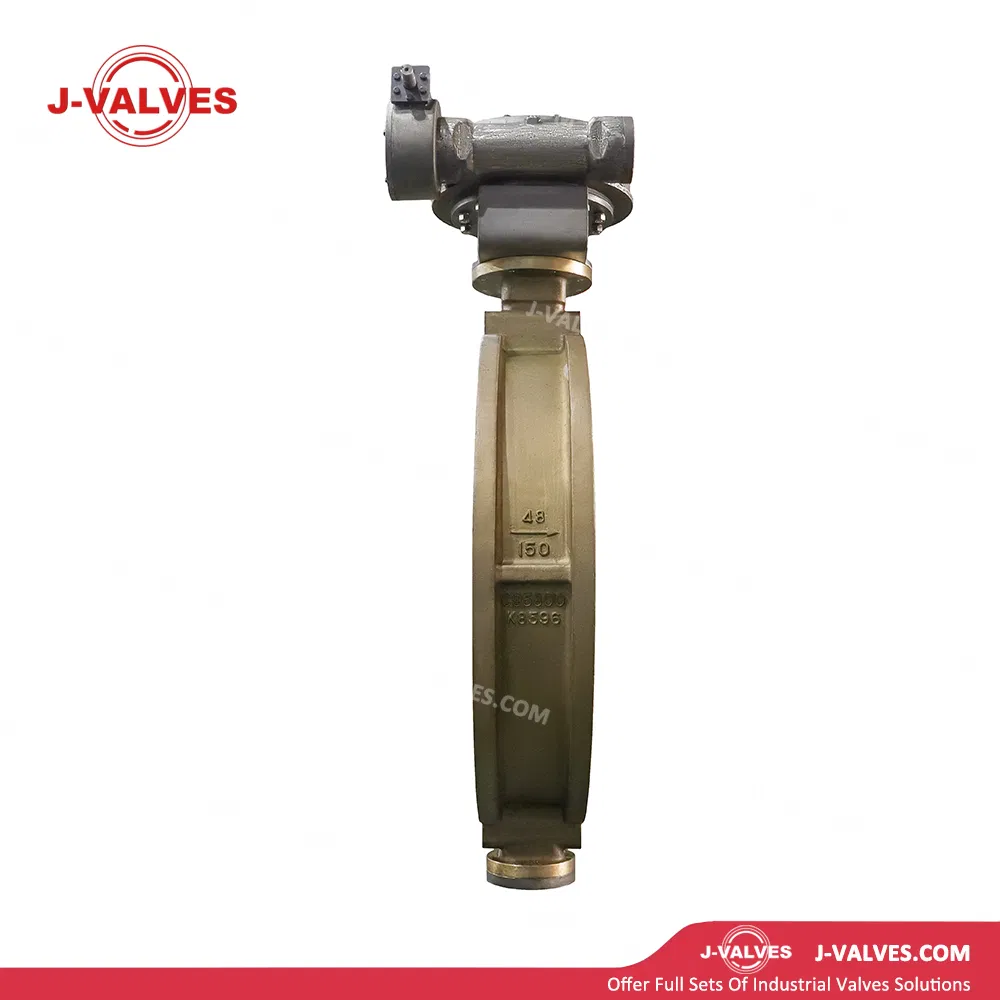

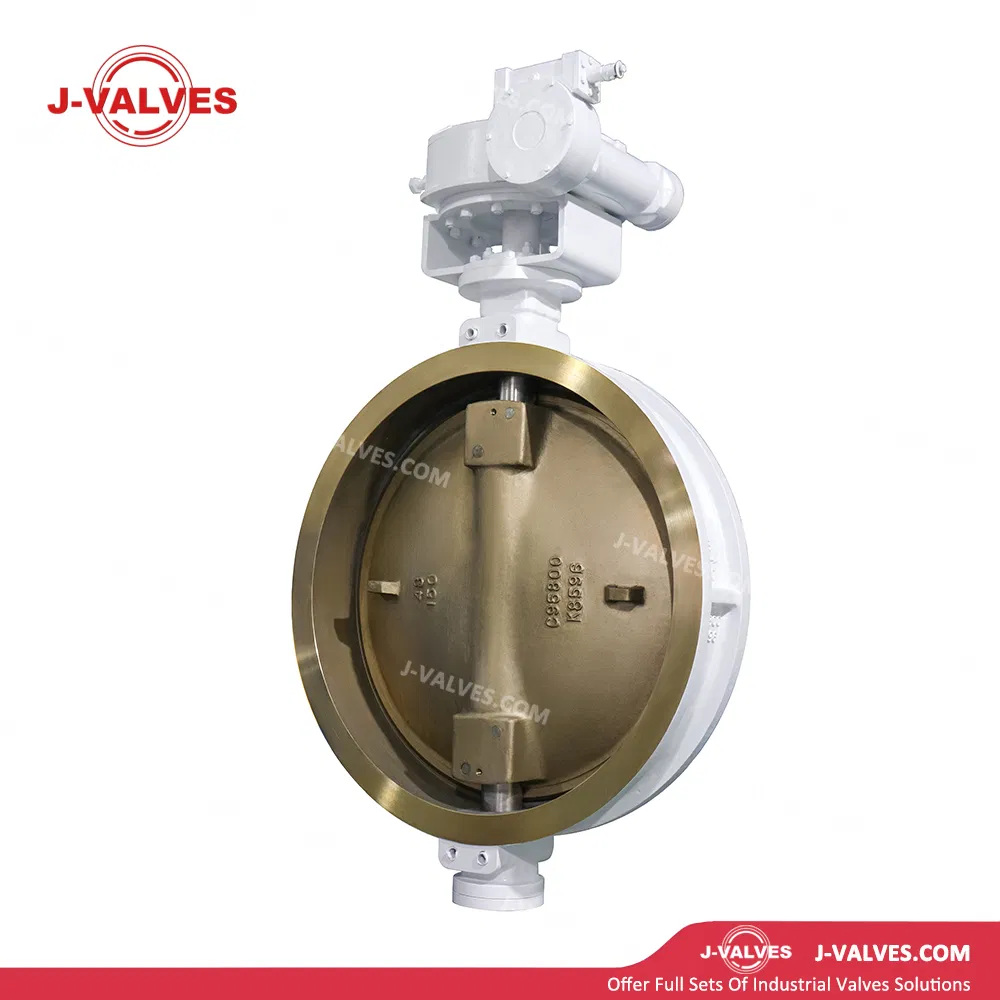

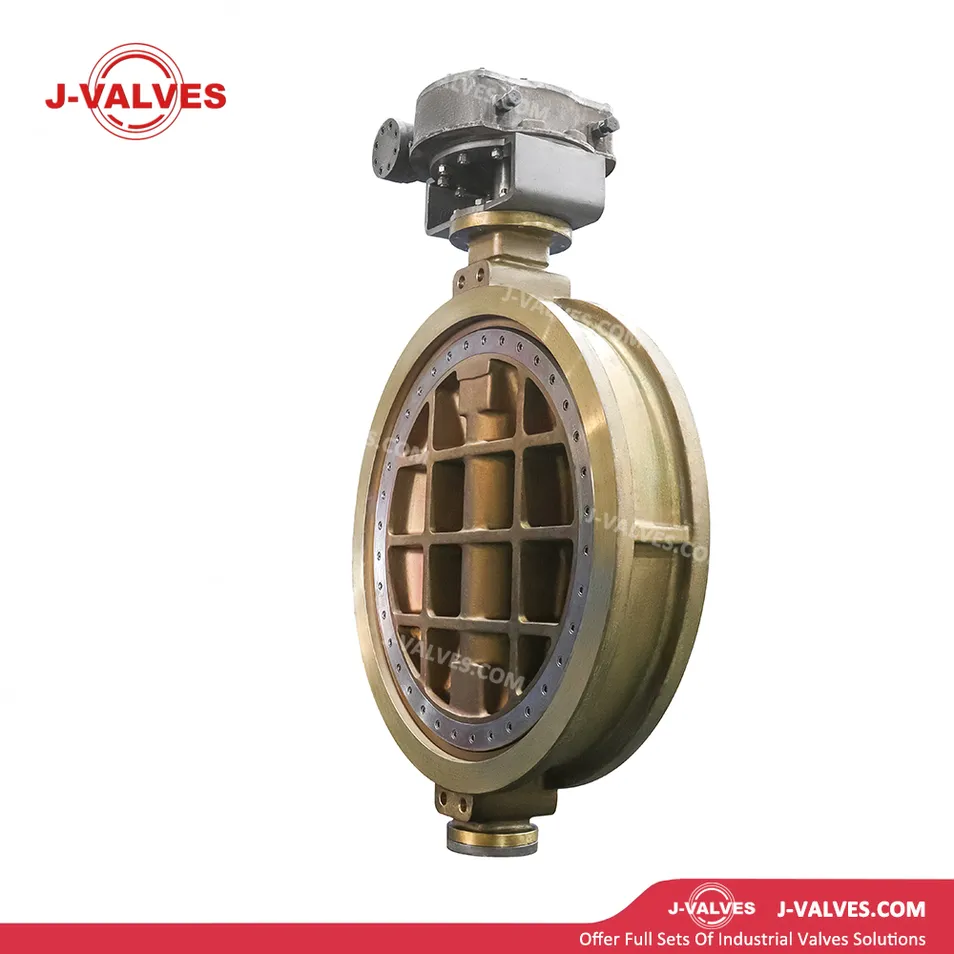

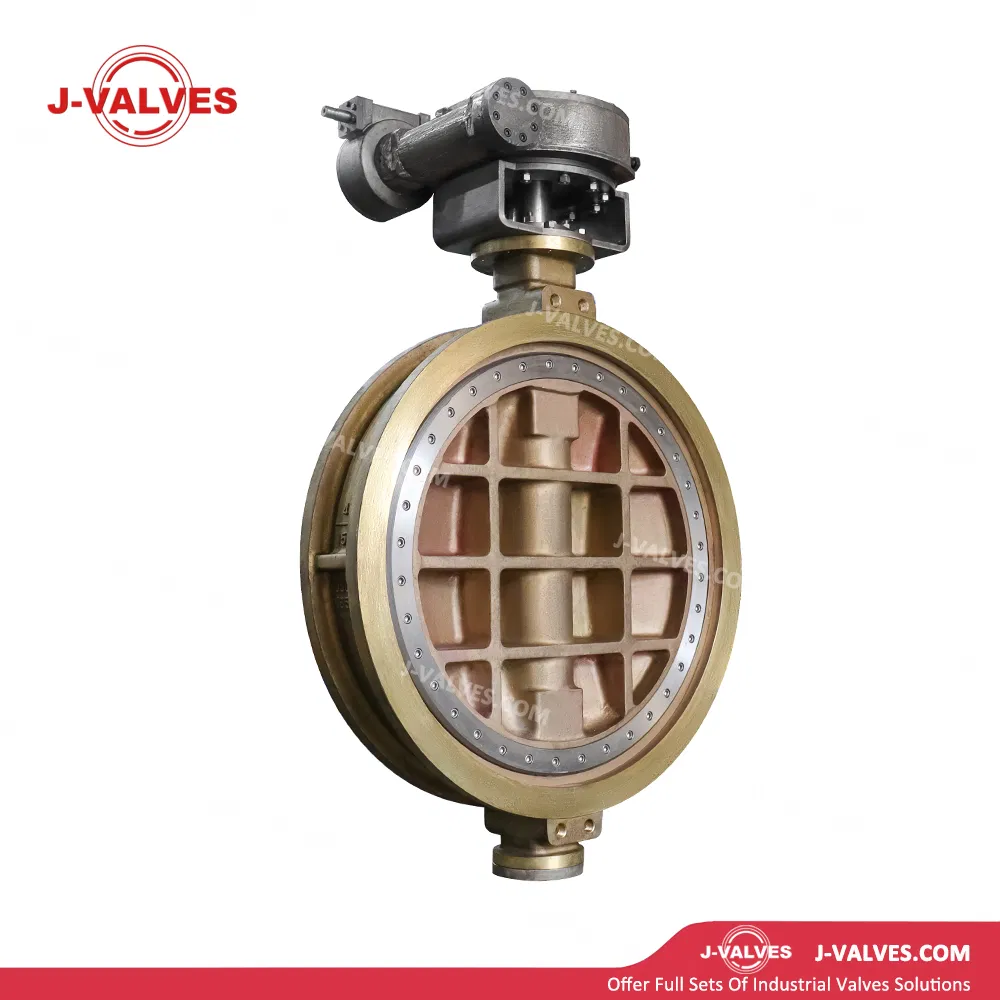

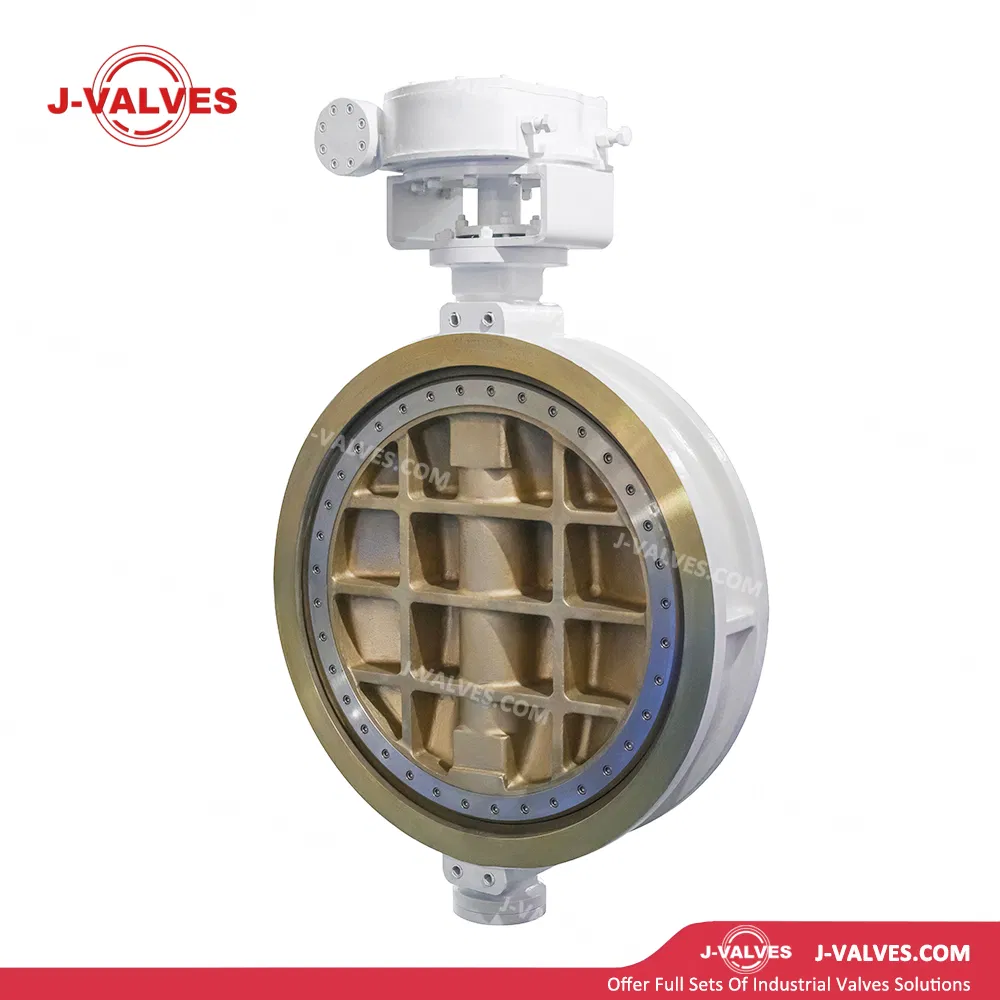

| Product Name | Triple Offset Butterfly Valve |
| Size / Pressure | 48 inch (DN1200) / 150LB |
| Body / Disc | ASTM B148 C95800 |
| Stem | ASTM A276 2205 |
| Seat | ASTM B148 C95800 |
| Gasket / Packing | PTFE |
| Operation | GEAR |
| Pressure Rating | 150LB | 300LB | 600LB | 900LB | 1500LB |
|---|---|---|---|---|---|
| Strength Testing (Mpa) | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 |
| Seal Testing (Mpa) | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 |
Applications: Marine engineering, offshore platforms, chemical processing, oil and gas pipelines, desalination plants, power generation, and wastewater treatment.
Superior Features: Bidirectional zero leakage, friction-free operation, fire-safe design, high-temperature capability, and exceptional corrosion resistance via Nickel-aluminum bronze alloy.

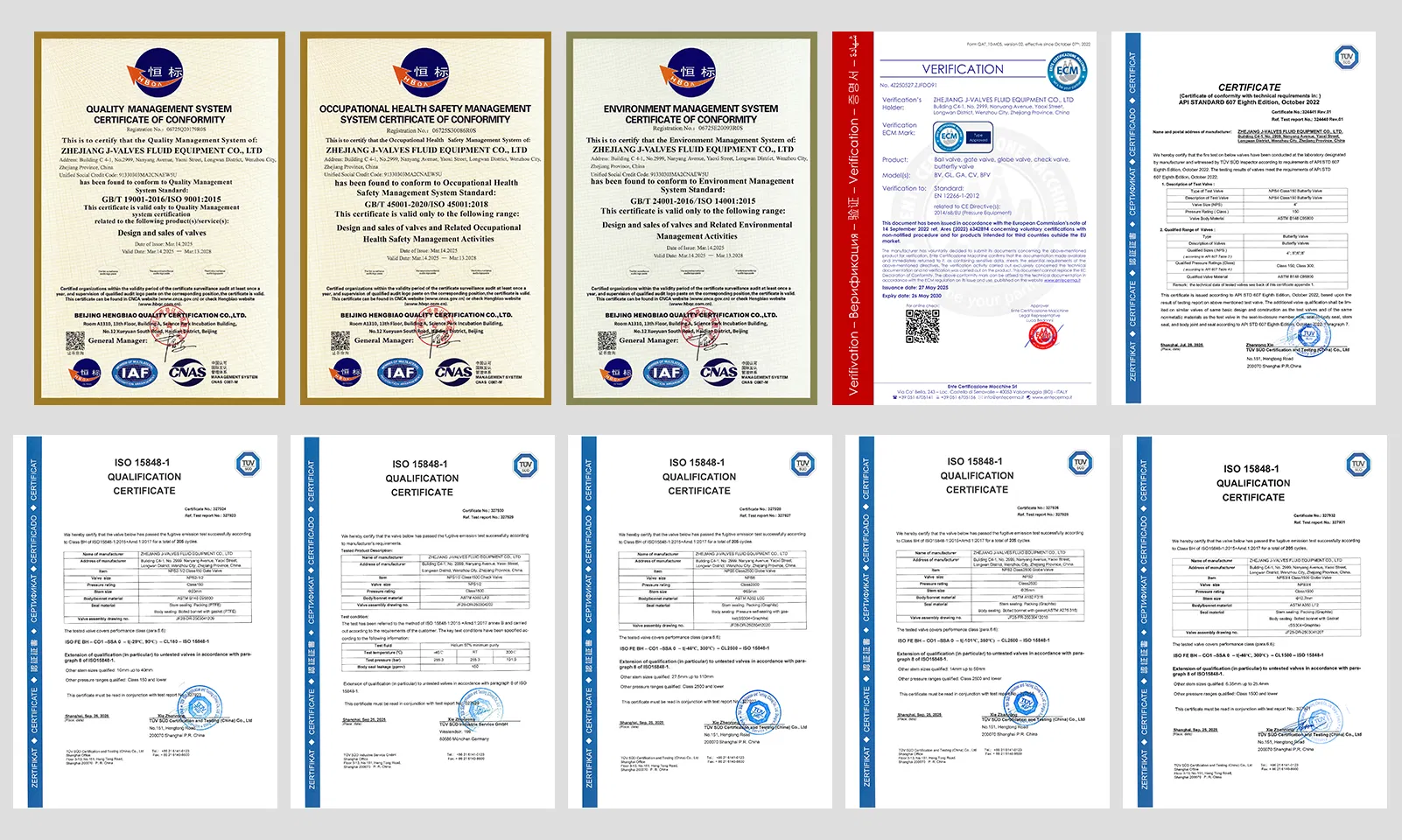

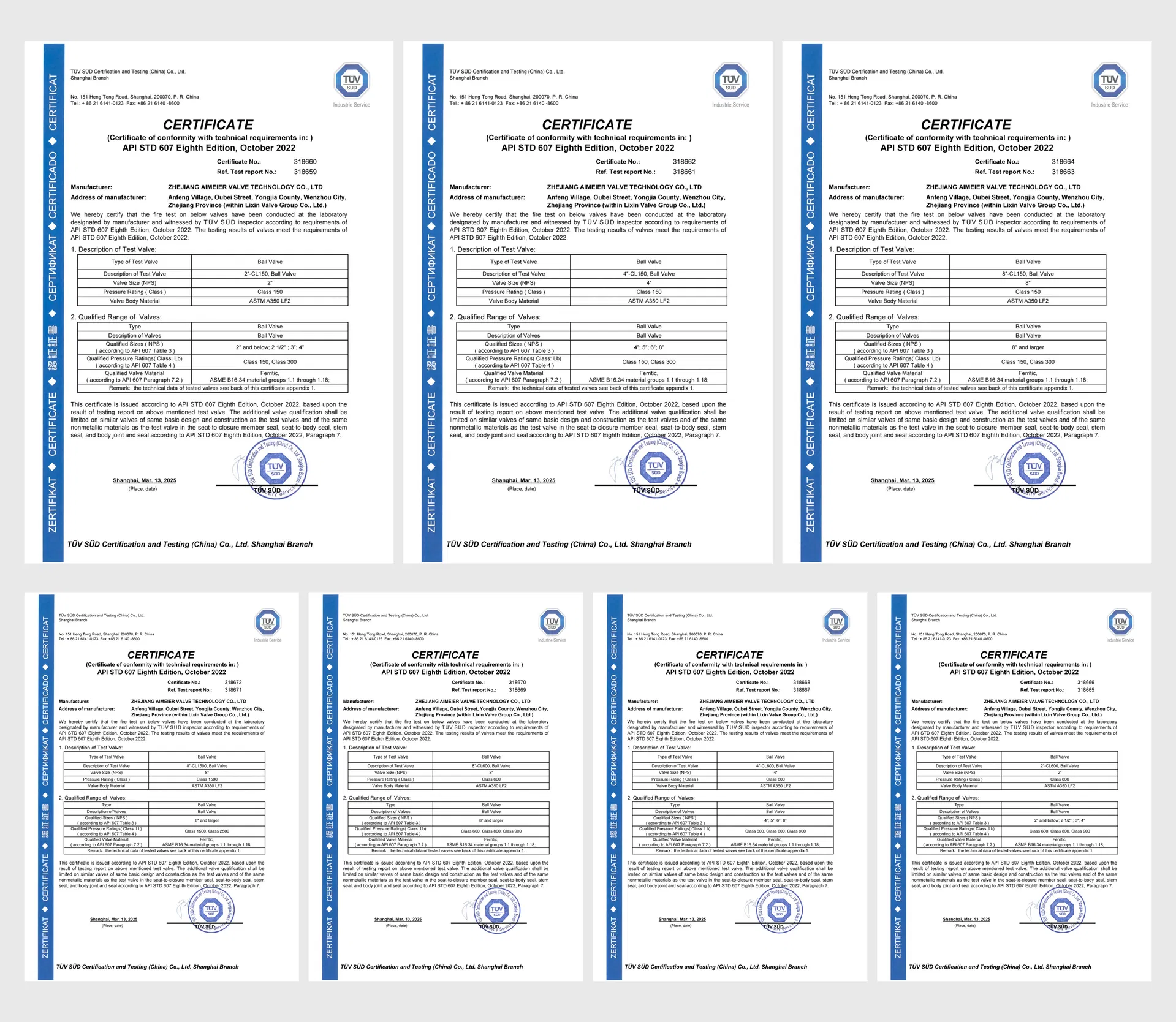

Founded in 2018, our company is an integrated manufacturing and trading entity specializing in the export of industrial valves and pipeline fittings. We hold global certifications such as ISO 9001, ISO 14001, ISO 45001, CE Marking, and API 607 Fire Safe Certification.
Our main product lines include Ball Valves, Gate Valves, Globe Valves, Check Valves, Plug Valves, and Strainers. We utilize high-grade materials like Duplex Steel, Titanium Alloy, and Hastelloy to cater to the petroleum, chemical, and hydraulic industries. Every product undergoes 100% pre-shipment testing to ensure excellence.
