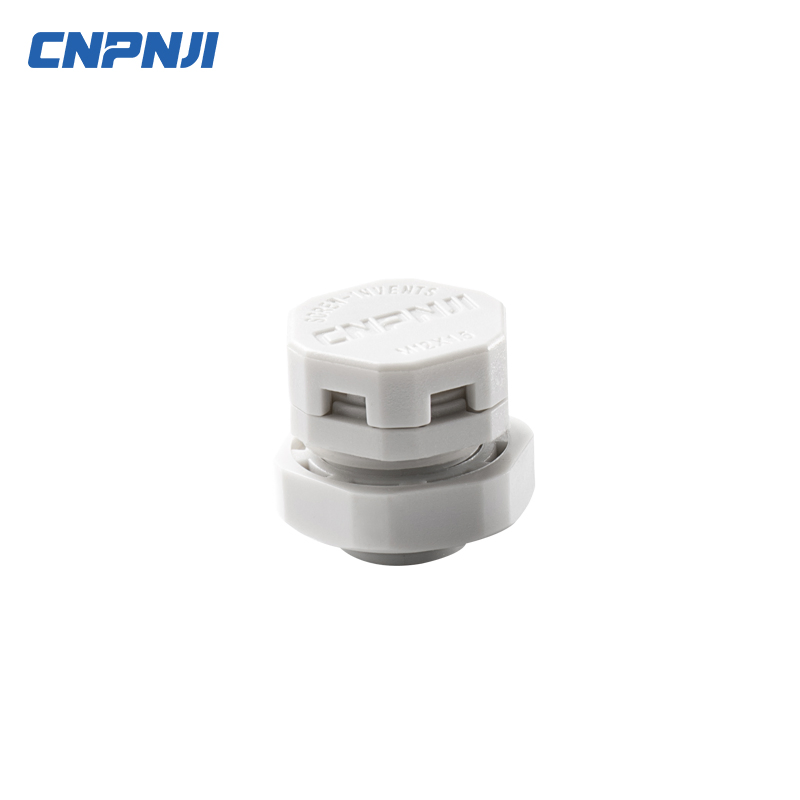

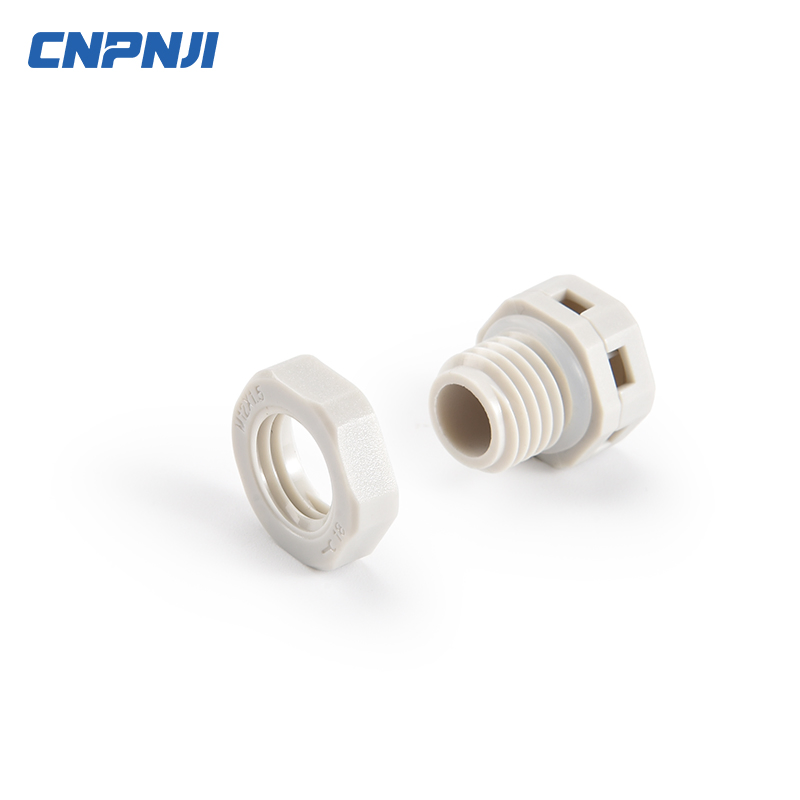

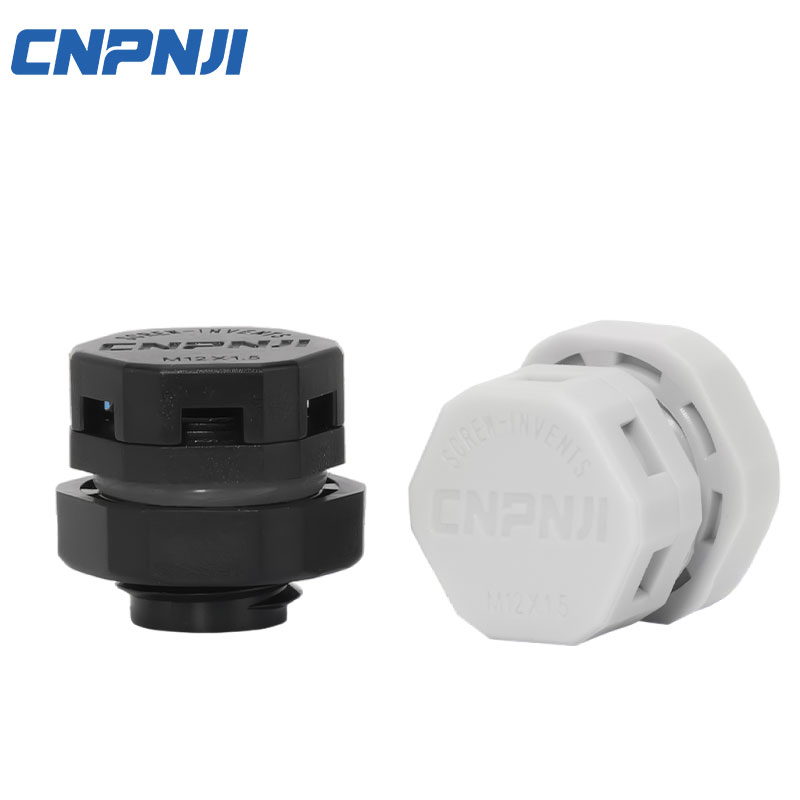

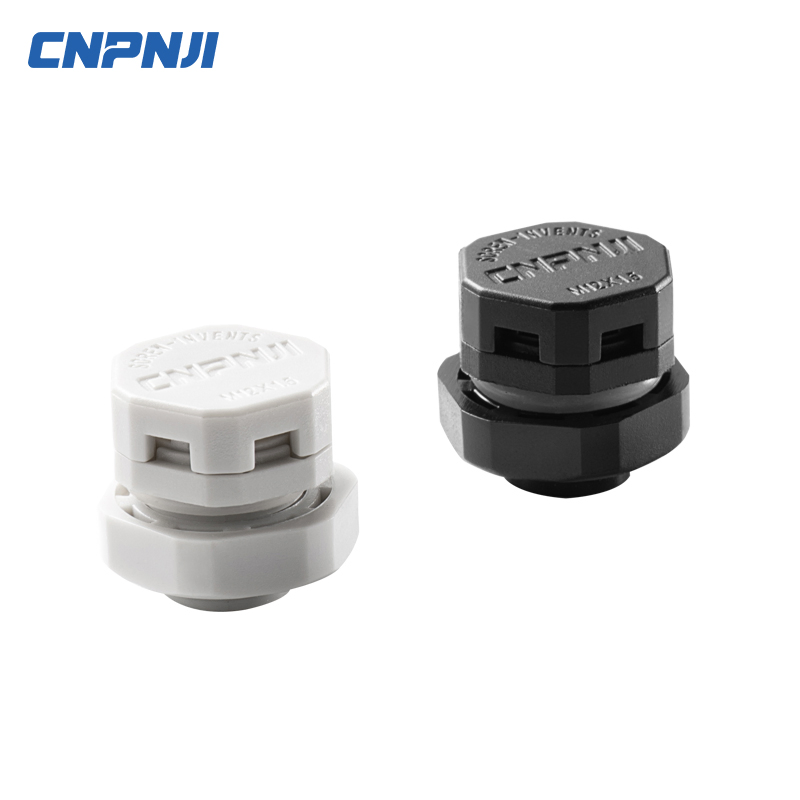

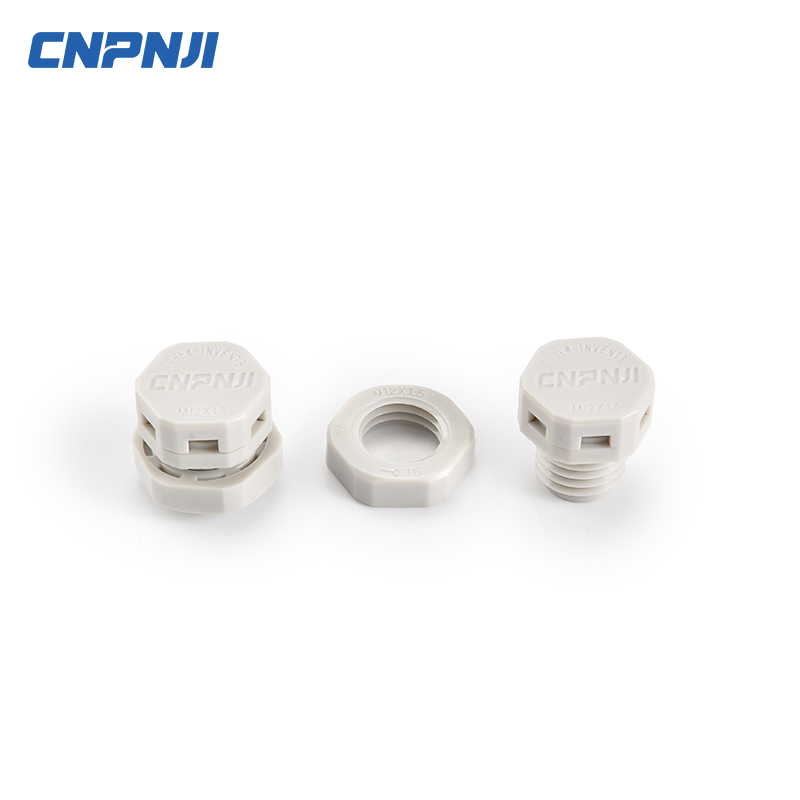

Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland

1 / 5

Cnpnji Plastic Pressure Relief Valve PTFE Membrane IP68 Screw Waterproof Breather Air Vent Plug Cable Gland

Send Inquiry

Product Description

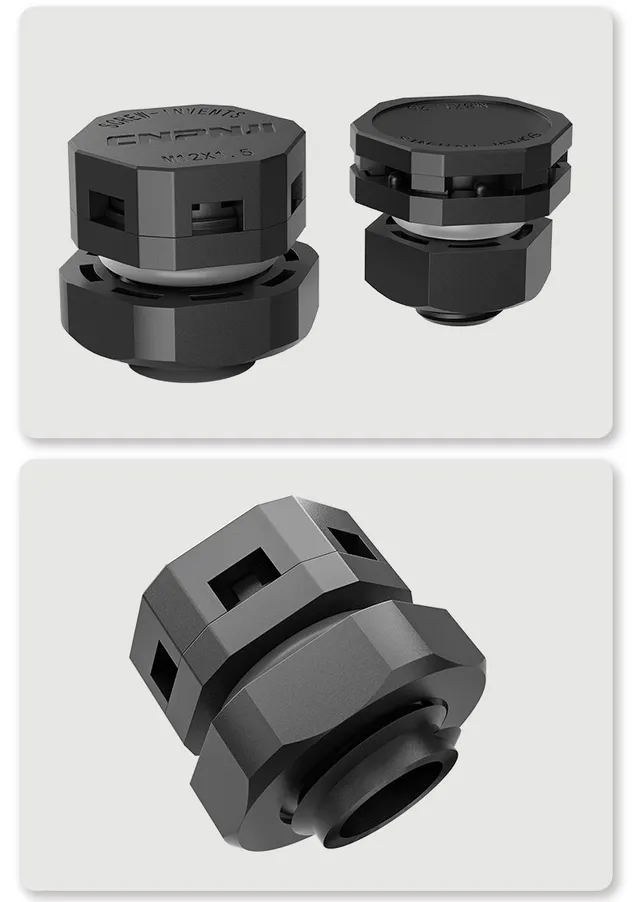

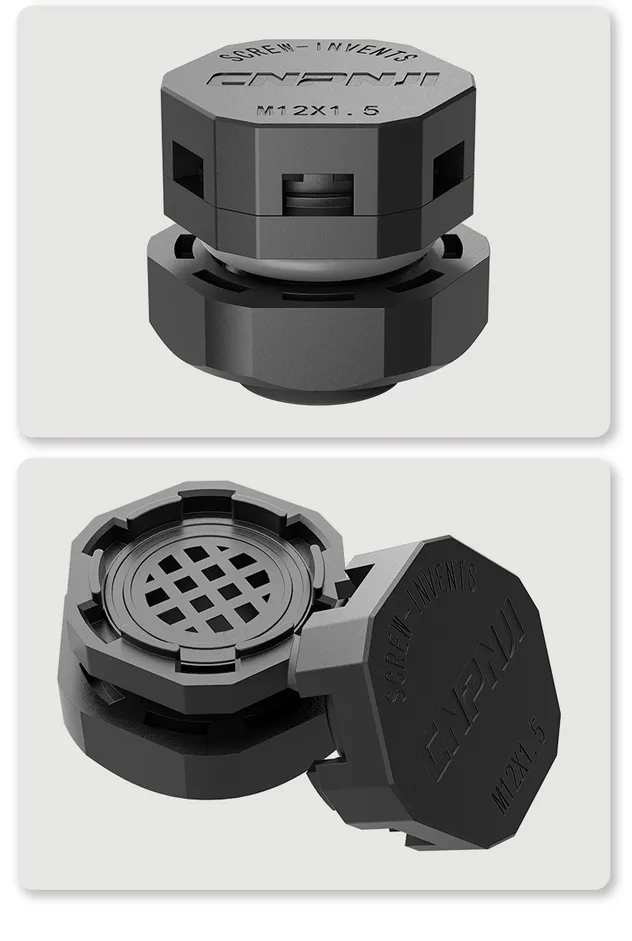

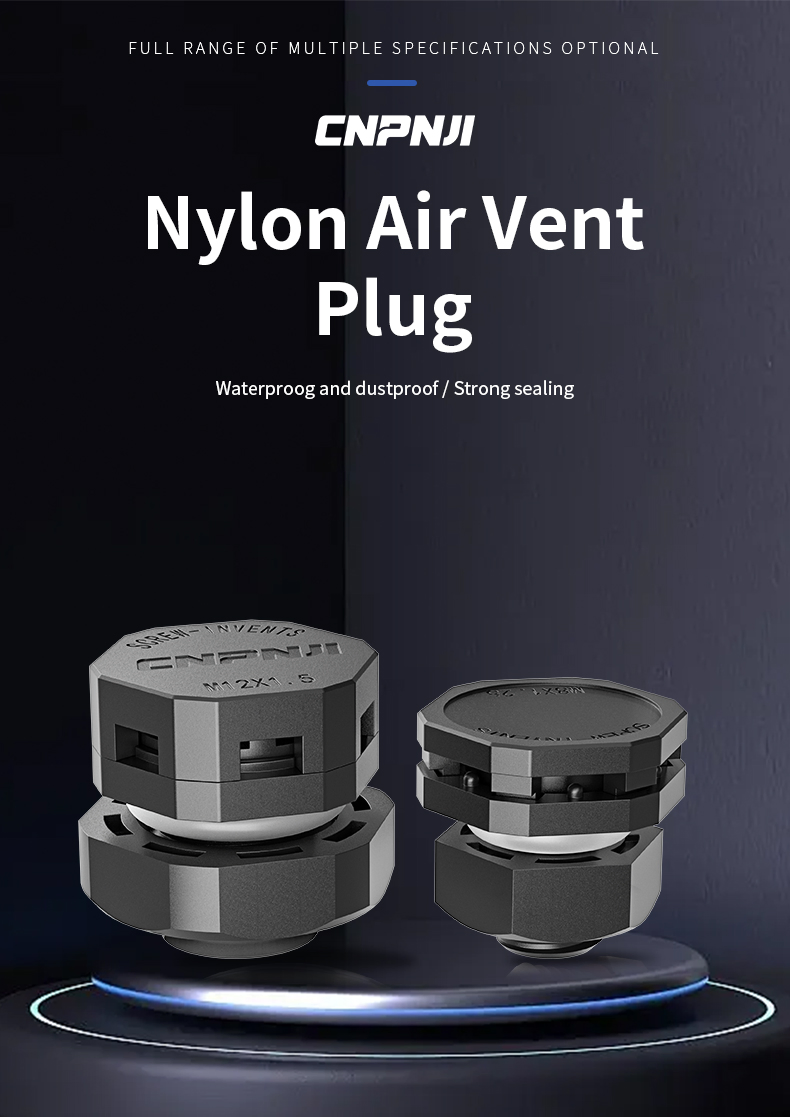

● Nylon Air Vent Plug

Expertly engineered to resolve pressure differentials in sealed enclosures. Crafted from high-quality nylon for robust durability and corrosion resistance, it utilizes a unique one-way membrane to efficiently release built-up gases and moisture while reliably blocking out external dust and water, ensuring a dry and clean interior.

This essential component is ideal for enhancing the reliability and longevity of various precision equipment, including outdoor telecommunication boxes, medical devices, security lighting, and automotive lamps.

● Key Product Features

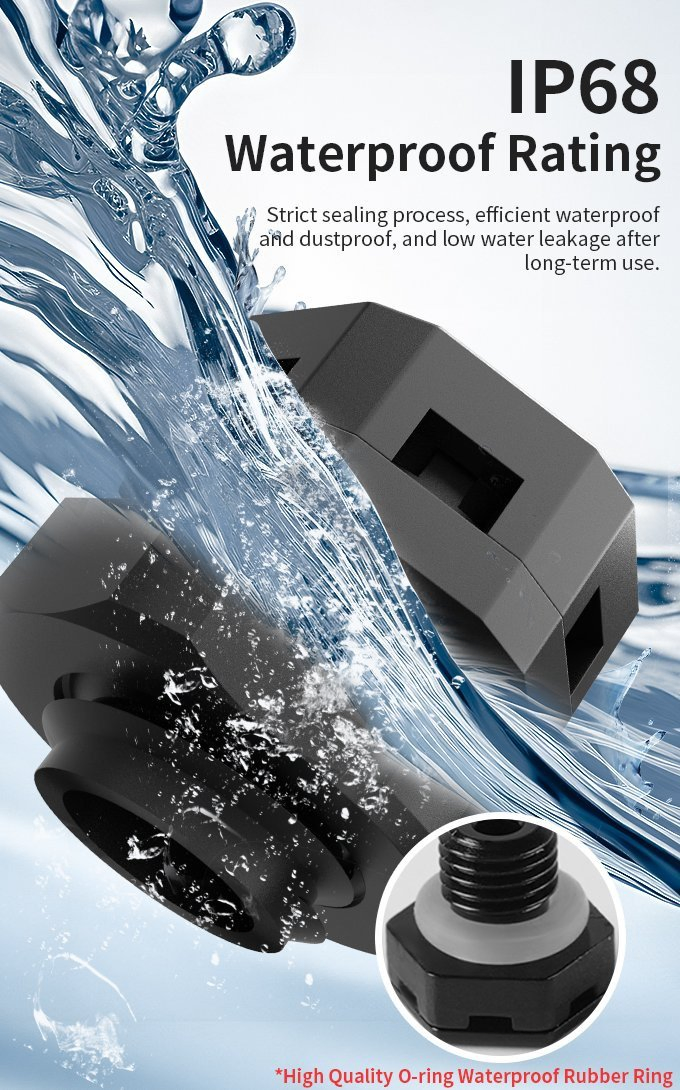

1 IP68 Waterproof Rating

Ensures complete protection against dust ingress and long-term immersion in water under pressure.

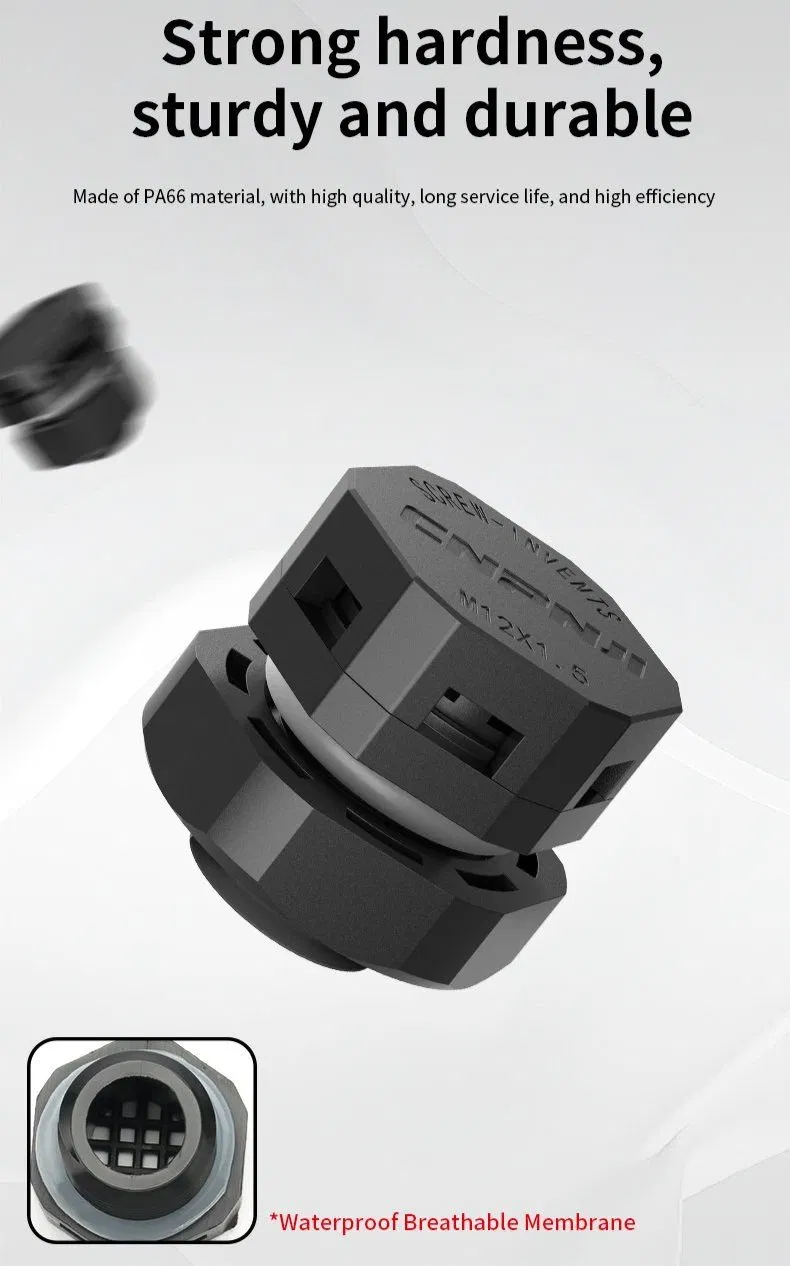

2 High-Quality PA66

Made of premium PA66 engineering plastic, offering excellent hardness, impact resistance, and wear resistance even in harsh environments.

3 Pressure Balance

Maintains balanced pressure between the chamber's interior and exterior while blocking external impurities.

4 International Safety

Compliant with international standards including UL, RoHS, REACH, CE, and TUV for global market access.

● Customization & Manufacturing

Customization Supported: Various options including mold customization, logo printing, and color variations are available to meet specific project needs.

● Technical Specifications

Thread Size	Main Material	Thread O.D (mm)	Thread Length (mm)	Pressure Range	Air Permeability
M5*0.8	PA/PC	5	8	P=7Kpa	1200ml/min
M6*0.75	PA/PC	6	8	P=7Kpa	1200ml/min
M8*1.25	PA/PC	8	10	P=7Kpa	2200ml/min
M10*1.5	PA/PC	10	10	P=7Kpa	3600ml/min
M12*1.5	PA/PC	12	10	P=7Kpa	3600ml/min
M16*1.5	PA/PC	16	10	P=7Kpa	3600ml/min
M24*1.5	PA/PC	24	15	P=7Kpa	7000ml/min

● Quality Assurance & Certifications

Equipped with a professional laboratory featuring waterproof, insulation, impact, and salt-spray testing equipment. Every product undergoes strict inspection from raw materials to final packaging.

● Production Process Video

● Frequently Asked Questions (FAQ)

Q1: What certifications do your vent plugs carry for international markets?

A1: Our products hold IP68, CE, CCC, UL, REACH, TUV, and RoHS certifications. They comply with global standards and are suitable for export to Europe, North America, Southeast Asia, and the Middle East.

Q2: Do you support customized manufacturing for specific colors or logos?

A2: Yes, we are an integrated manufacturer with in-house R&D and mold teams. We support OEM/ODM customization regarding size, material, logo, and color.

Q3: How do I choose the correct thread size for my enclosure?

A3: You should match the thread type (M/PG/G/NPT) and mounting hole size. For example, an M12 vent plug requires a 12mm mounting hole. We offer sizes ranging from M5 to M24.

Q4: What is the operating temperature range for these nylon vent plugs?

A4: Our air vent plugs are designed to operate between -40ºC and 100ºC, with short-term resistance up to 125ºC, making them suitable for most industrial environments.

Q5: Can you provide samples for testing before bulk orders?

A5: Yes, samples are available for testing. We maintain a strict quality control system from raw material to finished products to ensure mass production consistency.

Q6: What is the primary function of the e-PTFE membrane?

A6: The e-PTFE membrane allows air and moisture to escape while preventing water, dust, and salts from entering the enclosure, maintaining a balanced internal pressure.
