Industrial Usage, Water Industrial Usage, Household Usage
Size
3/8"-4"
Working Principle
Floating Ball Valve
Pipeline Type
Full Bore
Sealing Face Material
PTFE
Ball Assembly
Side Entry
Connection
RF Flanged, NPT, Bsp, BSPT, DIN259/2999
Actuator Body
Aluminium Alloy
Torque
7nm-2000nm
Voltage
24V DC, 110V AC, 220V AC, 380V AC
HS Code
8481804090
Production Capacity
10,000PCS/Month

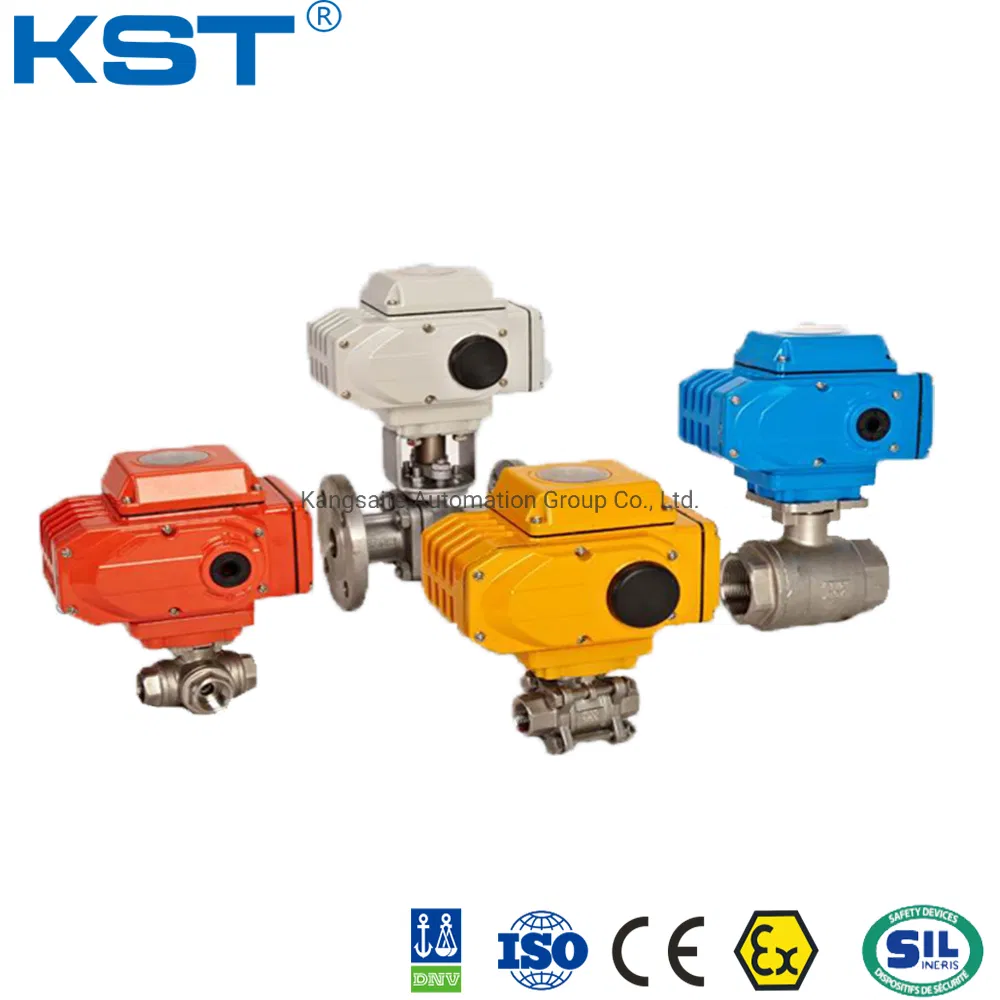

Product Description
Main Features
Voltage: 24VAC, 110VAC, 220VAC, 380VAC, 24VDC
Type: On-off, Regulating
Sanitary level construction
Electrical Thread 3PC Ball Valve
Nominal diameter: 1/2inch-4inch
Pressure range: 0-16-40bar
Medium Temperature: -10°C~+180°C
Body material: Stainless steel
Sealing material: PTFE
Actuator: Aluminum alloy
Manufacturing standard: GB, BS, ANSI
Electrical Thread Three-Way Ball Valve
Nominal Diameter: DN15-50
Pressure Range: ≤1000PSI (About 6.9MPa)
Model: L-shape, T-shape
Connecting Thread: Rp (BSP), Rc (BSPT), NPT
Applicable Medium: Water, air, oil, acid, alkali, etc.
Electrical Flanged Ball Valve
Nominal Diameter: DN15-300
Pressure Range: 1.6-6.4Mpa
Valve Material: Stainless Steel, Cast Steel
Connection Standard: GB, ANSI, DIN, JIS
Electrical Wafer Butterfly Valve
Nominal Diameter: DN40-600
Pressure Range: 0-1.0MPa
Sealing Material: NBR, EPDM, FPM
Feature: Double bubble and zero leakage
Medium: Drinking water, sewage, sea water, air

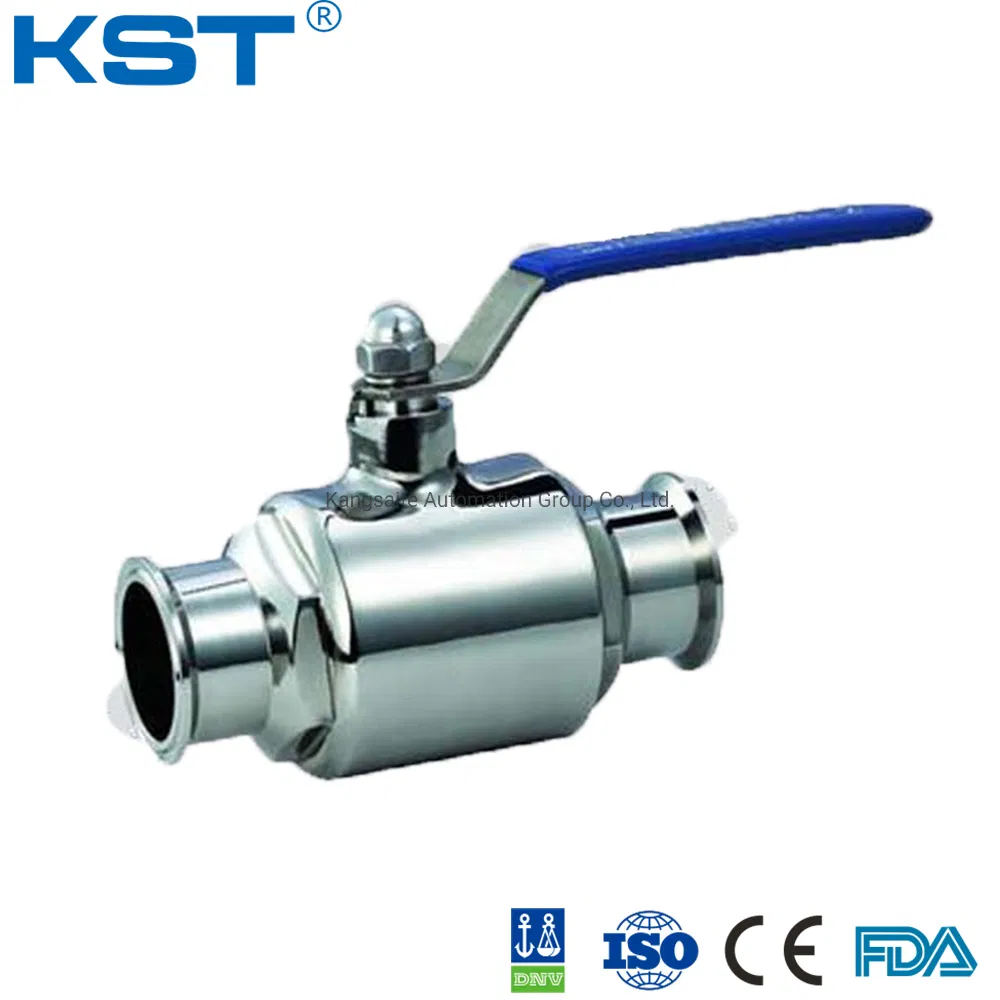

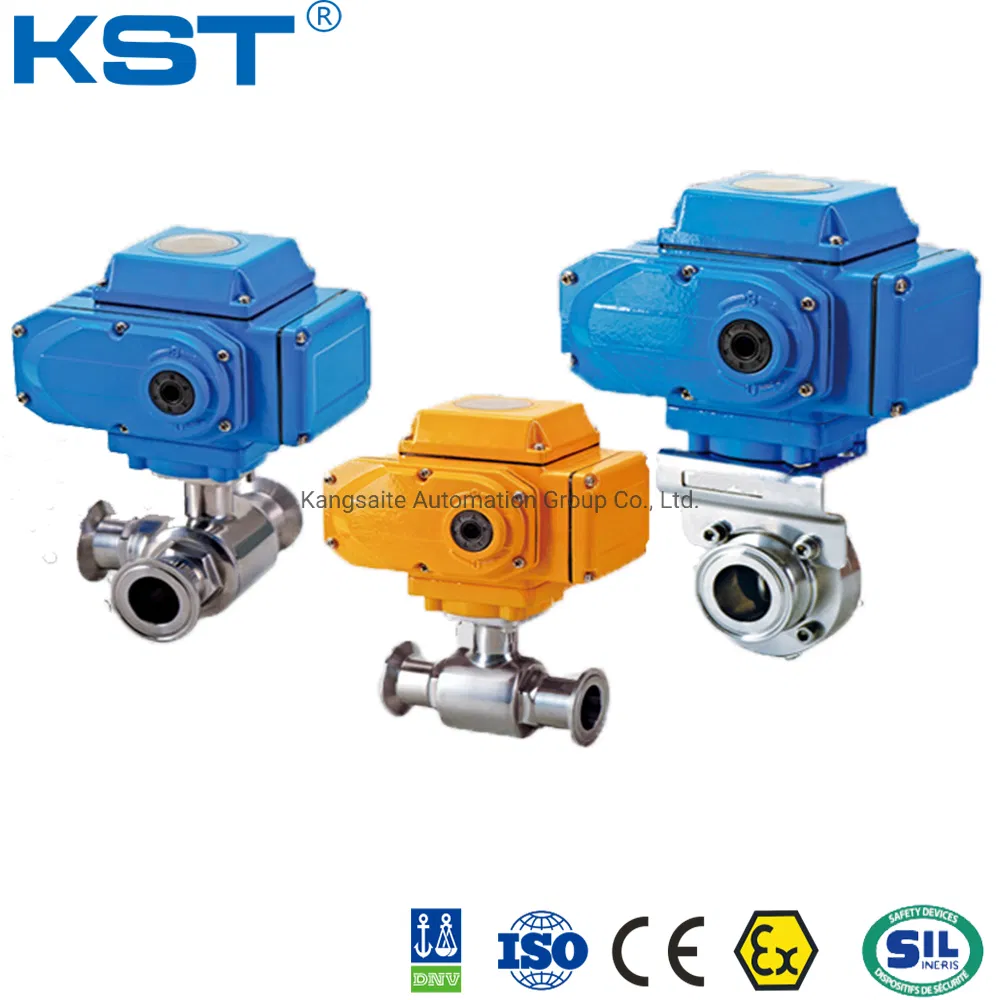

Electrical Sanitary Ball Valve (Clamp)
Nominal Diameter: DN15-100
Pressure Range: 0-1.0MPa
Standard: GB, DIN, ISO, SMS
Material: Stainless Steel (Sanitary Grade)
Applicable Media:
Water, Oil, Gas, Nitric Acid, Acetic Acid
Applicable Temp:
-20°C - 180°C
Certification:
CE / API / DNV / FDA / ISO9001
Packing:
Plastic Bag, Carton & Plywood Case
Delivery Time:
Within 35 days after deposit
Term of Delivery:
FOB / CNF / CIF
Product Gallery
Frequently Asked Questions
1. What voltages are available for the electric actuators?
Our electric actuators support multiple power options including 24V DC, 24V AC, 110V AC, 220V AC, and 380V AC to suit different industrial requirements.
2. Can these valves be used for food and beverage applications?
Yes, we offer sanitary-level stainless steel ball valves and butterfly valves with PTFE or EPDM sealing that meet FDA standards, making them suitable for food, beverage, and pharmaceutical use.
3. What is the difference between On-Off and Regulating types?
The On-Off type is used for fully opening or closing the valve, while the Regulating type allows for precise flow control by adjusting the valve position based on a signal (usually 4-20mA or 0-10V).
4. What materials are used for the valve seals?
Depending on the valve type and application, we use PTFE for chemical resistance and high temperatures, or NBR/EPDM/FPM for specific butterfly valve sealing requirements.
5. What international standards do your valves comply with?
Our products are manufactured according to various international standards including GB, ANSI, DIN, JIS, BS, and ISO. We also hold CE, API, and ISO9001 certifications.
6. What is the maximum pressure range for the 3PC ball valves?
The electrical thread 3PC ball valves are designed to operate within a pressure range of 0 to 40 bar (approximately 580 PSI).
