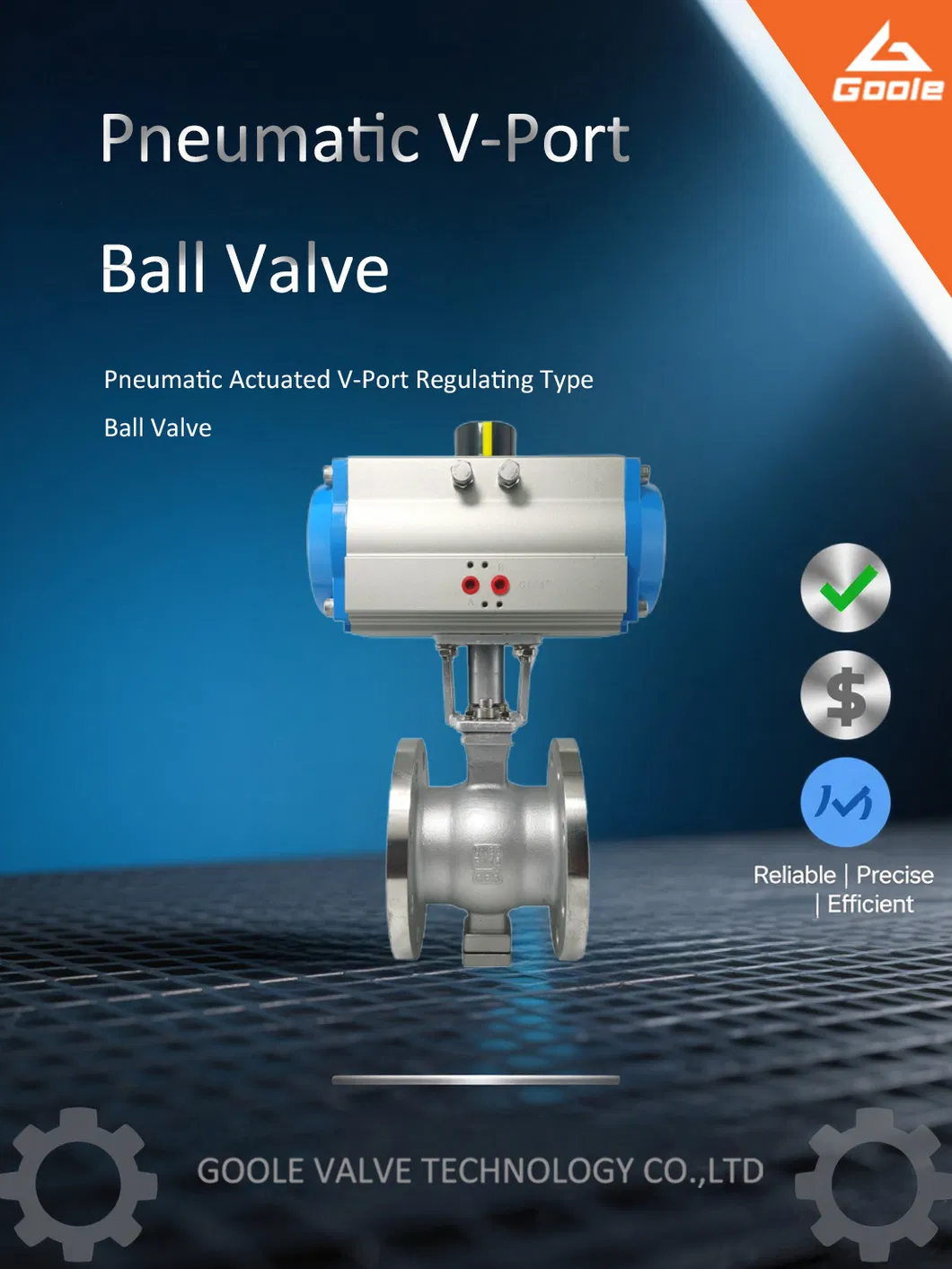

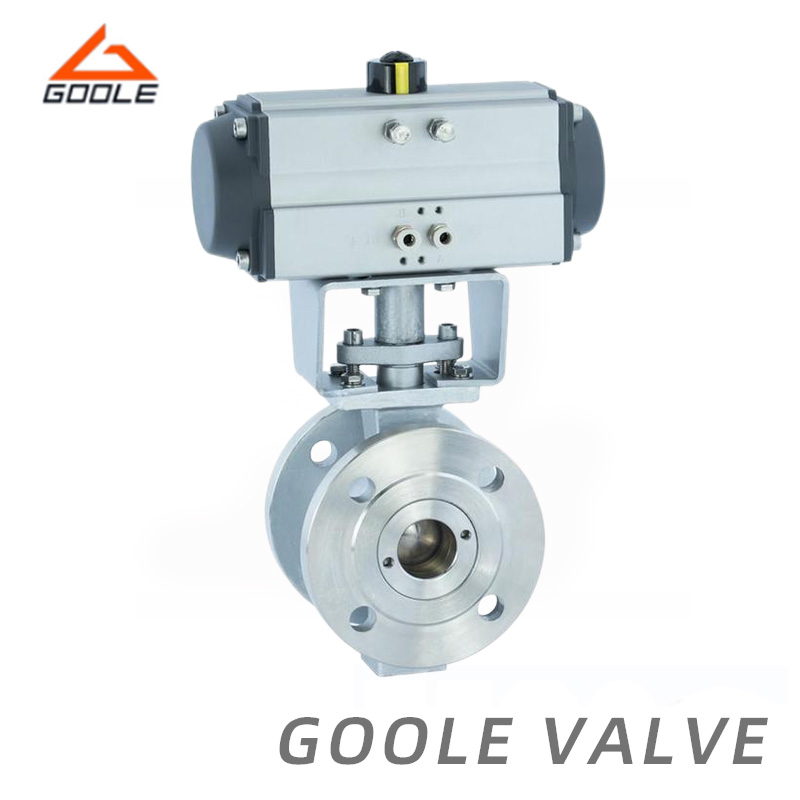

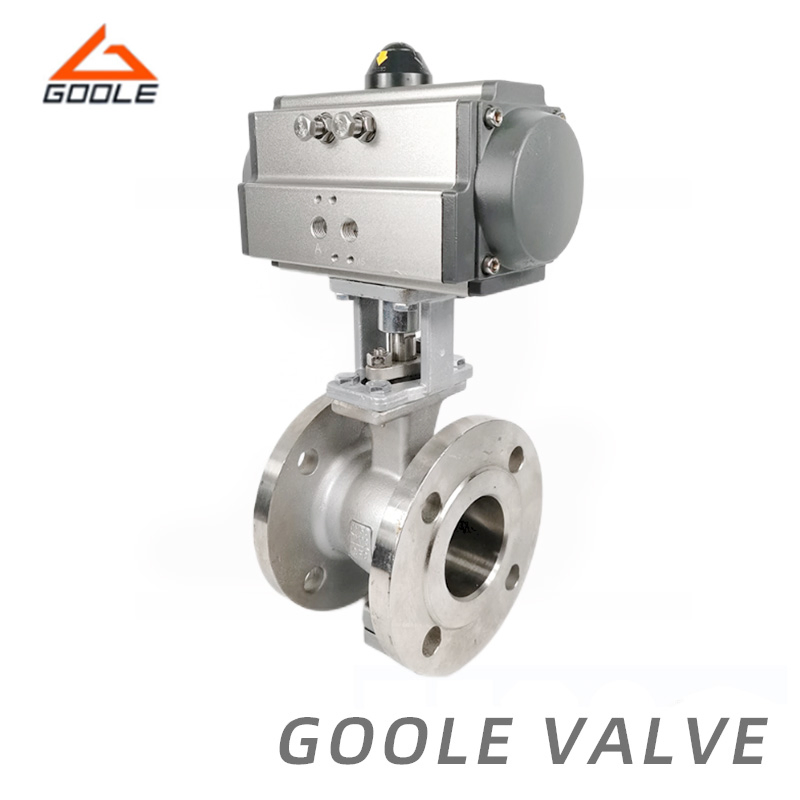

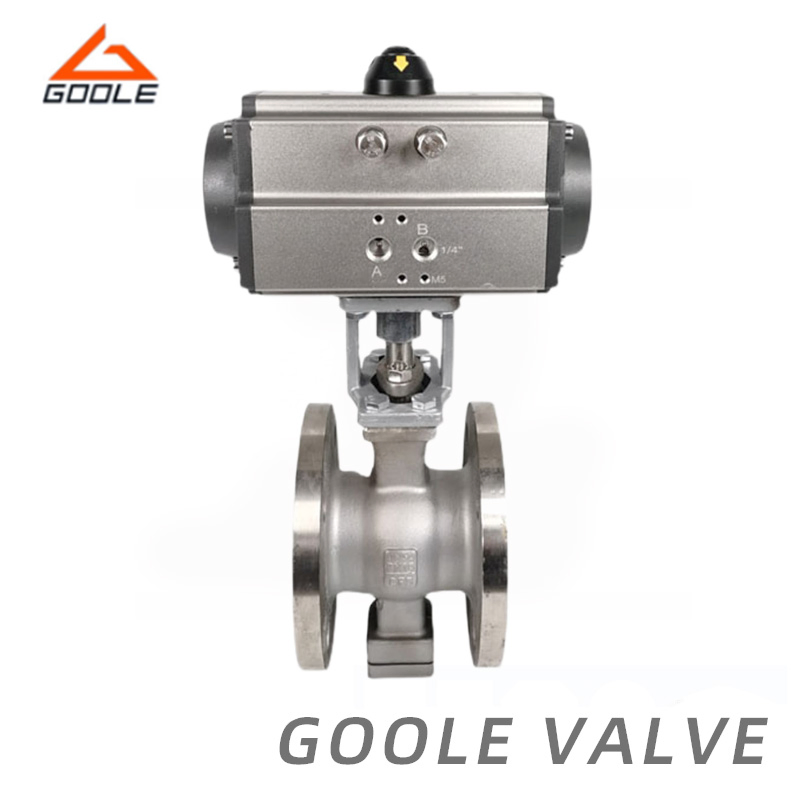

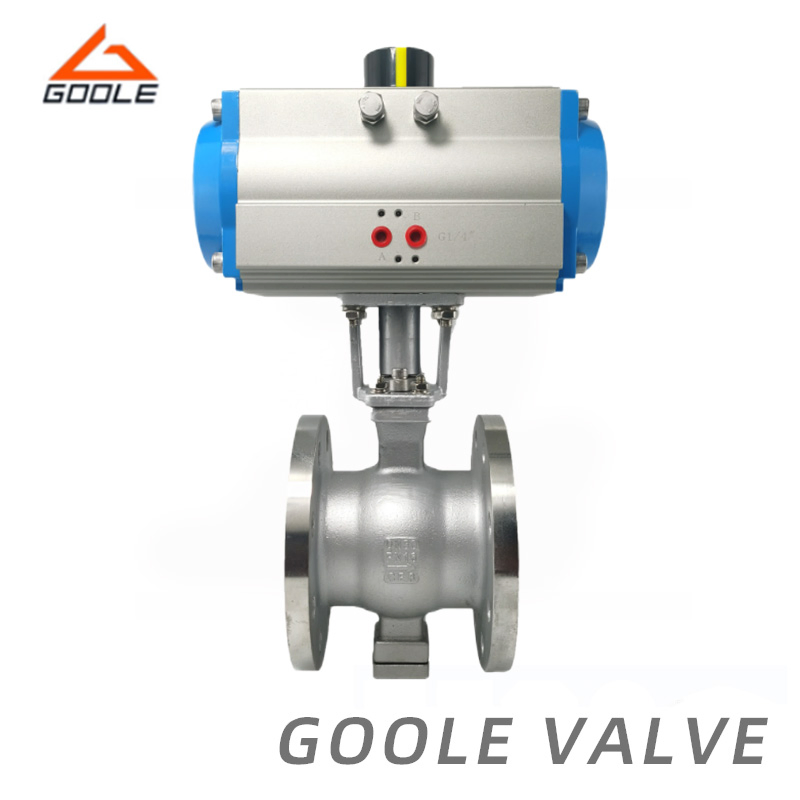

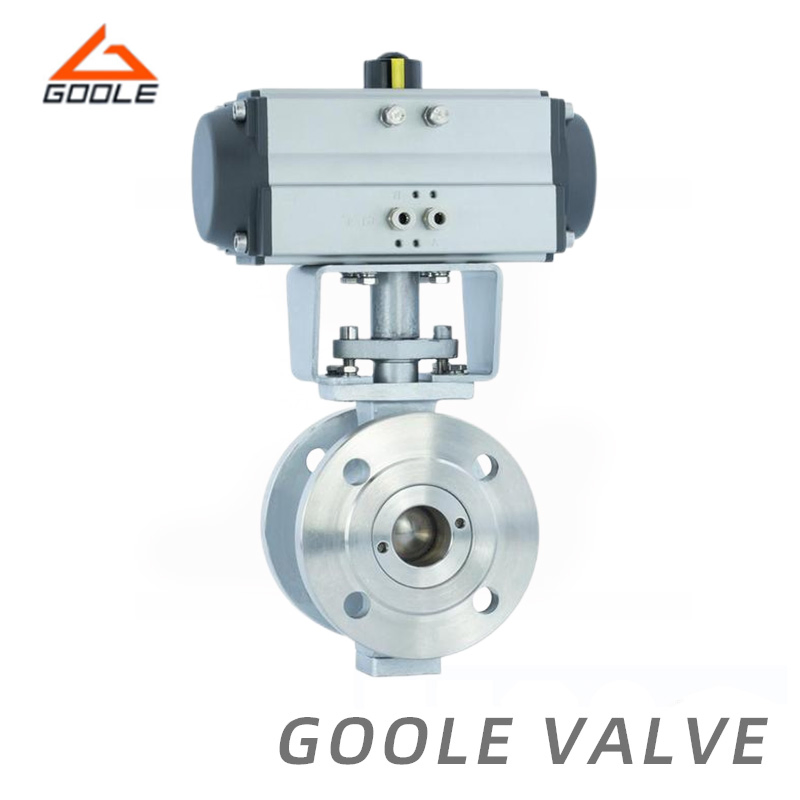

Pneumatic Operated Forged Steel Flanged Bonnet V Port Segment Ball Valve
Brief Introduction:
The Pneumatic V-shaped regulating ball valve is a rotary ball valve with a core seat made of metal or metal to PTFE sealing and matching. It combines the best control characteristics of the ball valve and butterfly valve into one, and can be used as both a control regulating valve and a shut-off valve.
Product Features
The shear force between the ball and the metal seat type V incision is especially suitable for containing fiber and small solid particles, pulp, and other medium.
Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
Using a spring-loaded movable seat structure, preventing the occurrence of ball core and valve seat from jamming, ensuring reliable sealing and long service life.
Accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, and a large adjustable range (maximum ratio 100:1).

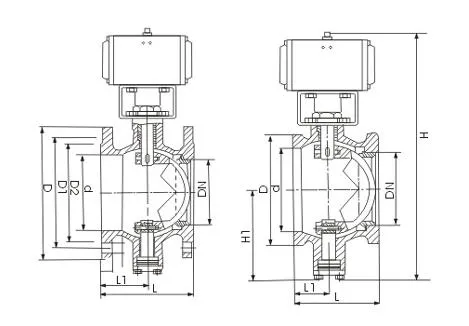

Flow Coefficient & Pressure Difference
DN(mm)
25
32
40
50
65
80
100
150
200
250
300
350
400
Kv
22
36
58
82
145
200
355
798
418
2209
3185
4309
5664
P(MpA)
14
8
10
9
20
14
8
6
3.5
1.6
2.5
2
1.5
Product Parameters
Nominal Pressure
PN1.6~6.4MPa
Nominal Diameter
20~400mm
Applicable Temperature
Hard Seal: -40~300ºC | Soft Seal: -40~180ºC
Applicable Medium
Water, gas, oil quality, etc.
Driving Means
Manual, Electric, Worm wheels, Pneumatic
Body Materials
WCB, CF8, CF8M, CF3M
Stem
2Cr13, 304, 316
Rotary Angle
90°
Valve Seat
PTFE, 0Crl, 7Ni4Cu4Nb
Core Material
CF8, CF8M, CF3M

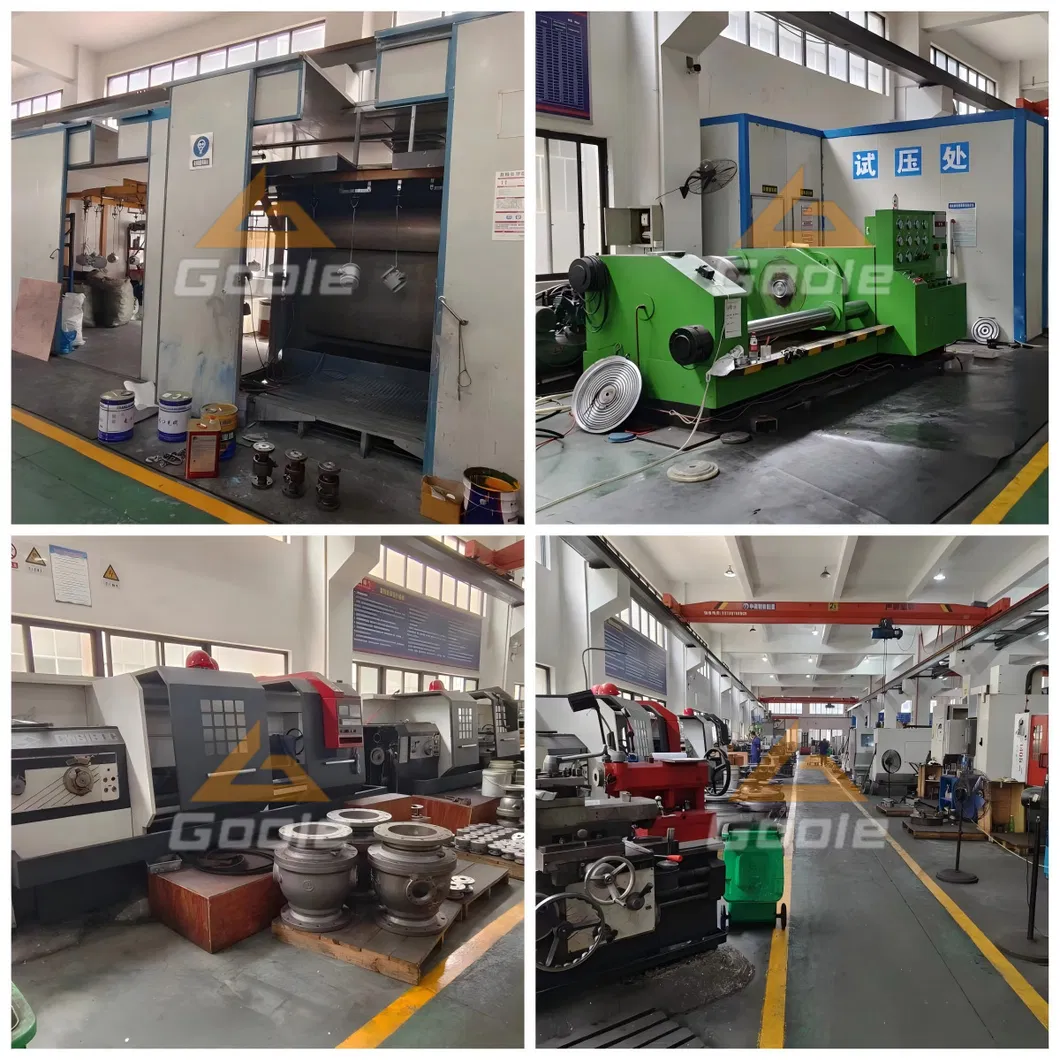

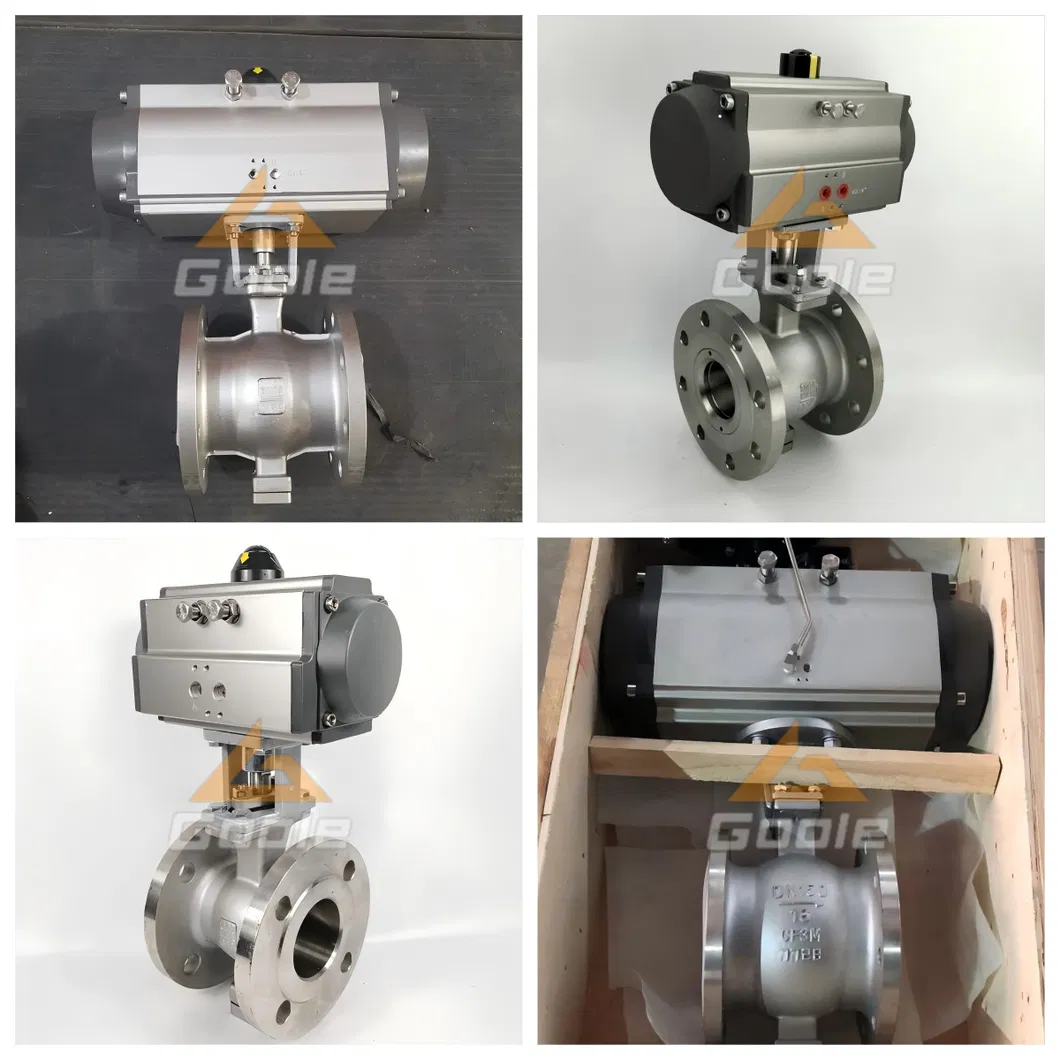

Factory & Product Gallery
Frequently Asked Questions
1. What is the primary advantage of a V-port segment ball valve?The V-shaped notch provides excellent control characteristics and high shear force, making it ideal for media containing fibers or small solids.
2. What are the available seat materials?The valve comes with either a Soft Seal (PTFE) or a Hard Seal (Metal-to-Metal), depending on the application's temperature and media requirements.
3. Can this valve handle high temperatures?Yes, with the Hard Seal configuration, the valve can operate reliably at temperatures ranging from -40°C to 300°C.
4. What is the adjustable range of the V-port valve?This valve features a very large adjustable range, with a maximum ratio of up to 100:1 for precise flow regulation.
5. Which industries commonly use this segment ball valve?It is widely used in pulp and paper, chemical processing, and other industrial applications where precise regulation of viscous or particle-heavy media is required.
6. Does the valve support automatic operation?Yes, it is designed for pneumatic operation but can also be equipped with electric or manual driving mechanisms.
