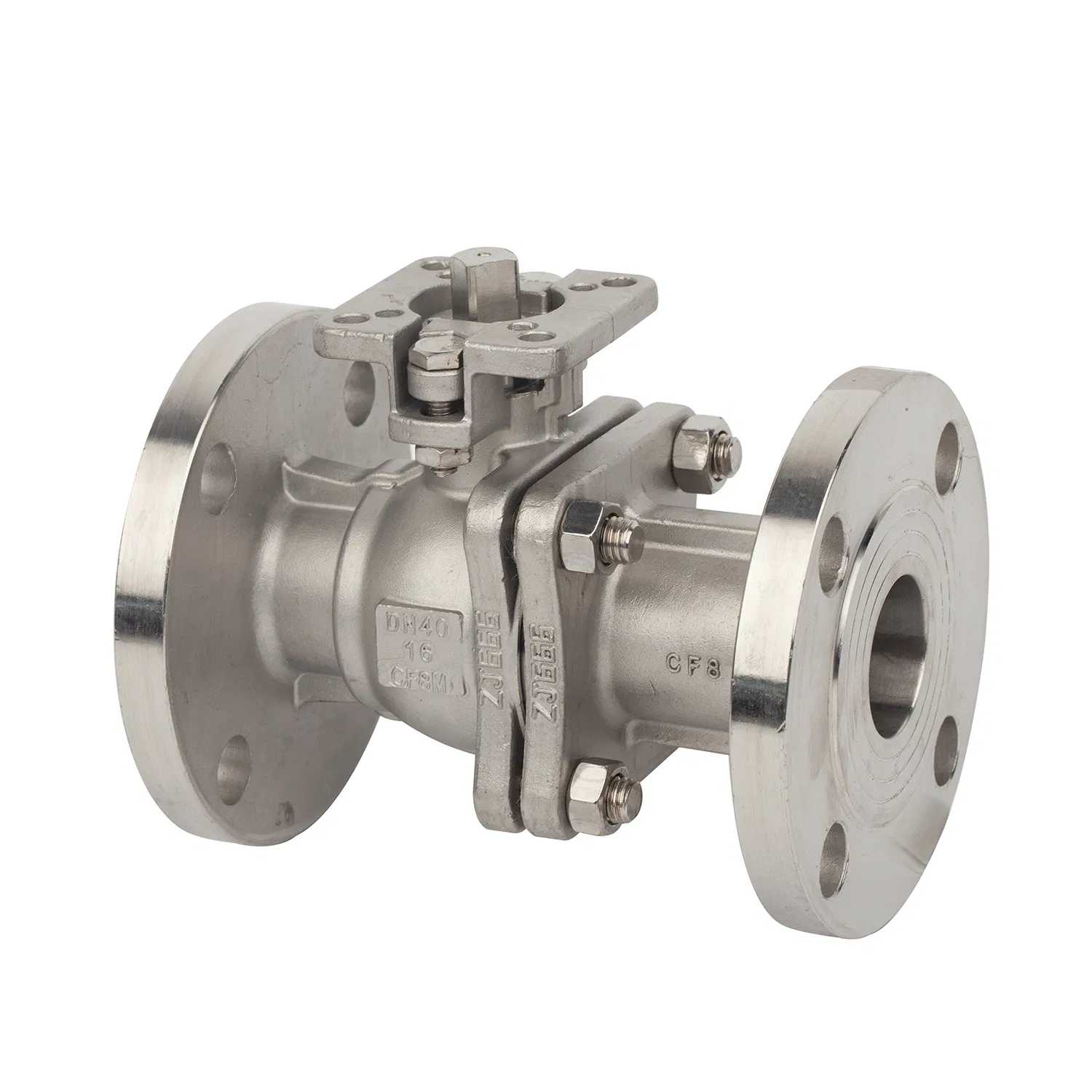

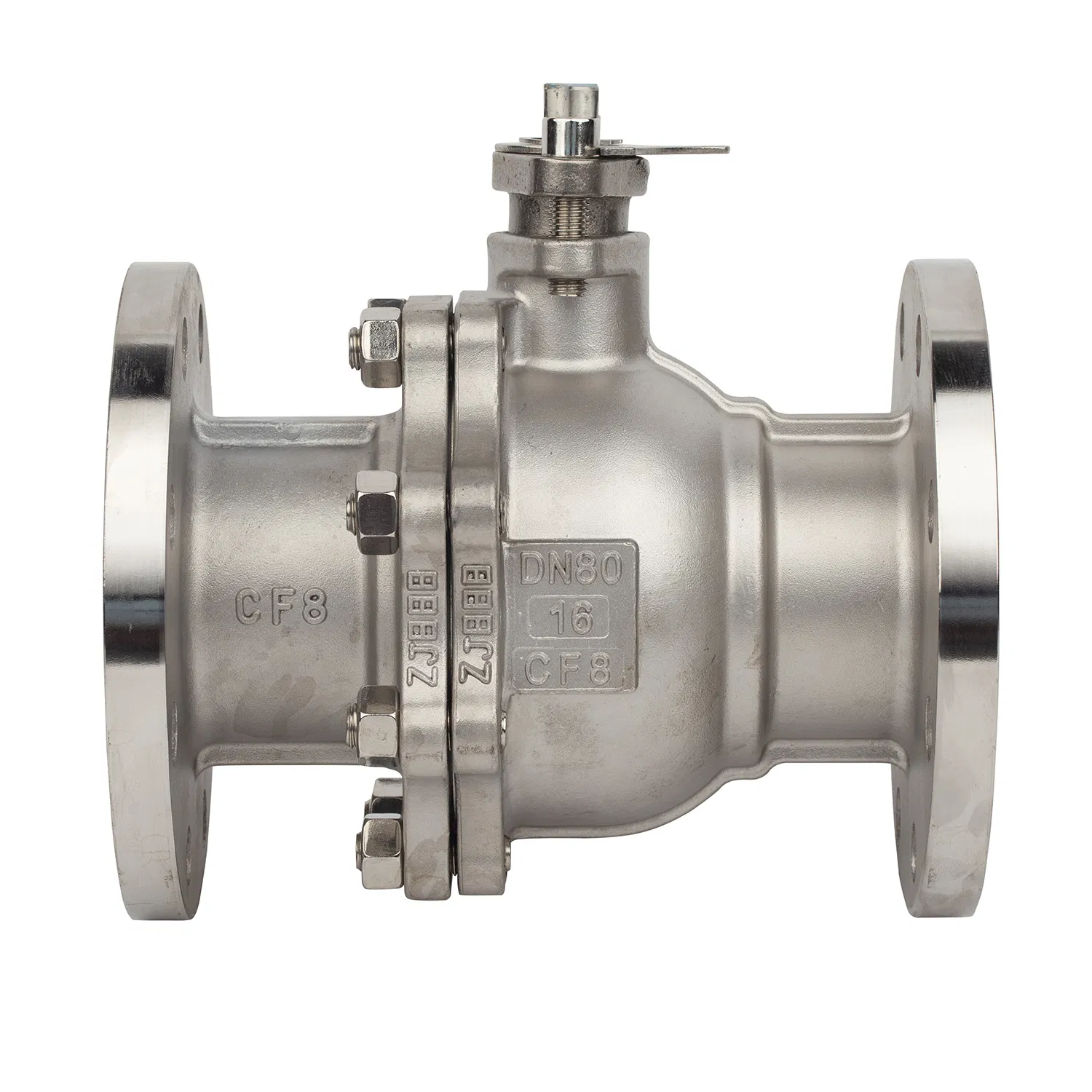

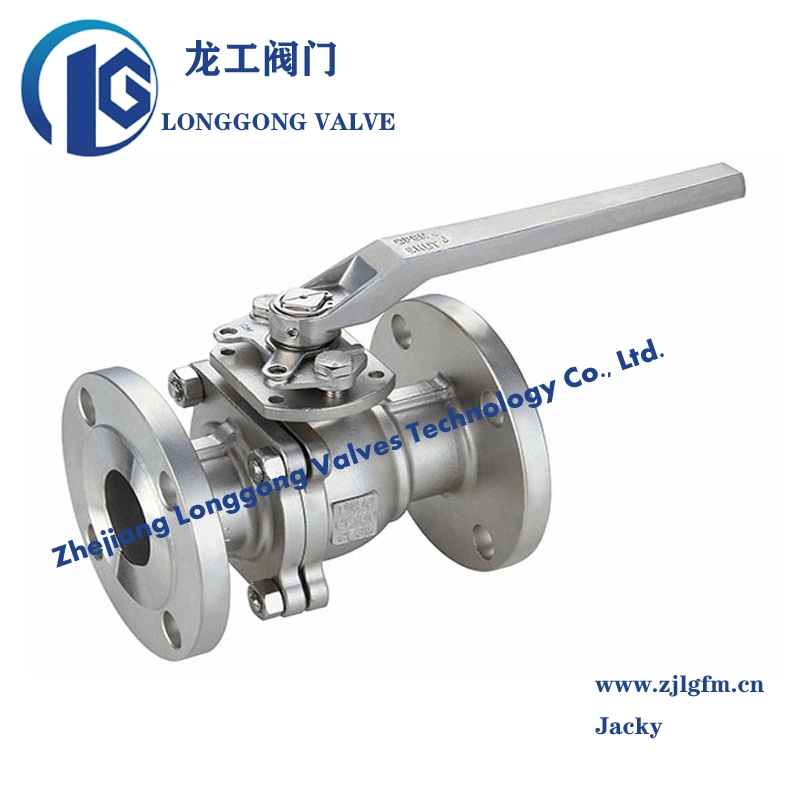

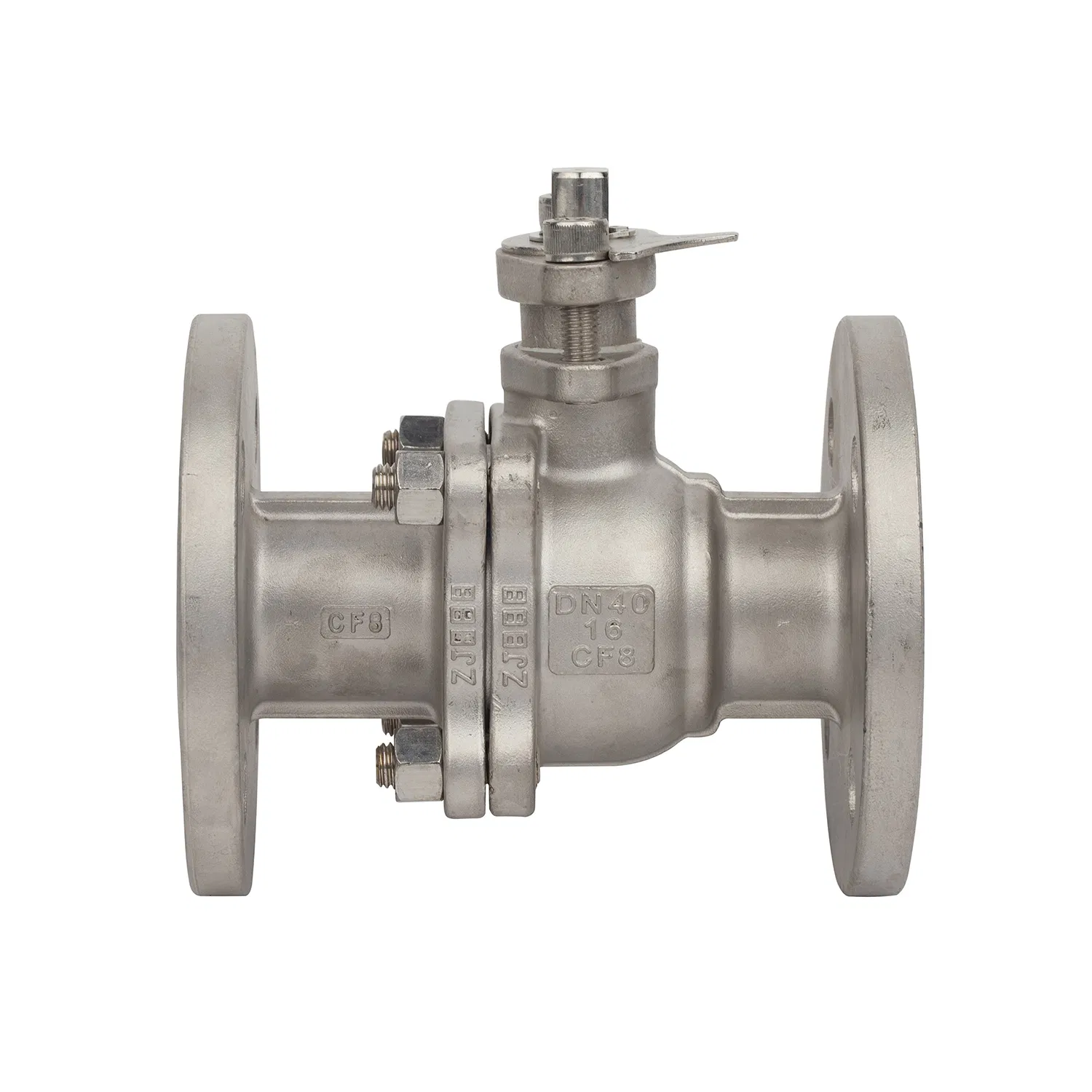

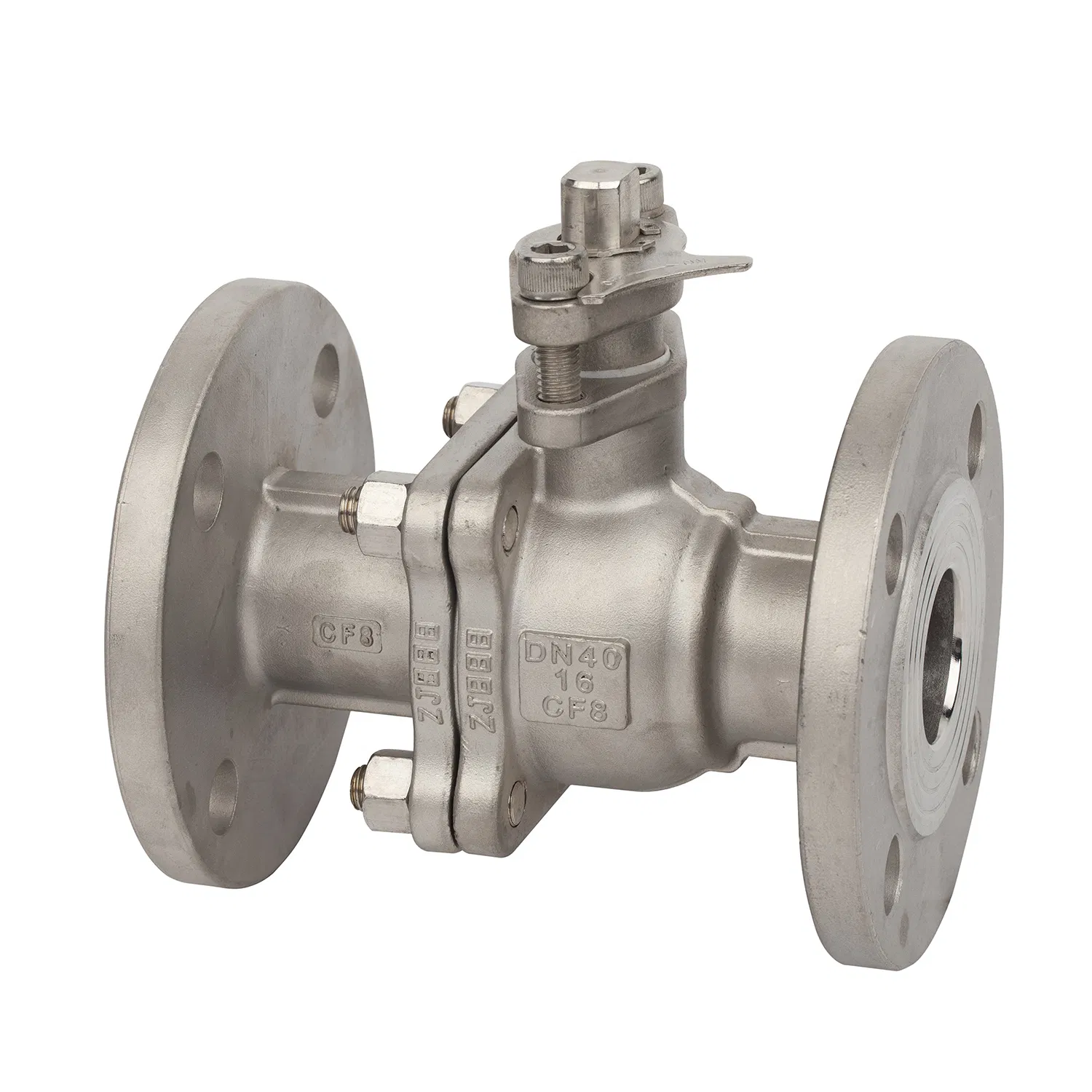

JIS/DIN 2PC Flange&Threaded Ball Valve Carbon Steel&Stainless Steel Ball Valve Floating&Trunnion Ball Valve Pneumatic/Electric Ball Valve Fire Safety

Basic Info.

Model NO.

Q41F-150LB

Connection Form

Flange

Driving Mode

Manual

Nominal Pressure

ANSI CLASS 150-900

Channel

Straight Through Type

Structure

Floating Ball Valve

Type

Floating Ball Valve

Function

Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve

Temperature

Normal Temperature

Standard

6D/B16.34/BS1848

Application

Industrial Usage, Water Industrial Usage, Household Usage

Design

Anti Static/Fire Safety Design

Certificate

ISO9001/Ts

Warranty

18months

Delivery Time

15-30days

Connection Ends

Flange(RF, Rtj)/Bw/Threaded

Transport Package

Plywood Case

Specification

1/2"-12"(DN15-DN300)

Origin

China

HS Code

8481804090

Production Capacity

100000PCS/Year

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

3.000kg

Product Description

FEATURES & BENEFITS

1. Fire safe: 607

2. Anti static: 608

3. Face to face: ASME B 16.10

4. Flange ends: ASME B 16.5

5. Inspection and test: 598 / 6D

SPECIFICATIONS:

Product name

2pc Full Bore Flanged Ball Valve

Size

1/2"-12"

Pressure Rating

CLASS150 / CLASS300 / CLASS600

Construction

Flanged end, Blow-out proof stem, Fire safe construction, Anti static device

Ball Type

Floating Ball

Port Type

Full Bore

Mounting Pad

ISO 5211

Material

WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.

Ball and Stem

SS304, SS316, SS304L, SS316L, SS410, SS416.etc.

Valve Seat

PTFE / RPTFE / PCTFE / PEEK / DEVLON .etc.

Operation

Manual, Above 10" with gear operation.

ITEM	PARTS	MATERIAL
1	BODY	ASTM A351-CF8M	ASTM A216-WCB
2	CAP	ASTM A351-CF8M	ASTM A216-WCB
3	BALL	ASTM A351-CF8M
4	SEAT	RTFE
5	SEAL	PTFE
6	THRUST WASHER
7	PACKING
8	STEM	ASTM A276-316
9	GLAND	ASTM A351-CF8
10	LOCKING PAD	ASTM A276-316
11	GLAND BOLT	AISI 304
12	HANDLE	ASTM A36 (A536)
13	BOLT	AISI 304

DN	L		H	W	Torque (N-m)	Weight (kg)
DN	CLASS 150	CLASS 300	H	W	Torque (N-m)	CLASS 150	CLASS 300
15	108	140	73	130	4	1.7	2.5
20	117	153	76	130	4	2	3.5
25	127	165	86	160	10	3	4.7
50	178	216	127	205	40	8.5	11.7
80	203	282	164	325	80	18.2	26.3
100	229	305	178	325	120	28	39.3

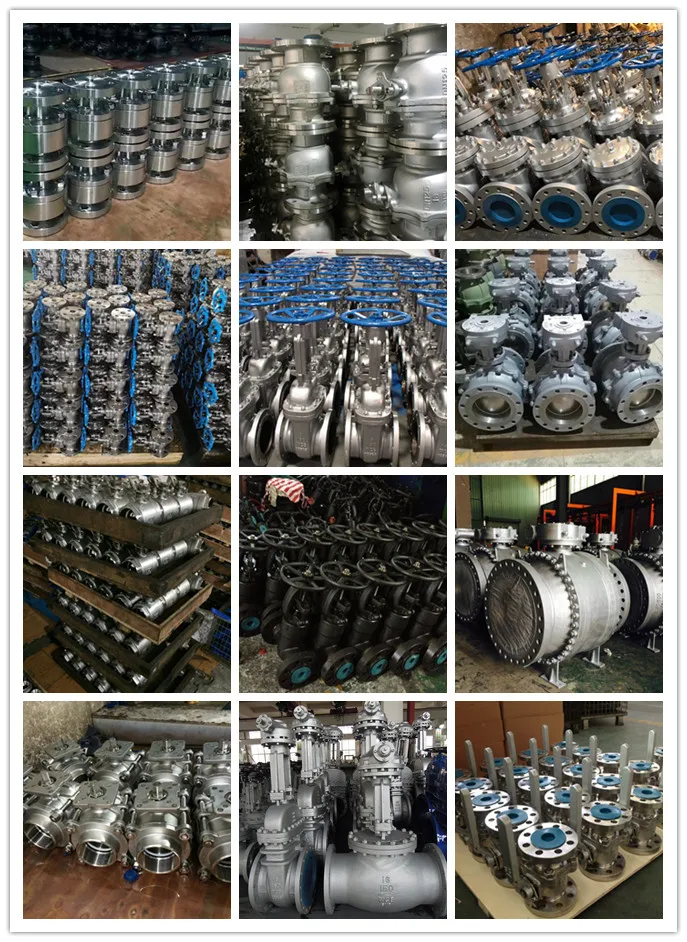

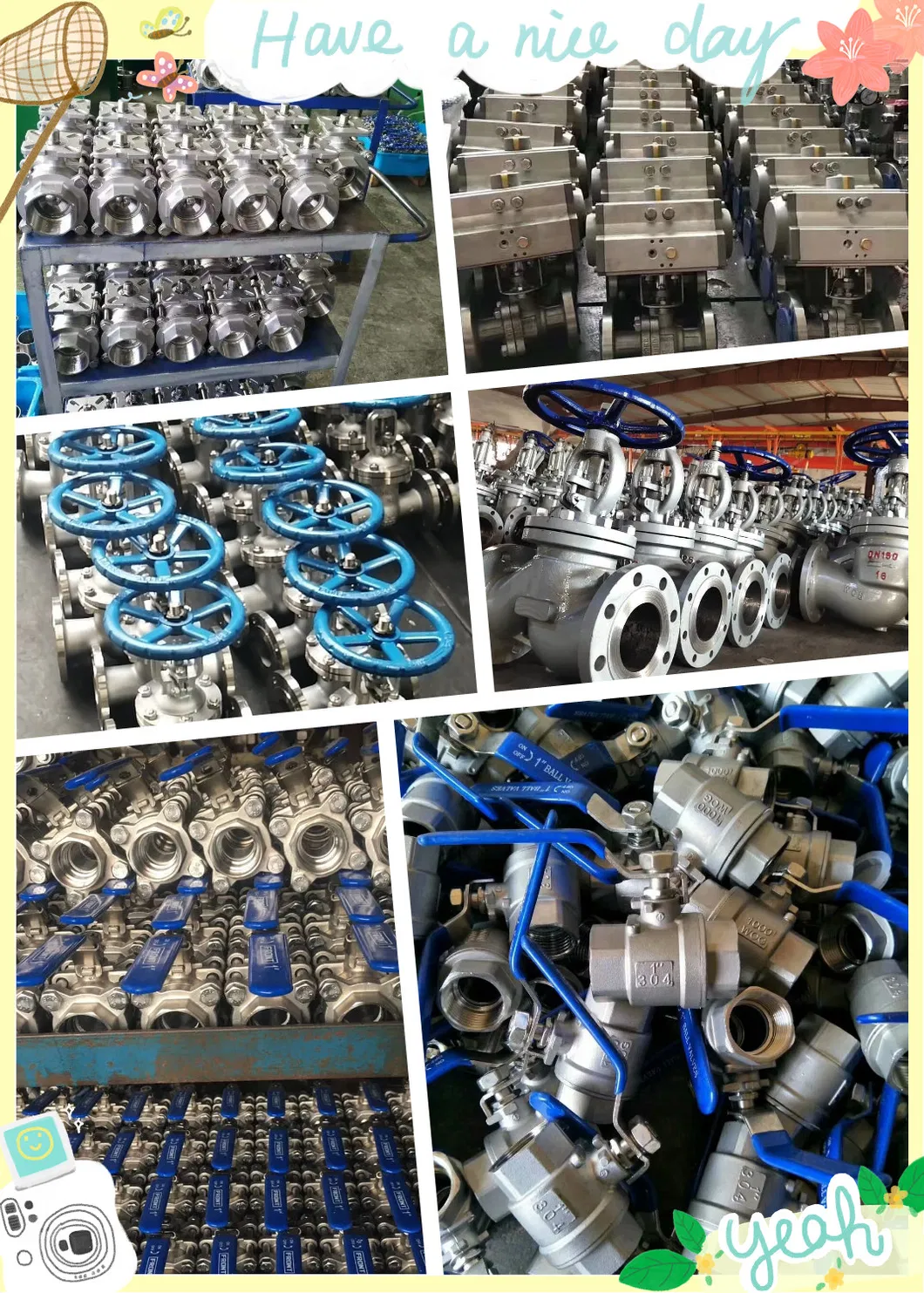

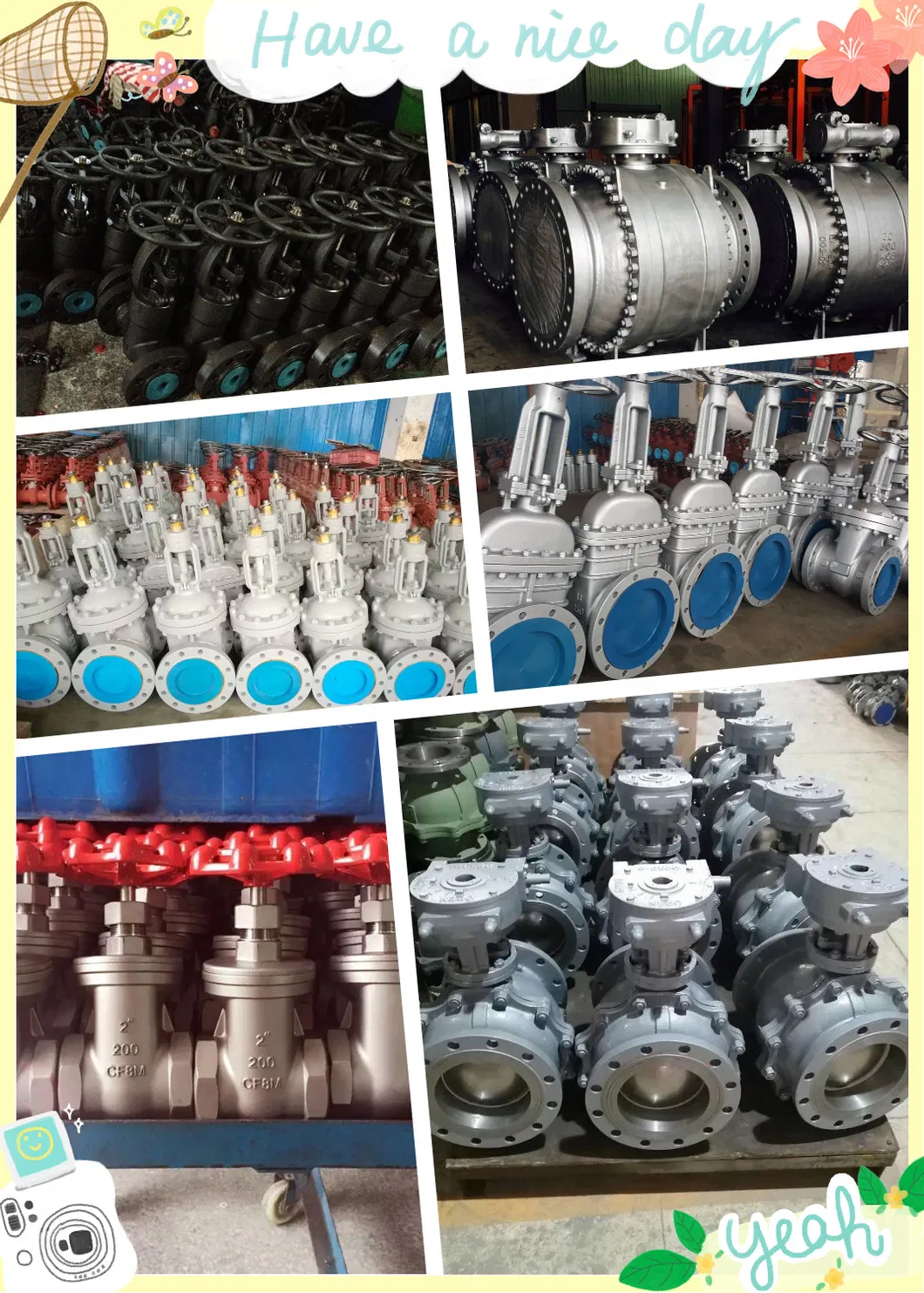

Product Gallery

FAQ

Are you a factory or trading company?

We are a factory specialized in manufacturing valves and fittings for over 10 years, with our own stainless steel foundry and ISO9001 & TS certification.

Do you have a minimum quantity of the products?

No, we can start business with even 1PC. We aim for long-term relationships based on quality and competitive pricing.

Can you print our Logo on the valves?

Yes, we can produce products according to your special requests and even manufacture based on your technical drawings.

What is your lead time?

It is typically around 15 days. For products currently in stock, the lead time is approximately one week.

What is your payment term?

Our standard term is T/T 30% down payment, with the balance to be paid before shipment.

How can you guarantee the quality of products?

We use numerical control devices for accuracy and perform one-by-one testing by quality inspectors. We provide test mill certificates for all sold products.
