Choosing the right valve is not a showroom decision. It is a process decision.
The global industrial valves market was valued at about USD 78 billion in 2023, according to Grand View Research’s Industrial Valves Market report. The report also identifies oil and gas, water treatment, chemical processing, and power generation as major demand sectors. These industries cannot treat valve selection as a minor purchase. A leaking seat, excessive pressure loss, or delayed shutdown can affect safety, maintenance costs, and production continuity.
Richard W. Greene, author of Valve Selection Handbook, offers a practical reminder: “The selection of a valve is based on the service conditions.” That principle supports the central question: how to choose between a ball valve and a gate valve? A ball valve usually suits fast, quarter-turn isolation and tight shutoff. A gate valve may fit larger lines requiring low resistance during fully open operation. Neither valve is automatically better. The medium, pressure, temperature, pipe size, actuation needs, and maintenance access must guide the decision.
The easy answer is rarely right. Check the line.
This guide presents seven practical tips for comparing both designs. It also examines common mistakes, including using a gate valve for throttling or overlooking actuator space around a ball valve. Field conditions can be less forgiving than product brochures. A careful choice considers real operating cycles, not only catalog specifications. That may sound obvious, yet it is often missed.

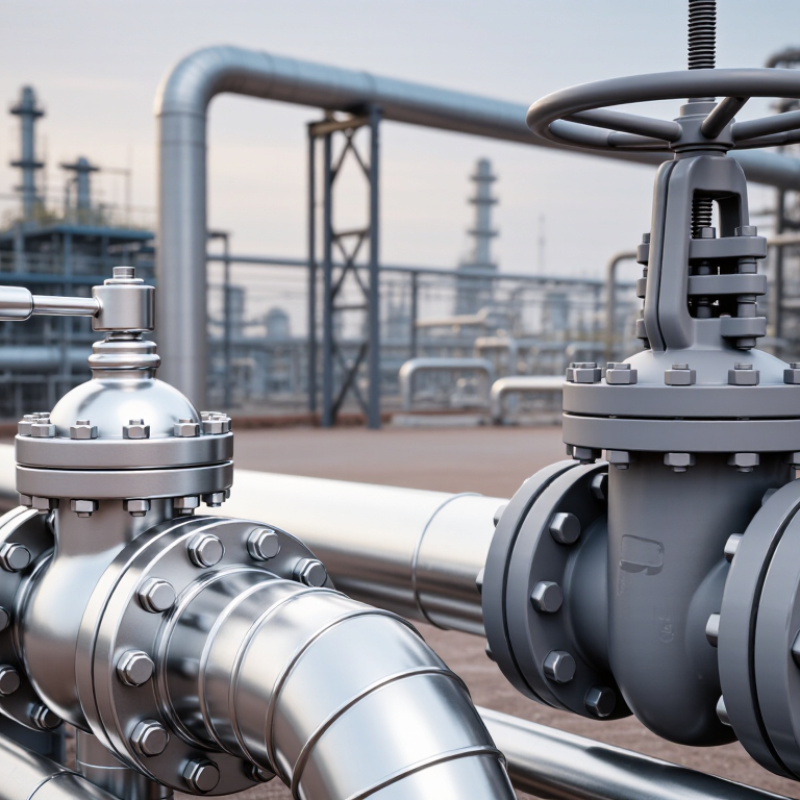

7 Tips How to Choose Between a Ball Valve and a Gate Valve?
Valve Design and Core Differences Between Ball and Gate Valves
A valve’s internal design often determines whether a system performs reliably. A ball valve uses a drilled sphere that rotates inside the body. A gate valve moves a metal wedge vertically between two seats. This difference affects opening speed, sealing, pressure loss, and maintenance. Ball valves open with a quarter-turn handle. Gate valves need several turns. Simple, but important.
For frequent isolation, a ball valve is often the practical choice. Its straight passage can reduce turbulence when fully open. A tight seat also helps prevent visible leakage during routine checks. However, abrasive particles may damage the ball or seats. Avoid using it for throttling unless the design allows it. Partial opening can erode sealing surfaces. Gate valves suit systems requiring low resistance during long, fully open operation. They are slower and may trap fluid inside the body.
Before choosing, check temperature, pressure, viscosity, solids, and operating frequency. Confirm the pressure class and seat materials through technical documents. Installation space matters more than many buyers expect. Handle position can also mislead technicians. A supposedly open gate valve may remain partly closed. No selection rule is perfect. Review failure modes, actuator clearance, replacement access, and actual shutoff requirements with a qualified engineer. The cheapest valve may create expensive maintenance later.
Choose it when fast isolation matters. Its handle turns quickly during maintenance or urgent shutdowns.
It suits lines that remain fully open or fully closed. When open, it creates little flow resistance.
Usually, no. Partial opening can damage the gate, increase vibration, and create unstable flow.
It may handle moderate adjustment, depending on its design and service conditions. Control can become abrupt near closure.
Frequent daily cycling requires suitable stems, seats, actuators, and torque ratings. A rotating valve often fits this pattern.
Measure handle movement, actuator travel, and bonnet removal space. Pipe diameter alone is not enough.
Abrasive media can mark seats, especially during partial opening. Contamination may reverse the expected preference.
No. A lower purchase price may bring longer maintenance, extra clearance, or difficult replacement work.
Check pressure, temperature, fluid cleanliness, sealing materials, connections, leakage limits, and service frequency.
Not always. A field test with the actual medium may reveal vibration, abrupt control, or access problems. That choice still needs review.
Choosing the right valve starts with understanding the design and operating differences between ball valves and gate valves. Ball valves use a rotating ball to provide quick, reliable shutoff and are generally well suited to frequent operation. Gate valves move a wedge or gate vertically and are typically selected for full-open or full-closed service where minimal flow resistance is important. When considering how to choose between a ball valve and a gate valve, evaluate whether the system requires simple isolation, occasional throttling, or regular flow adjustment, since neither valve should be used outside its intended control function.
Pressure, temperature, fluid characteristics, installation space, maintenance access, durability, and total cost should also guide the decision. Consider the media’s cleanliness, corrosion potential, viscosity, and operating conditions, as well as the available room for valve movement and future servicing. A practical choice balances performance, safety, service frequency, expected lifespan, and budget. By comparing these factors with the system’s actual requirements, users can select a valve type that delivers dependable operation and efficient long-term maintenance.
